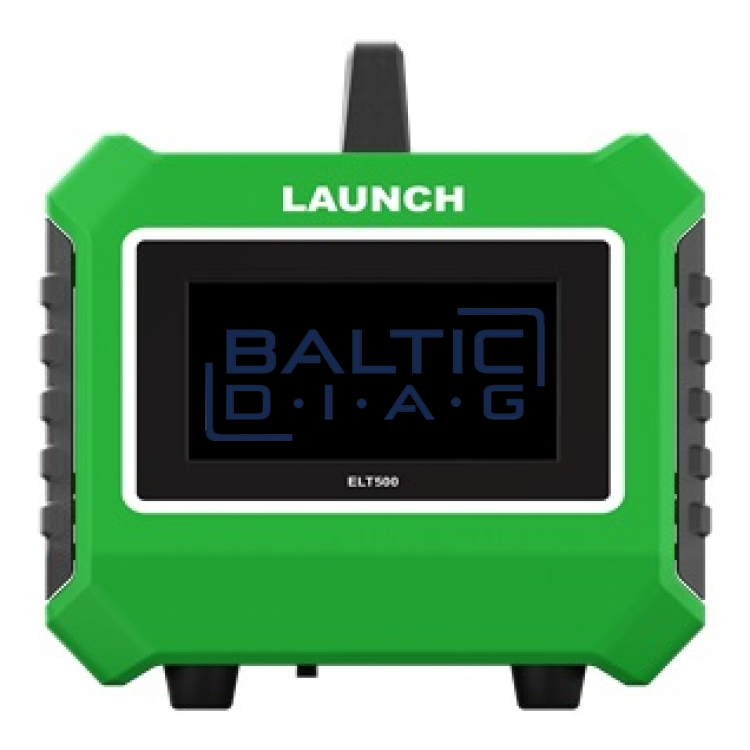

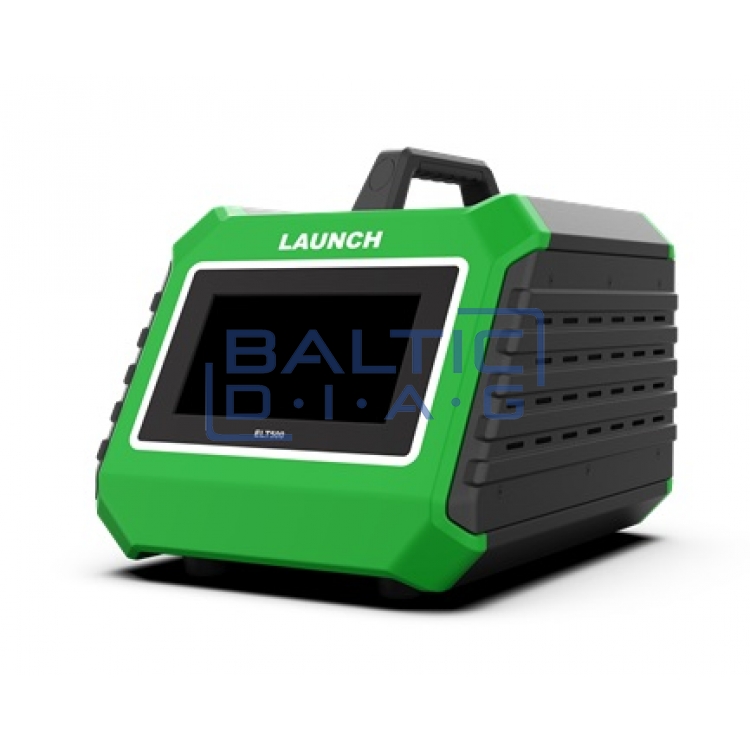

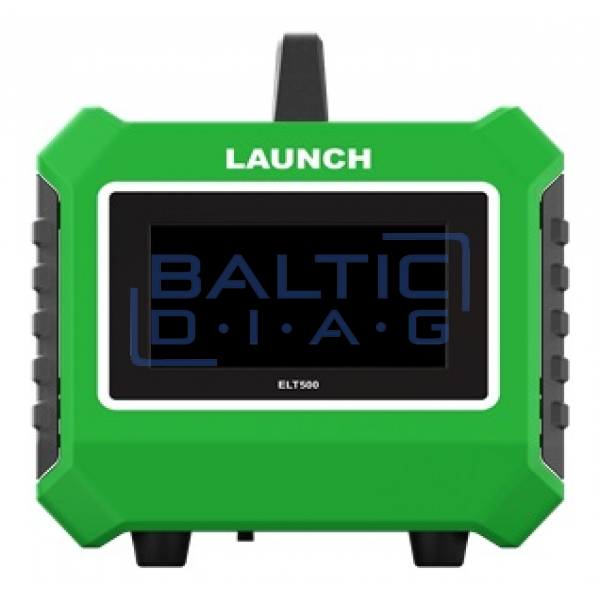

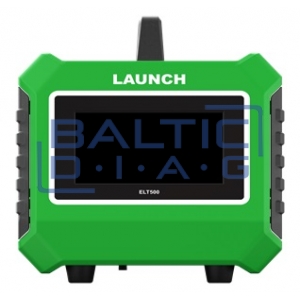

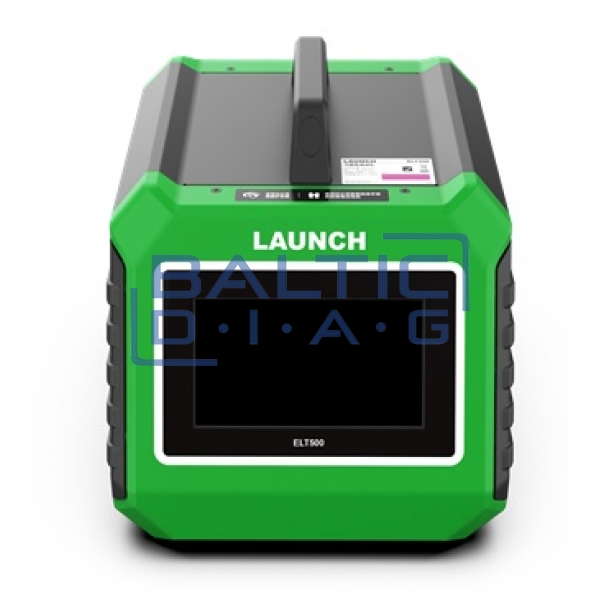

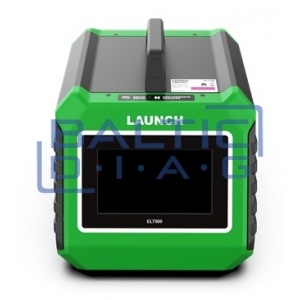

Launch ELT500 EV battery leak test device for electric car batteries

Launch ELT500 EV battery leak test device for electric car batteries

Features:

• After repairing HV batteries, an airtightness test of the HV battery must be carried out - this checks that the battery is leakproof.
• Features dual display functions of the pressure value such as real time display of the pressure scale and process pressure curve display
• Pressure range of 2.0-500 kPa possible

Working diagram:

Technical parameters:

• Supply voltage: 230V, AC, 50/60Hz
• Power: maximum 20W
• Required air source: 0.1 ~ 1 MPa dried compressed air

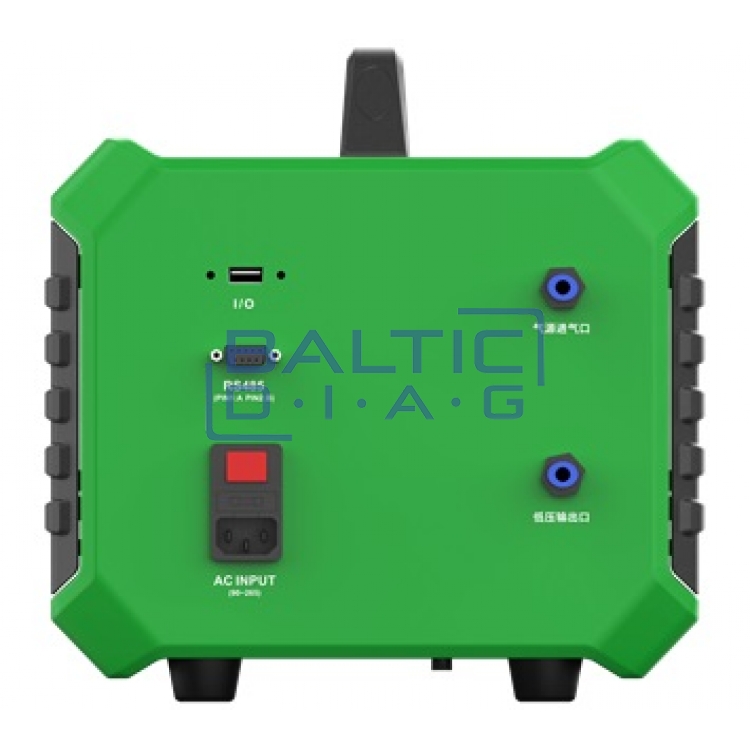

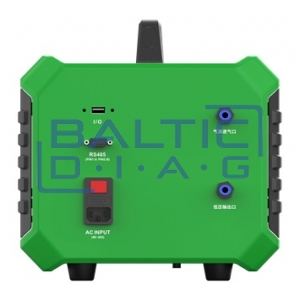

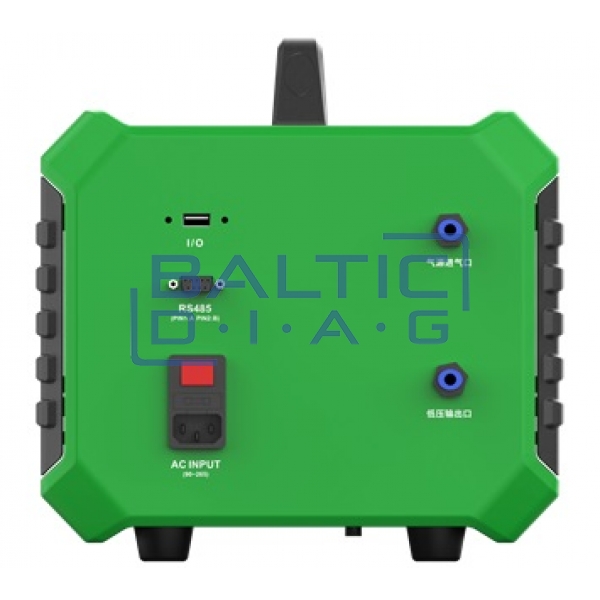

• Air inlet connection: Ø 6mm air connection
• Test input: Ø 6mm air connection
• Testing pressure range: 0 ~ 30kPa
• Sensor resolution: 1Pa
• Testing accuracy: ± 5Pa
• Communication input: RS232, USB
• Data saving method: internal memory, USB
• Dimensions: 280 x 276 x 360 mm
• Weight: 4.5 kg
• Operating temperature: from -10°C to +55°C
