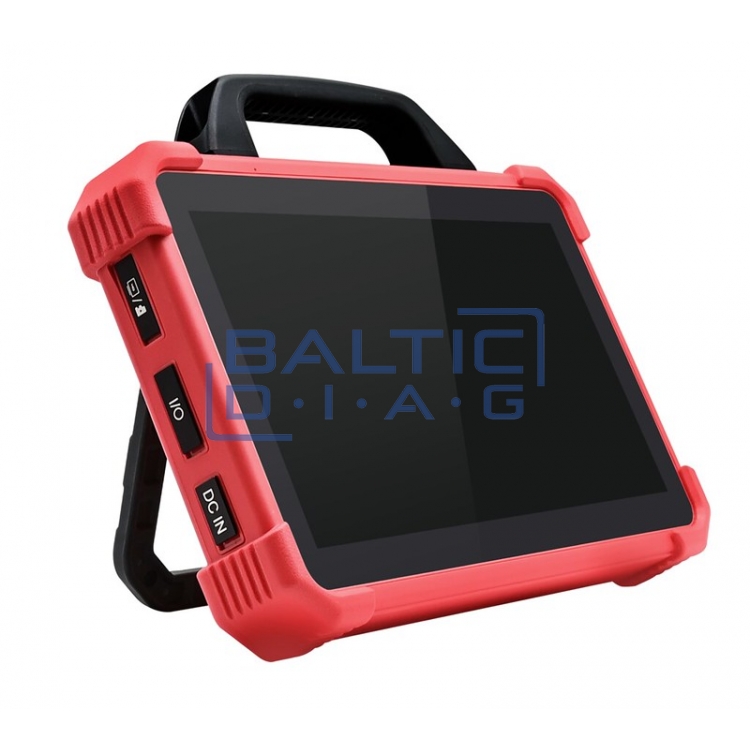

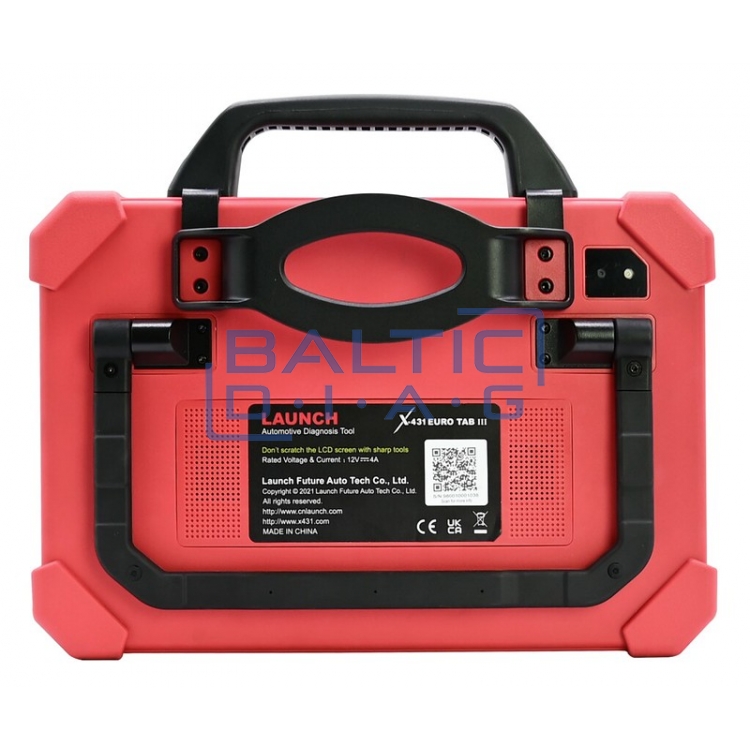

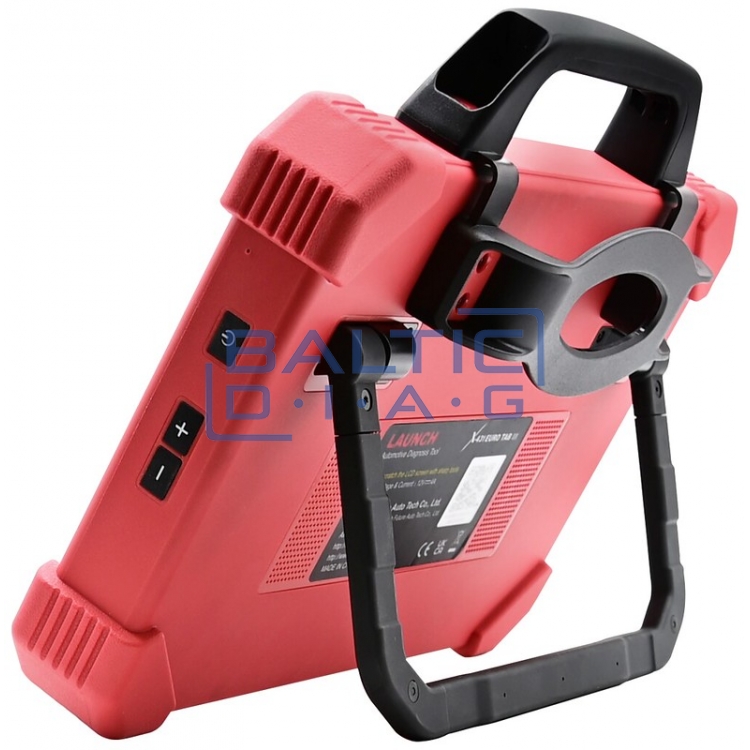

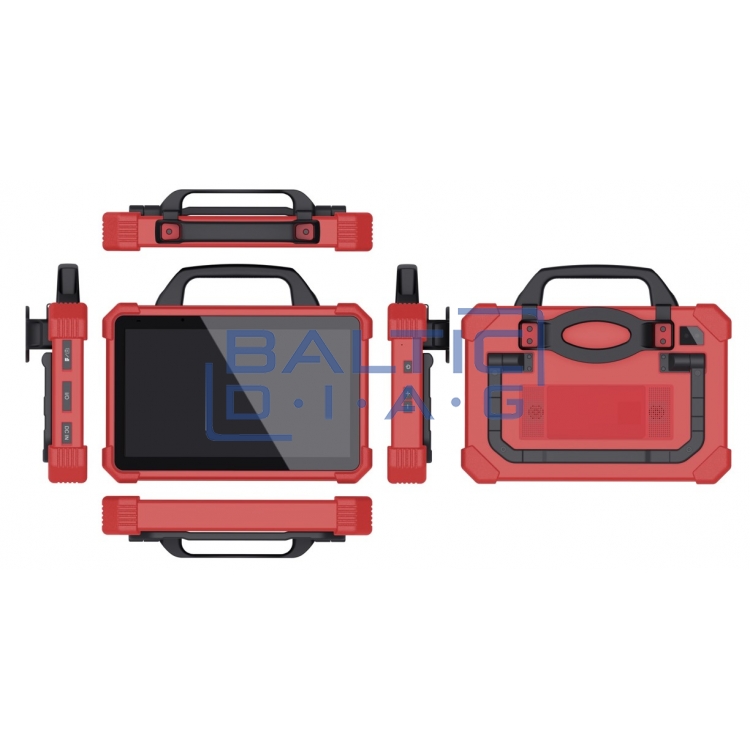

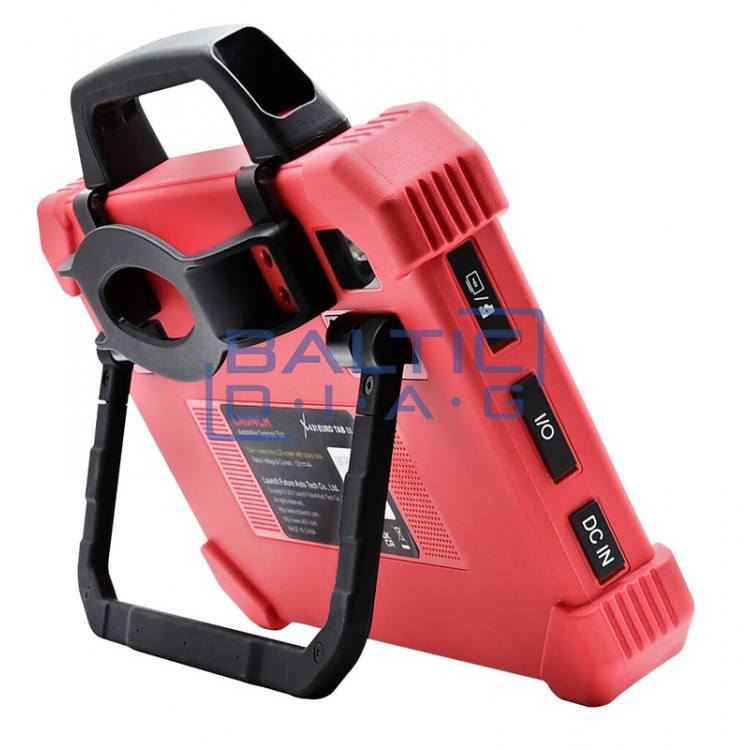

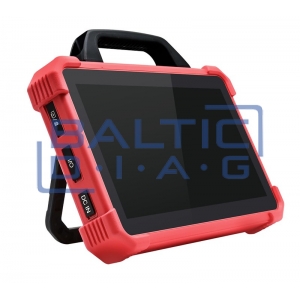

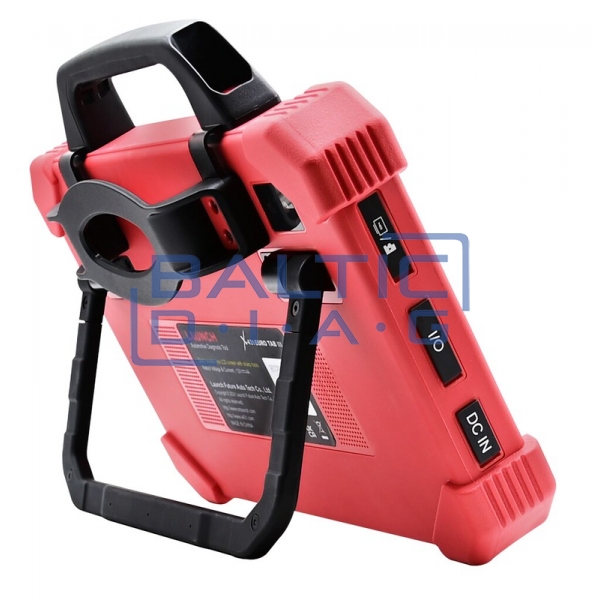

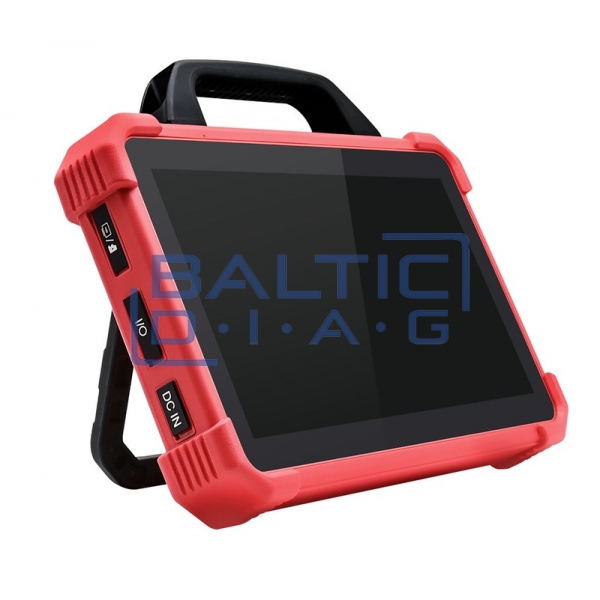

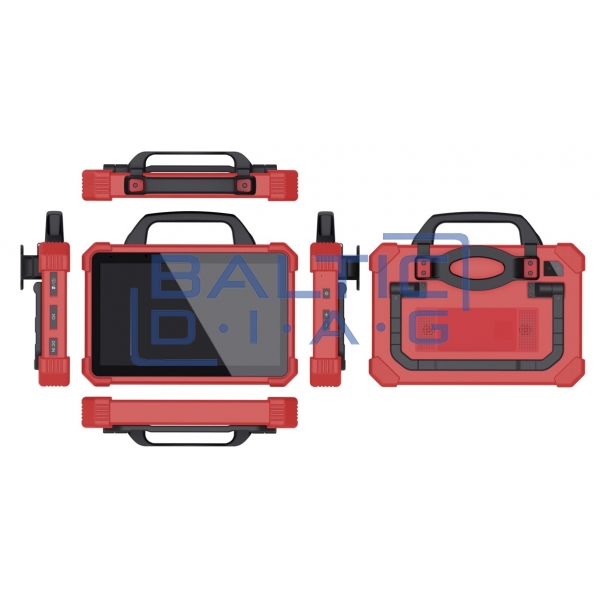

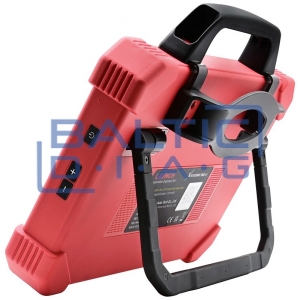

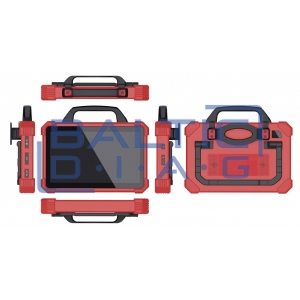

Universal diagnostic equipment Launch X-431 Euro Tab III

Manufacturer: Launch, Germany

1 year free updates + 1 year LAUNCH electronics database

Launch diagnostic X-431 EURO TAB III works with Android 9 system, is the latest diagnostic device of X-431 series and the latest professional series vehicle diagnostic device developed by LAUNCH. It reflects all the technology and diagnostic advantages of the previous X-431 EURO TAB II model, such as wide coverage of car models, powerful testing function, abundant special functions, accurate test data and more. The new diagnostic tool is integrated with a Guided Diagnosis feature known as the LAUNCH Electronic Database, which works with HaynesPro to help diagnosers in their daily work.

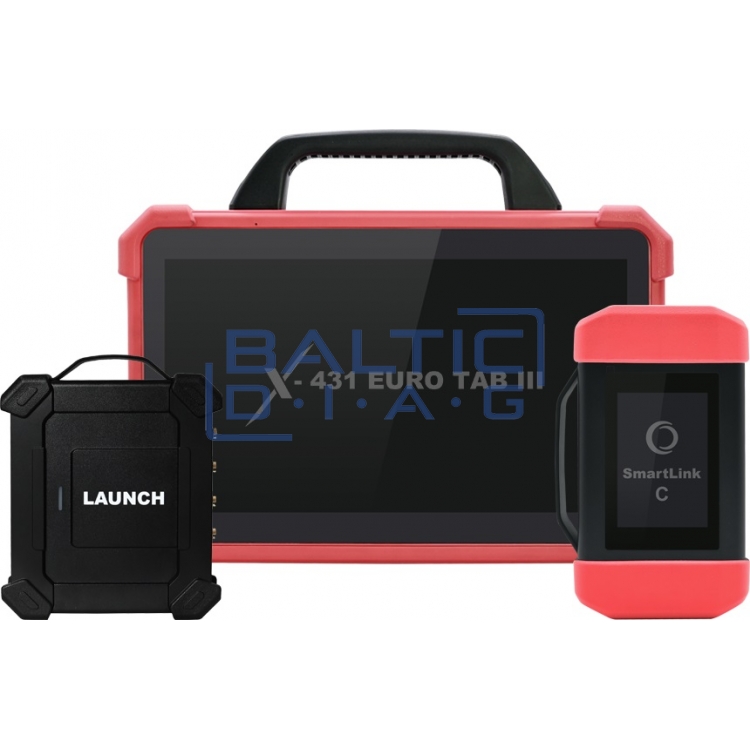

The package includes Smartlink C as standard VCI, supported with LAUNCH Super Remote Diagnosis System (SRDS), DoIP, PassThru and the option to expand the unit with HD Truck software, which can be purchased separately. The kit includes the new LAUNCH O2-1 ScopeBox for sensor testing, a 13.3" HD display, a newly designed APK interface for more practical functions, and all necessary cables and accessories.

LAUNCH SRD consists of SmartLink C, SmartLink B and Smartlink platform. SmarLink C can be connected to the vehicle and SmartLink B to any diagnostic device. Remote diagnostics will be performed via the Smartlink platform. In order to activate the SRD, you need to additionally purchase an activation card.

How it differs from the previous X-431 Euro TAB II:

• The new device is complete with an O2-4 oscilloscope module
• Kit includes TSGUN & 4pcs TPMS Sensors
• The new device supports remote diagnostics
• X-431 Euro TAB II screen 10.1", and the new X-431 Euro TAB III 13.3"
• X-431 Euro TAB II memory 4GB/64GB, while the new one has X-431 Euro TAB 8GB/256GB
• Operating system: X-431 Euro TAB II - Android 7, X-431 Euro TAB III - Android 9

Service features:

• Electric parking brake
• Oil change function
• Steering angle sensor calibration
• Battery tethering
• Brake release system configuration
• DPF functions
• Coding of nozzles
• Throttle valve calibration
• Functions of the tire pressure monitoring system
• Crankshaft Position Sensor Calibration
• IMMO
• Calibration of adaptive driving lights
• Window adjustment reset
• Skylight programming
• Chassis calibration
• Exhaust gas recirculation
• Adjusting the fuel mixture
• AdBlue reset
• Coolant ventilation calibration
• Nitrous oxide sensor reset
• Driver seat memory programming
• Start-Stop Reset
• Transport mode calibration
• Tying of tire diameter - odometer
• Transmission adaptive value reset
• Menu language programming
• DPF regeneration
• Cruise control system programming
• Maintenance of the air conditioning system
• Engine angle calibration
• Engine power balance monitoring
• Battery diagnostics

Technical data:

• Operating system: Android 9.0
• Processor CPU: 2.0 GHz, 8 cores
• Screen: 13.3", 1920 x 1180 mm
• Internal memory: 8 GB
• Capacity: 256GB, supports SD card up to 128GB
• Wi-Fi: 2.4 GHz / 5 GHz
• USB: Yes
• Bluetooth: Yes
• Battery: 9360 mAh, 7.6 V, 71.1 Wh
• Camera: 8 MP Front, 16 MP rear
• Dimensions: 353 x 236 x 71 mm

SmartLinkC Appendix:

• Supports passenger and commercial vehicles
• Remote diagnostics
• Compatible with DoIP
• PassThru J2534, D-PDU, RP-1210
• Routine diagnostics

J2534 Pass-Through integrated for online programming:

In order to use J2534 features, the user needs to download the corresponding tool installation package from Launch's official website. Users can purchase a diagnostic program from the original manufacturer and use it with the Launch device.

J2534 original firmware:

• Toyota/Lexus original program Techstream test;
• GM original program General Motors GDS2 test;
• Honda/Acura original program HDS (Honda Diagnostic System) test;
• Volkswagen/Audi original program ODIS test, Offboard diagnostic interface configuration;
• Land Rover/Jaguar RandLover/JLR original program SDD test
• VOLVO's original VIDA test program, car information and after-sales diagnostics;
• Subaru original program SSM4 test.

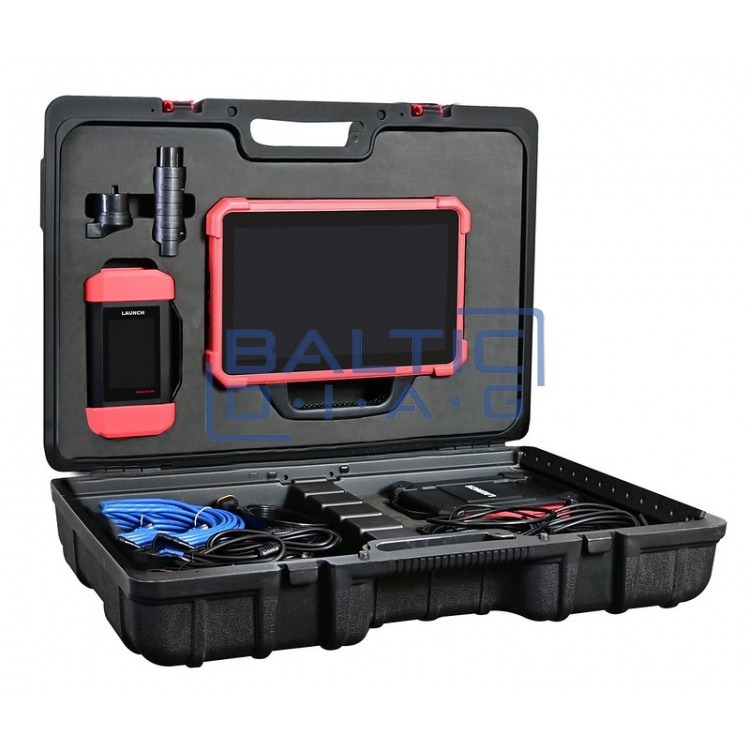

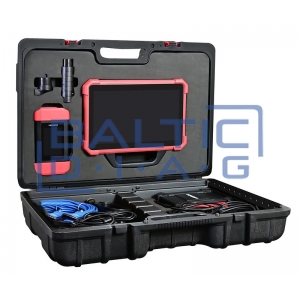

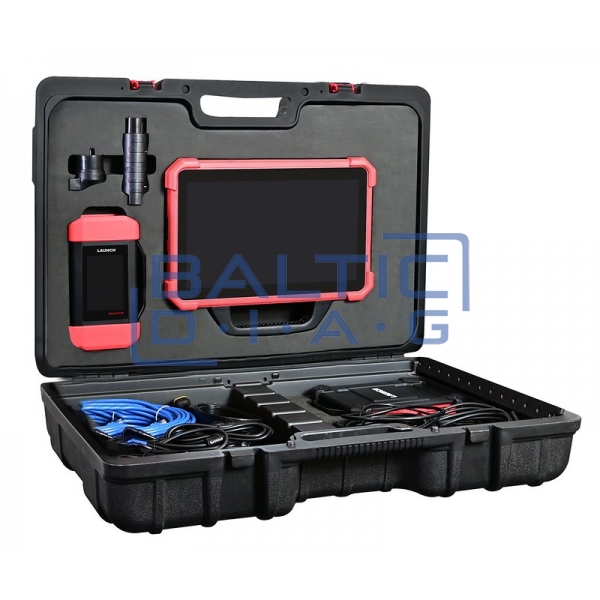

Complete set:

• X-431 EURO TAB III device
• SmartLink C adapter
• DBScar, BENZ-38 diagnostic connector
• DBScar, BENZ-14 diagnostic connector
• DBScar, BENZ-20 diagnostic connector
• MINI-HDMI 1m
• DBScar, OBD I adapter BOX
• Terminals for the battery
• Cigarette socket switch
• Type A USB to Type C USB cable, 1 m
• SmartLink C cable, 1 m
• Extension cable, blue, 15 m
• USB cable Type A to USB Type B, 1.2 m
• Charger
• Fuse, AC250V / 5A, φ 5 * 20MM
• Fuse, AC250V/5A 6*30mm
• TSGUN - module
• TSGUN - TPMS sensor

O2-1 Scopebox:

• O2-1 oscilloscope module
• HT201 attenuator (extended metal BNC connector)
• Four Channel Oscilloscope Multimeter Probe Head (Red)
• Four Channel Oscilloscope Multimeter Probe Head (Black)
• Crocodile Chuck Four Channel Oscilloscope (Red)
• Crocodile Chuck Four Channel Oscilloscope (Black)
• Needle set (colored 4mm female+20 needles+2 screws)
• HT25 secondary ignition assembly line (long metal BNC connector including plastic tail)
• HT30 test line (long metal BNC connector including plastic tail)
