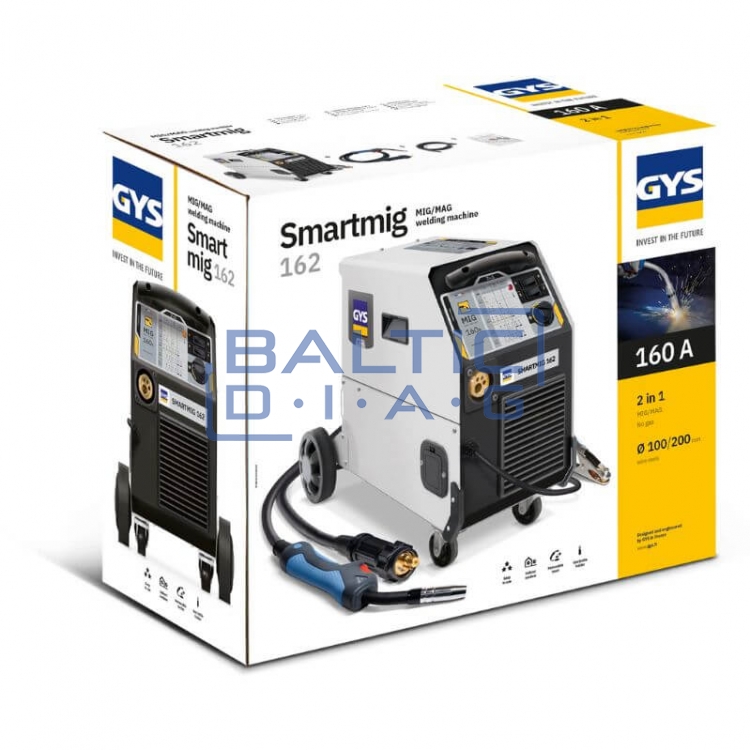

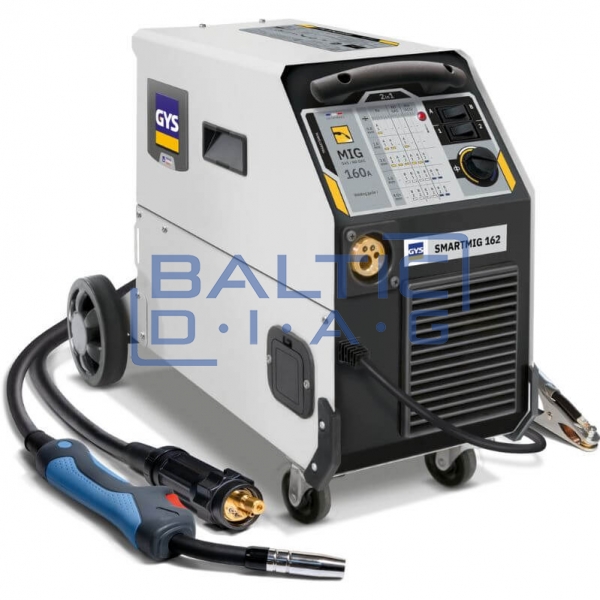

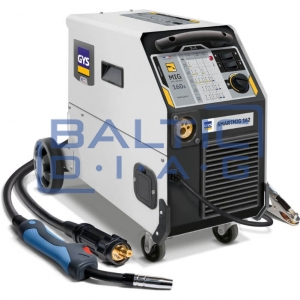

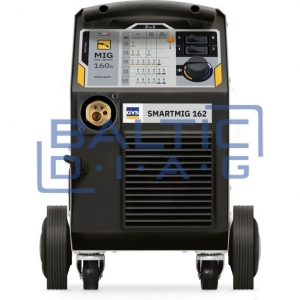

Semi-automatic welding machine SMARTMIG 162 MIG/MAG GYS

Semi-automatic Welding Machine SMARTMIG 162 MIG/MAG GYS

Features:

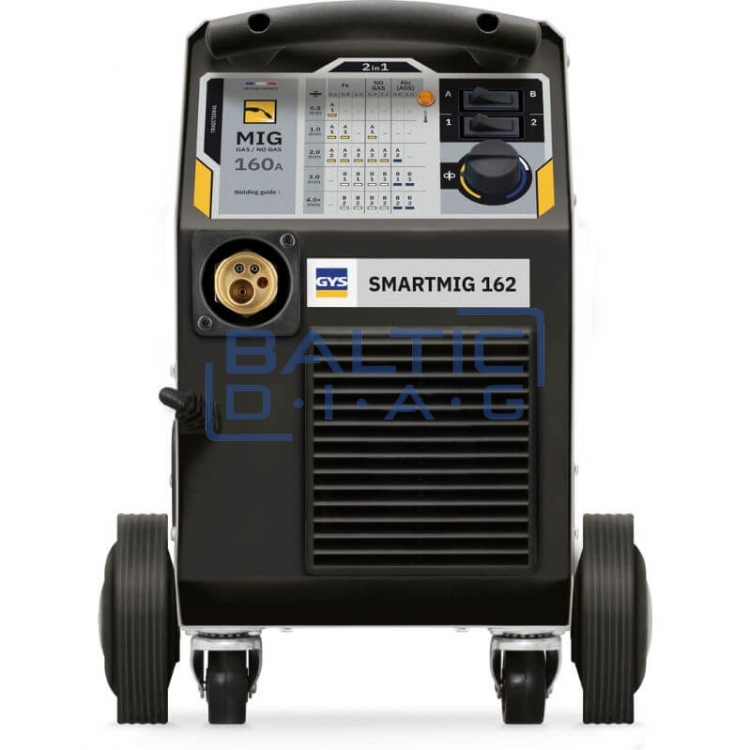

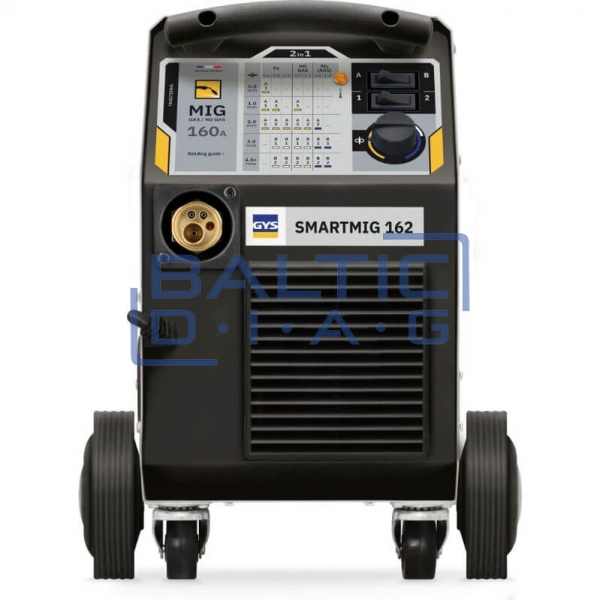

• The SMART control panel allows for quick adjustment of appropriate settings based on the wire type, diameter, and metal thickness.
• Suitable for use with shielding gas (MIG/MAG) or without gas (NO GAS mode using flux-cored wire).
• EURO-type torch connector – convenient torch attachment, easy maintenance, and transportation.
• Operates from a standard household 230 V / 16 A power supply.
• Low current consumption – suitable even for weaker electrical installations.
• Compatible with 1 kg (100 mm) and 5 kg (200 mm) wire spools.
• Powerful 40 W wire feeder motor ensures stable and consistent wire feed.
• Continuously operating fan efficiently protects against overheating.

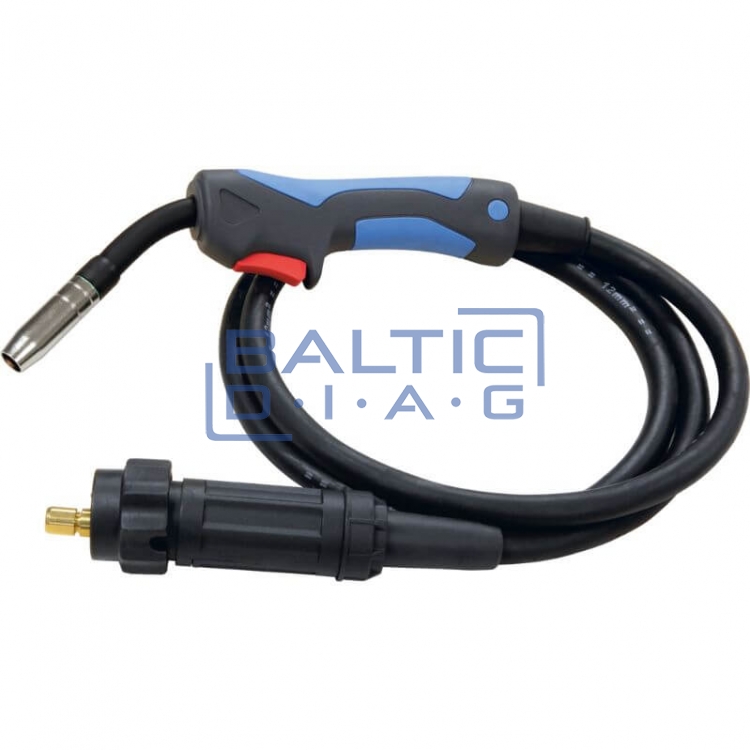

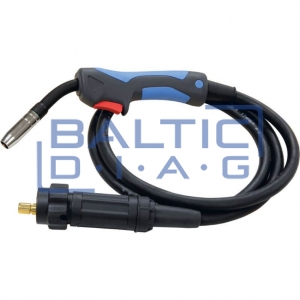

• Supplied with a grounding clamp and 2 m EURO torch cable.

Technical Specifications:

• Power supply: 230 V, 1~ / 50–60 Hz
• Protection: 16 A
• Welding current range: 30–160 A
• Wire diameter (with gas): 0.6–1.0 mm
• Wire diameter (without gas): 0.9–1.2 mm
• Wire spool sizes: 100 mm / 200 mm
• Torch connector: EURO
• Rated working current (60%): 70 A
• Maximum current (20%): 115 A
• Open-circuit voltage: 25.5–40 V
• Dimensions (L×W×H): 55.5 × 46 × 25.5 cm
• Weight: 28 kg
• Power: 5 kVA
• Overheat protection
• Suitable for use with a generator (voltage fluctuation tolerance ±15%)
