Mobile mid-rise scissor lift for vehicles BD-S2
- SKU: BD35000
1,694.00 €
2,178.00 €
Send Message
Description

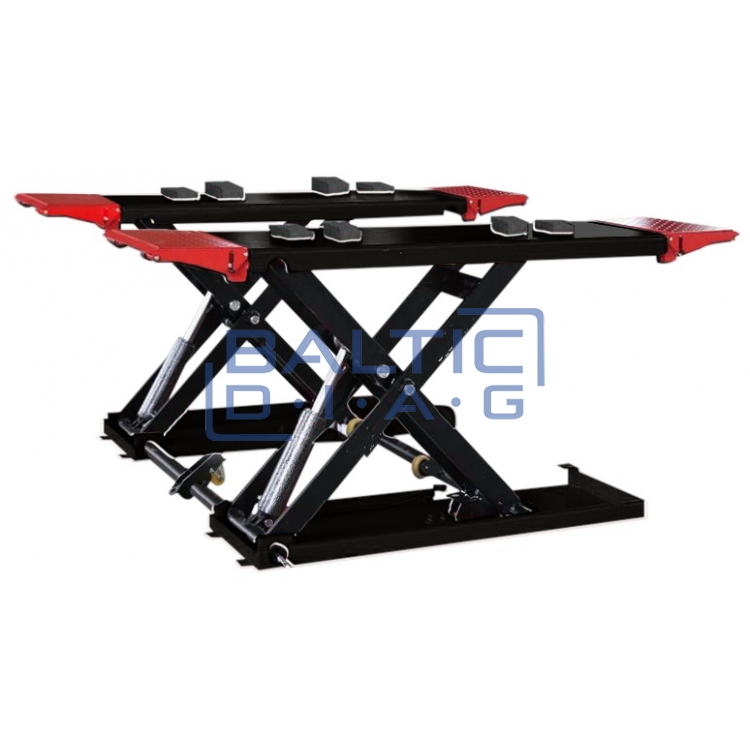

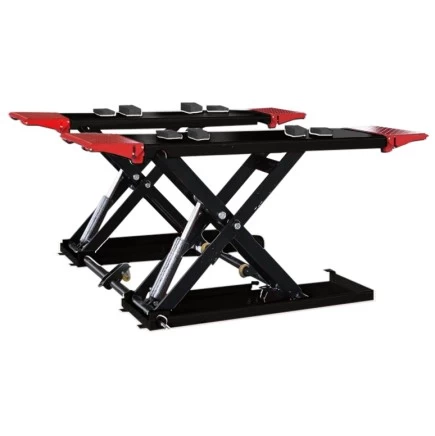

Mobile Mid-Rise Scissor Lift for Vehicles BD-S2
Country of origin: China, warranty period - 24 months

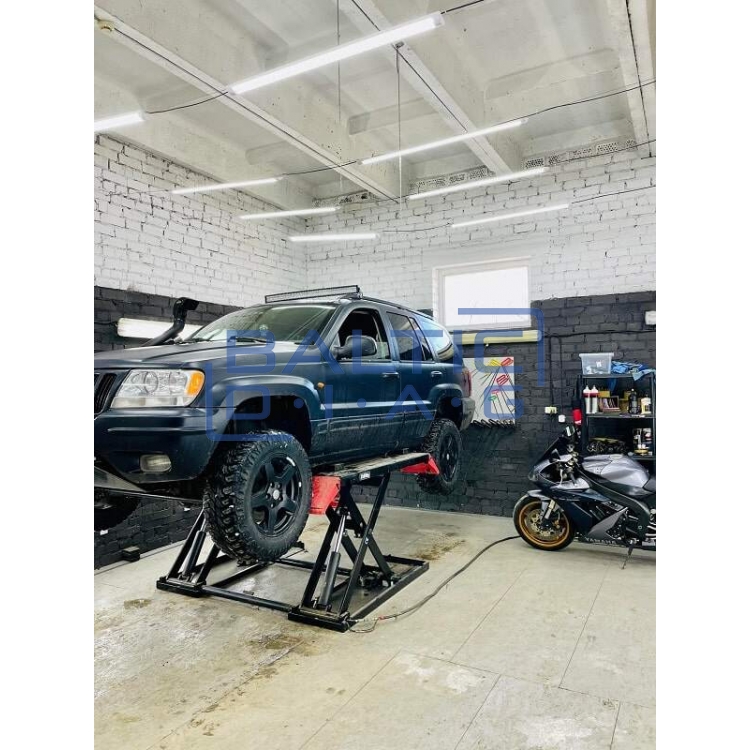

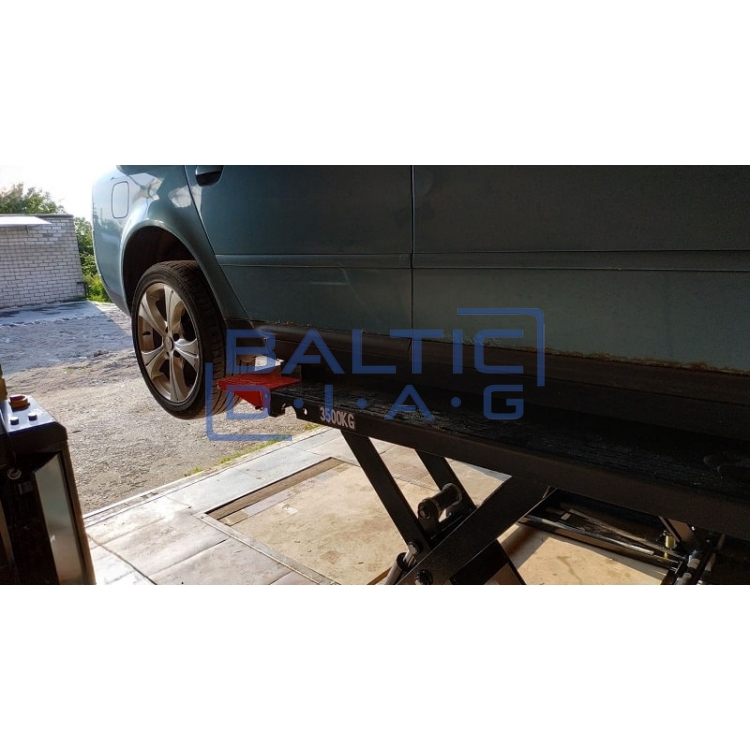

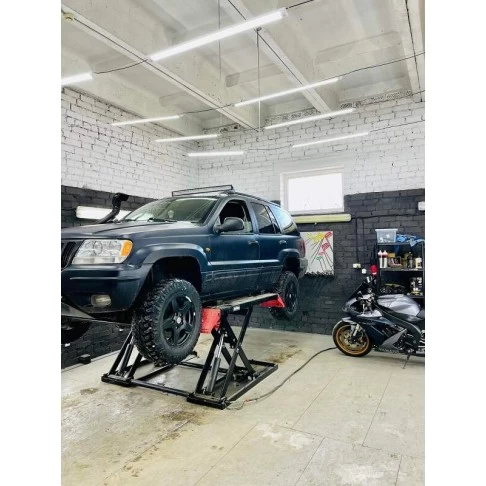

The BD-S2 mobile mid-rise scissor lift is a reliable and practical solution for quickly and conveniently lifting various types of vehicles. This lift allows for easy lifting of passenger cars, SUVs, and other types of vehicles while maintaining the benefits of mobility. Due to its compact design, it is ideal for workshops with limited space, providing the flexibility to move the lift to the desired location easily. The low lifting height ensures stability and ease of use, while the robust construction guarantees long-term reliability.
Features:
- Easy operation – can be placed on any surface without additional anchoring.
- Automatic lifting and lowering – controlled with the push of a button.

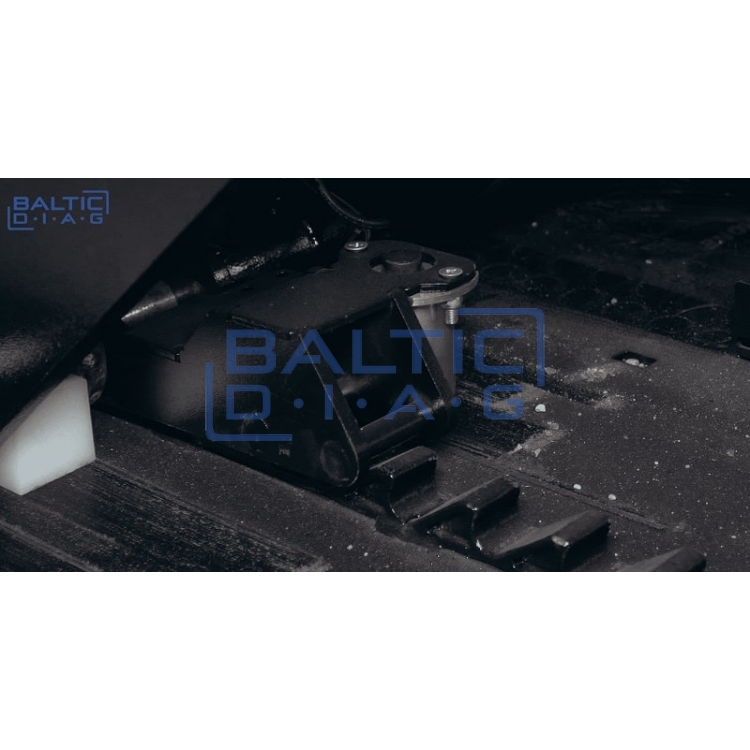

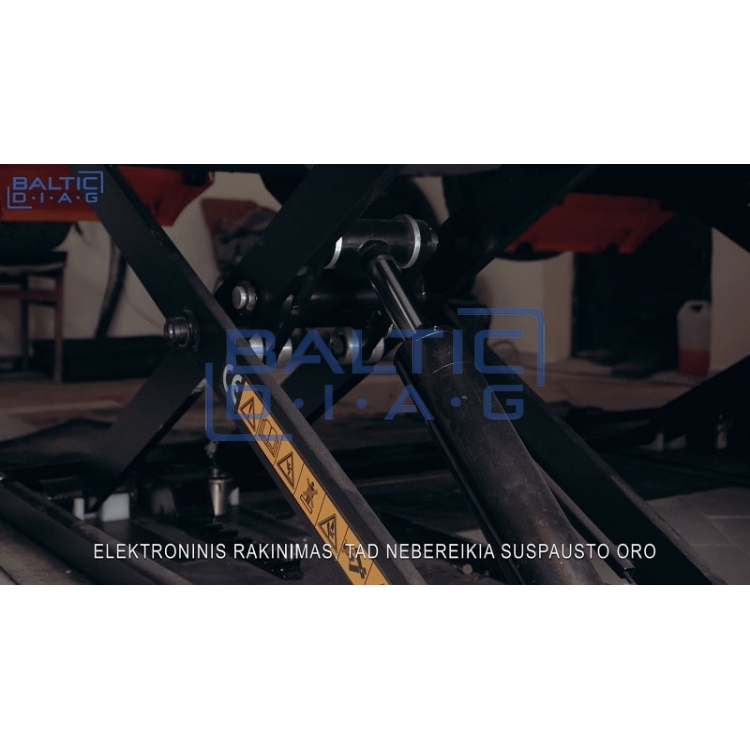

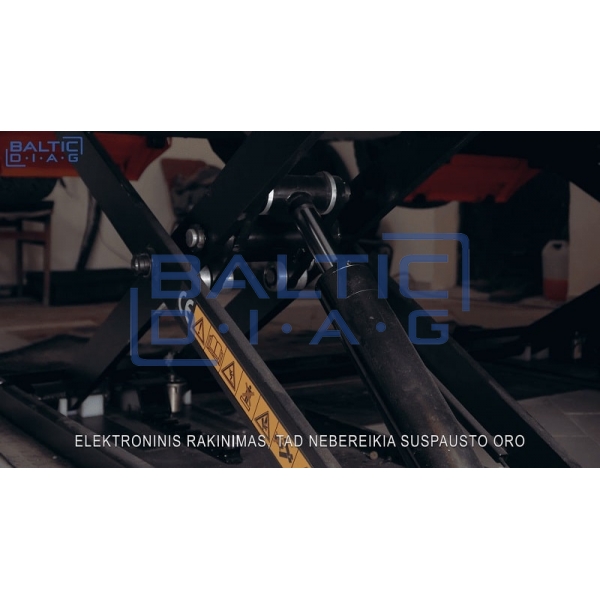

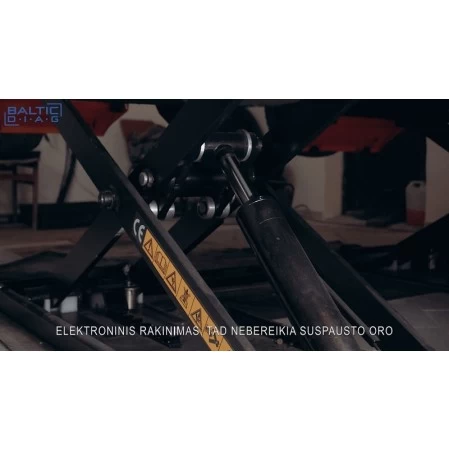

- Electronic locking system – does not require compressed air.
- Choice of power supply – compatible with either a 380V 3-phase or 230V 1-phase electrical network.
- Minimal floor quality requirements – suitable for various surfaces.
- Electric safety lock release – ensures enhanced safety.
- Suitable for painting, bodywork, brake maintenance, and tire servicing.
- Compact structure – takes up minimal space in the workshop.

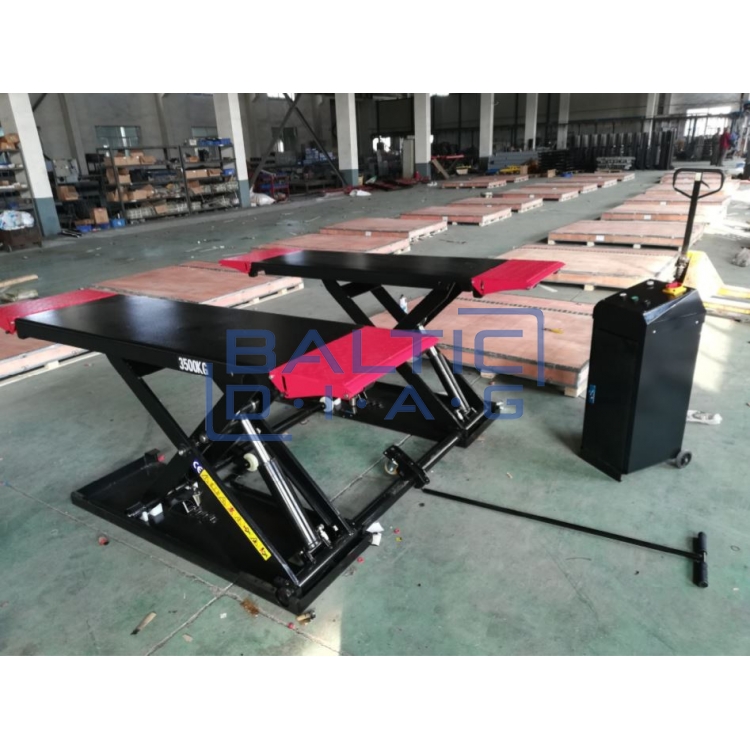

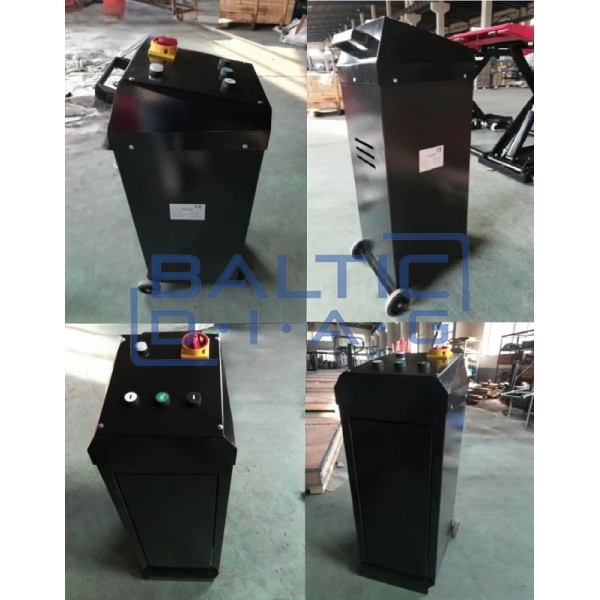

- Includes an electric control unit.

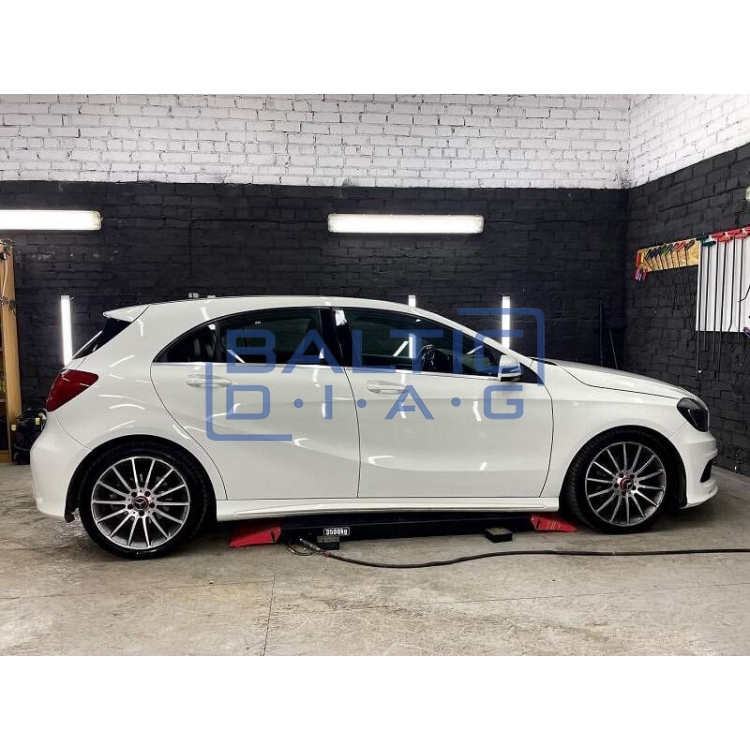

- Unrestricted access to vehicle doors – enables more convenient servicing.
- Lockable drive-on ramps – expand the range of supported vehicles.
- CE certification – meets safety and quality standards.
- Ascent Assist system – provides full lifting power from the 0 position, making it ideal for low-profile vehicles.
- Front and rear ramp lifting capacity: 3000 kg.
- Includes 8 rubber pads (4 pcs. – 118 x 100 x 50 mm; 4 pcs. – 118 x 100 x 25 mm).

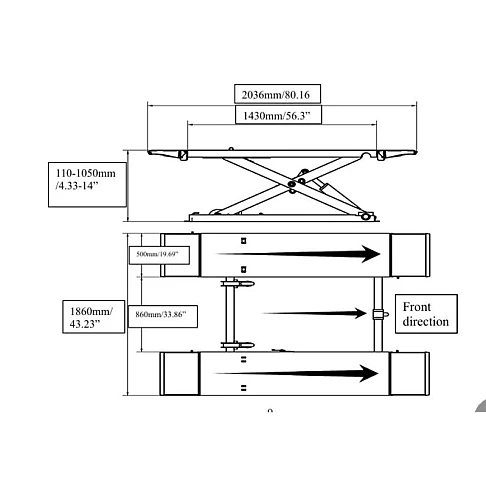

Technical Specifications:
- Lifting capacity: 3500 kg
- Electric safety lock engagement

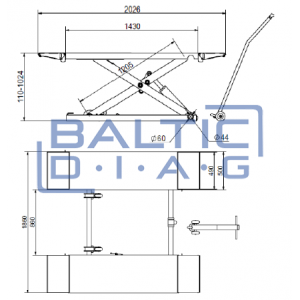

- Lifting height: 1050 mm
- Lifting time: 60 - 65 sec.

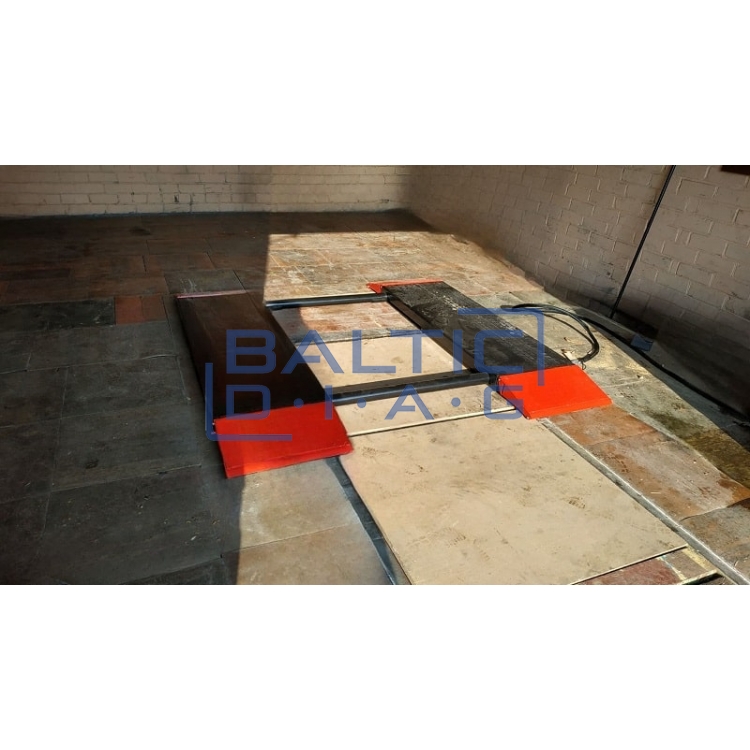

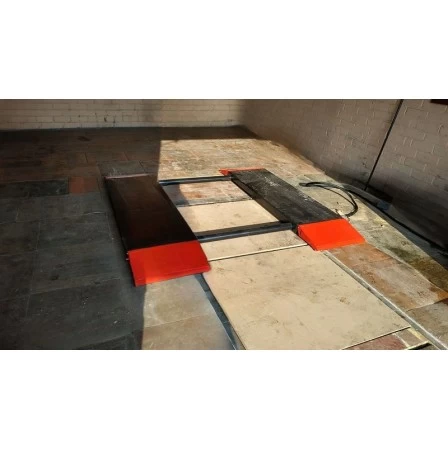

- Minimum height: 110 mm
- Lowering time: 55 - 60 sec.

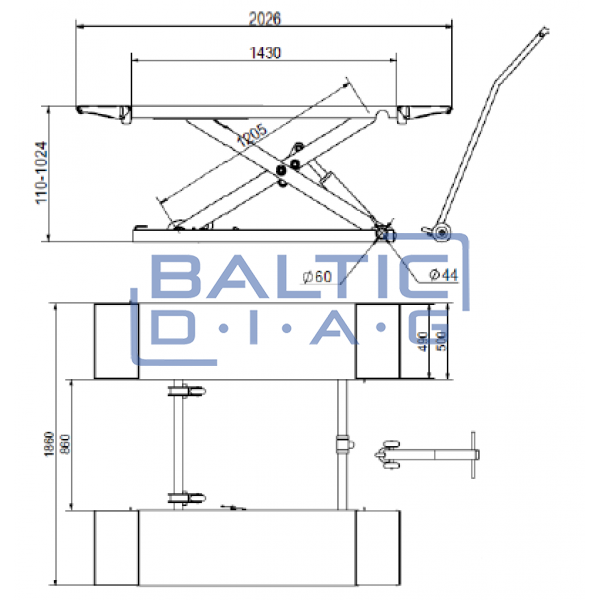

- Overall width: 1860 mm
- Platform width: 500 mm
- Platform length: 1430 mm (2036 mm with ramps)
- Distance between platforms: 860 mm
- Motor power: 2.2 kW
- Power supply: 380V 3-phase or 230V 1-phase (optional)
- Package dimensions: 1600 x 1950 x 120 mm (control unit: 440 x 380 x 950 mm)
- Weight: 595 kg
