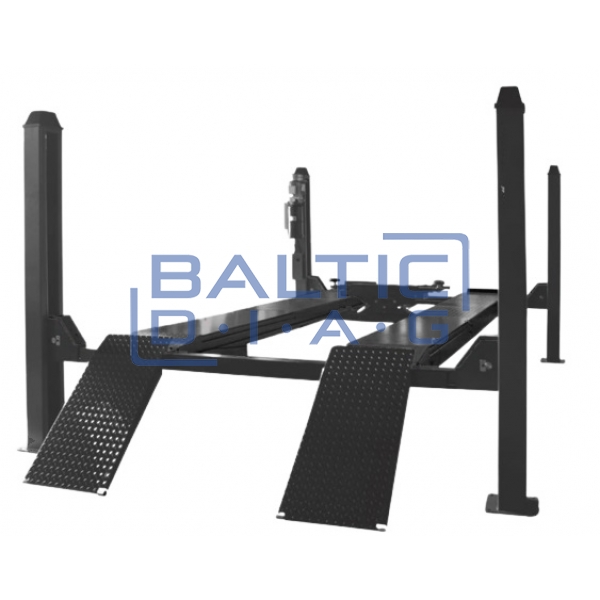

Four post lift wheel alignment ready 5 ton BD-5AL
In stock
-8%
3,993.00€
4,356.00€
Ex Tax: 3,300.00€
- Manufacturer:: BALTIC DIAG
- SKU: BD38540
Prices include VAT
Want to buy or learn more?
Fill out the inquiry form

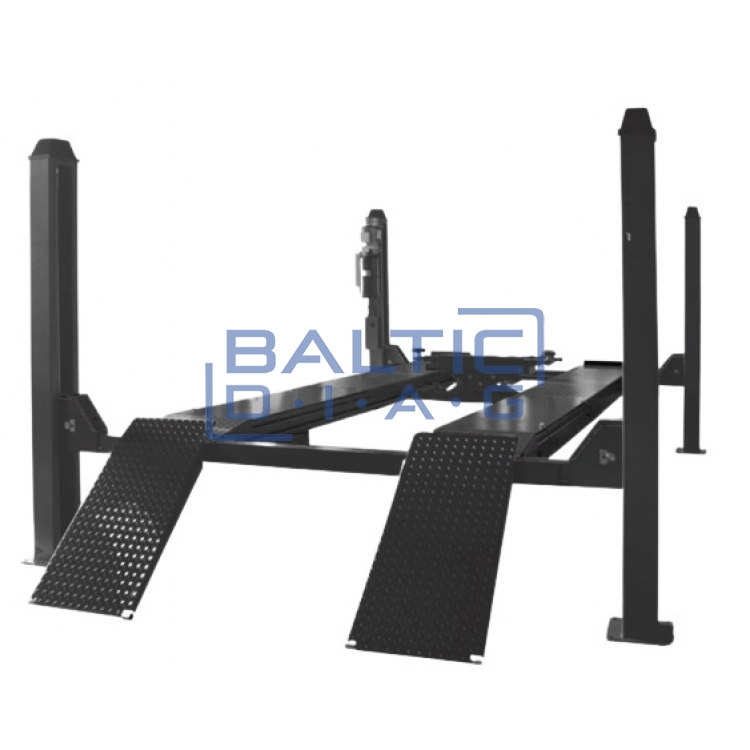

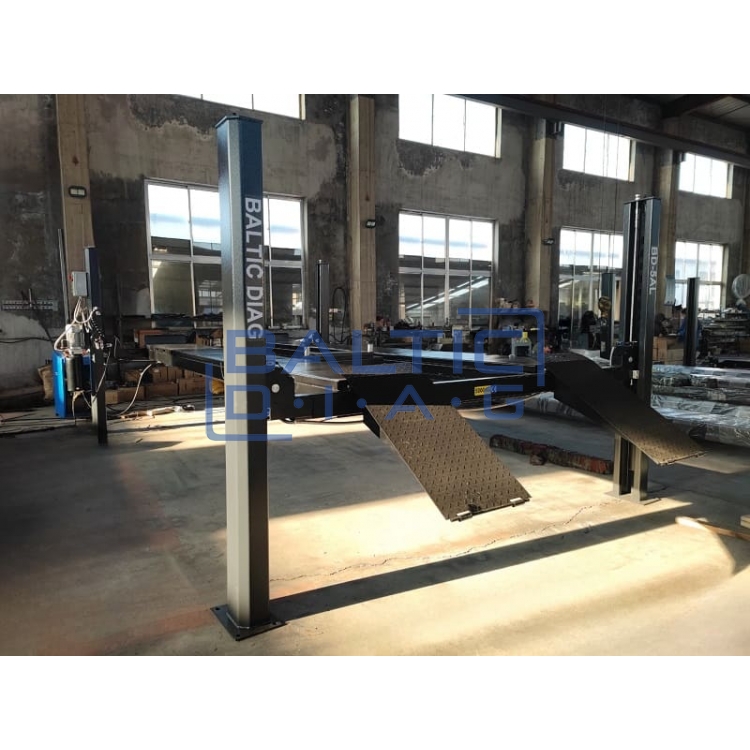

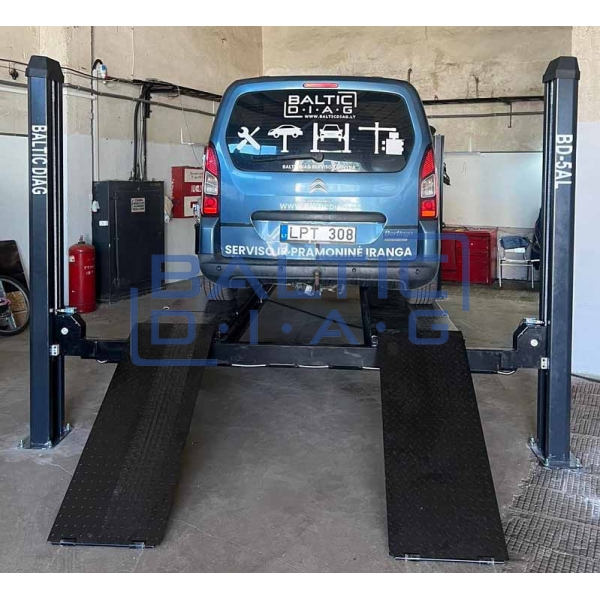

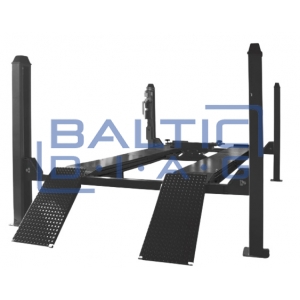

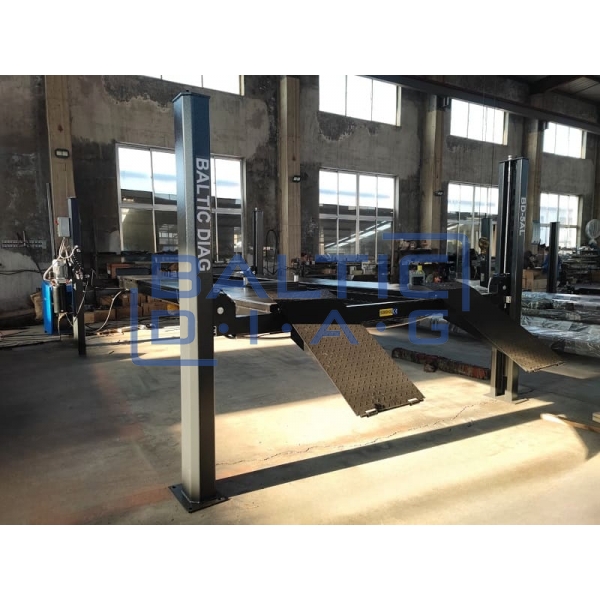

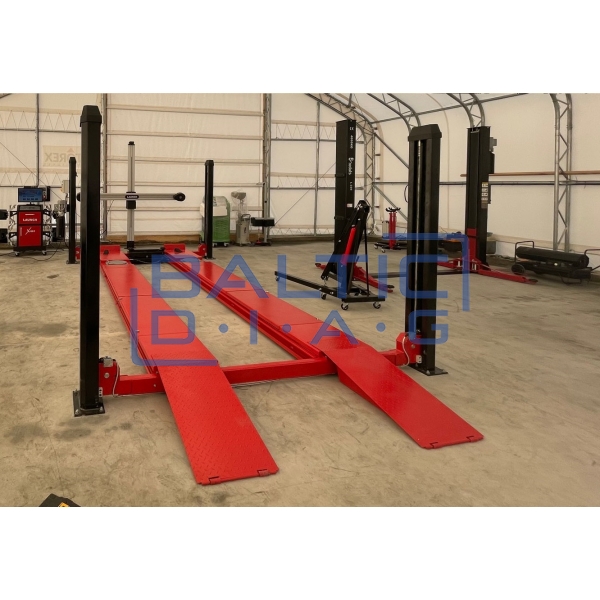

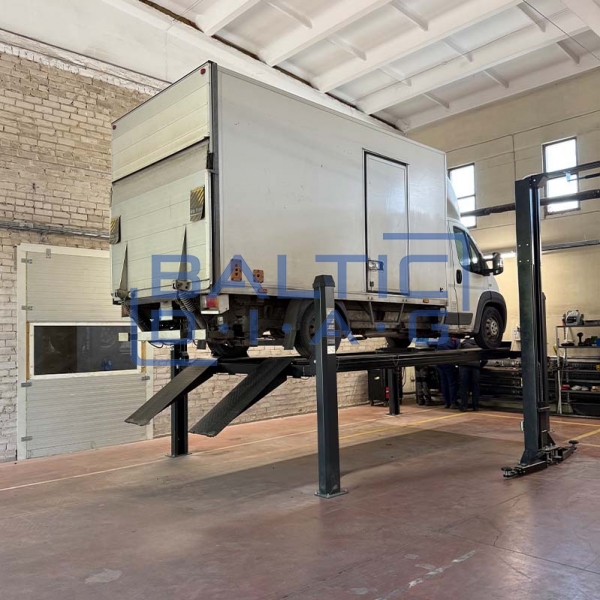

Four-post lift for wheel alignment, 5 tons, BD-5AL
Country of origin: China, warranty period – 24 months

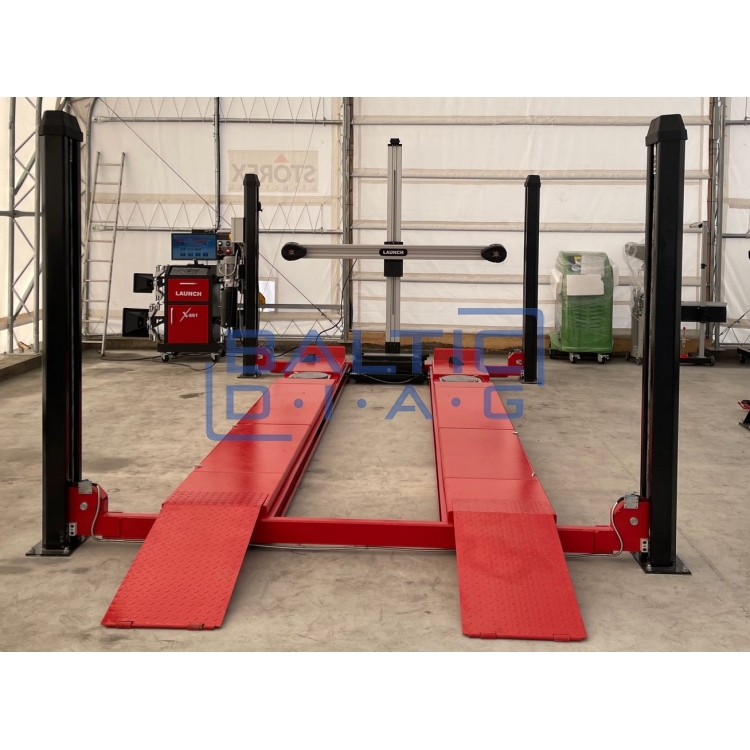

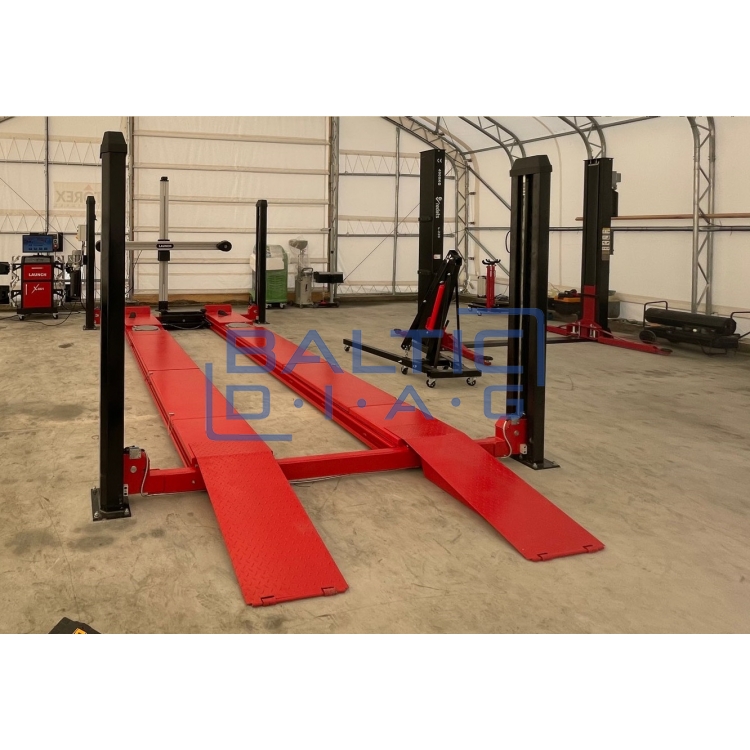

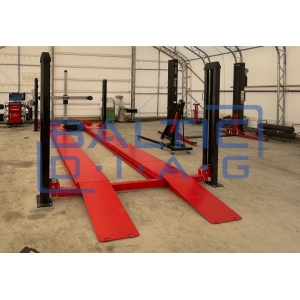

The BD-5AL is a four-post lift specifically designed for wheel alignment tasks, ensuring precise lifting and safe servicing of vehicles. The lift comes equipped with a 2.5-ton electrohydraulic axle jack and includes all essential features for efficient operation: integrated rear sliding plates, cut-outs for front turntables, and easy-access crossbeams that simplify maintenance. Its robust construction, safety cables with break protection, and aluminum motor ensure long service life and reliable performance. Ideal for workshops where wheel geometry accuracy is a top priority.
Features:

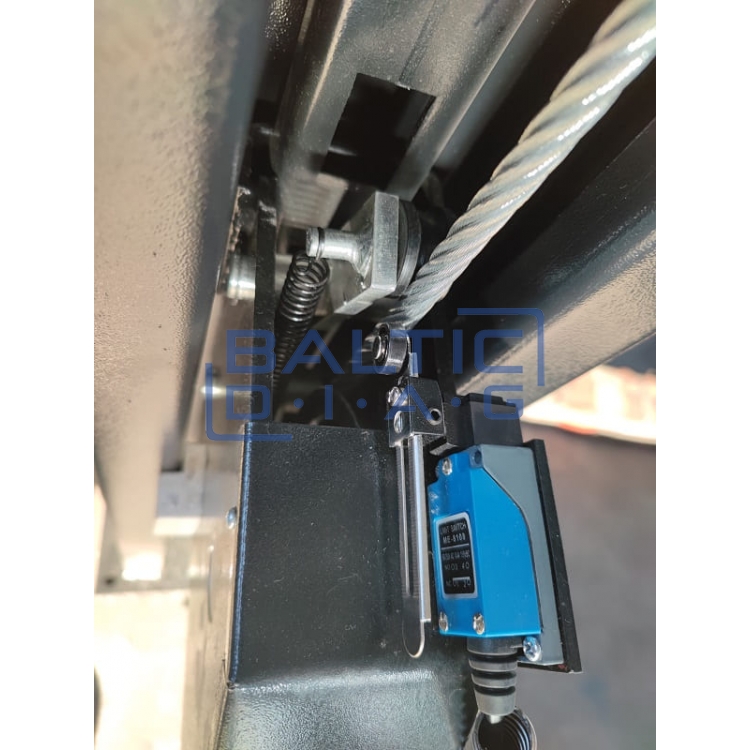

- Mechanical safety locking system
- 2.5-ton electrohydraulic axle jack included
- Sturdy steel construction for maximum stability
- Integrated sliding plates and cut-outs for front turntables
- Easy removal of crossbeams for simplified maintenance
- Safety cables with break protection
- Aluminum motor for efficient heat dissipation and long lifespan
Technical Specifications:
- Lifting capacity: 5000 kg
- Lifting height: 1800 mm
- Minimum height: 240 mm
- Lifting time: 40–50 s
- Power supply: 400 V / 3-phase / 50 Hz
- Motor power: 2.2 kW
- Total length (with ramps): 6235 mm
- Total width: 3363 mm
- Platform length: 5000 mm
- Platform width: 550 mm
- Distance between platforms: 880–1200 mm
- Lift weight: 1600 kg
- Color: RAL 7021 (Anthracite)
Included equipment:
- Drive-on ramps
- Sliding plates

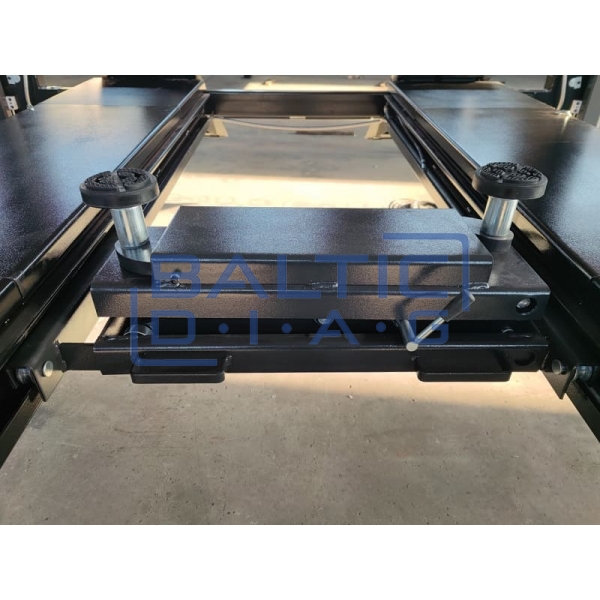

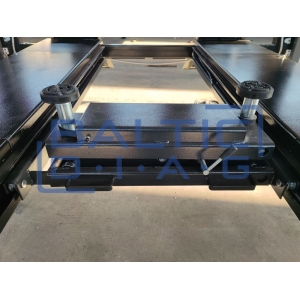

- Axle jack
- Lifting pads (for the axle jack)
- Mounting anchors
