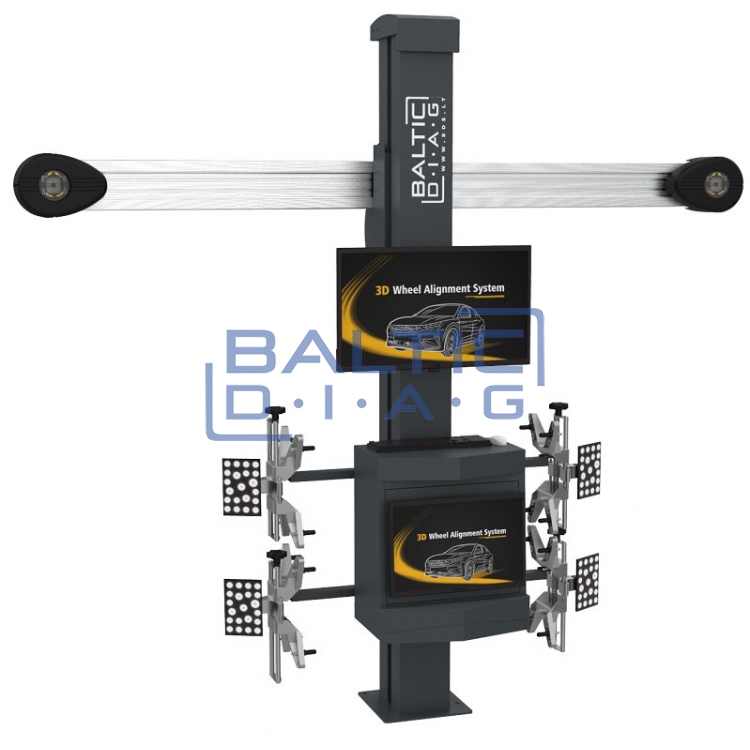

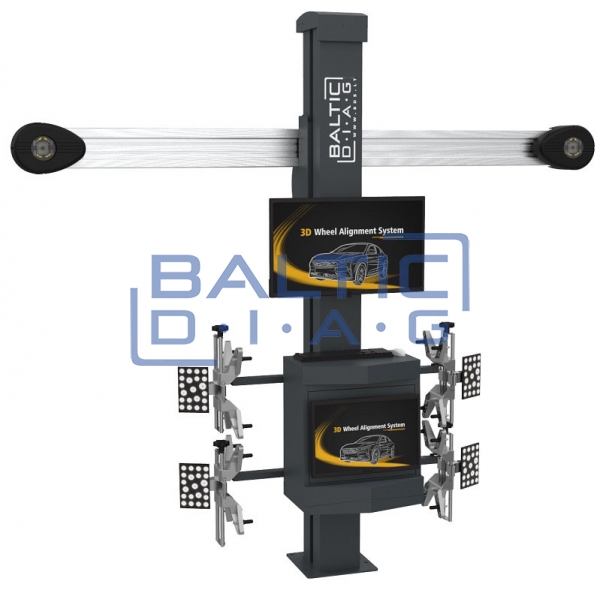

Wheel alignment stand with two screens BD-757DS

BD-757DS Dual-Screen Wheel Alignment Stand for Passenger Cars

Country of origin: China, warranty period - 24 months

The BD-757DS is a modern and reliable wheel alignment stand designed for the precise adjustment of passenger car wheel geometry. The device features two high-resolution screens, ensuring clear and convenient data visualization, allowing the operator to quickly and accurately perform wheel alignment tasks. The advanced 3D technology and automatically adjustable cameras guarantee high-quality results and an efficient workflow.

Features:

• High-resolution alignment cameras – ensure precise measurements
• Automatically adjustable camera height – adapts to the vehicle’s height
• Slim and highly accurate wheel alignment targets – enhance geometric accuracy
• Dual-screen data display – provides better visibility and usability
• Powerful and reliable computer – ensures a smooth workflow
• Ability to view data on a smartphone – convenient analysis and control
• Option to perform two-wheel or four-wheel alignment – flexible operation
• Reliable 3D wheel alignment technology – ensures maximum precision
• Training video tutorials – make equipment usage easier
• Free software database updates – always provides the latest vehicle data

Technical Specifications:

Measured Parameters:

• Toe angle: -40° / +40°
• Caster angle: -45° / +45°
• Camber angle: -45° / +45°
• Steering axis inclination (S.A.I): -45° / +45°
• Track deviation: -40° / +40°
• Axial wheel deviation difference: -40° / +40°
• Wheelbase distance: 2006 – 4572 mm
• Maximum wheel turning angle: -50° / +50°

Possible Measurement Errors:

• Toe angle: -0.01° / +0.01°
• Caster angle: -0.01° / +0.01°
• Camber angle: -0.02° / +0.02°
• Steering axis inclination (S.A.I): -0.02° / +0.02°
• Track deviation: -0.01° / +0.01°
• Axial wheel deviation difference: -0.01° / +0.01°
• Wheelbase distance: -2 mm / +2 mm
• Maximum wheel turning angle: -0.01° / +0.01°

Package Contents:

• Main column with automatic tracking beam – 1 unit
• Main cabinet with computer display – 1 unit
• Two data display screens – 1 unit
• Target holders (10" ~ 22") – 4 units
• Wheel alignment targets – 4 units
• Wheel alignment plates – 2 units
• Steering lock mechanism – 1 unit
• Brake pedal lock mechanism – 1 unit
• Wheel chocks – 2 units
