The four-column lift is ready for wheel alignment 4000 kg

The four-column lift is ready for wheel alignment 4000 kg

Redats, Poland; Warranty: 24 months

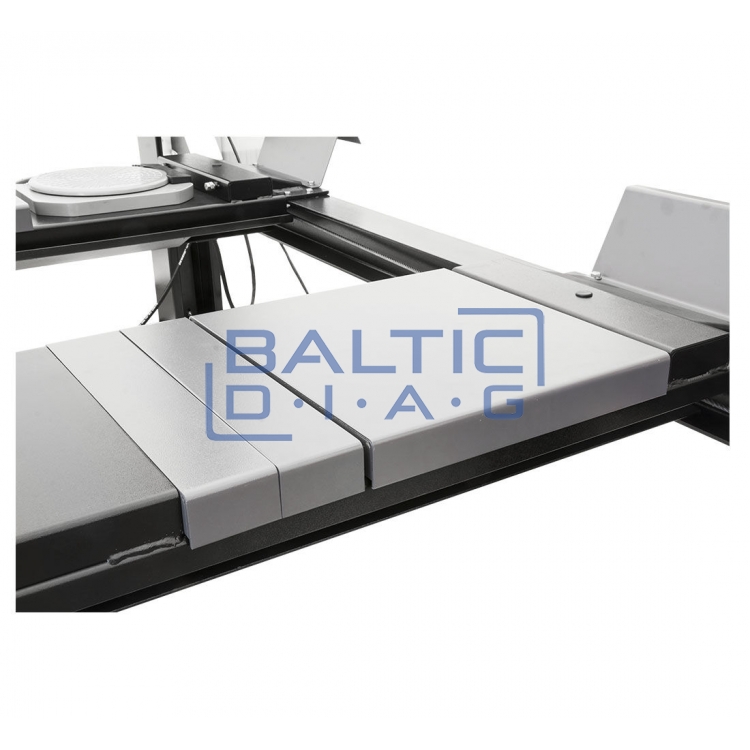

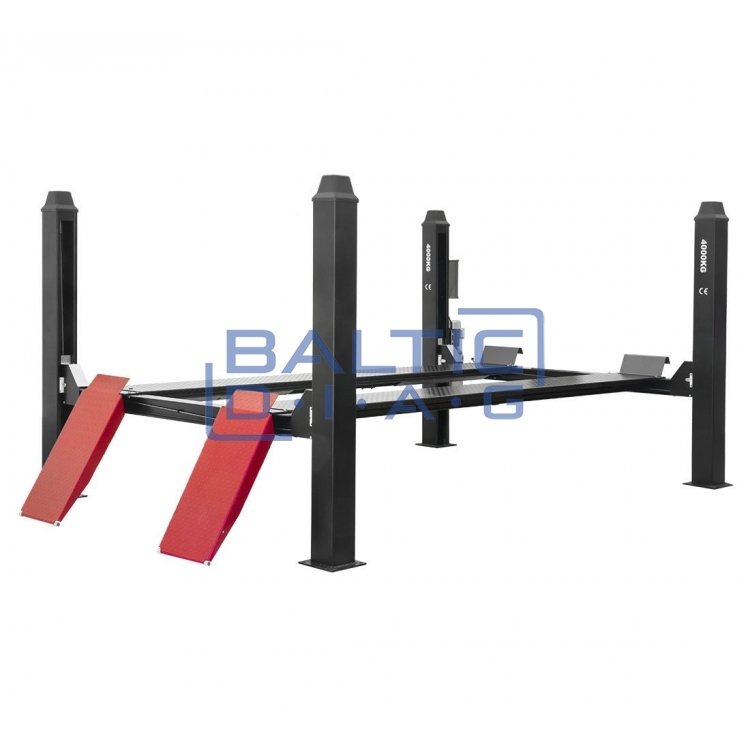

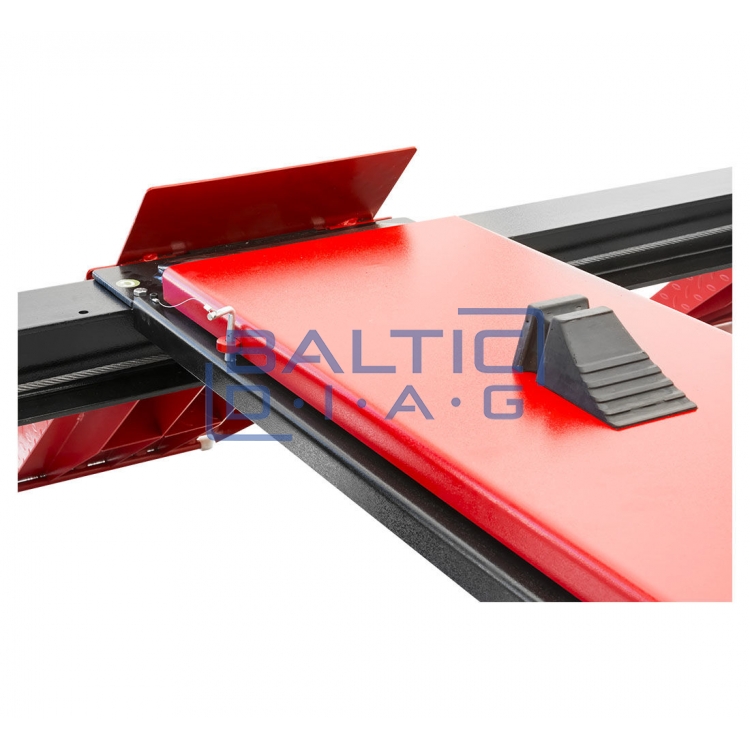

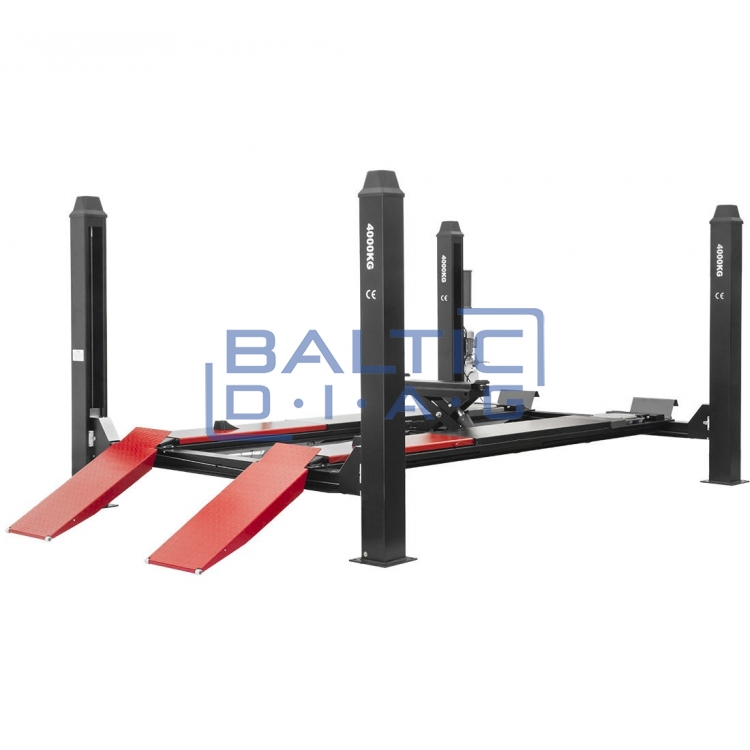

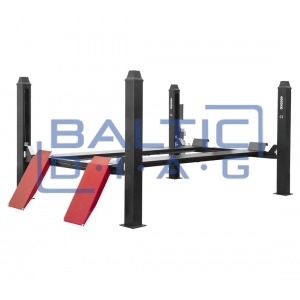

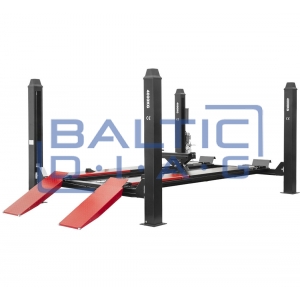

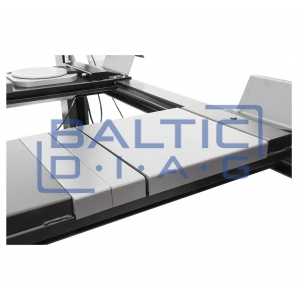

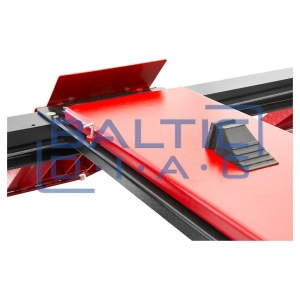

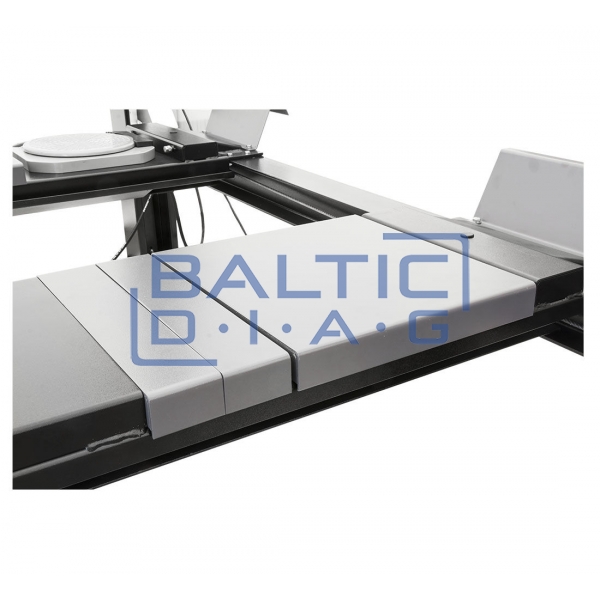

This four-column lift is ready for wheel geometry work. It is equipped with rear sliding plates and a 2-ton lifting axle jack. The lift platforms are adjustable in width, making them suitable for both wide and narrow base cars. The distance between the platforms is adjustable from 800 to 950 mm. The safety locks lock automatically during lifting. Fixing manually. At the rear of the platforms are special locks to protect the vehicle from rolling away.

Concrete requirements:

• B30 quality concrete
• Depth of good quality concrete: at least 15 cm

Technical parameters:

• Lifting capacity: 4 tons
• Engine power: 2.2 kW
• Ready for alignment work
• Lifting height: 250 - 1750 mm
• Lifting time: 50 seconds
• Play time: 50 seconds
• Platform width: 530 mm
• Min. height: 250 mm

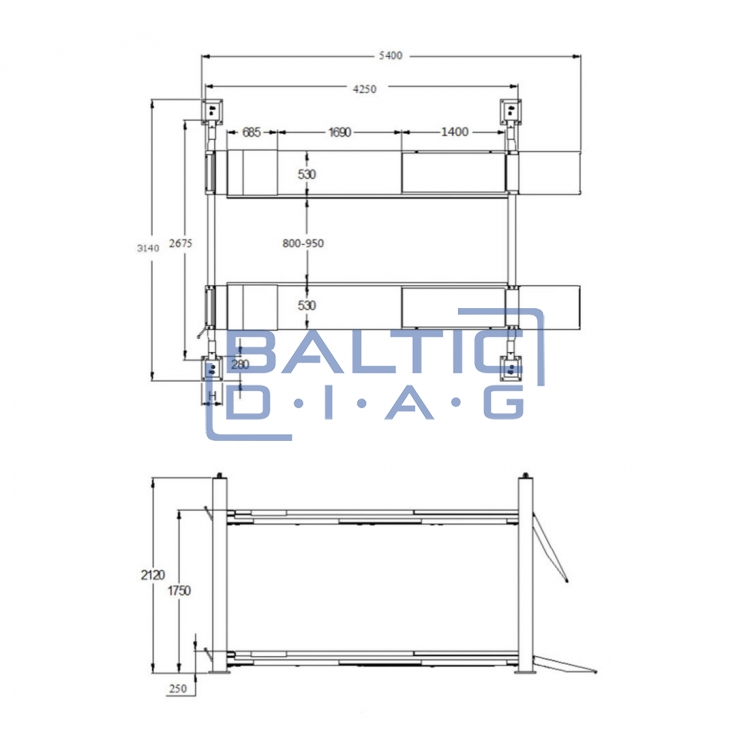

• Platform length (without ramps): 4250 mm
• Distance width adjustment of platforms: 800 - 950 mm
• Ramp length: 1150 mm
• Power supply: 400V / three phases
• Weight: 1285 kg

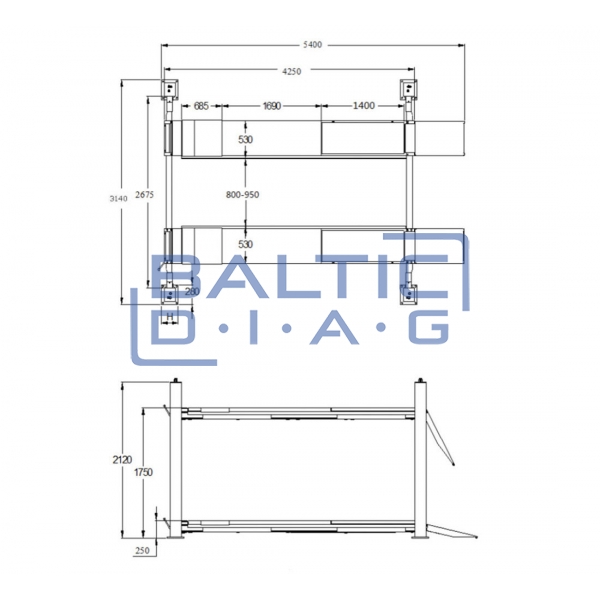

• Dimensions: 5260 x 3140 x 2120 mm

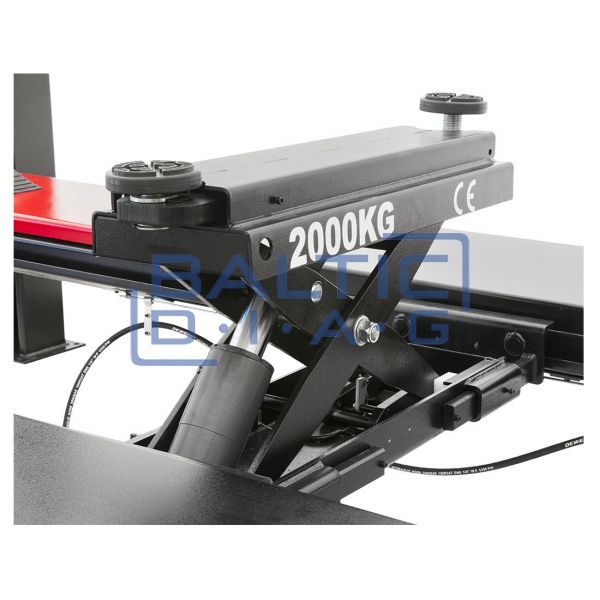

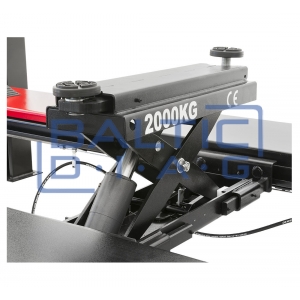

• Axle lift: 2 tons
• Axle jack height: 105 - 375 mm
• Width of axle jack supports: 880 - 1370 mm
