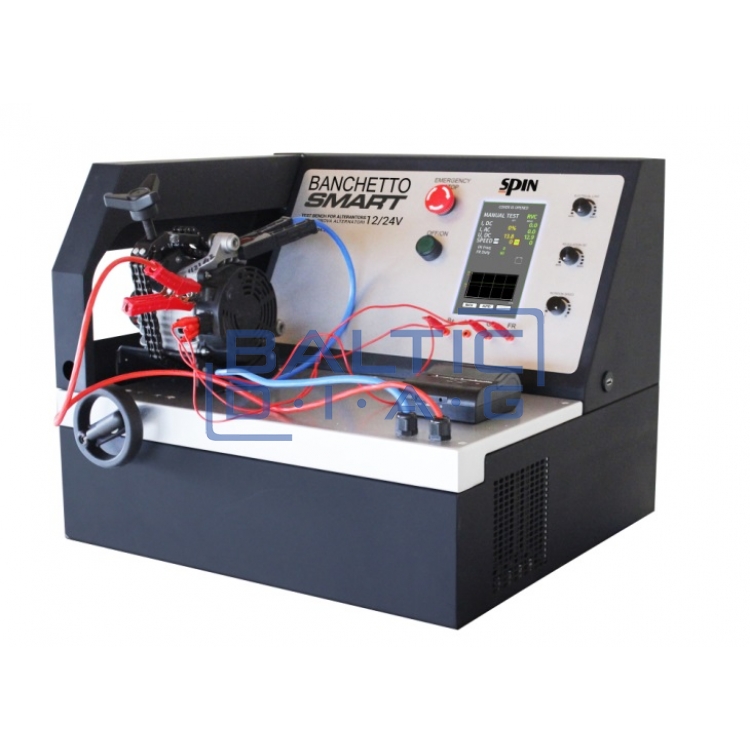

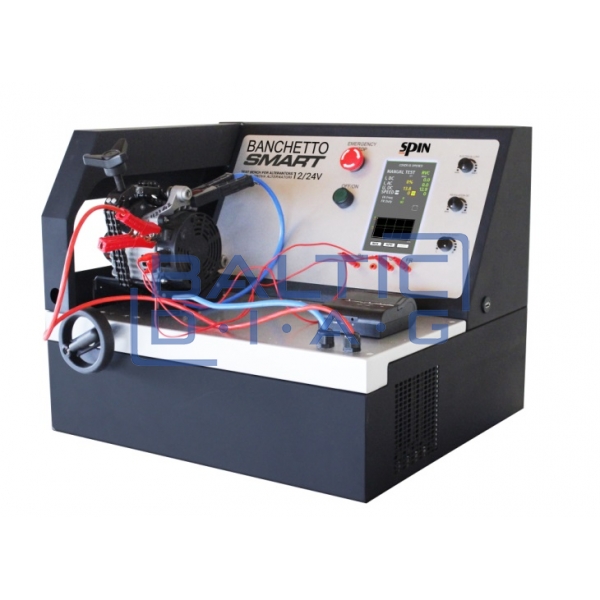

Automatic generator test stand Spin BANCHETTO SMART 12/24V

Automatic Alternator Testing Bench Spin BANCHETTO SMART 12/24V

Functions:

• Internal load rheostat: 0-50 A (12V) and 0-25 A (24V).

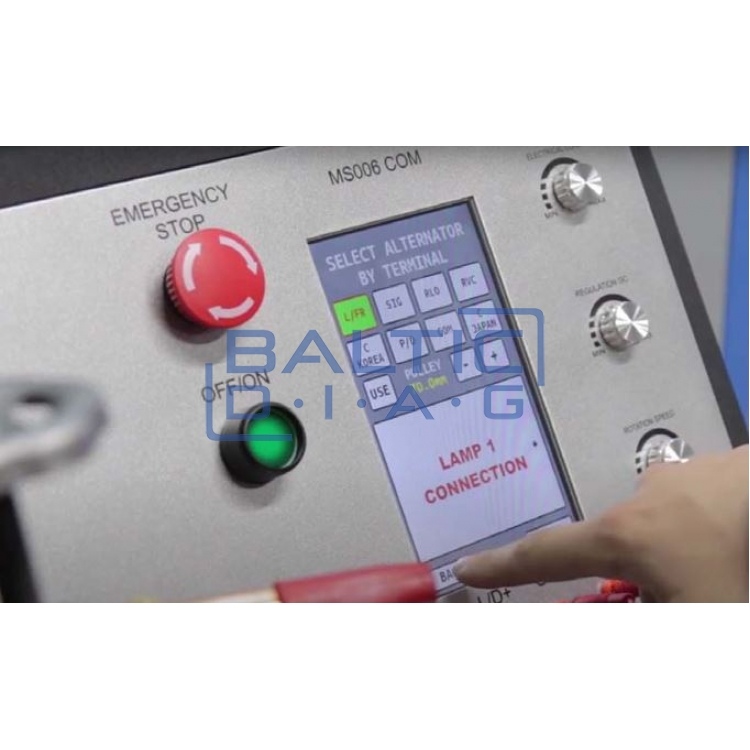

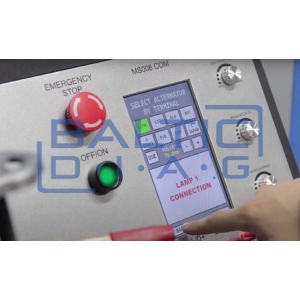

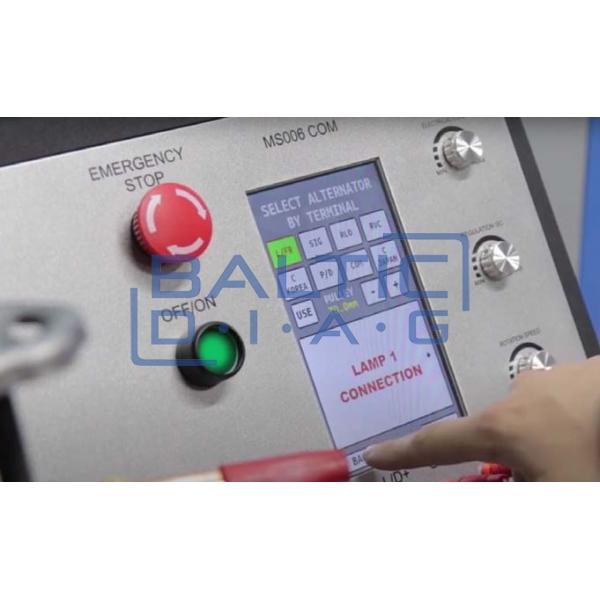

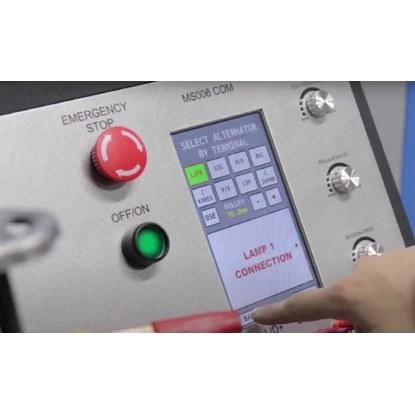

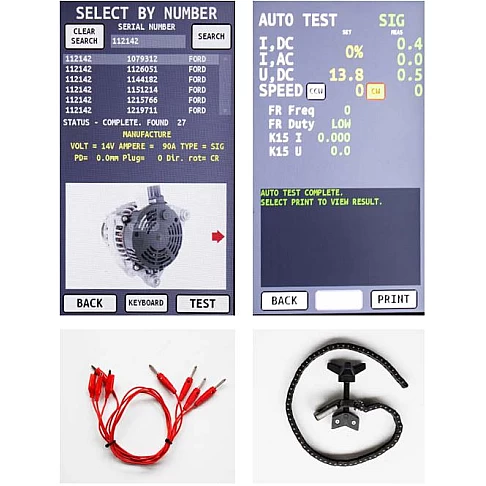

• Color touchscreen display for clear data presentation.
• Integrated database with alternator search by code and protocol.
• Graphical representation of connected wires and terminals.
• Manual and automatic testing modes.
• Report printing via an integrated Bluetooth graphic printer.
• Oscilloscope function with the ability to print data.
• Database updates via USB connection.
• Includes a set of 9 OEM connectors for testing various alternators.

Technical Specifications:

• Power supply: 230V 50Hz
• Tested alternators: 12V and 24V AC alternators
• Motor power: 1.5 kW
• Adjustable load capacity: 0-50A (12V) / 0-25A (24V)
• Motor speed range: 0-3000 RPM
• Belt drive: V and Poly-V
• Dimensions: 570 x 490 x 450 mm
• Weight: 42 kg

Supported Regulator Protocols:

• L/FR, SIG, RLO, RVC, C KOREA, P-D COM, LIN-BSS, C Japan

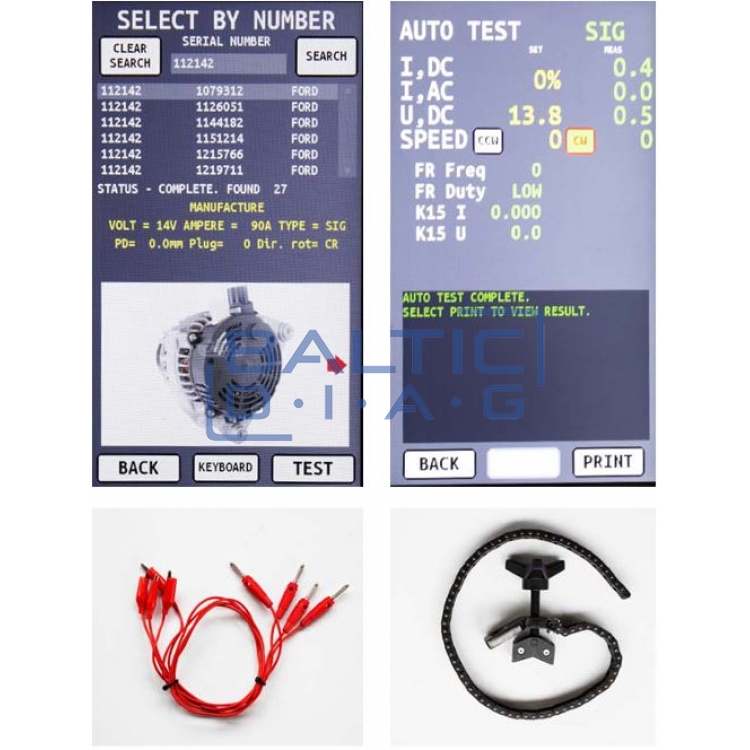

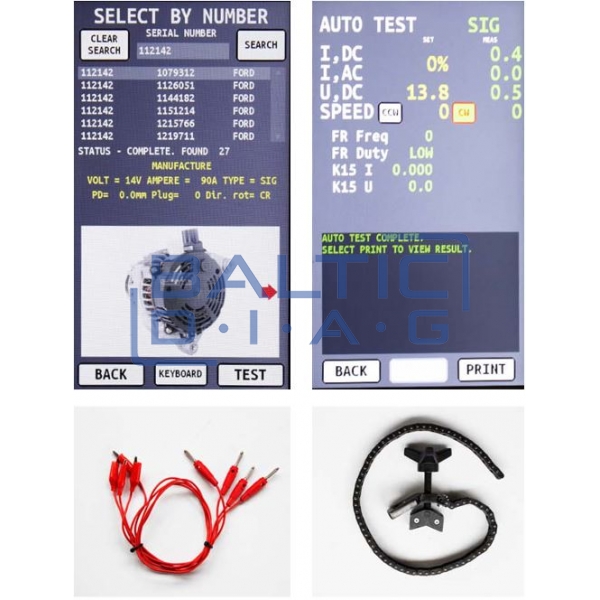

Displayed Information During Alternator Testing:

• Voltage (AC and DC)
• Speed
• Regulator control data (ID, protocol, voltage type)
• Detected errors
• Pulley diameter
• Graphical representation of the test cable connection
