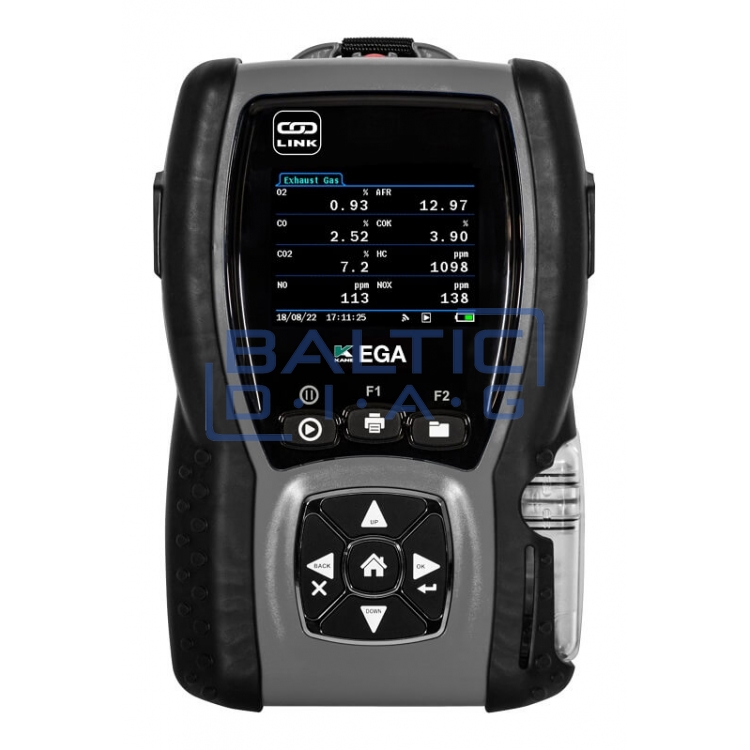

Exhaust gas analyzer Kane-EGA 4/5

Exhaust gas analyzer Kane-EGA 4/5

Manufacturer: KANE, Great Britain

It is a mobile, handheld exhaust gas analyzer that can measure internal combustion engine parameters using unique NDIR sensor technology.

Ability to perform analysis of the following gases:

KANE-EGA4

• CO: 0 - 10%
• CO2: 0 - 20%
• HC: 0 - 5000 ppm
• O2: 0 - 21%
• Lambda: 0.8 - 1.2

KANE-EGA5

• CO: 0 - 10%
• CO2: 0 - 20%
• HC: 0 - 5000 ppm
• O2: 0 - 21%
• Lambda: 0.6 - 1.6
• NO: 0 - 600 ppm

Battery powered exhaust gas analyzer with graphic display

• Ability to perform the same functions as KANE-EGA1/2/3 devices, only with additional functions.
• Ability to quickly diagnose faults in vehicle engines, exhaust systems or catalytic converters.
• The unique non-dispersive infrared (NDIR) sensor is specially designed to meet all official measurement standards.
• Easily helps determine fuel flow rates, engine roughness, or EVAP issues.
• The ability to predetermine the necessary parameters and perform measurements in real conditions, on the road. Local road restrictions may apply.
• The ability to measure the readings of the Lambda sensor and AFR is a way to improve the performance and fuel efficiency of the internal combustion engine.
• The ability to bring the exhaust gas analyzer to the car instead of the car to the analyzer.
• Additional ability to test vehicle A/C cooling system systems.

Applicability:

• The possibility of real-time testing of the parameters of vehicles, various internal combustion engines in the workshop or on the road.
• Instant parameter testing of engines, exhaust and catalyst systems.
• Vehicle smokiness check, possibility to programmatically improve engine performance and perform diagnostics.
• Possibility to carry out inspection before and after vehicle repair work.
• The ability to maintain the operation of the internal combustion engine is exactly the same as that set by the manufacturers.
• Ability to test the efficiency and operation of A/C refrigeration systems.

Measured data:

• CO: 0 - 10%
• CO2: 0 - 20%
• O2: 0 - 21%
• HC: 0 - 5000 ppm
• NO: 0 - 1500 ppm, optional
• ACR: pressure and temperature, optional

Calculated data:

• Lambda / AFR: 0.8 - 1.2
• NOx: 0 - 1500 ppm, optional
• ACR coolness and extreme heat

Ability to work with the following fuels and gases:

• Gasoline / kerosene
• Diesel
• LPG or CNG gas
• Most refrigerants

Features:

• Great graphic design
• A unique NDIR sensor that performs accurate measurements with extremely fast set-up
• Ability to connect to KANE LIVE and third-party programs
• Possibility to coordinate with additional KANE LINK devices
• Ability to save up to 200 measurements
• A rechargeable battery with a minimum working time of 4 hours
• Robust and mobile analyzer with rubber protective rim
• Printing of completed measurements and documentation using an additional KANE-IRP3 printer
• 10-year equipment warranty if all services and inspections were performed at a KANE authorized service center

Sensors, exhaust gas probes and additional accessories:

• NOX 4-2+ - NOx 0 - 1500ppm improvement, for KANE-EGA4 analyzer
• EP2 - 300mm probe with 6M tubing and built-in particle filter
• EP3 - 230mm motorcycle probe with 1.5M tubes
• EP4 - same as EP3, only additionally measures exhaust temperature
• EP5 - cabin heater check probe
• KANE-IRP3 - infrared printer

The set includes:

KANE LINK Wireless Module, EP1 Emission Probe, CL5 USB Cable, CU12VDC2A32 Charger, CA10733/4 Car Charger and 14102/2 Equipment Bag

Equipment prices:

• KANE-EGA4 analyzer: 3699.00 EUR including VAT
• KANE-EGA5 analyzer: 4099,00 EUR including VAT
