Manufacturer: DynoPro, Poland

A mobile power tester that can measure car power, torque, acceleration and other power parameters of a road vehicle under normal road conditions. These measurements can be made for all cars, regardless of their drive wheel axle. The professional device is intended for professionals and is widely used in motor sports.

Discover a universal all-in-one solution for versatile use, fast and hassle-free work that guarantees efficiency. This mobile on-the-go power tester is designed for professional use.

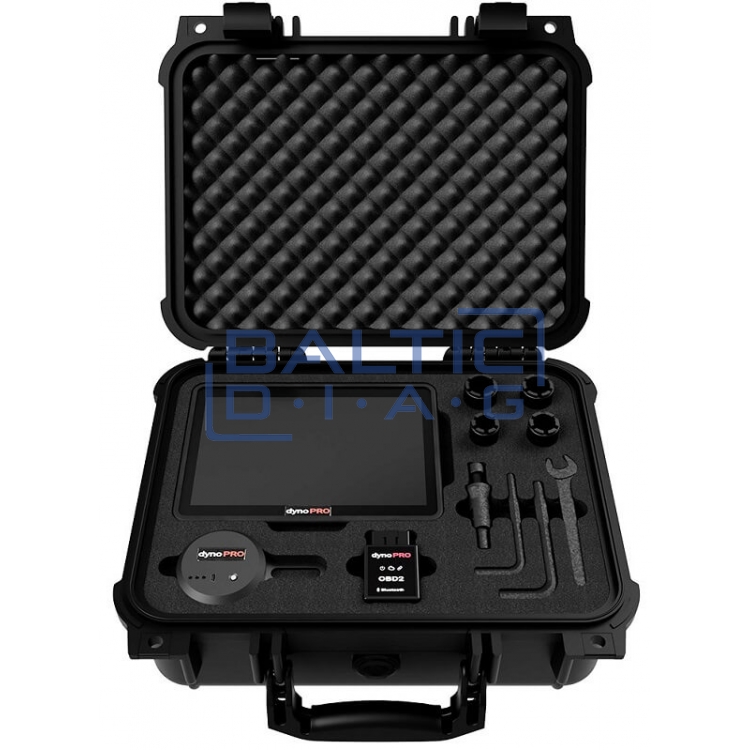

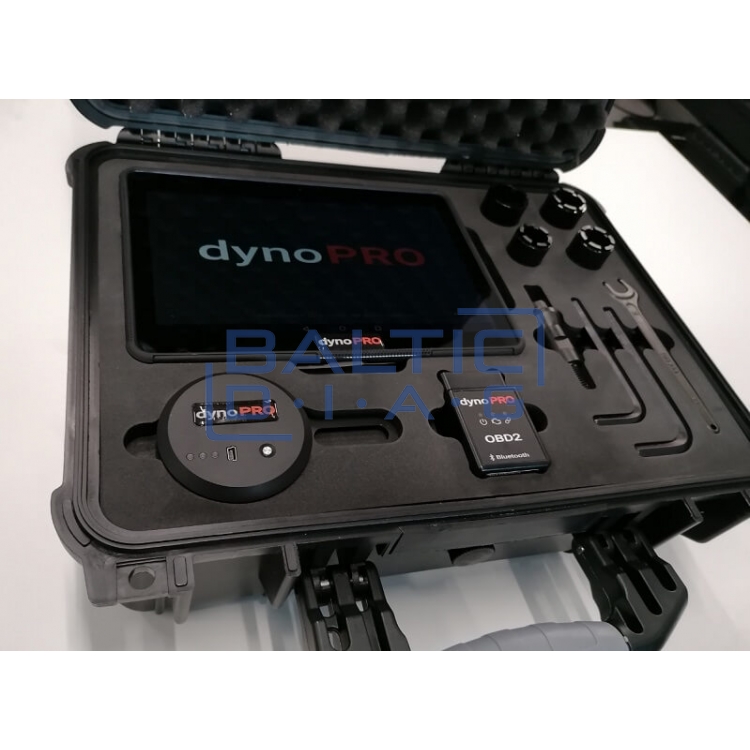

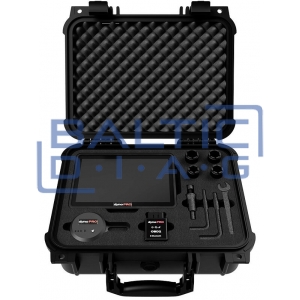

The set consists of the following components:

• Protective case with padded foam.
• Tablet (with integrated DynoPRO application), protective case and charger.

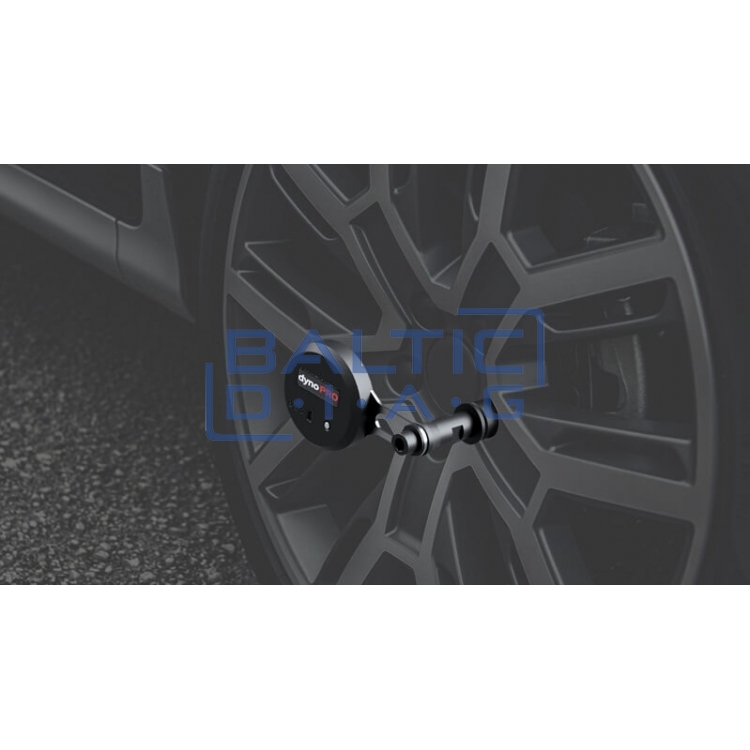

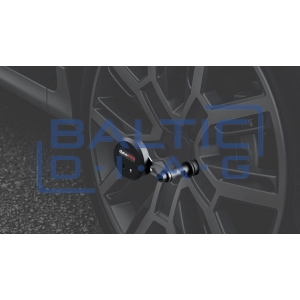

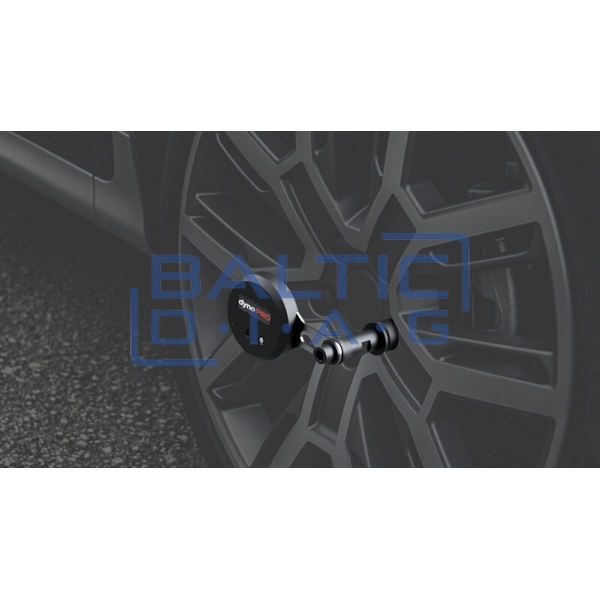

• The power measuring device is attached to the wheel of the car.
• OBD2 module.
• Set for mounting the power measuring device - 17 mm, 19 mm, 21 mm, 22 mm.
• M12 Thread Dyno Power Meter Mounting Pin with M10 Bolt and Spring.
• L-shaped, hexagonal keys 8 mm, 10 mm and 14 mm.

All components are manufactured using CNC lathes. The assembly components are made of the highest quality hardened steel.

DynoPRO is a fast and efficient solution

• The device has a compact body made of aluminum and plastic.
• Preparing the device for work takes about 2 minutes, after which it is fully ready for measurements.
• Information about the weight of the vehicle and the dimensions of the wheel are required to perform the measurements.
• The device has a built-in temperature and ambient pressure sensor capable of measuring ambient temperature from -40°C to +100°C and ambient pressure in the range 300 - 1100hpa. In addition, the device receives information about the ambient temperature from the car via the OBD2 connection.
• The connection between the DynoPRO power tester and the OBD2 module is made via Bluetooth. The power tester has a built-in battery that ensures continuous operation for up to 10 hours. And the ODB2 module is powered directly through the OBD2 connector.
• This device allows you to perform not only standard power measurements, but also allows you to see additional parameters of the car thanks to the OBD2 connection. Parameters such as: turbine pressure, fuel accumulator pressure, exhaust gas temperature, etc. The application presents this data next to the graphs of power and torque.
• Also, the device can carry out essential diagnostics of the internal combustion engine using the EOBD standard (identification of the internal combustion engine control unit, its reading, reading and erasing of stored errors and monitoring of live parameters.
• Measured data - displayed in three variants. Real data, DIN70020, SAE J1349 and EEC standards. When performing the same measurements, under the same conditions, the error of the obtained data may differ by up to 1% from the previous ones.
• The device has no time or measurement limitations. It has free updates, technical support and a 2-year device warranty.

Technical parameters:

DynoPRO power tester:

• Weight: 180 g
• Wireless: Bluetooth
• Power source: Li-ion, 3.7V 1000 mAh rechargeable battery
• Materials: aluminum and steel
• Ambient temperature and pressure sensors: temperature measurement from -40°C to +100°C, pressure measurement from 500hPa to 1100hPa

OBD2 module:

• Weight: 50 g
• Wireless: Bluetooth
• Connection to the vehicle: CAN, LIN, Single wire CAN
• Power source: 12V from the vehicle
• Material: ABS plastic

Tablet:

• Weight: 655 g
• 9.6" screen, IPS, 1280 x 800 (HD) resolution
• Processor: Qualcomm MSM8917 processor, 4-core A53
• Operating system: Android N
• Working memory: Rom: 16 GB; RAM: 2GB
• Navigation: GPS, A-GPS, GLONASS, BDS
• Wireless: Wi-fi / Wapi 802.11 a/b/g/n @2.4 Ghz, 5 Ghz, Bluetooth
• Main camera: 5 Mpx, automatic focus
• Power source: 3.7V; 4800 mAh battery pack
• Charger: 5V / 1A

Suitcase:

• Weight: 2.5 kg
• External dimensions: 406 x 330 x 174 mm (L x W x H)
• Materials: ABS plastic and polypropylene

Additional information:

Standardized measurements:

• SEA J1349
• DIN 70020
• EEC 80/1269

Supported protocols:

• ISO 15765-4 (CAN 250/500 kbps, 11/29 bit)
• ISO 14230-4 (KWP 2000)
• ISO 9141-2
• ISO15765
• ISO 11898
• SAE J1850 VPW
• SAE J1850 PWM
• SAE J1939 OBD (Trucks and Vans)
• Single-wire CAN (SW-CAN)
• Medium Speed CAN (MS-CAN)
• High Speed CAN (HS-CAN)
• Error of repeated measurements: up to 1%
• Free software updates
• Maximum weight of the whole set: 5 kg
• Technical support for questions
• Warranty, 24 months
