Professional EV diagnostic tool Autel MaxiSys MS909EV

Professional EV Diagnostic Tool Autel MaxiSys MS909EV

Why Choose the Autel MaxiSys MS909EV?

• All-in-One Diagnostics for Every Vehicle Type
• One device for everything — works with electric, hybrid, gasoline, and diesel vehicles from 1996 onward.
• High-Voltage EV Battery Analysis
• Check charging status, voltage, health, and module performance via OBD or directly using supplied cables.
• Clear and Comprehensive On-Screen Data
• Detailed graphs, step-by-step instructions, and safety guidance allow precise work with even the most complex systems.
• OE-Level Diagnostics and Programming
• ECU coding, active tests, system calibration, real-time updates, and more — without limitations.
• Cloud-Based Data Management & Remote Support
• Customer, vehicle, and technician data are stored in the cloud, and live support is available from Autel experts.
• Full Workshop Workflow Management in One Tablet
• An all-in-one workspace — manage clients, reports, service tasks, and operations with no extra software needed.

Features:

• Quick high-voltage EV battery analysis, fault code reading/clearing, and live data viewing
• Battery charging status and condition evaluation to determine true battery health
• Battery analysis via OBD or directly with the included special cables and adapters
• On-screen graphics and instructions for safe and guided testing
• Automatic system and software updates with real-time notifications
• Interactive data recording sessions with direct access to AUTEL support
• All-in-one multitasking: file, customer info, and vehicle records management
• Cloud-based data manager with full history by VIN
• Optional ADAS calibration software available (sold separately)

Technical Specifications:

• Operating System: Android 10.0
• Processor: Octa-core Qualcomm 660 (2.2 GHz x4 A73 + 1.8 GHz x4 A53)
• Memory: 4 GB RAM and 128 GB internal storage
• Display: 9.7" TFT-LCD touchscreen, 1536 x 2048 resolution
• Connectivity: Wi-Fi / Bluetooth / GPS / USB 2.0 / HDMI 2.0 / SD card (up to 256 GB)
• Cameras: Front – 16 MP, Rear – 16 MP with LED
• Sensors: Gravity accelerometer, ambient light sensor (ALS)
• Audio: Microphone, dual speakers
• Battery: 15,000 mAh, 3.8 V lithium-polymer
• Input Voltage: 12V / 1.3A
• Operating Temp: 0 – 50 °C, Storage Temp: -20 – 60 °C
• Dimensions / Weight: 304.4 x 227.8 x 42.5 mm / 1.66 kg
• Protocols Supported: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, and more

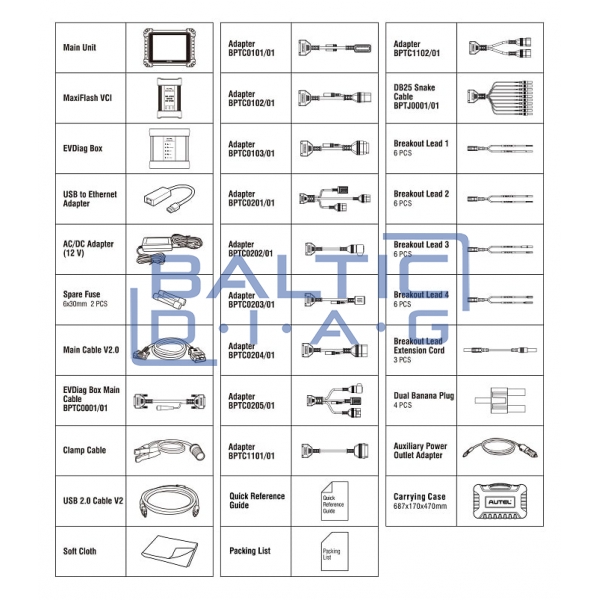

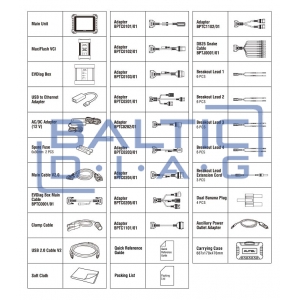

What's Included:

• AUTEL MaxiSys MS909EV unit
• MaxiFlash VCI
• EVDiag Box
• USB adapter
• AC/DC adapter 12V
• 2 spare fuses
• Main OBD cable
• Main EVDiag Box cable
• Battery clamp cables
• USB 2.0 V2 cable
• Screen cleaning cloth
• Adapter BPTC0101/01
• Adapter BPTC0102/01
• Adapter BPTC0103/01
• Adapter BPTC0102/01
• Adapter BPTC0201/01
• Adapter BPTC0202/01
• Adapter BPTC0203/01
• Adapter BPTC0204/01
• Adapter BPTC0205/01
• Adapter BPTC1101/01
• Adapter BPTC1102/01
• DB25 BPTJ0001/01 cable
• 6 pcs Lead 1 connector
• 6 pcs Lead 2 connector
• 6 pcs Lead 3 connector
• 6 pcs Lead 4 connector
• 4 pcs double plugs
• User manual
• Packing list
• Vehicle power adapter
• Carrying case

Who Is This Device For?

• The Autel MaxiSys MS909EV is designed for professional automotive repair shops, independent technicians, and diagnostic specialists servicing not only traditional vehicles but also electric and hybrid models. It’s the perfect tool for businesses ready to meet the demands of the growing EV market and future-proof their service operations.

Why Buy from Us?

• We are the only official AUTEL distributor in Lithuania.
• Genuine tools with the widest vehicle database for Europe.
• Devices come with Russian and English languages included.
• Fast delivery — 95% of products are in local stock.
• Option to test the device before purchase.
• Full warranty and post-warranty service.
• Free replacement unit provided if repairs take longer than expected.

Turn EV Maintenance into Your Advantage!

• Try the AUTEL MaxiSys MS909EV today — contact us to get a tailored offer for your workshop!
