Oscilloscope accessory kit for AUTEL ULTRA / MS919 / MS909 instruments
- SKU: BD63648
484.00 €
Send Message
Description
Oscilloscope Accessories Kit AUTEL ULTRA/MS919/MS909 for Diagnostic Devices
Warranty period - 24 months
The AUTEL MSOAK oscilloscope accessories kit is designed for use with the MaxiFlash VCMI module, which is included with the MaxiSys ULTRA, MS919, and MS909 diagnostic devices, and is also compatible with the MP408 four-channel oscilloscope (sold separately). This kit enables precise measurement of electrical signals, ensures reliable data transmission, and is an essential tool for advanced automotive diagnostics.
Features:
- Automatic voltage scale and time base adjustment;
- Compatible with all vehicles;
- Supports LIN, CAN, and FlexRay data standards;
- High-resolution waveform acquisition and display;
- Ability to manually adjust measurement parameters;
- Stores all data with real-time readings;
- Direct power supply via USB connection;
- Free software updates;
- Durable protective case for easy transportation.
Technical Specifications:
- Included OE connectors for vehicles from 1996–2002;
- Accuracy margin: ±1%;
- Operating system: Autel Mainframe;
- Sensitivity: from 10mV/div to 20V/div;
- Input range: from ±50mV to ±100V (11 levels);
- Input type: Single-ended, BNC connector;
- Compatible with: MaxiSys ULTRA, MS919, and MS909;
- Connectors:
- Nissan-14
- Mitsubishi/Hyundai 12 + 16
- Kia-20
- BMW-20
- Benz-38
- VW/Audi-2 + 2
- Mazda-17
- Chrysler-16
- Benz-14
- Supplied in a carrying case;
- Dimensions: 13.7 x 20 x 5.7 cm;
- Weight: 23 kg.

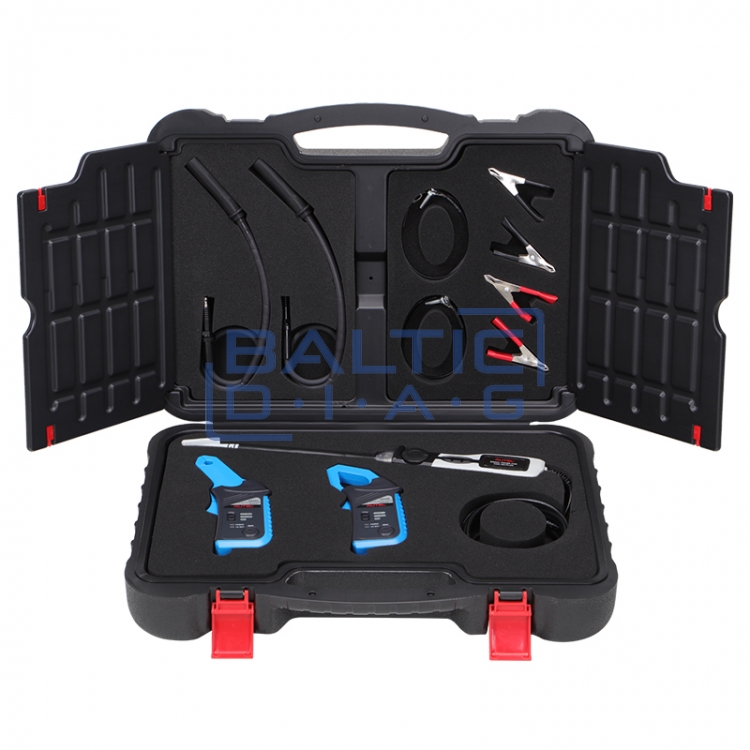

Package Contents:
- 65A AC/DC current clamps;
- 650A AC/DC current clamps;
- Battery clamps (2 pcs.);
- HT extension cables (2 pcs.);
- COP and signal probe.
