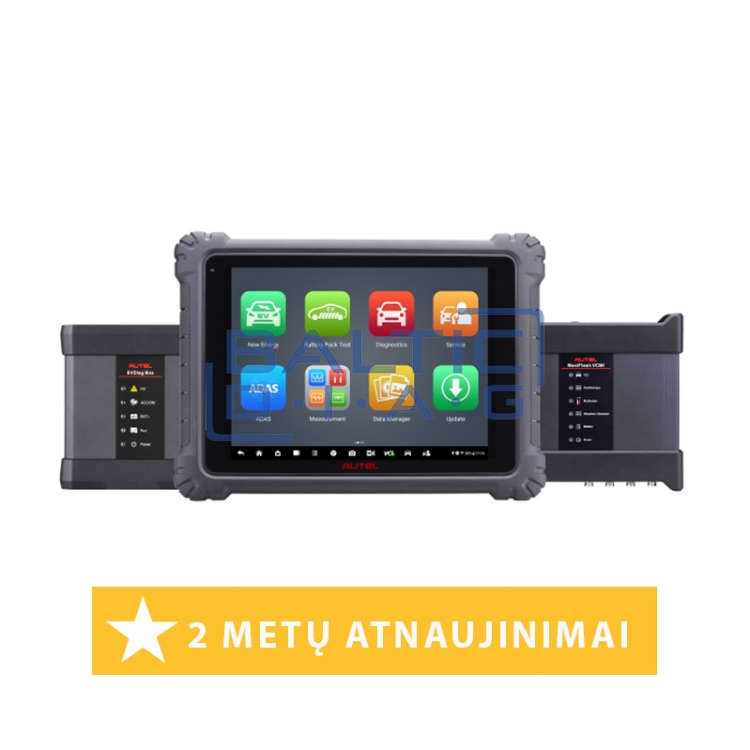

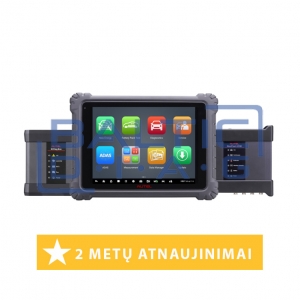

Professional EV diagnostic tool Autel MaxiSys Ultra EV

Professional EV Diagnostic Tool Autel MaxiSys Ultra EV

Why Choose Autel MaxiSys Ultra EV?

• Specialized Battery Analysis for EVs
• Rapid diagnostics via OBD or direct connection — delivers full insights into actual battery condition, charge level, voltage, and module performance.
• Large 12.9-Inch Display & Intuitive Interface
• The ultra-clear screen allows easy work with topology maps, data graphs, and step-by-step test instructions.

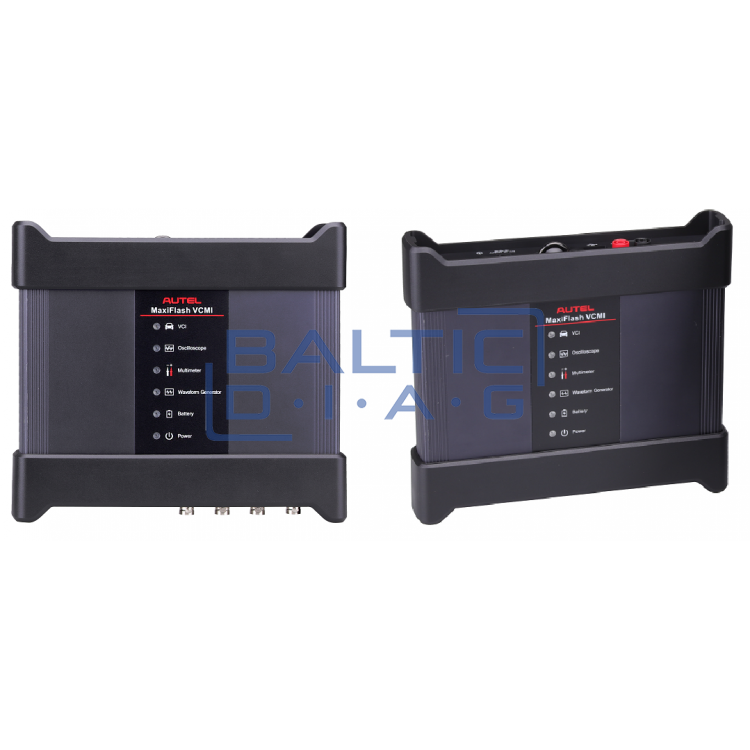

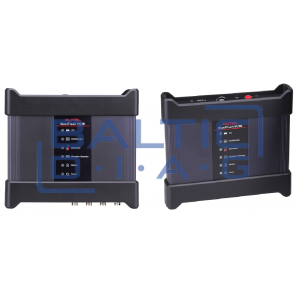

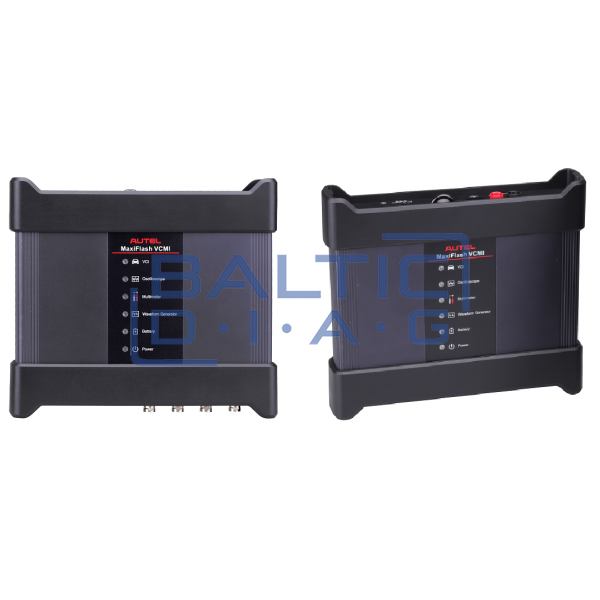

• MaxiFlash VCMI & EVDiag Kit Included
• 4-in-1: oscilloscope, multimeter, waveform generator, and CAN tester + dedicated EV module — everything needed for professional diagnostics.
• Cloud-Based Workshop Management
• Automated task, client, and vehicle history tracking system — accessible in real time from anywhere.
• Real-Time Support and Updates
• Automatic OE updates with the latest coverage and direct access to AUTEL experts for live support within the device.

Features:

• Support for U.S., European, and Asian electric, gas, diesel, and hybrid vehicles
• Fast high-voltage EV battery system analysis, fault code reading/clearing, and live data display
• Battery charge and condition evaluation to determine true battery health
• Battery analysis via OBD or directly with supplied special cables and adapters
• On-screen detailed graphics and step-by-step instructions for safe testing
• Automatic system and software updates with real-time notifications
• Interactive data logging sessions with direct access to AUTEL experts
• All-in-one multitasking platform for complete service center operations
• Cloud-based data manager for storing customer, vehicle, and technician notes
• ADAS calibration software available (sold separately)

Technical Specifications:

• Operating System: Android 7.0
• Processor: Samsung Exynos 8895V octa-core (2.3 GHz Quad Mongoose + 1.7 GHz Quad A53)
• Memory: 4 GB RAM with 256 GB internal storage
• Display: 12.9” TFT-LCD, 2732 x 2048 resolution
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac), Bluetooth v2.1 + EDR, GPS, USB 2.0, HDMI 2.0, SD card (up to 256 GB)
• Cameras: Rear – 16 MP with flashlight, Front – 5 MP
• Sensors: Gravity accelerometer, Ambient Light Sensor (ALS)
• Audio I/O: Microphone, dual speakers, 3.5 mm headphone jack
• Battery: 18,000 mAh, 3.8 V lithium-polymer
• Input Voltage: 12V / 3A
• Operating Temperature: 0 – 50°C
• Storage Temperature: -20 – 60°C
• Dimensions: 366.5 x 280.9 x 34 mm
• Weight: 2.18 kg
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire CAN (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

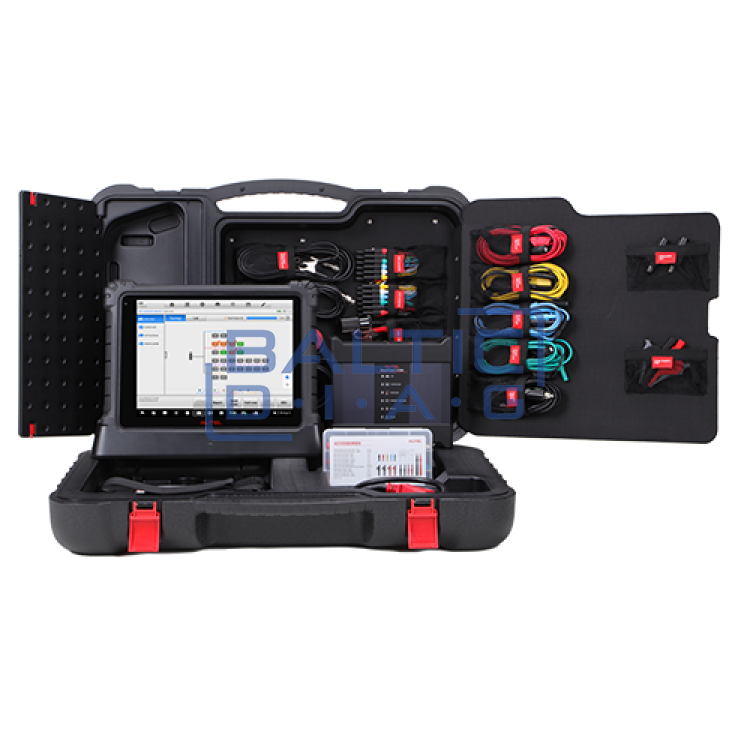

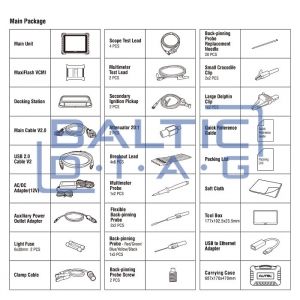

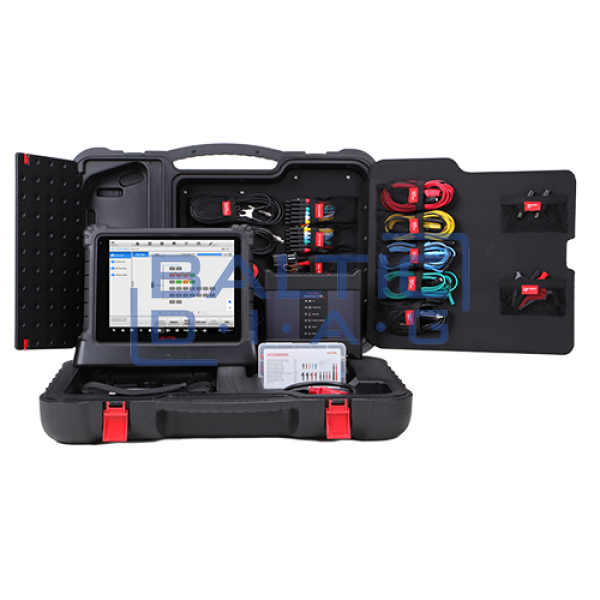

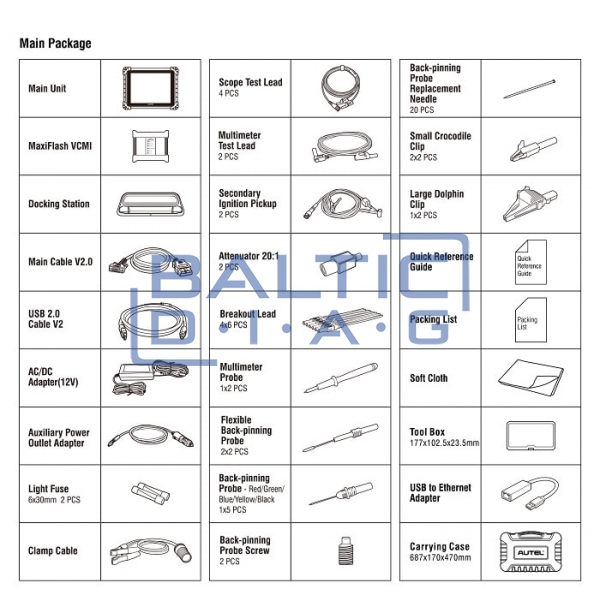

What’s Included – Autel MaxiSys Ultra Kit:

• Diagnostic tablet
• Charging dock
• Main OBDII cable V2.0
• AC/DC adapter 12V
• USB 2.0 cable V2
• Vehicle charging cable
• 2 x fuses (6x30 mm)
• 4 x oscilloscope test leads
• 2 x multimeter test leads
• 2 x secondary ignition leads
• 2 x 20:1 attenuators
• 4x6 x probes
• 1x2 x multimeter probes
• 2x2 x flexible probes with connections
• 1x5 x back probe leads (red/green/blue/yellow/black)
• 2 x threaded back-probe connectors
• 20 x flexible pins
• 2x2 x small clamps
• 1x2 x large clamps
• User manual
• Packing list
• Screen cleaning cloth
• Tool case
• Carrying case

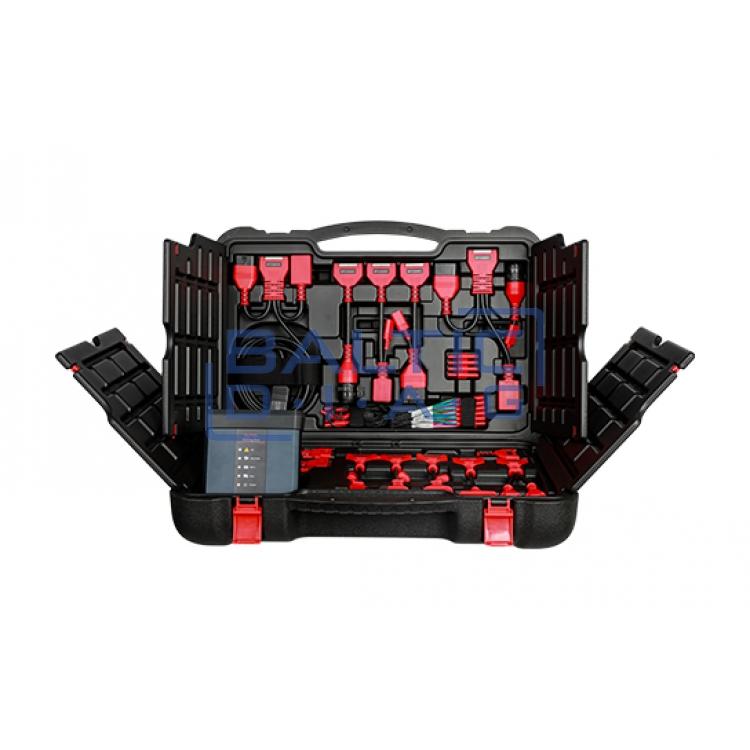

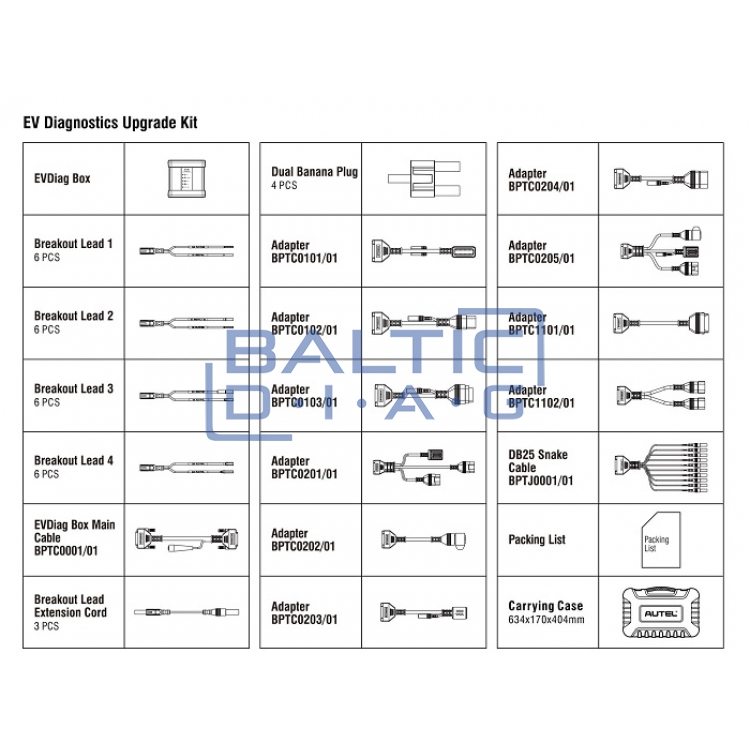

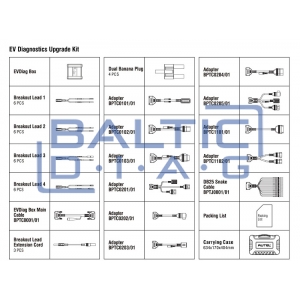

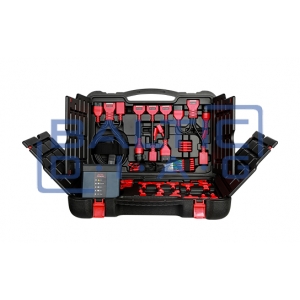

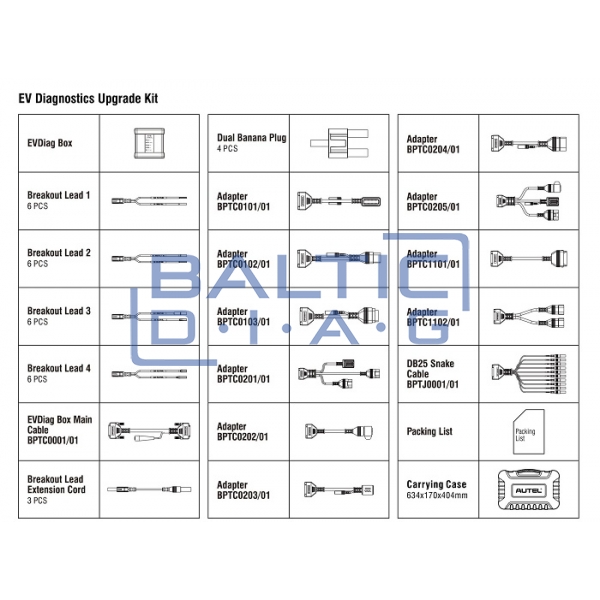

Additional EVDiag Kit Includes:

• EVDiag Box
• USB adapter
• AC/DC adapter 12V
• 2 x spare fuses
• Main OBD cable
• Main EVDiag Box cable
• Battery clamp cables
• USB 2.0 V2 cable
• Screen cloth
• Adapters:
• BPTC0101/01, BPTC0102/01, BPTC0103/01, BPTC0201/01 through BPTC0205/01
• BPTC1101/01, BPTC1102/01
• DB25 BPTJ0001/01 cable
• 6 x Lead 1 connectors
• 6 x Lead 2 connectors
• 6 x Lead 3 connectors
• 6 x Lead 4 connectors
• 4 x double plugs
• User manual
• Packing list
• Vehicle plug adapter
• Carrying case

Who Is This Device For?

• The Autel MaxiSys Ultra EV is an ideal choice for professional workshops, independent technicians, and diagnostic specialists who work with electric, hybrid, and traditional vehicles. It’s the perfect tool for service centers that aim to stand out with innovation and readiness for the most advanced automotive challenges.

Why Buy From Us?

• We are the only official AUTEL distributor in Lithuania.
• Genuine tools with the most extensive database for the European market.
• Russian and English languages included in one device.
• Fast delivery — 95% of products are in local stock.
• Try the device before you buy.
• Full warranty and post-warranty support.
• Free replacement unit provided during extended repairs.

Is Your Workshop Ready for the New Standard in EV Service?

• Try the AUTEL MaxiSys Ultra EV today — contact us to receive a personalized offer tailored to your workshop!
