Universal agricultural machinery diagnostic tool Jaltest AGV Kit

Universal Agricultural Machinery Diagnostics – Jaltest AGV Kit

Warranty period – 24 months

Why Choose Jaltest AGV Kit?

• Versatility in a Single Package
• Supports a wide range of agricultural machinery – from harvesters to specialized orchard tractors.
• More Than Just Fault Reading
• Allows component activation, sensor calibration, and parameter configuration.
• Always Up-To-Date Software
• Continuous updates ensure you're working with accurate and relevant data.
• User-Friendly and Fast Interface
• Intuitive control and smooth diagnostics without delays or glitches.
• Free Trial Before You Buy
• Test the Jaltest advantages in real working conditions without financial risk.
• Complete Technical Support
• Official support, training, e-learning options, and both warranty and post-warranty service.

Features:

• Supports tractors, combines, forage harvesters, loaders, orchard tractors, feeding equipment, and other agro machinery
• Detailed diagnostics with fault code information
• Advanced diagnostic functions: component activation, calibration
• Sensor calibration (injectors, VGT, accelerator, etc.)
• Configuration of operating parameters (e.g., injector coding)
• Setup of scheduled maintenance services
• System functionality testing
• ECU replacement
• DPF regeneration
• Integrated technical information and wiring diagrams
• Defined update schedule
• Fast implementation of new functions into the software
• Fast and intuitive software interface
• Product and technical support call center
• Training and e-learning
• GRP – garage reception and performance
• Connector info: Jaltest shows which connector to use and where it’s located on the vehicle

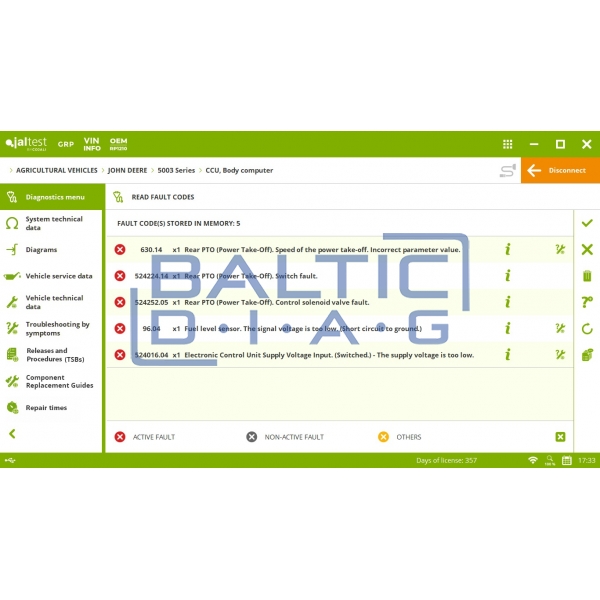

• Diagnostics: reading and description of registered fault codes in each ECU; automatic full system scan
• Component activation: send signals to various systems such as fan activation, cylinder deactivation, compression test, etc.

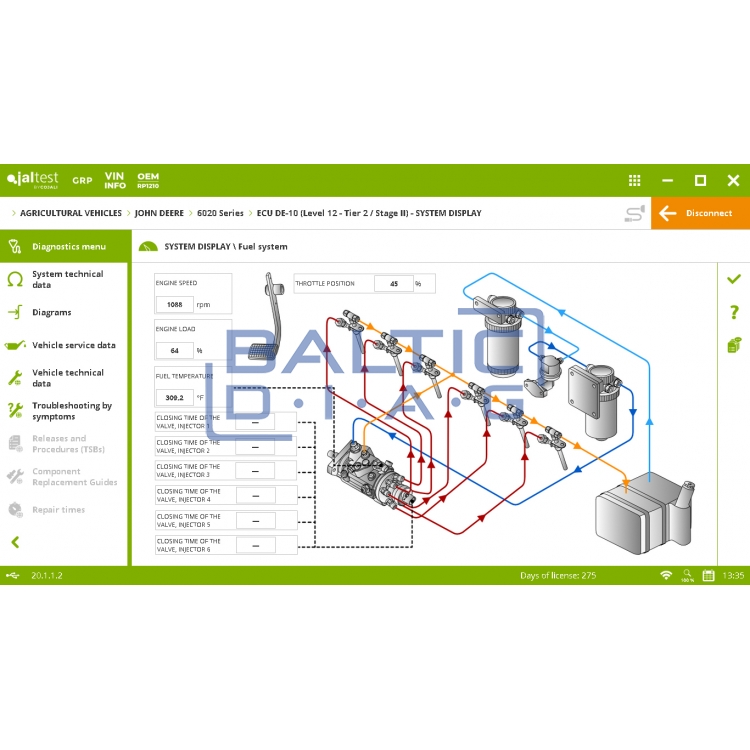

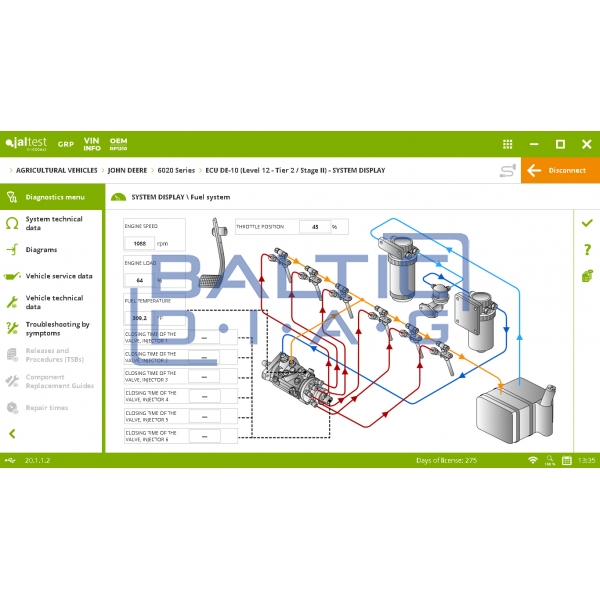

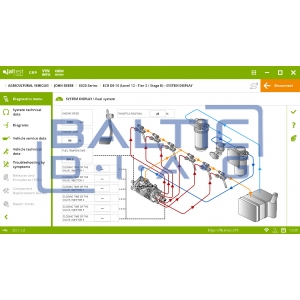

• Measurement of values: view and monitor up to 8 values simultaneously, with nominal range information
• Parameter settings: configure different system parameters
• System data: access to system configuration and ECU data
• Fault code clearing: erase fault codes and switch off warning lights

Technical Specifications:

• Connects to desktop or laptop PC via Bluetooth or USB cable
• Bluetooth range: 20–50 m
• Minimum PC requirements: DVD drive, Windows XP, 7, 8, 10 (64-bit OS), 2 GB RAM, 10 GB free HDD space, USB port
• Powered via OBD connector or 12/24 V DC power supply
• Power consumption: 7W
• Shock-resistant housing
• Weight: 1.2 kg
• Dimensions: 183 x 131 x 56 mm
• Operating temperature: 0°C to +45°C
• Multilingual menu
• Certifications: CE, FCC, RoHS

Tester Capabilities and Adaptability:

• ECU (Electronic Control Unit) diagnostics via OBD interface or specific adapter
• Ability to connect to any diagnostic port using a universal diagnostic cable with special adapters
• Integrated automatic multiplexer – automatic switching of K and L, CAN, SAE lines to any OBD terminal
• Supported diagnostic protocols: ISO 9141-2, ISO 14230, SAE-J1850 VPW/PWM, ISO 11519-2, SAE J1708, ISO 15765-4 (OBD), CAN ISO 11898, single-wire CAN, SCI Haldex, RP 1210, SAE J2534 (PASS-THRU)

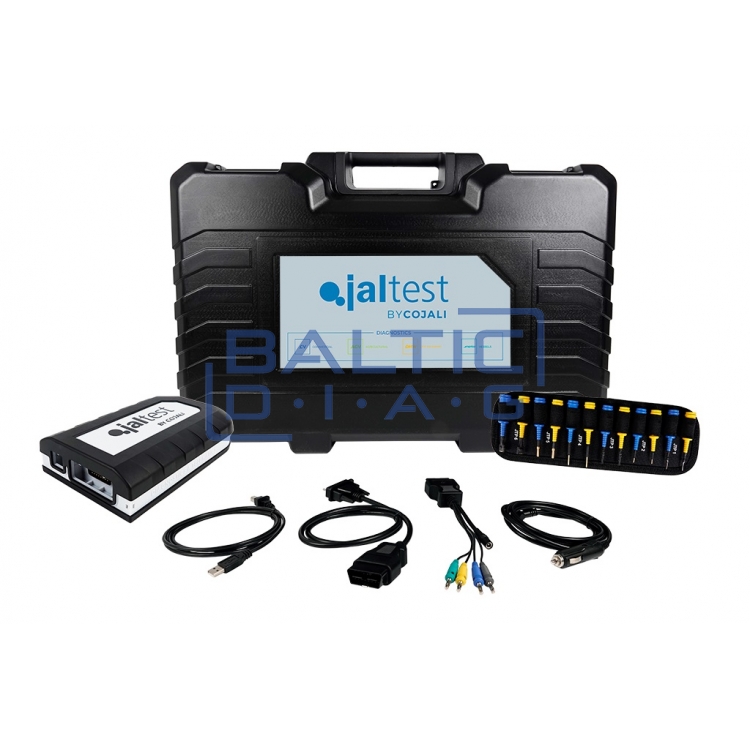

Standard Kit Includes:

• JALTEST PC LINK Interface 70001015
• OBD Cable JDC213.9
• USB Cable JDC107.9
• Carrying Case 70003009
• Multipin Set 70002001
• Extension Cable SUBD-26 + Jack JDC100
• Power cables for battery and vehicle power outlet

Optional Configurations:

• Truck and bus diagnostic cable kit
• Thermo King diagnostic cable COJALI JDC113A
• JalTest Soft + INFO Online diagnostic software
• JalTest Soft + INFO Online annual subscription
• Software packages for diagnostics of trucks, buses, and vans

Supported Agricultural Machinery Brands:

• VALTRA, JOHN DEERE, NEW HOLLAND, MASSEY FERGUSON, CLAAS, BELARUS - MTZ, CASE, CATERPILLAR, JCB, FENDT, KUBOTA, LINDNER, GREGOIRE, AMAZONE, ANTONIO CARRARO, ARBOS, BCS, BOBCAT, CARRARO, CHALLENGER, DEUTZ-FAHR, DIECI, ENERGREEN, FARESIN, FARMTRAC, FERRARI, FRANZ KLEINE, GOLDONI, HÜRLIMANN, ISEKI, ISOBUS, JALTEST ISOBUS CONTROL, KAMAZ, KIOTI, KRAMER, KRONE, KUHN, KVERNELAND, LAMBORGHINI, LANDINI, LAVERDA, LS, MAC DON, MAHINDRA, MANITOU, MAZZOTTI, McCORMICK, MERCEDES-BENZ, MERLO, MTS-SANDEI, PASQUALI, RENAULT, ROPA, ROSTSELMASH, SAME, SCHÄFFER, STEYR, STORTI, TERRION, URSUS, VALPADANA, VERSATILE, WEIDEMANN, YANMAR, ZETOR.

Who Is This Device For?

• Jaltest AGV Kit is ideal for agricultural machinery workshops, independent technicians, and farms that require reliable and efficient maintenance of tractors, harvesters, and other agro equipment. It’s the perfect tool for professionals seeking precision, control, and performance in a single device.

Choose the tool that saves time at every step of diagnostics!

• Contact us for a free demo or try Jaltest AGV in real-life conditions – experience the difference for yourself!
