Universal diagnostic equipment for construction machinery Jaltest OHW Kit

Universal Off-Highway Diagnostics Tool – Jaltest OHW Kit

Warranty period – 24 months

Why Choose Jaltest OHW Kit?

• Truly Universal Tool
• One solution for all off-highway equipment – from excavators to road maintenance machines.
• Seamless Real-Time Diagnostics
• Smooth operation with real-time data monitoring, without lags or interruptions.
• Technical Information Always Available
• Integrated database with diagrams, codes, and repair guides accessible at any time.
• Easy to Use and Mobile
• Connects via USB or Bluetooth – suitable for both workshops and on-site use.
• Scalable to Growing Needs
• Can be expanded with licenses for other vehicle types (tractors, buses, etc.).
• Professional Support
• Training, remote assistance, technical reporting, and job history management included.

Features:

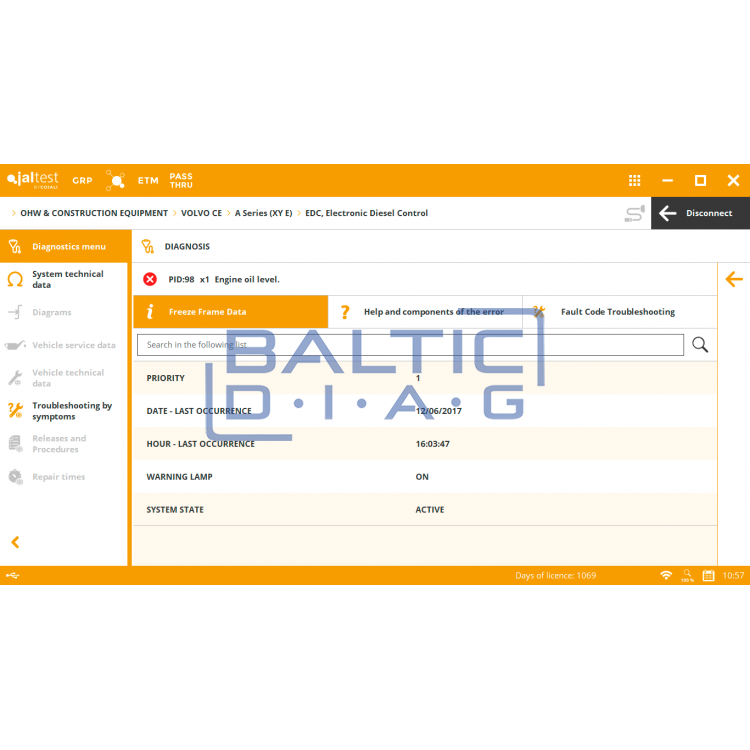

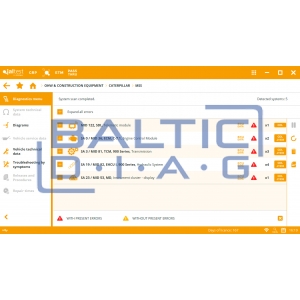

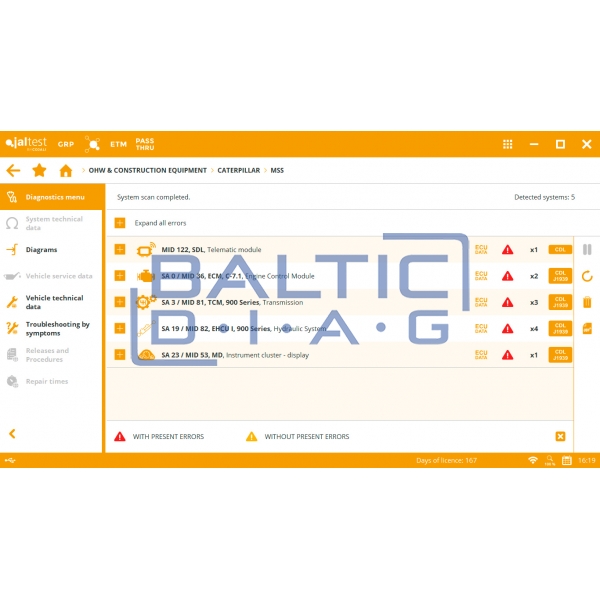

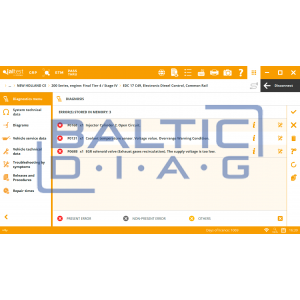

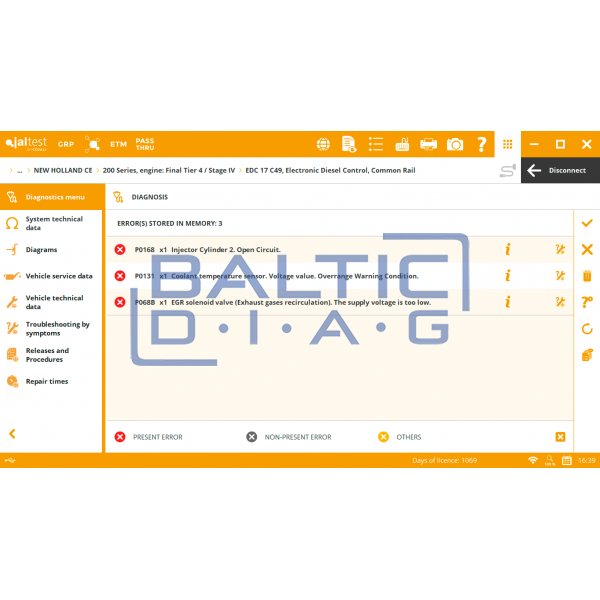

• Automatic detection of systems and fault codes

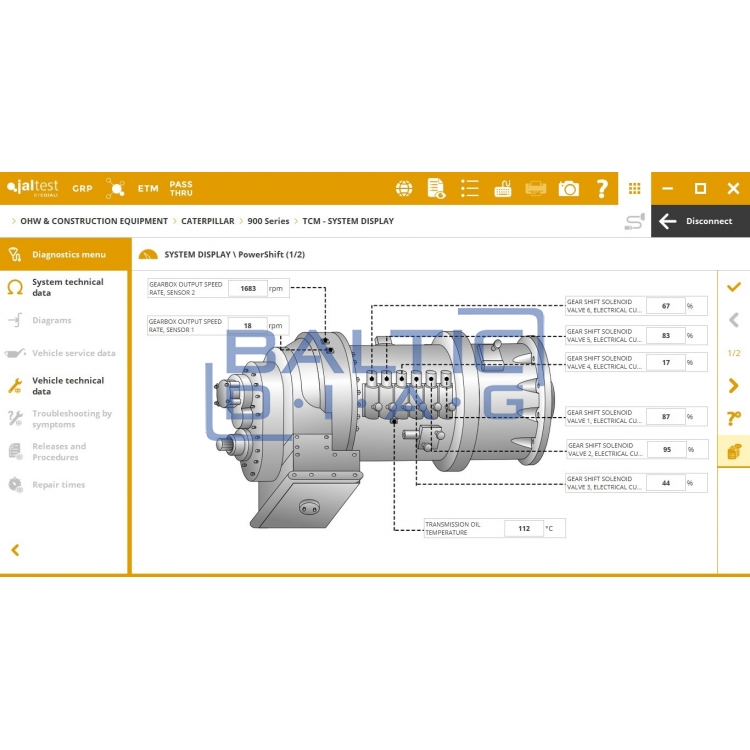

• Real-time sensor monitoring
• Component activation and adaptation
• Service information and reset functions
• Operating hours and consumption reading
• Component adaptation and calibration
• System technical information (engine, transmission, etc.)

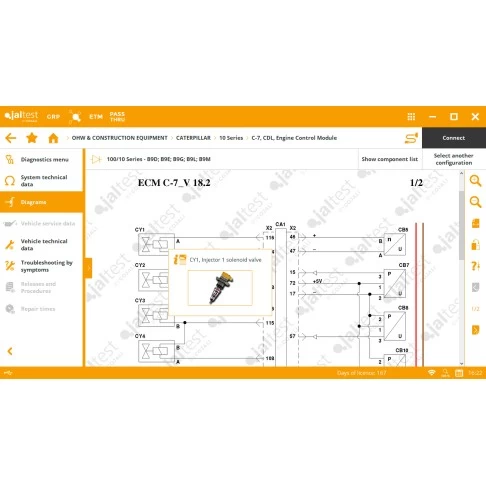

• Active electrical diagrams

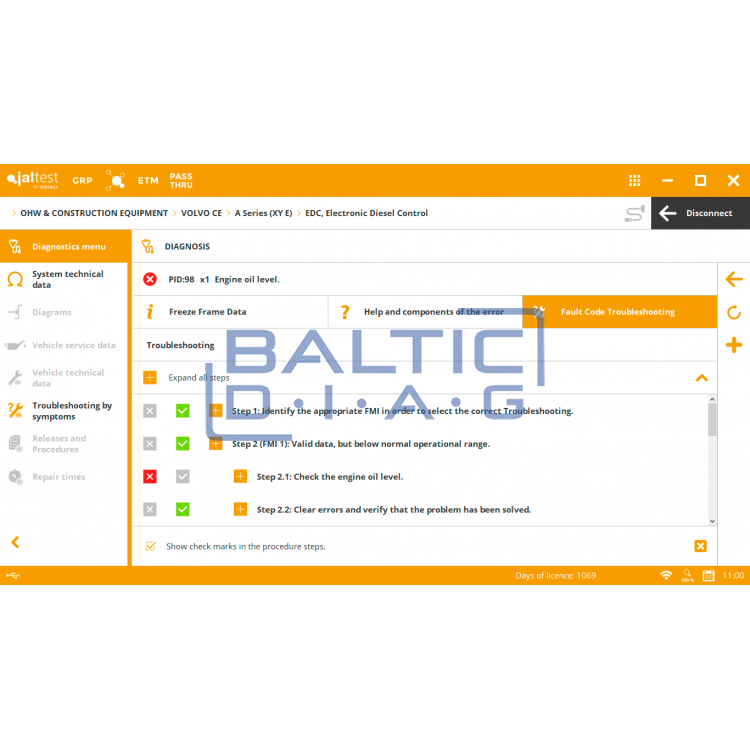

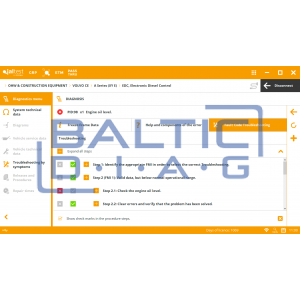

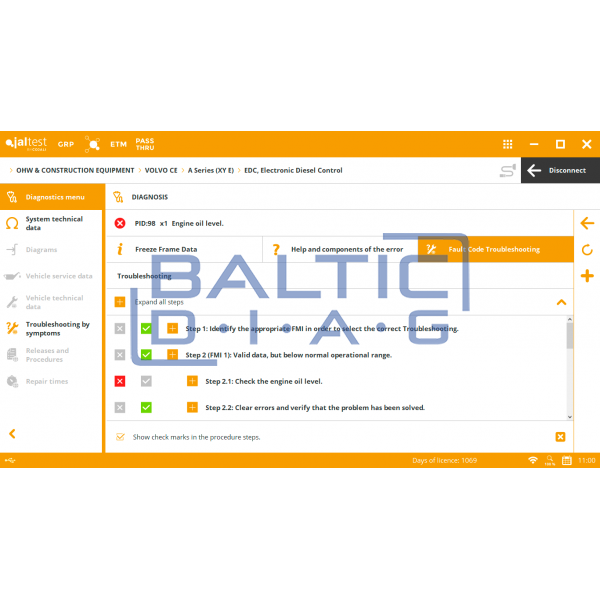

• Troubleshooting by symptoms
• Machine technical information (engine type, etc.)
• Data synchronization and cloud backup
• Task management between workshop technicians

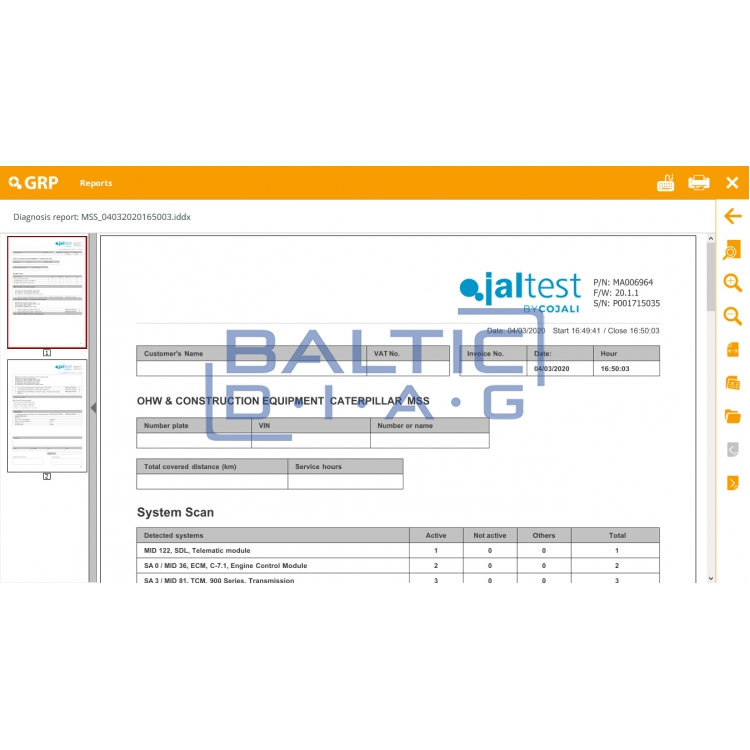

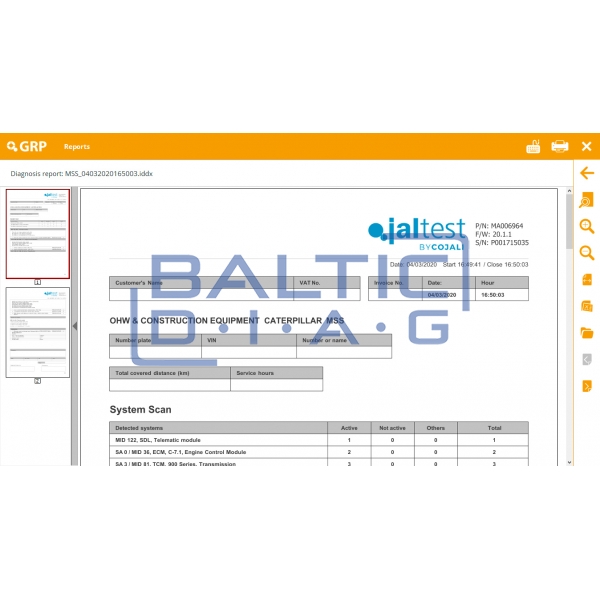

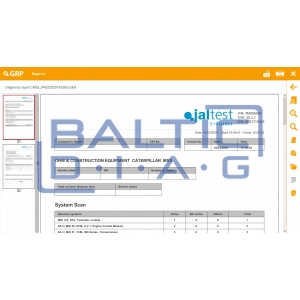

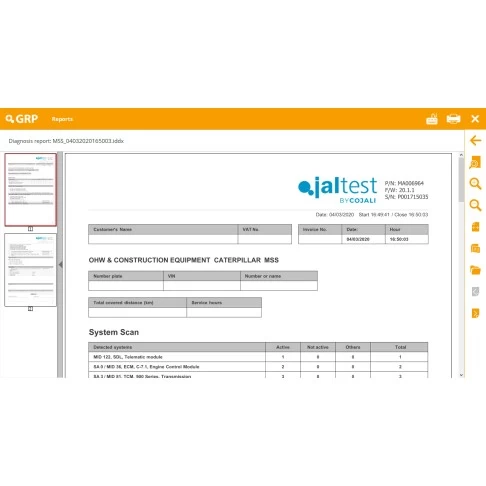

• Diagnostic, maintenance, and task reporting
• Access to machine history

Technical Specifications:

• Connects to a desktop or laptop via Bluetooth or USB cable
• Bluetooth range: 20–50 m
• Minimum PC requirements: DVD drive, Windows XP, 7, 8, 10 (64-bit), 2 GB RAM, 10 GB free HDD space, USB port
• Powered via OBD connector or 12/24 V DC power supply
• Power consumption: 7W
• Shock-resistant housing
• Weight: 1.2 kg
• Dimensions: 183 x 131 x 56 mm
• Operating temperature: 0°C to +45°C
• Multilingual interface
• Certifications: CE, FCC, RoHS
• Tester Capabilities and Connectivity:
• ECU (Electronic Control Unit) diagnostics via OBD interface or specific adapter
• Compatible with any diagnostic port using a universal cable with special adapters
• Integrated automatic multiplexer – auto-switches K and L, CAN, SAE lines to any OBD terminal
• Supported protocols: ISO 9141-2, ISO 14230 (KWP2000), SAE-J1850 VPW/PWM, ISO 11519-2, SAE J1708, ISO 15765-4 (OBD), CAN ISO 11898 (high, medium, low speed, single-wire CAN), SCI Haldex, RP 1210, SAE J2534 (PASS-THRU)

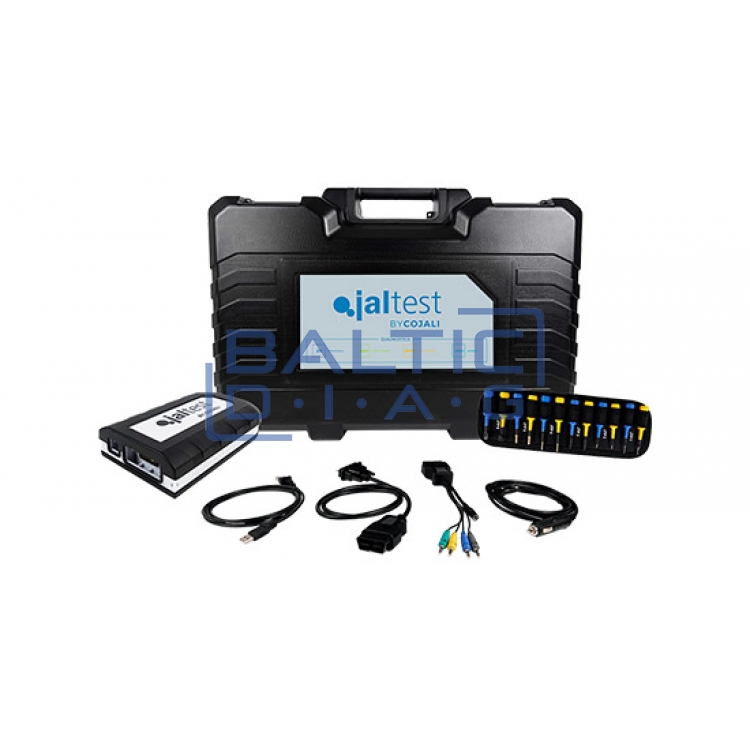

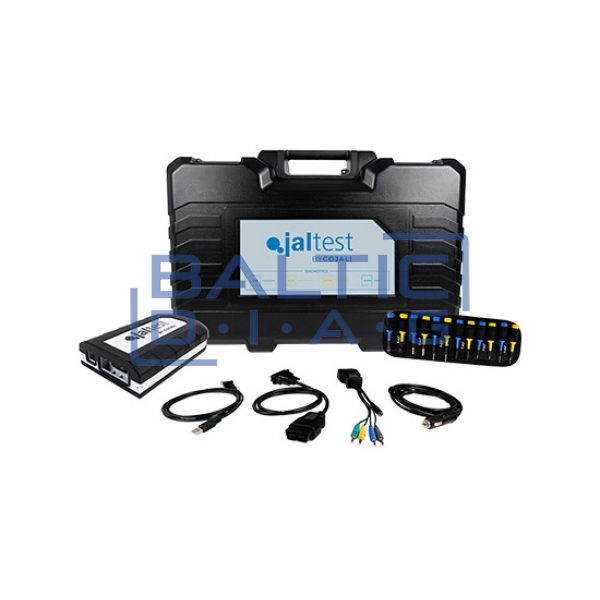

Standard Kit Includes:

• JALTEST PC LINK interface 70001015
• OBD Cable JDC213.9
• USB Cable JDC107.9
• Carrying Case 70003009
• Multipin Set 70002001
• Extension Cable SUBD-26 + Jack JDC100
• Power cables for battery and vehicle power outlet

Optional Add-ons:

• Truck and bus diagnostic cable kit (8 pcs): Volvo, Mercedes-Benz, Scania, Renault, Iveco >1998, MAN (TGA, TGL, TGM), DAF, MAN F2000
• Thermo King diagnostic cable COJALI JDC113A
• JalTest Soft + INFO Online diagnostic software for trucks, trailers, buses, and vans
• JalTest Soft + INFO Online 12-month update subscription
• Software package for truck and tractor diagnostics
• Software package for bus diagnostics
• Software package for van and light commercial vehicle diagnostics

Supported Road Maintenance Vehicles:

• ASH, AUSA, BUCHER, CMAR, DULEVO, ELGIN, EUROVOIRIE, HAKO, JOHNSTON, MATHIEU-YNO, NILFISK, PIAGGIO, RAVO, SCHMIDT, TENAX.

Supported Construction and Agricultural Equipment:

• VALTRA, JOHN DEERE, NEW HOLLAND, MASSEY FERGUSON, CLAAS, BELARUS - MTZ, CASE, CATERPILLAR, JCB, FENDT, KUBOTA, LINDNER, GREGOIRE, AMAZONE, ANTONIO CARRARO, ARBOS, BCS, BOBCAT, CARRARO, CHALLENGER, DEUTZ-FAHR, DIECI, ENERGREEN, FARESIN, FARMTRAC, FERRARI, FRANZ KLEINE, GOLDONI, HÜRLIMANN, ISEKI, ISOBUS, JALTEST ISOBUS CONTROL, KAMAZ, KIOTI, KRAMER, KRONE, KUHN, KVERNELAND, LAMBORGHINI, LANDINI, LAVERDA, LS, MAC DON, MAHINDRA, MANITOU, MAZZOTTI, McCORMICK, MERCEDES-BENZ, MERLO, MTS-SANDEI, PASQUALI, RENAULT, ROPA, ROSTSELMASH, SAME, SCHÄFFER, STEYR, STORTI, TERRION, URSUS, VALPADANA, VERSATILE, WEIDEMANN, YANMAR, ZETOR.

Supported Stationary Engines:

• CATERPILLAR, CUMMINS, DETROIT DIESEL-MBE, DEUTZ, DOOSAN, HINO, ISUZU, IVECO-FPT, JCB, JOHN DEERE, KOHLER, KUBOTA, LIEBHERR, MAN, MERCEDES-BENZ, MTU, PERKINS, SCANIA, SISU, STEYR, VM MOTORI, VOLVO PENTA, YANMAR.

Who Is This Device For?

• Jaltest OHW Kit is designed for workshops specializing in construction, earth-moving, and road maintenance equipment, as well as independent technicians and service professionals. It’s the perfect solution for mixed fleets requiring accurate, fast, and flexible diagnostics in one device.

Want more clarity and control? That’s exactly what Jaltest OHW delivers.

• Contact us for a demonstration or try the Jaltest OHW Kit in real working conditions – and see for yourself why it’s the #1 choice for off-highway diagnostics!
