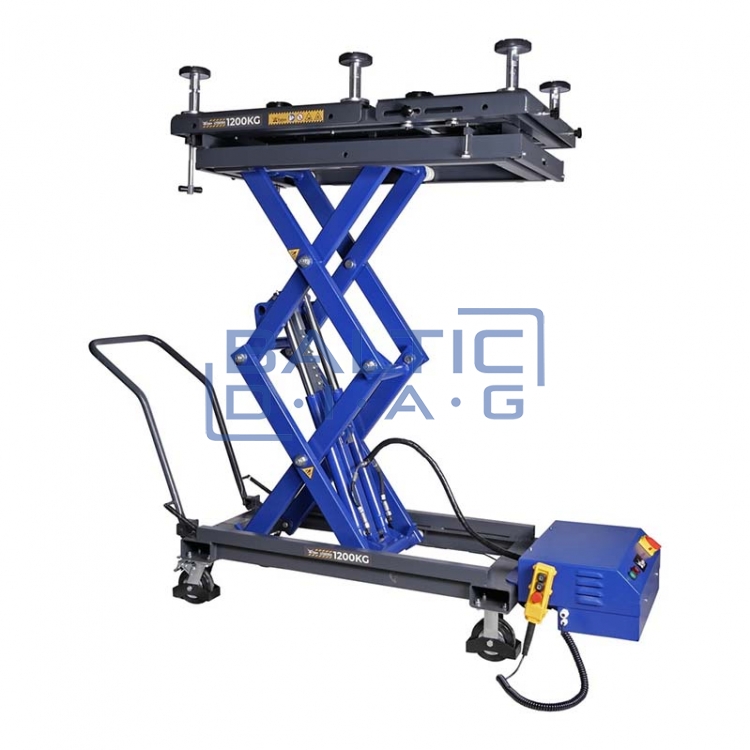

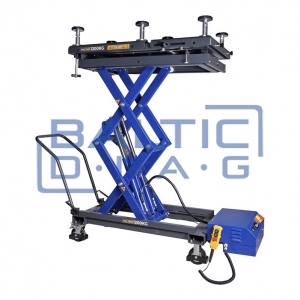

Mobile electro-hydraulic scissor lift for electric cars 1200 kg

Mobile electro-hydraulic scissor lift for electric vehicles 1200 kg

Features:

• Tabletop with 104 M10 threaded holes in a 100 x 100 mm grid for mounting tools and adapters
• Adjustable platform length and width, with 5° tilting capability
• Swivel casters with brakes – for mobility and safety
• Foldable handle – for better workspace utilization
• Integrated electro-hydraulic drive (230 V)

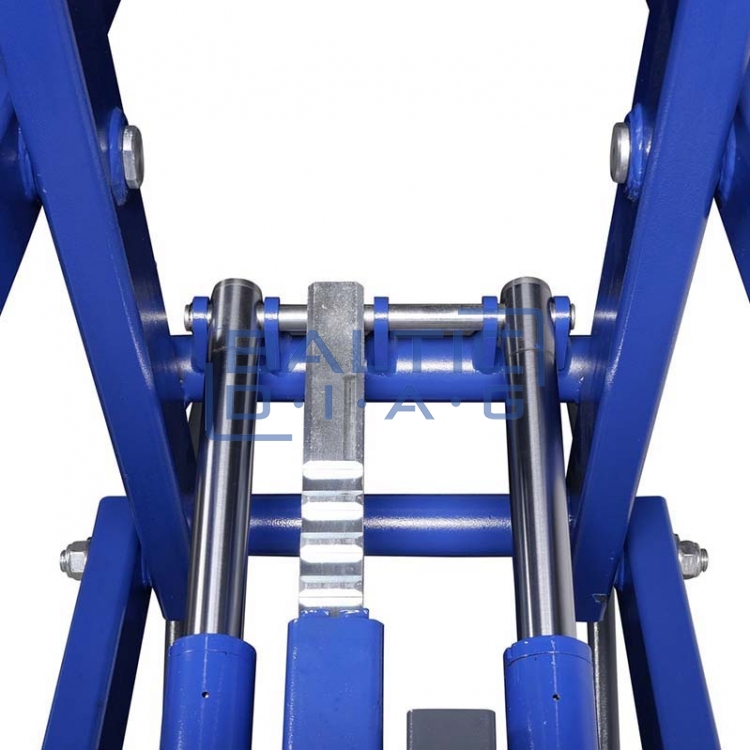

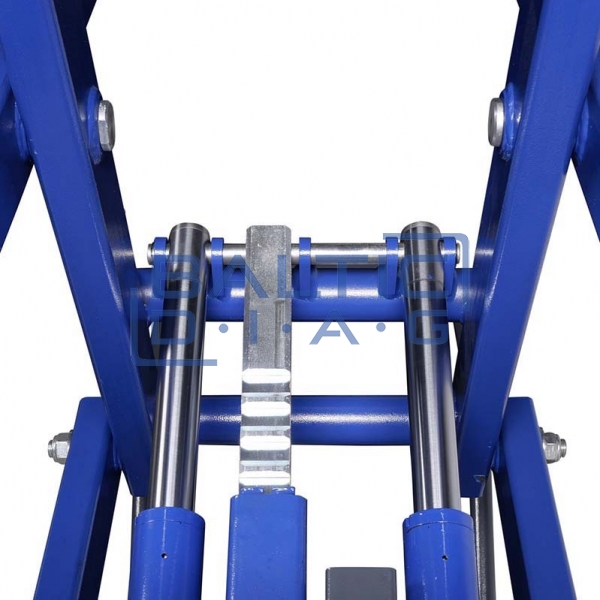

• Double hydraulic cylinder and electro-mechanical lock – for added safety

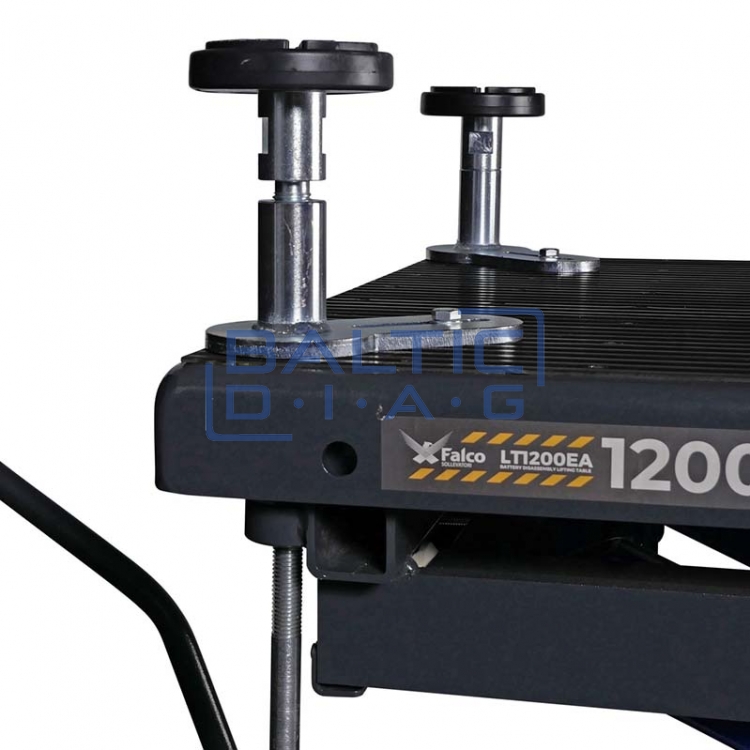

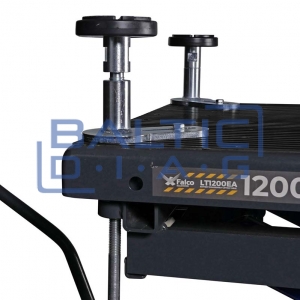

• 6 adjustable lifting pads with threaded spindles

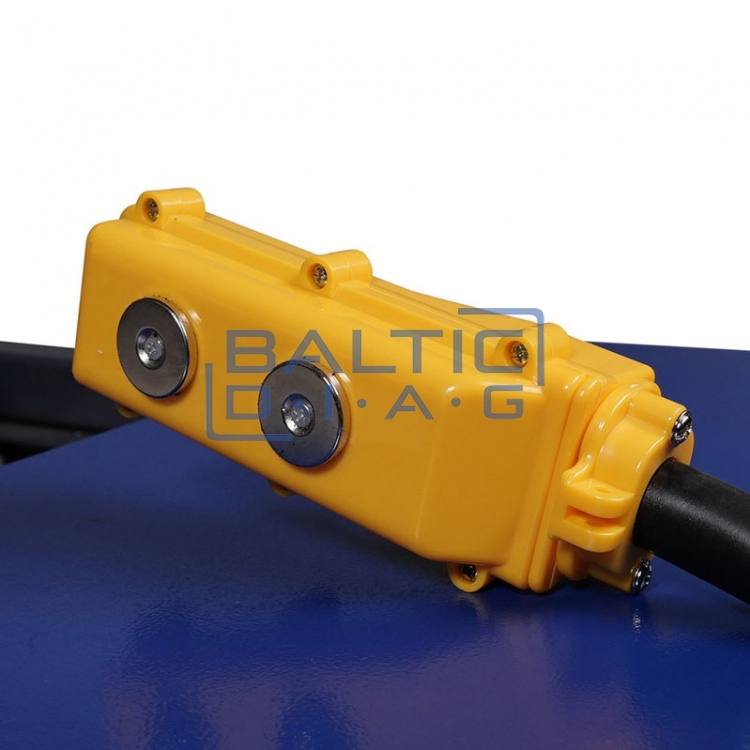

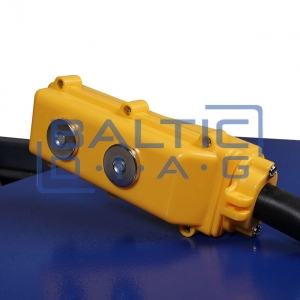

• Control unit with magnetic holder – for convenient positioning
• Insulated tabletop and lifting components – for working with electric vehicles

Technical specifications:

• Lifting capacity: 1200 kg
• Voltage: 230V / 50 Hz
• Power: 0.75 kW
• Platform dimensions: 1300 x 760 mm
• Protection class: IP44
• Minimum height (without / with pads): 640 / 800 mm
• Maximum height (without pads / with pads in mid / high position): 1855 / 2015 / 2065 mm
• Adjustable lifting pads (min / max): 160 / 210 mm
• Platform length adjustment: 1290 - 1400 mm

Product dimensions:

• Length – 770 mm
• Width – 2,240 mm
• Height – 1,010 mm
• Weight – 440.0 kg

Package dimensions:

• Length – 840 mm
• Width – 1,820 mm
• Height – 680 mm
• Weight – 482.0 kg
