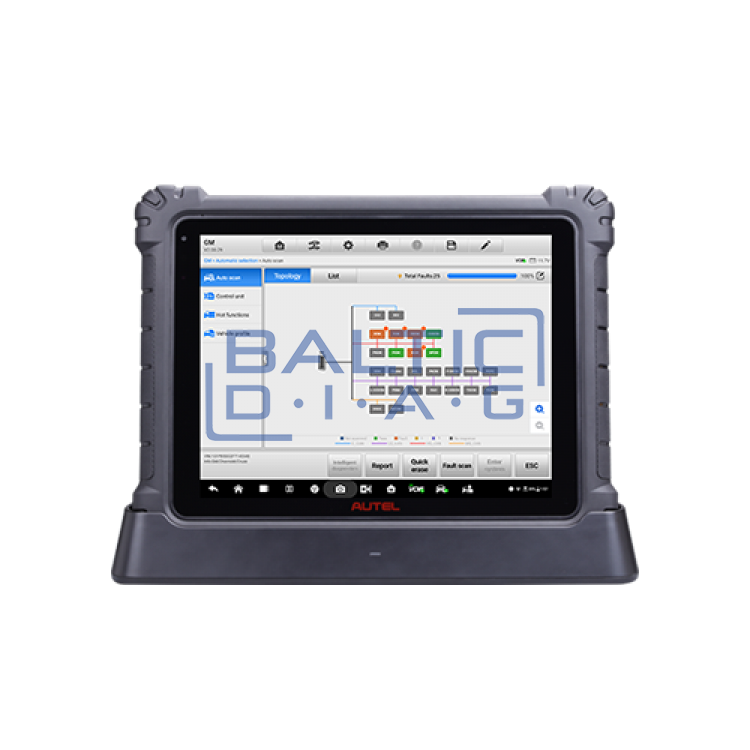

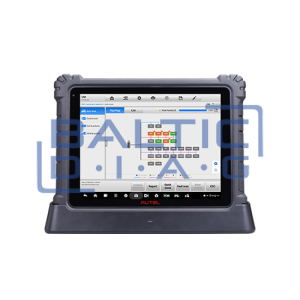

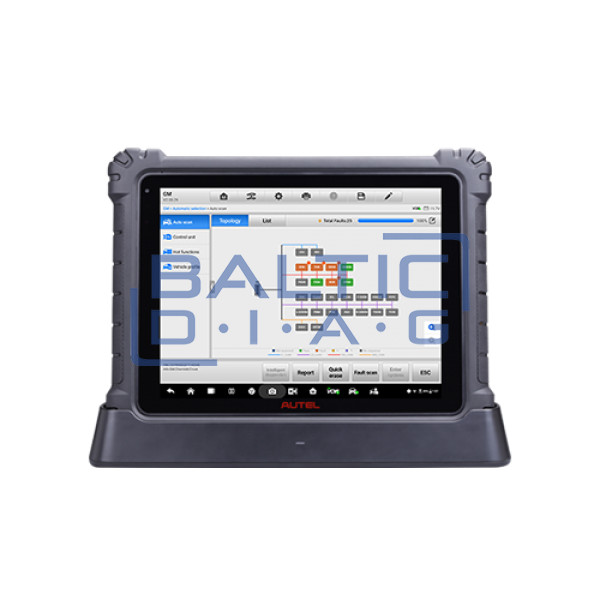

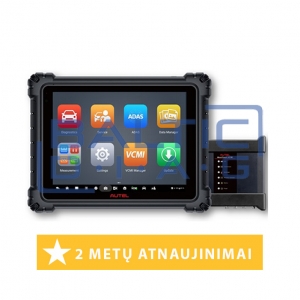

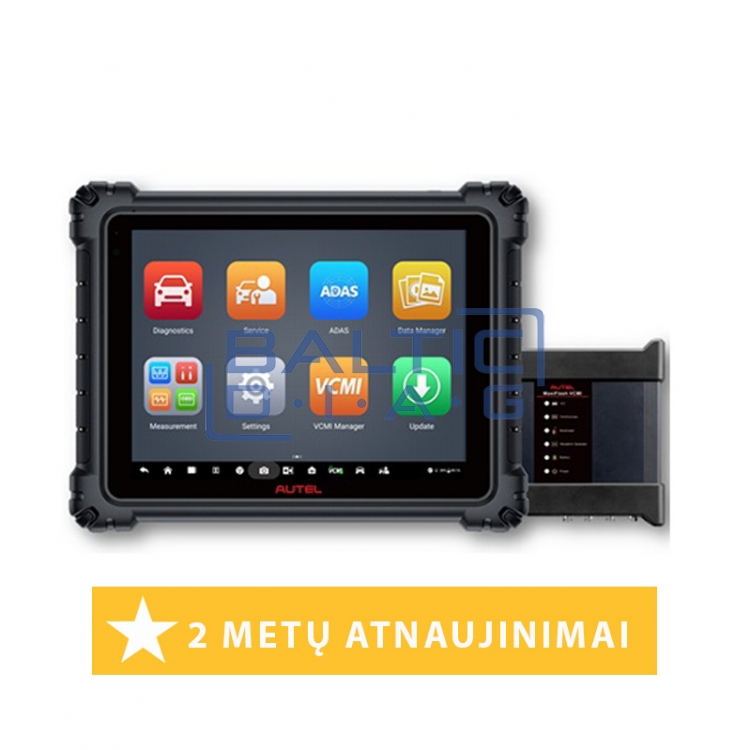

Professional diagnostic equipment Autel MaxiSys ULTRA

Professional Diagnostic Tool Autel MaxiSys ULTRA

Why Choose Autel MaxiSys ULTRA?

• Largest Screen on the Market (13 inches)
• A bright and highly responsive touchscreen enables convenient analysis of even the most complex data and test results.

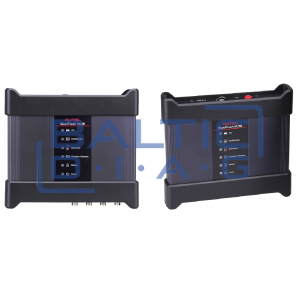

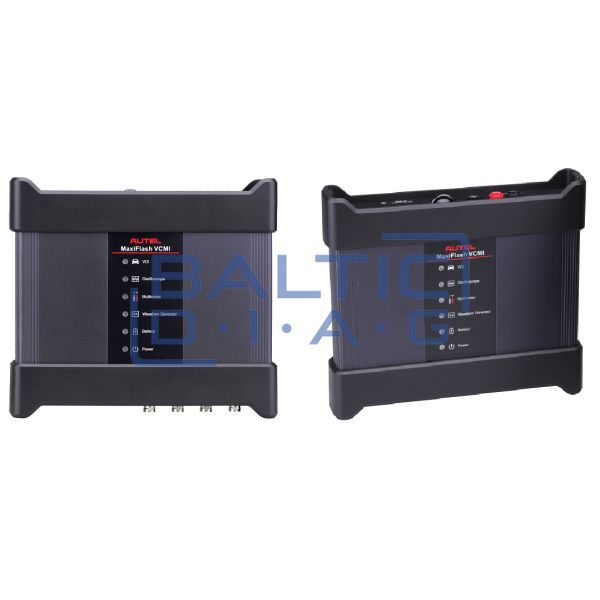

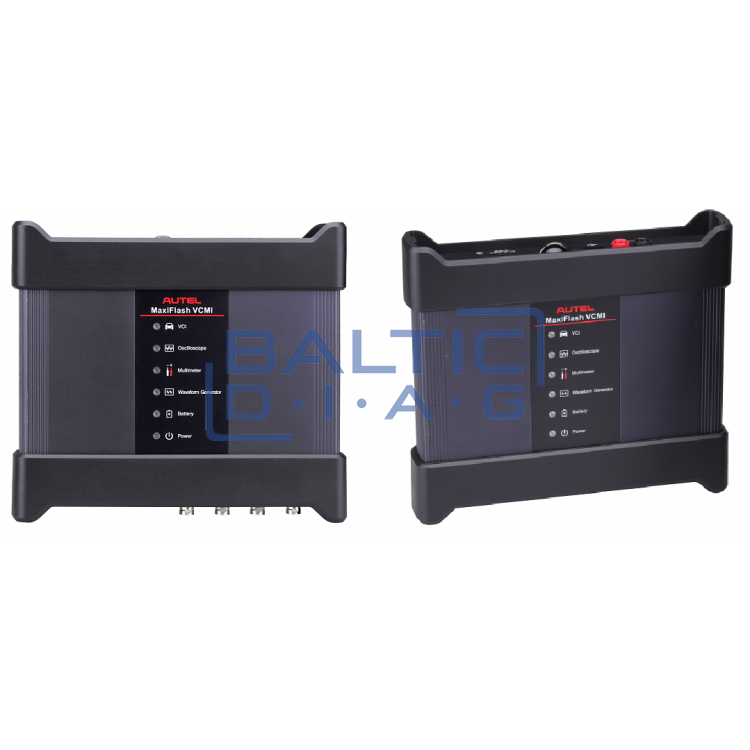

• 4 Tools in One with MaxiFlash VCMI
• The VCMI module functions as an oscilloscope, waveform generator, multimeter, and CAN tester — providing complete electrical system diagnostics without the need for additional devices.
• 256 GB Internal Storage and High-Speed Processor
• Effortless multitasking and seamless operation, even with demanding diagnostic tasks — no delays or performance issues.
• Smart Diagnostics with AutoSCAN and Interactive Support
• Intelligent features help identify faults quickly, and real-time support from AUTEL experts is available when needed.
• Cloud-Based Solutions for the Entire Workshop
• All customer, vehicle, and service history is stored in one central location — accessible anytime.
• Charging Dock Included
• Convenient storage and charging solution — your device is always ready for work.

Features:

• Latest OE-level coverage for over 80 U.S., Asian, and European vehicle brands
• Full OE functionality: OBDII diagnostics, ECU coding, and programming
• Automatic system and software updates with real-time notifications
• Interactive support sessions with AUTEL specialists
• All-in-one service management: file, customer, and vehicle record handling
• Cloud-based data storage
• Optional ADAS calibration software (sold separately)

Technical Specifications:

• Operating System: Android 7.0
• Processor: Samsung Exynos 8895V (2.3 GHz Quad + 1.7 GHz Quad)
• Memory: 4 GB RAM with 256 GB internal storage
• Display: 12.9" TFT-LCD touchscreen, 2732 x 2048 resolution
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac), Bluetooth v2.1 + EDR, GPS, USB 2.0, HDMI 2.0, SD card support up to 256 GB
• Cameras: Rear – 16 MP (with flashlight), Front – 5 MP
• Sensors: Gravity accelerometer, ambient light sensor (ALS)
• Audio I/O: Microphone, dual speakers, 3.5 mm headphone jack
• Battery: 18,000 mAh, 3.8 V lithium-polymer
• Input Voltage: 12V / 3A
• Operating Temp: 0 – 50 °C
• Storage Temp: -20 – 60 °C
• Dimensions: 366.5 x 280.9 x 34 mm
• Weight: 2.18 kg
• Supported Protocols: DoIP, CAN, GMLAN, ISO, SAE, BMW, Ford, Nissan, and more

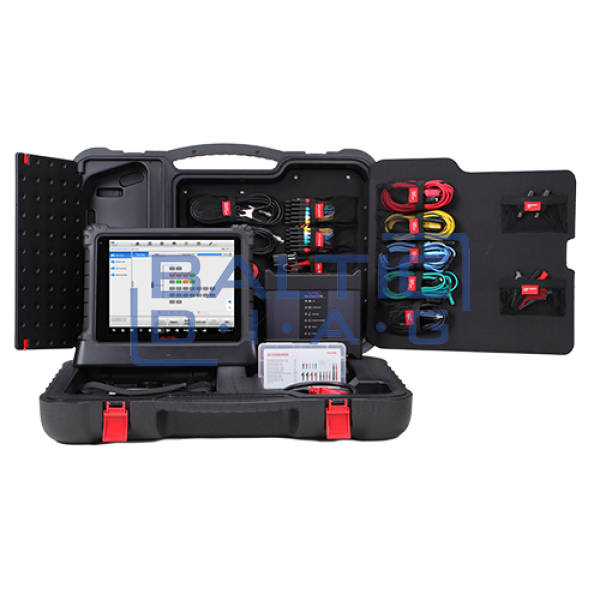

What’s Included:

• Diagnostic tablet
• Charging dock
• Main OBDII cable V2.0
• AC/DC adapter (12V)
• USB 2.0 cable V2
• Vehicle charging cable
• 2 fuses (6x30 mm)
• Oscilloscope, multimeter, and ignition test leads
• Probes, adapters, clamps
• User manual
• Packing list
• Screen cleaning cloth
• Tool case
• Carrying case

Who Is This Device For?

• The Autel MaxiSys ULTRA is ideal for professional workshops, electronic diagnostics experts, and advanced system programmers who value not only high-end functionality but also operational comfort. It’s the solution for those who want to stay ahead — from ADAS calibration to ECU programming and full electrical system audits.

Why Buy from Us?

• We are the only official AUTEL distributor in Lithuania.
• Genuine equipment with the widest vehicle database for Europe.
• Russian and English languages included in one device.
• Fast delivery — 95% of items are in local stock.
• Option to test the device before purchase.
• Full warranty and post-warranty service.
• Free replacement device during extended repairs.

Ready to Push the Boundaries of Diagnostics?

• Try the AUTEL MaxiSys ULTRA today — contact us and get a personalized offer tailored to your workshop!
