50 ton C-type hydraulic press PPC-50 RHTC

50 Ton C-Type Hydraulic Press PPC-50 RHTC

Country of origin: Netherlands, warranty period – 24 months

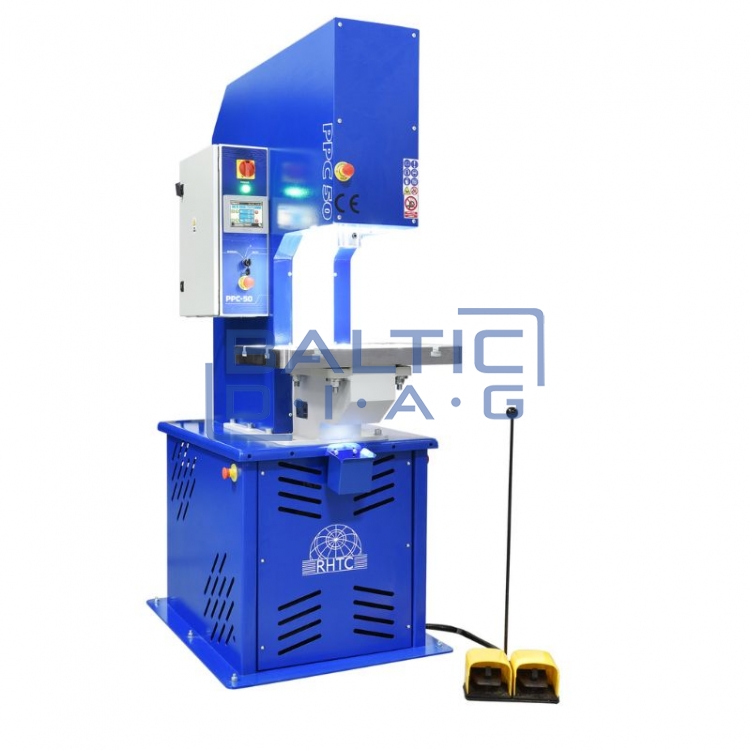

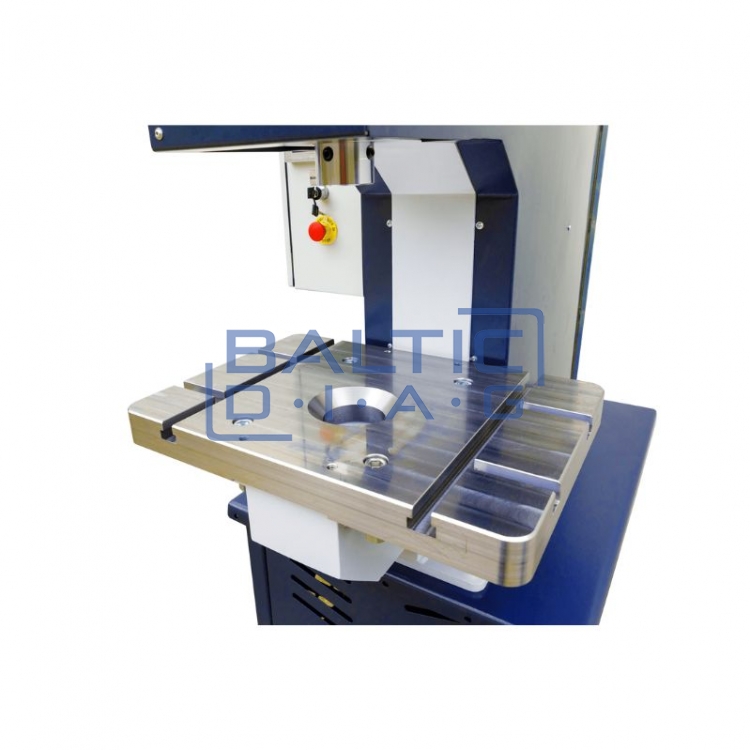

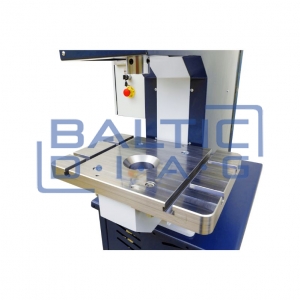

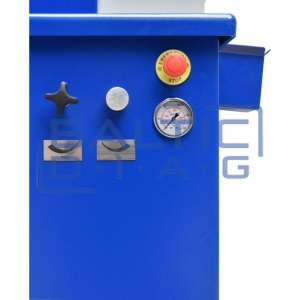

The 50-ton C-type press PPC-50 is a professional hydraulic machine made in Europe, designed for metal cutting, punching, stamping, and other forming tasks. The electronic NC controller allows precise adjustment of the piston stroke with an accuracy of up to 0.1 mm. It also enables the setting of the holding time in the bottom position (from 0 to 2 seconds). The press operates in two modes – manual and semi-automatic. The worktable is equipped with T-slots and a central hole (ø 100 mm) through which waste from punching operations can fall directly into the collection tray. Pressing force and speed are adjusted using hydraulic control valves, and the pressure is monitored via an integrated manometer.

Features:

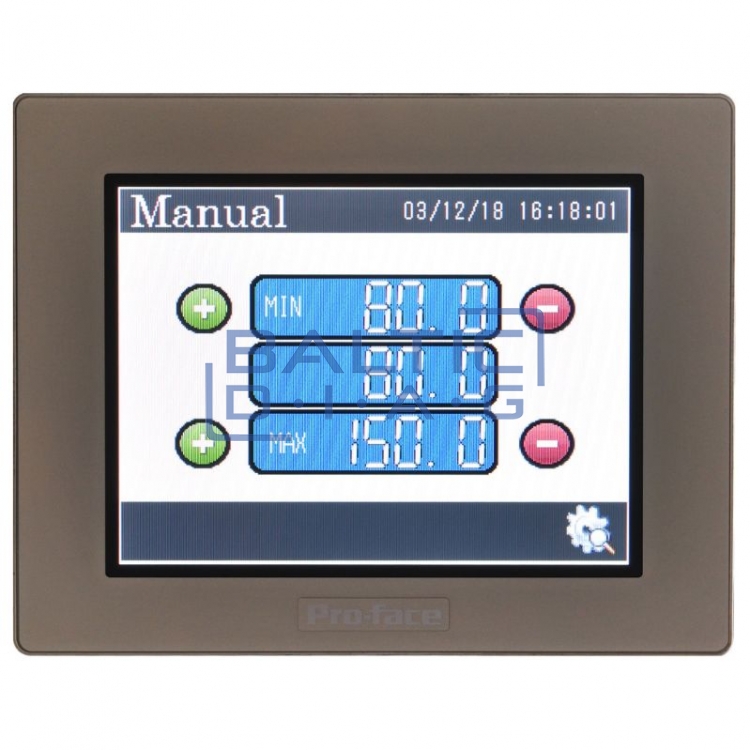

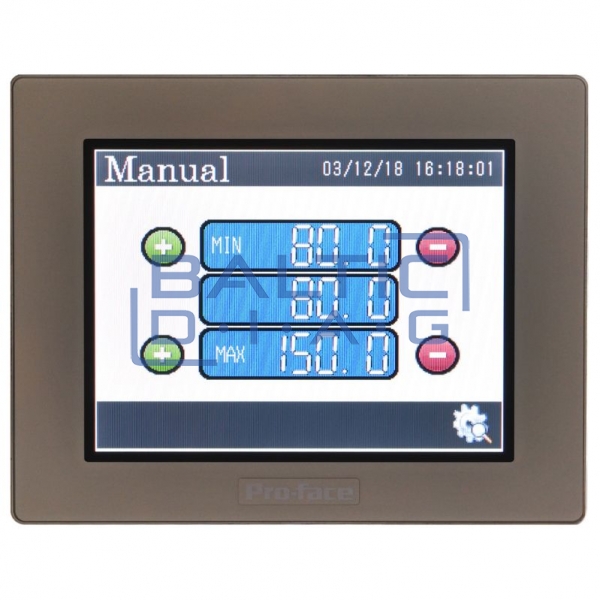

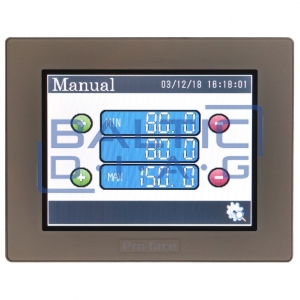

• NC control for precise piston stroke adjustment
• Manual / semi-automatic operating modes

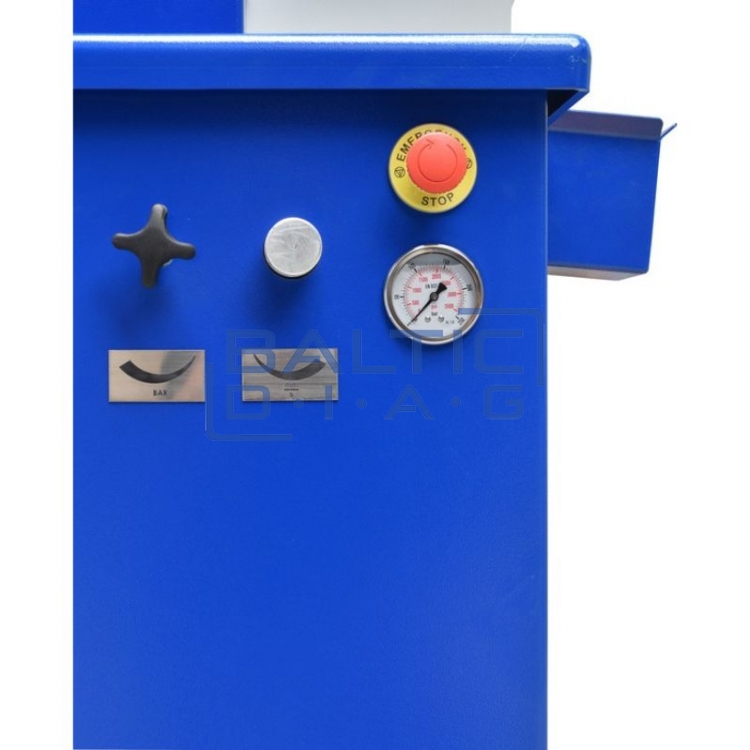

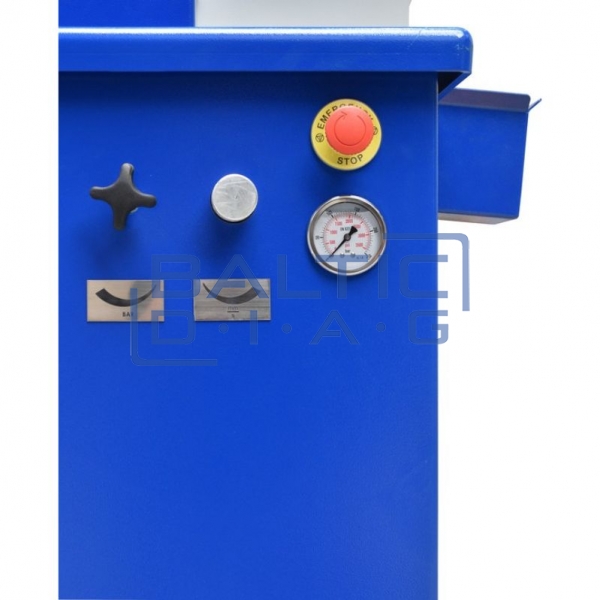

• Flow and pressure adjustment valves
• Integrated pressure manometer
• Option to mount various tools – the piston has a 40 mm hole for tool fixing

Technical Specifications:

• Pressing force: 50 t
• Motor power: 5.5 kW
• Minimum working speed: 2 mm/s
• Maximum working speed: 9.8 mm/s
• Return speed: 12.8 mm/s
• Piston stroke: 150 mm
• Vertical clearance: 325 mm
• Throat depth: 280 mm
• Table dimensions (L × W): 650 × 490 mm
• Total height: 2100 mm
• Weight: 1400 kg
