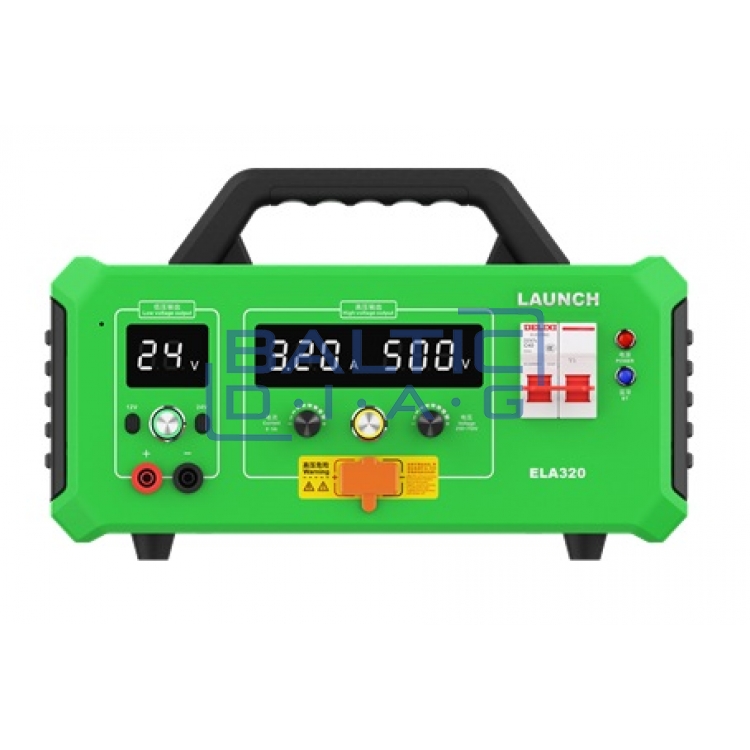

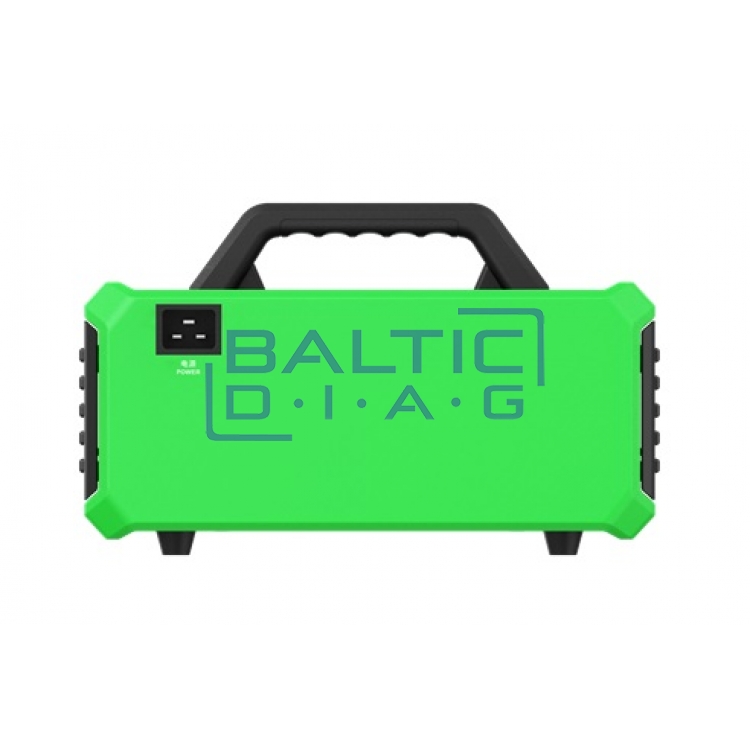

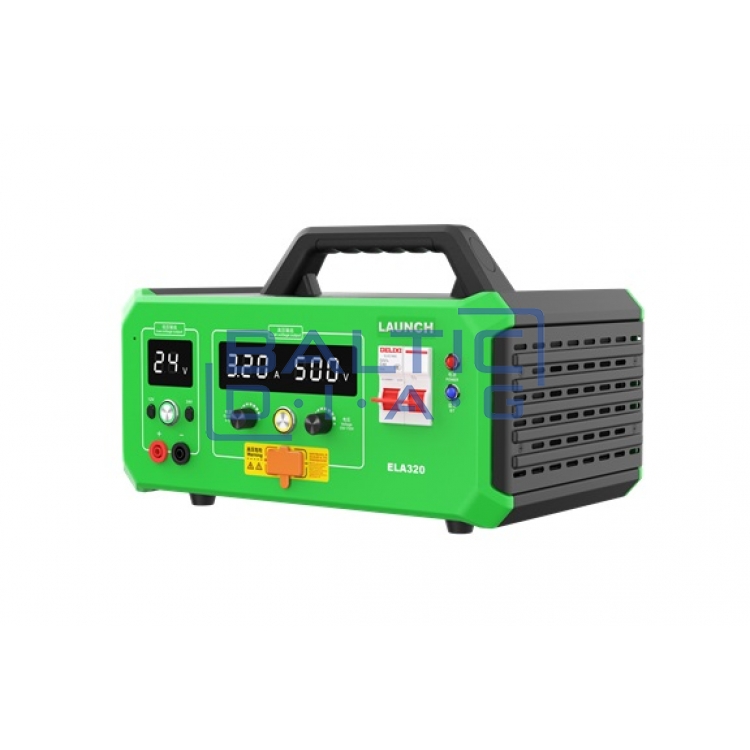

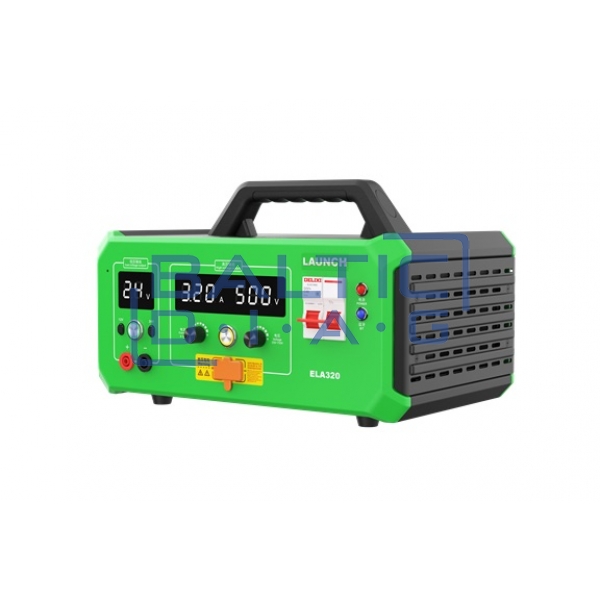

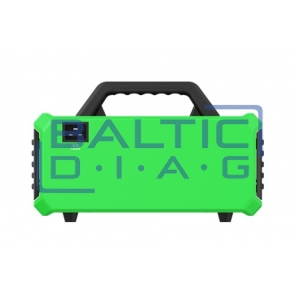

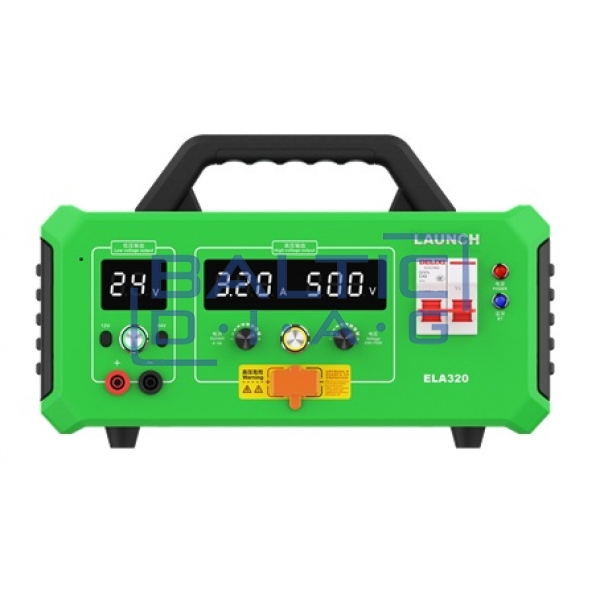

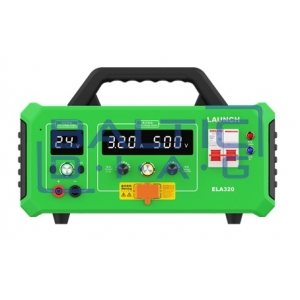

Smart digital power source for electric car batteries Launch ELA320

Smart digital power source for electric car batteries Launch ELA320

Features:

• ELA320 is an intelligent digital voltage supply unit for HV vehicle maintenance.
• It can be used for maintenance testing of high and low voltage electrical components such as:
• Electric air conditioning compressor
• DC/DC module
• PCT heater
• Electronic fan
• Power steering pump
• The high and low voltage circuits are separately fused and can be used separately. They can be managed, maintained and monitored separately.
• Independent protection mechanism: For the input circuit, the high-voltage output circuit and the low-voltage output circuit. This detects faults such as undervoltage, overvoltage, overcurrent and short-circuit and takes appropriate protective measures. In addition, an alarm sounds in the event of a fault.
• Wireless control of synchronous operation via Bluetooth with supported X-431 diagnostic devices. When the unit is connected, the current power supply mode, high/low voltage output conditions, setting parameters and other data are synchronized in real time.

Technical parameters:

• Supply voltage: 110 ~ 240V @16A, AC, 50/60Hz
• Output parameters, high voltage: DC 250 ~ 750V
• Output parameters, high voltage current: 0 ~ 5A
• Output parameters, low voltage: DC 12, 24V
• Output parameters, low voltage current: 1A
• Output voltage accuracy: 0.1V
• Output electric current accuracy: 0.1A
• Control panel, high voltage: voltage regulation, electric current regulation, output switch
• Control panel, low voltage: voltage switch between 12V and 24V, output switch
• Display: 8-segment, white light LED digital display
• Communication method: Bluetooth (BLE 4.2)
• Dimensions: 315 x 192 x 186 mm
• Weight: 4.85 kg
• Operating temperature: -10°C ~ +60°C
