Foot hydraulic press 30 tons, FP30

Foot hydraulic press 30 tons, FP30

This hydraulic press is an ideal tool for professional workshops and repair work. Thanks to the foot pedal controlled system, this press allows you to work efficiently, giving the operator the freedom to use both hands to work with the workpiece. Its durable design and reliable hydraulic system ensure long-term performance and safety. hydraulic press with foot pedal – an effective and reliable solution for workshops that strive for quality, convenience and accuracy!

Features:

• Foot-operated hydraulic press

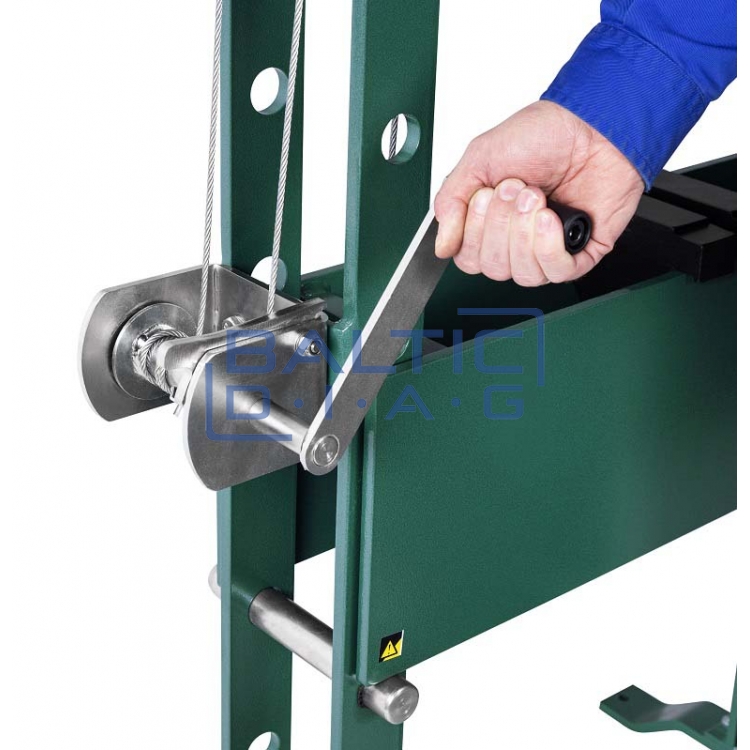

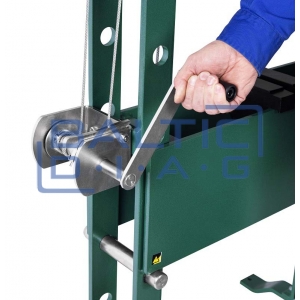

• Completed with a workbench lifting mechanism

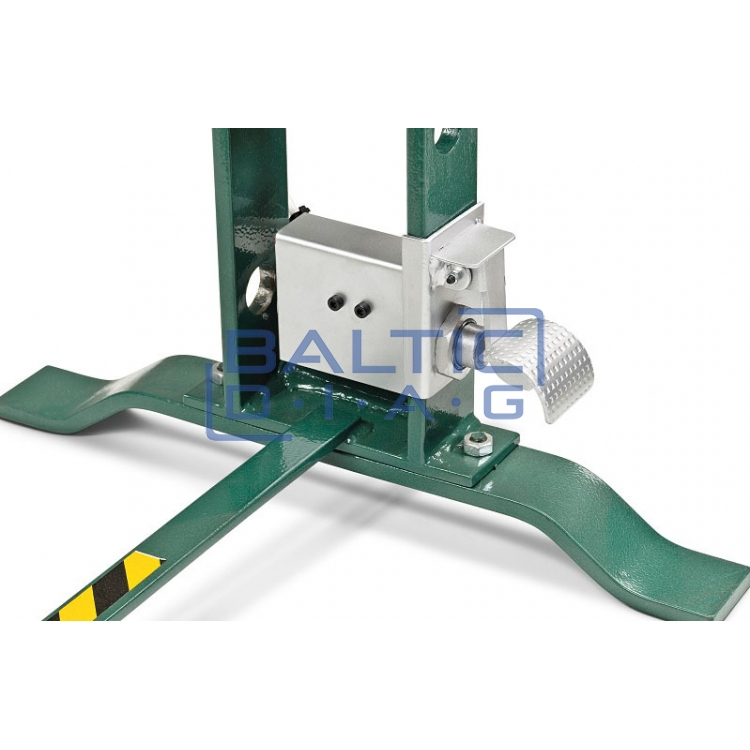

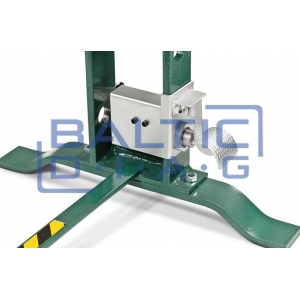

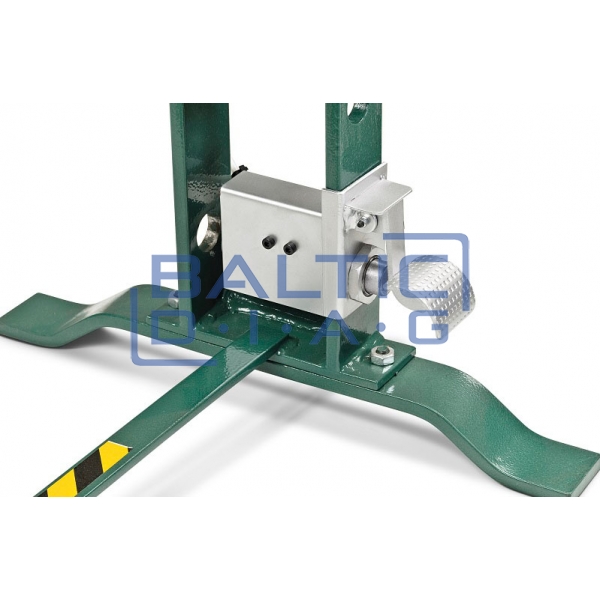

• Foot pedal-controlled lowering of the pressing cylinder to the workpiece
• You can use the foot control pedal even when performing pressing work
• Extra long cylinder stroke
• Built-in pressure release button in the foot switch
• Side-moving pressing cylinder

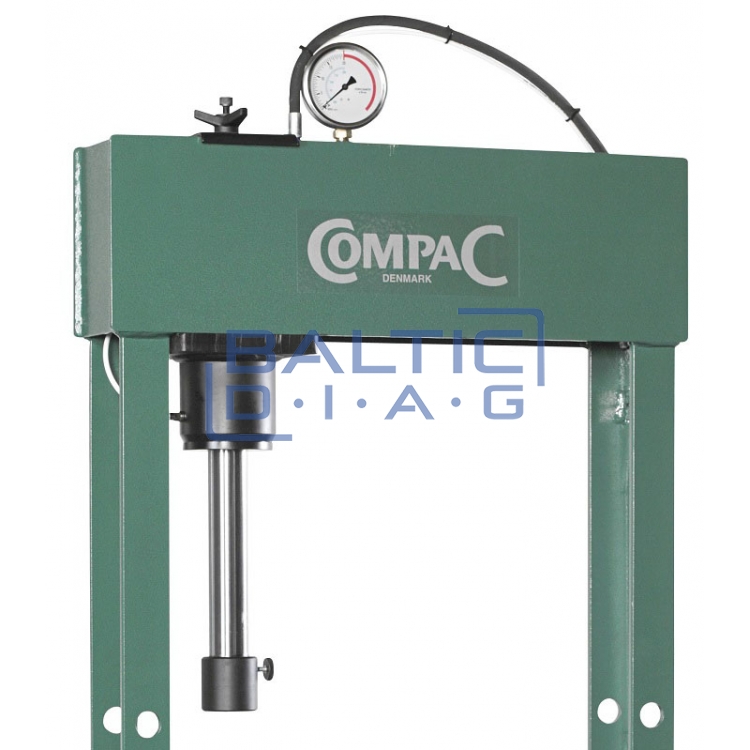

• Sturdy, chrome cylinder
• Air inlet connection has a water collection filter

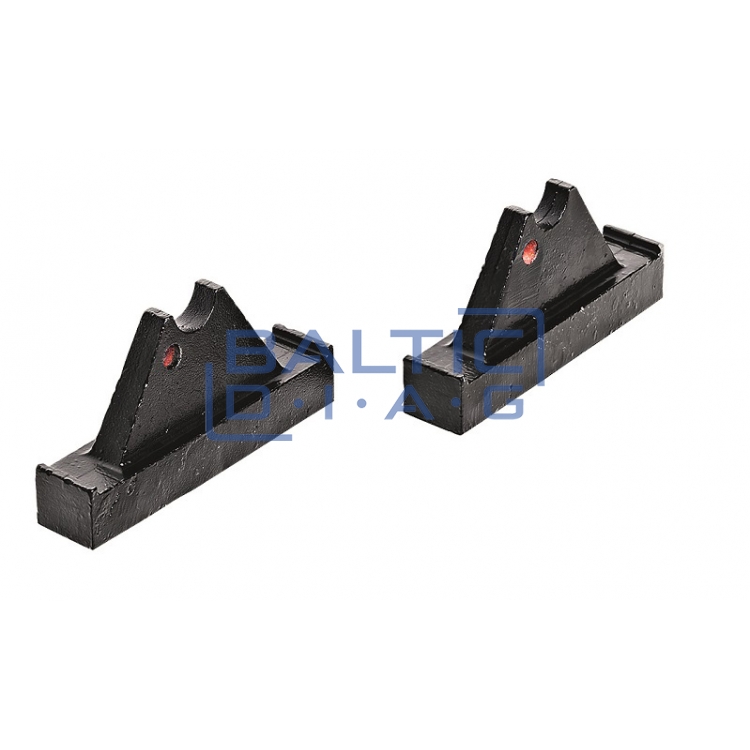

• Two working V-shaped workbenches

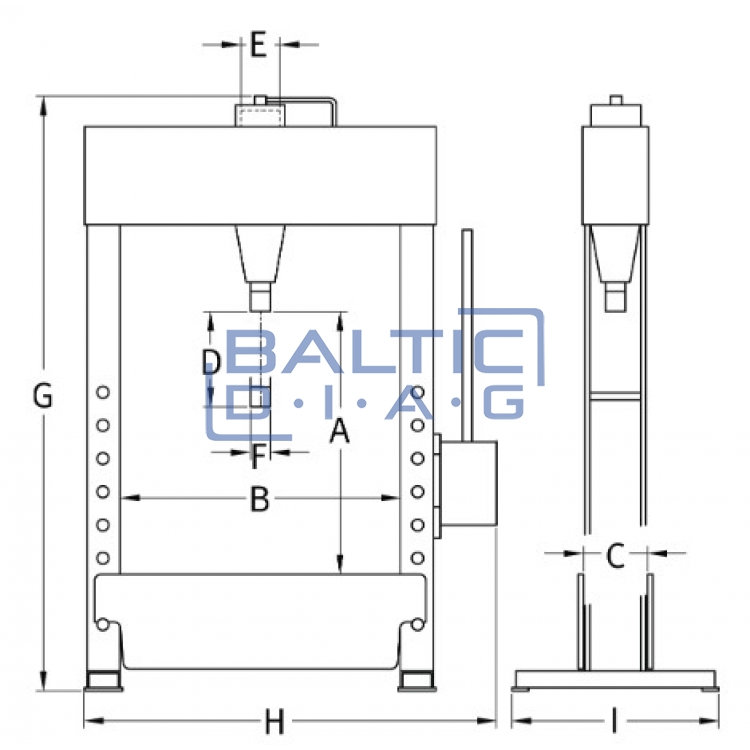

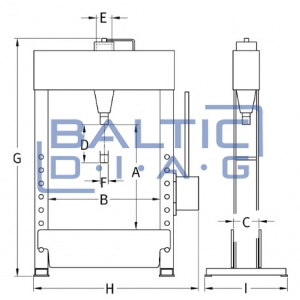

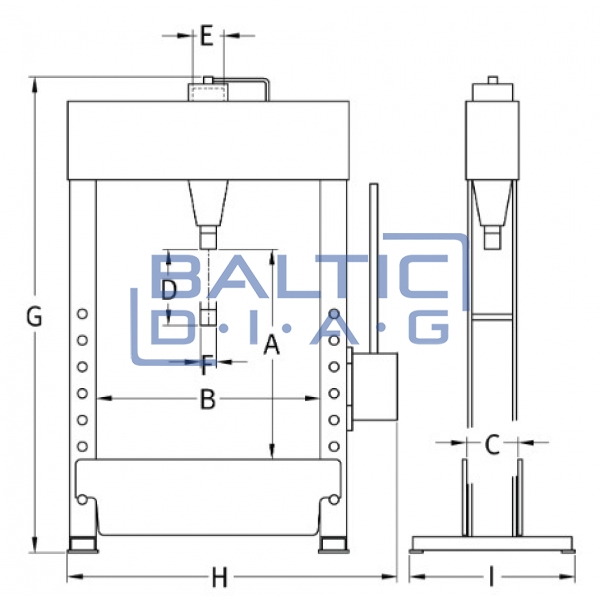

Technical parameters:

• Pressure capacity: 30 tons
• Working height (A): 825 mm
• Width between columns (B): 600 mm
• Column thickness (C): 140 mm
• Cylinder stroke (D): 240 mm
• Cylinder diameter at the top (E): 90 mm
• Working cylinder diameter (F): 70 mm
• Height (G): 1800 mm
• Width (H): 890 mm
• Depth (I): 505 mm
• Weight: 161 kg
• Package dimensions: 600 x 900 x 2150 mm
