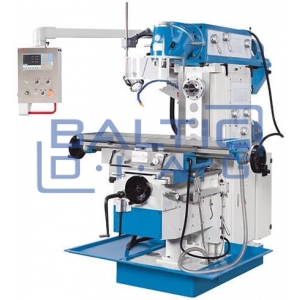

Milling machine, Knuth UWF 5

Milling machine, Knuth UWF 5

Manufacturer: Knuth, Germany

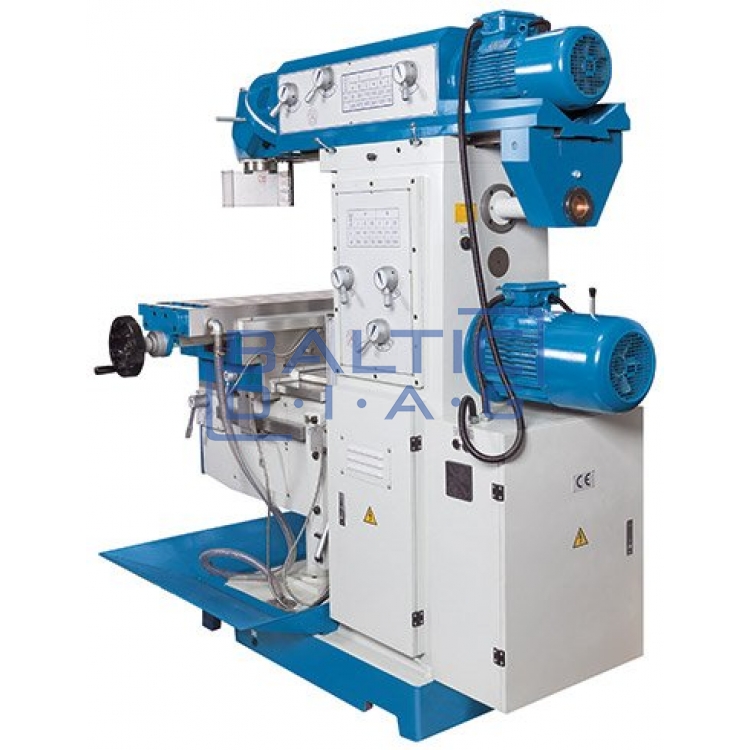

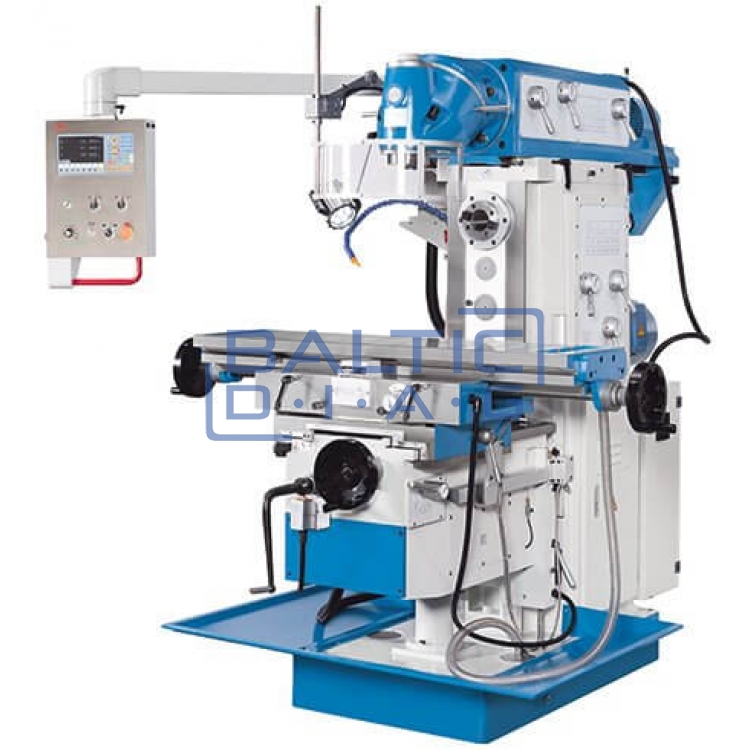

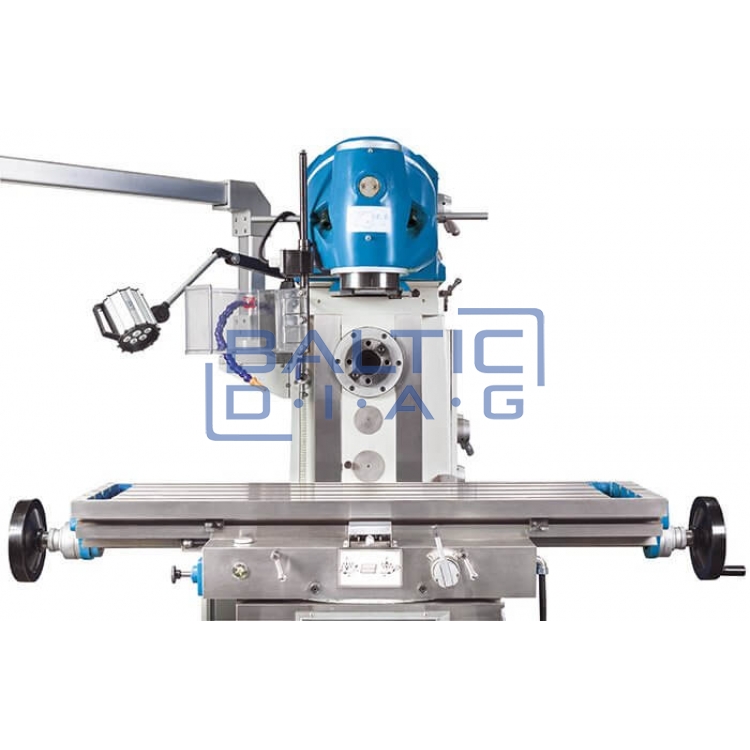

Universal milling machine UW 5 - one of the most popular machines from the UW model series, with a wide range of applications with a universal milling head and horizontal shaft. The machine has stronger gears, a wide range of revolutions and freely adjustable feed of parts, thanks to special servo motors, which greatly expands the possibilities of using the machine. The milling head can be rotated in two planes, and the horizontal shaft has its own transmission gear with finely graduated gear shifting. With a wide range of tooling and accessory needs, this model of milling machine is suitable for repair shops, manufacturing sectors and education.

• The universal cutting head can rotate in 2 levels
• The horizontal milling shaft has its own transmission gear
• Rotating milling table
• Fast feed of servo motors on all axes
• Wide range of standard tools

More detailed description:

• Extra rigid machine base, featuring extra strong HT-200 cast iron with thick edges

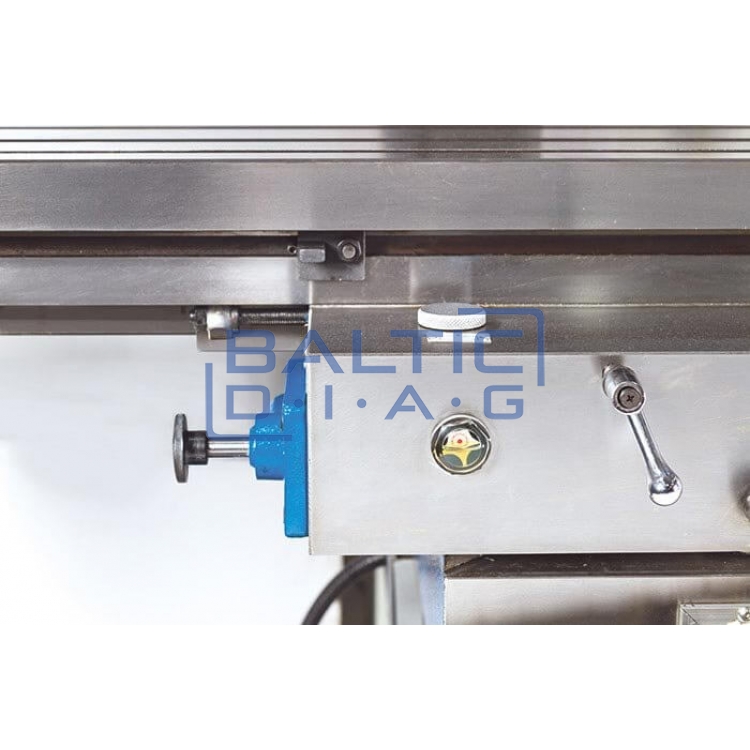

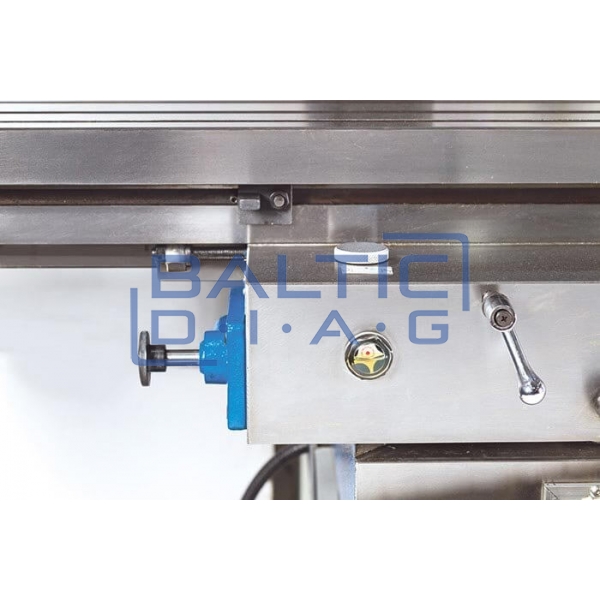

• Precision ground guides with a specially hardened surface to ensure long-term accuracy and wear resistance
• A wide working place, 1325 x 360 mm in size and capable of withstanding a load of 500 kg on the working surface

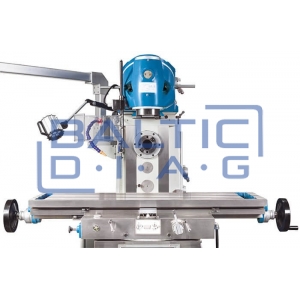

• Silent, precisely prepared head gears that are specially hardened and tempered

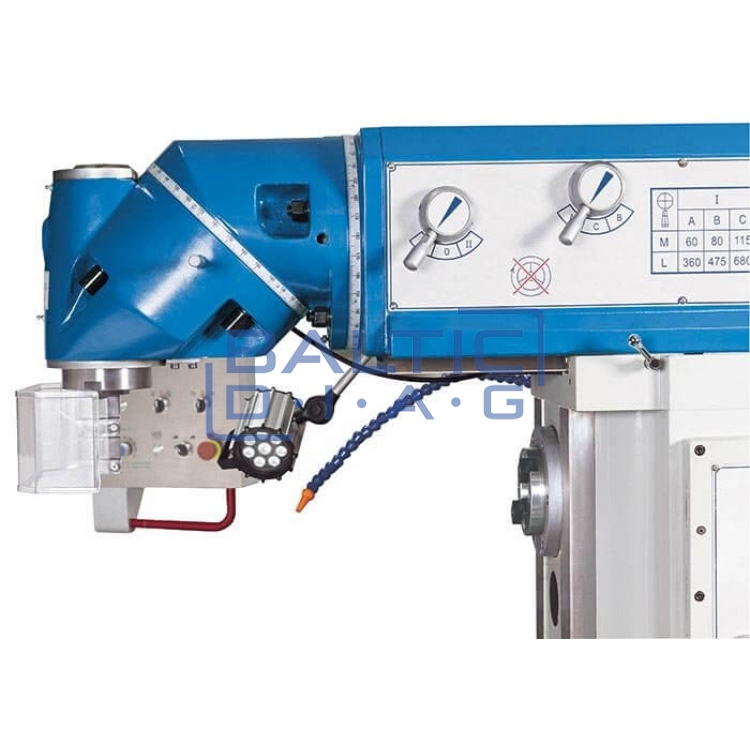

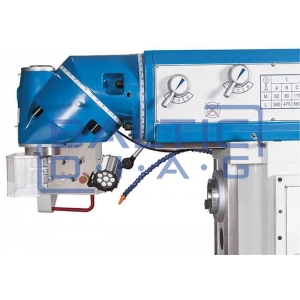

• The universal cutting head can be searched in two directions. Quick change between horizontal and vertical machining is possible
• By combining both possibilities of turning the head, it is almost possible to determine the machining angle of any part
• Powerful axis servo motors provide extremely wide feeding possibilities in all 3 axes
• Telescopic caps located on the Y-axis storage shaft
• The control panel can be turned in both directions and has a jointed position end
• The 5.5 kW power main drive guarantees high torque
• The kit includes a cooling system and a chip tray

3 axis position indicator:

• Greater accuracy
• Less chance of errors
• Increased productivity
• Saving important time
• Easy to understand display
• Operator specific functions
• Convenient keyboard layout
• Resolution: 0.01 / 0.005 mm
• Default coordinates
• Axis positions are supported even when the screen is ism
• Calculation of the circular modulus of the hole
• Calculator function
• Parts storage for up to 10 tools
• Choice between radius and area, readings
• Choice between mm / inch measurement units
• Easy replenishment of the assortment and maintenance-free operations

Technical data:

• Table dimensions: 1325 x 360 mm
• Table max load capacity: 500 kg
• Number of T-slots: 3 places
• T - slot, width and cavity: 18 x 80 mm
• Travel, X-axis: 750 mm
• Travel, Y axis: 280 mm
• Travel, Z-axis: 390 mm
• Speed range: 60 1/min - 1750 1/min
• Spindle mount: ISO 50
• Swivel angle: 360 °
• Upper beam travel: 550 mm
• Spindle center-to-table distance: 175 - 565 mm
• Rapid feed, X-axis: 1200 mm/min
• Rapid feed, Y-axis: 800 mm/min
• Rapid feed, Z-axis: 600 mm/min
• Horizontal milling spindle:
• Horizontal spindle speed: 60 1/min - 1800 1/min
• Spindle mount: ISO 50
• Throat: 380 - 930 mm
• Feed, X-axis: 30 mm/min - 750 mm/min
• Feed, Y-axis: 20 mm/min - 500 mm/min
• Feed, Z-axis: 10 mm/min - 375 mm/min
• Horizontal spindle, motor power: 5.5 kW
• Vertical spindle, motor power: 4 kW
• X - axis feed, motor power: 1.5 kW
• Y - axis feed, motor power: 1.5 kW
• Z - axis feed, motor power: 1.5 kW
• Cooling pump motor power: 0.09 kW
• Overall dimensions: 1800 x 2100 x 2000 mm (L x W x H)
• Weight: 2850 kg

Standard equipment:

• 3 axis position indicator, X.Pos 3,2
• Reducing sleeve ISO 50 / MT4
• Milling arbors (27; 32 mm)
• Outer arbor support for horizontal milling
• Collet chuck ISO 50, with collets 3 – 25 mm (8 parts)
• Cooling System
• Workplace lamp
• Chip tray
• Draw bar
• Working tools
• Operator's manual
