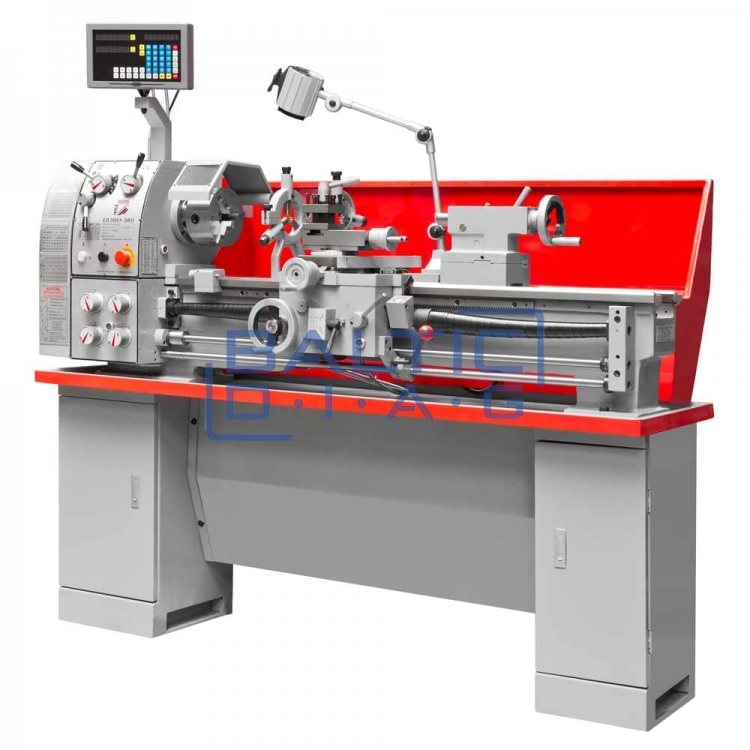

Metal lathe Holzmann ED1000NDIG

Metal lathe Holzmann ED1000NDIG

Manufacturer: Holzmann (Austria)

Features:

Delivered without digital display

Ideal for locksmiths, workshops, factories and schools

Easy and quick adjustment of the rotation speed

Induction heated components

The removable bridge allows you to turn large workpieces

The hardened and ground main shaft ensures high running accuracy

The gear and pinion are lubricated with oil, which ensures the long life of the metal lathe

Lathe bar and guide screw are easily removed

All guides are conveniently adjustable through the V shape

4-way chuck that allows you to work with two different tools at the same time

Hardened and ground gears ensure smooth operation

Clutch, lamp and shaft cover are included in the package

CAMLOCK shaft D1-4, DIN 55029

Digital two-axis control unit

Complete set: 3-piece chuck Ø160 mm, face plate, chuck guard, machine stand, chip guard, stable support, chip tray, 4-way tool post, gear change, 2 x support points MT3, thread dial, main tools, reducer MT5/ MT3, lamp

Technical data:

Motor power s6: 1500 W

Power supply: 400V

Lathe width: 180 mm

Height of lathe: 260 mm

Dimensions: 1870 x 720 x 1520 mm

Longitudinal feed: 0.053-1291 mm/U (40)

Cross feed: 0.011-0.276 mm/U (40)

Shaft bore: 38 mm

Shaft taper: MK5/MT5

Tailstock taper: MK3/MT3

Max. rotation on crossbar: 198 mm

Max. swing in gap: 450 mm

Turning speed min-1: 65-1810

Metric thread range mm/r: 0.4-7 (32)

Inch Thread Range: 4-60 TPI (36)

Transverse feeding stroke: 160 mm

Compound turning stroke: 80 mm

Distance between centers: 1000 mm

Max. tool holder cross-section: 16x16

Center height: 165 mm

Noise level: 78 dB

Net weight: 530 kg

Gross weight: 572 kg
