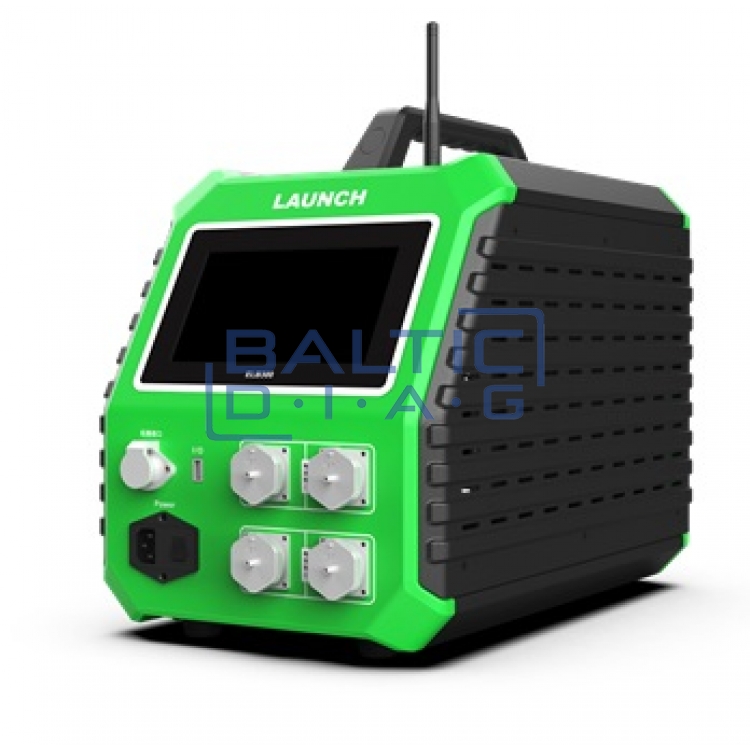

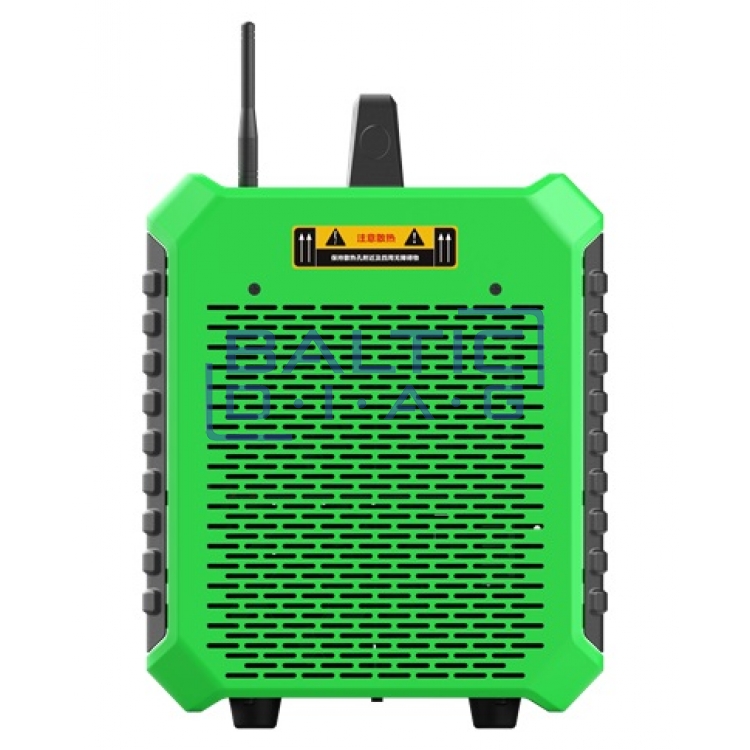

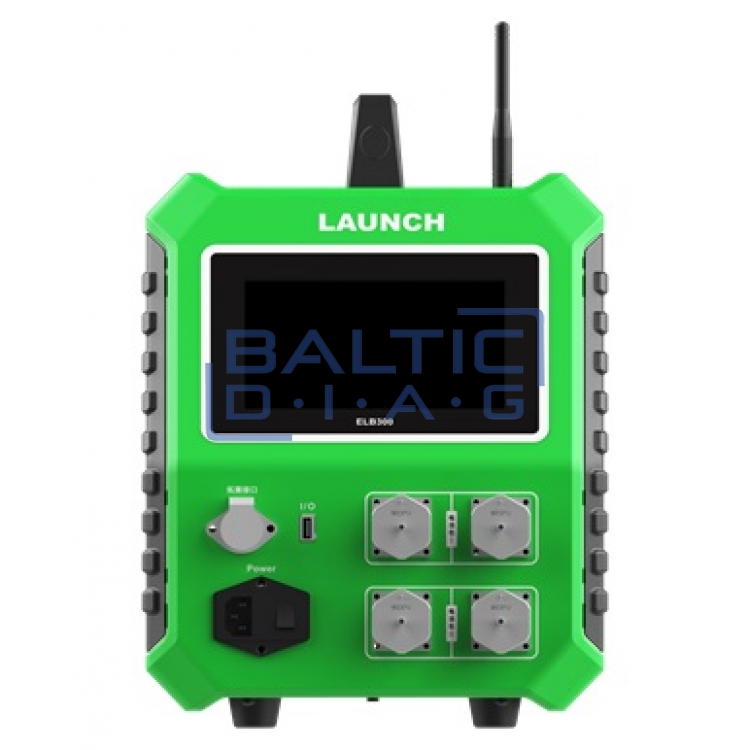

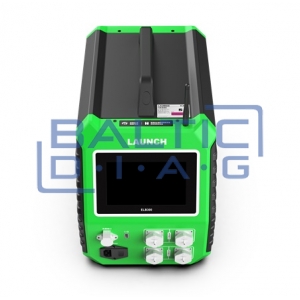

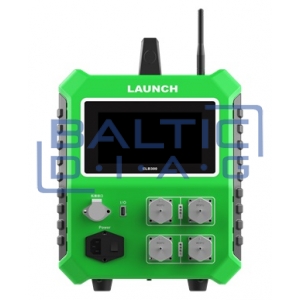

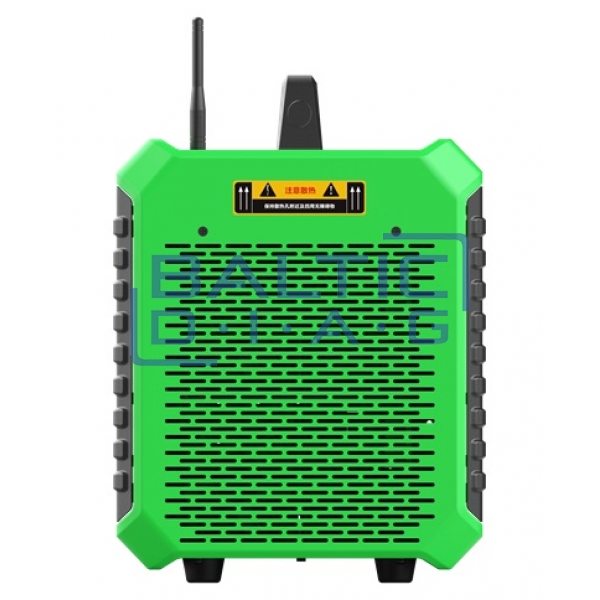

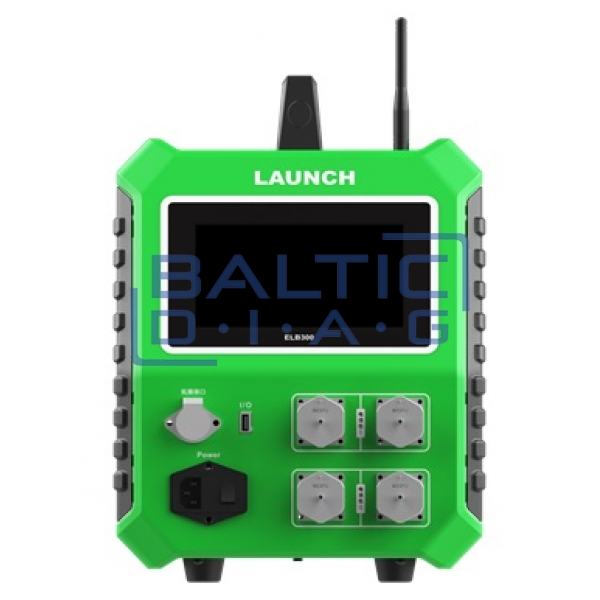

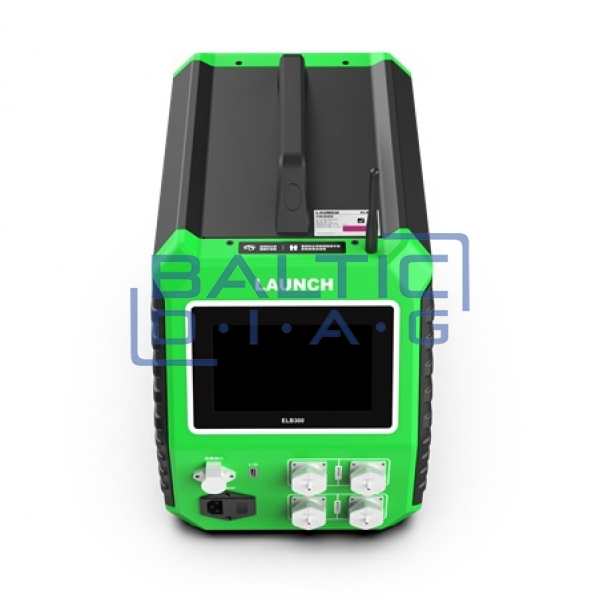

Launch ELB300 EV cell balancing device for electric car batteries

Launch ELB300 EV cell balancing device for electric car batteries

Features:

• With this HV battery cell equalizer, individual cells can be tested, charged and discharged. With this you can set the voltage of the cells to the same level.
• Intelligent recognition of the cells
• Uniform charging or discharging of the cells
• Effective prevention of overcharging or overdischarging of any cell in the HV module
• Safety protection function against overvoltage, undervoltage, overcurrent, short circuit and reverse polarity protection
• 7-inch LCD touch screen

Data analysis menu:

Balancing menu:

Technical parameters:

• Supply voltage: 90 ~ 264V, AC, 50/60 Hz
• Charge and discharge voltages: 1.8 ~ 4.2V / DC
• Voltage detection accuracy: ±0.1% FS±2mV (maximum measuring voltage: 5V)
• Charging and discharging electric current: 0.1 ~ 5A MAX
• Electric current detection accuracy: ±1% FS±0.05A (maximum measuring electric current: 5A)
• Accumulator battery temperature detection accuracy: ±2°C (-25°C ~ +85°C), (charging temperature -25°C ~ +85°C) charging and discharging temperature limits can be set)
• Number of modules supported, with one device: 2 modules maximum, and each module must have no more than 12 battery strips
• Number of channels: 2 x 12
• Charging and discharging: 600W Max
• Accumulator batteries input: 16Pin, 24 Pin
• Control methods: 7" inch screen, with LCD touch screen with a resolution of 800 x 480
• PC data flow: TCP/IP, USB-Device
• Wireless data flow: Wi-Fi, Bluetooth (Wi-Fi, additional antenna)
• Data transfer: USB
• Charging mode: DC electric current + DC charging voltage
• Discharge mode: DC electric current + DC discharge voltage
• Protection functions: input electric current exceeding, voltage exceeding, output electric current exceeding, temperature exceeding
• Dimensions: 380 x 275 x 460 mm
• Weight: 17 kg
• Cooling: forced
• Operating temperature: -5°C ~ +40°C
