Air-cooled laser cleaning device TPC-100 Pulse

Air-cooled laser cleaning device TPC-100 Pulse

Manufacturer: JNCTLaser, China. Warranty: 36 months

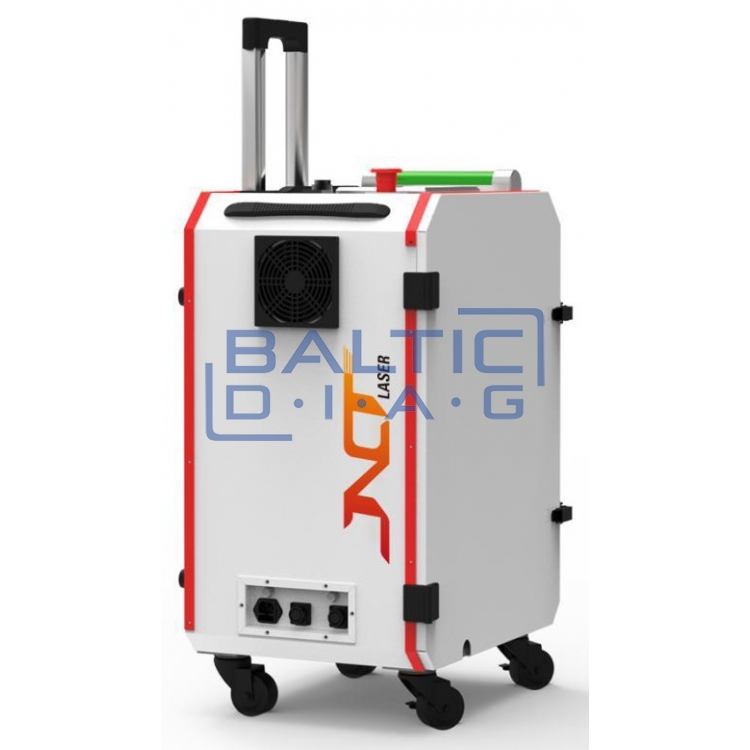

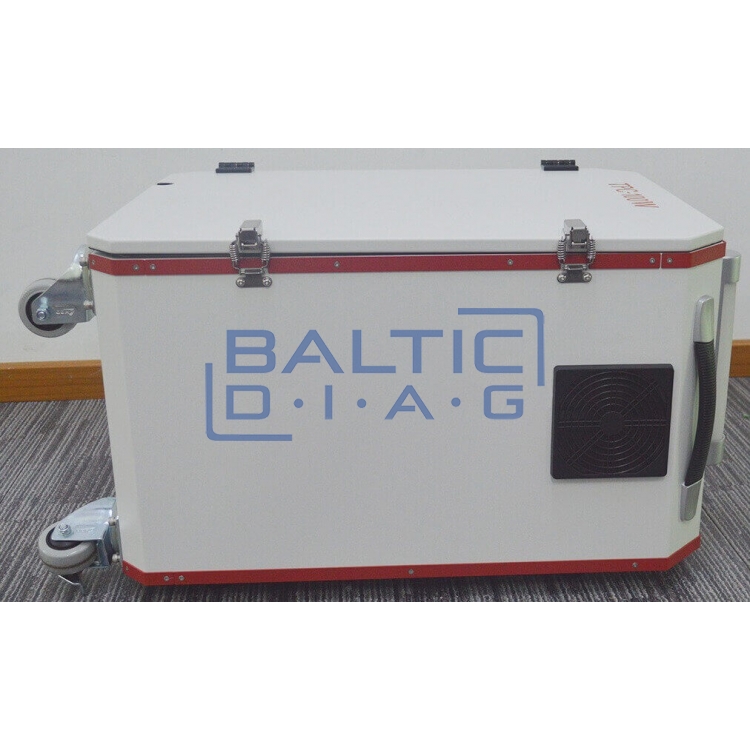

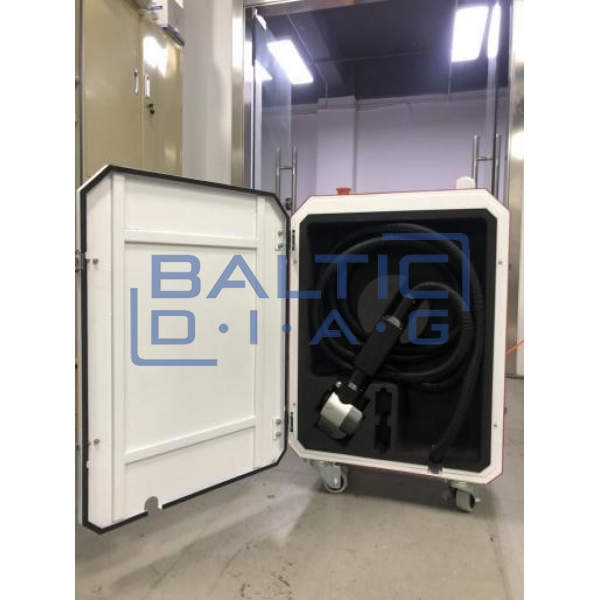

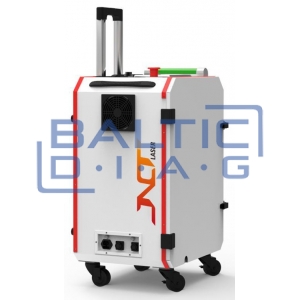

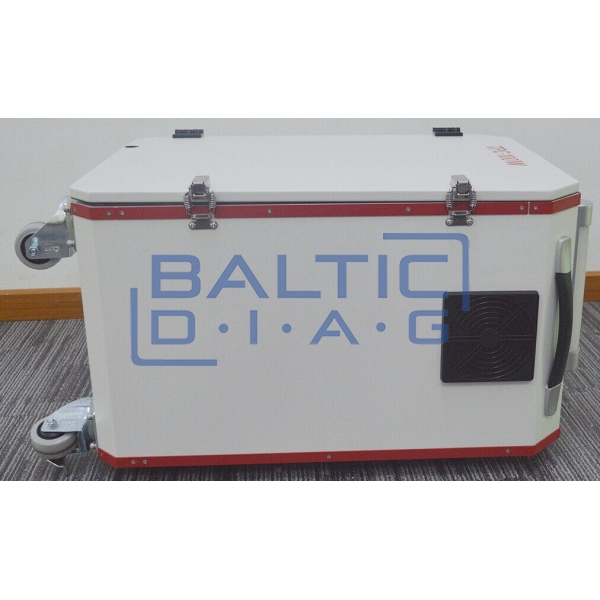

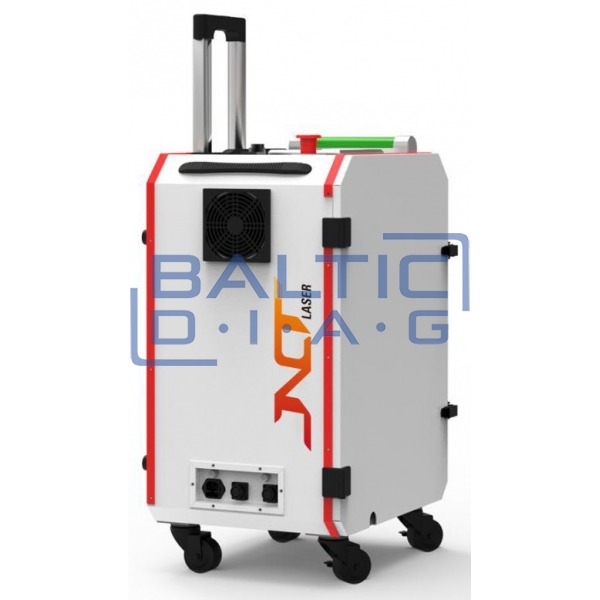

It is a pulsed, air-cooled, 100W power laser cleaning device for removing rust and paint from various surfaces, cleaning using a laser beam that illuminates the part. The device has a well-thought-out compact design that uses air-cooled laser technology and is very practical in terms of transportation. The operation of the device is also very simple, connect the device to the power source, remove the laser cleaning head of the device from the storage compartment and select the desired mode of the cleaning process and start cleaning.

Features:

• The ability to clean or remove the surface paint layer of the part, quickly and conveniently
• Accurate cleaning and paint removal process, very good final result
• The base of the part is not damaged
• The equipment does not require special preparations before starting work
• Low labor costs

Technical parameters:

• Device model: TPC - 100 Pulse
• Laser source: RayCus 100 W
• Laser cleaning head: 2D laser head

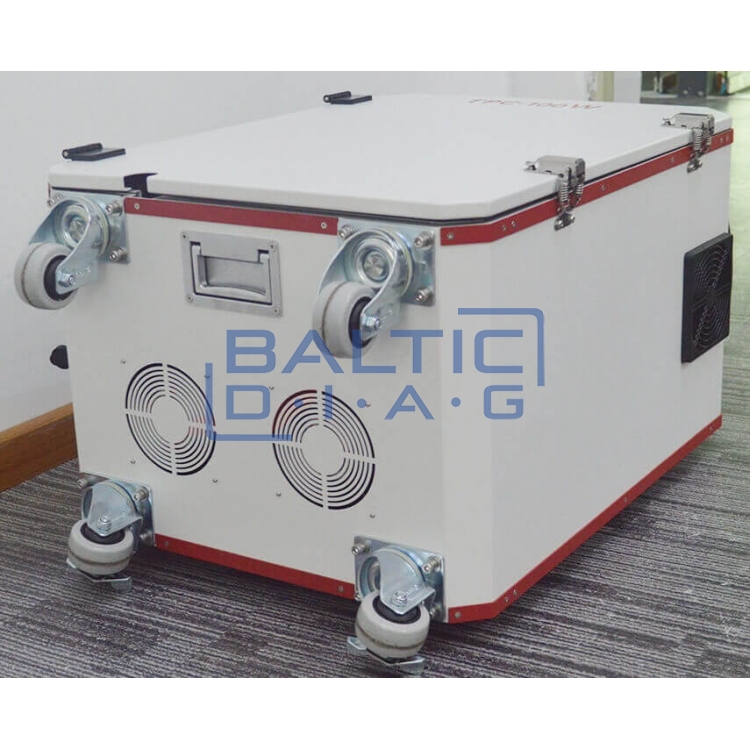

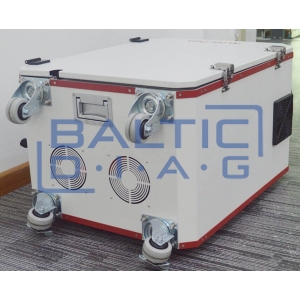

• Cooling system: air cooling
• Laser beam: Superficial beam
• Laser source type: Nanosecond pulse
• Maximum output power: 100W
• Centered wavelength: 1064 +-5 nm
• Beam quality: < 1.8 M2
• Power adjustment ranges: 10 - 100%
• Pulse length: 10, 30, 60 (240 ns optional)
• Laser pulse frequency: 20 - 2000 kHz
• Maximum power: 800 W
• Optical cleaning cable length: 3 mm
• Device dimensions: 538 x 441 x 685 mm
• Device weight: ~58 kg
• Package size: 980 x 680 x 640 mm
• Package weight: 79 kg
• Operating temperature: 0 - 40 °C
• Working ambient humidity: 30 - 80%
• Laser protection class: Class 4
• Width of the cleaning radius: 110 – 175 mm additionally

The main components that make up the device:

• A device for creating a laser beam
• Control screen
• 2D laser control head
• Protective lenses for the laser control head
