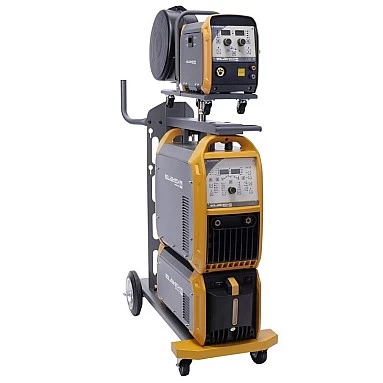

MIG/MAG pulse welding machine 500A

MIG/MAG pulse welding machine 500A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

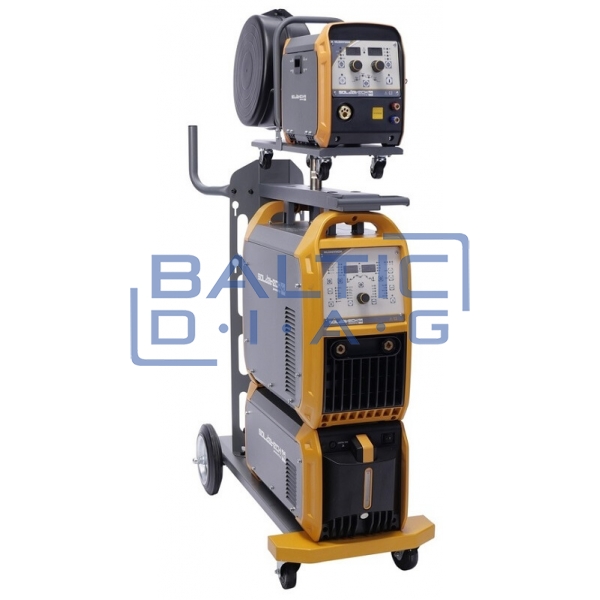

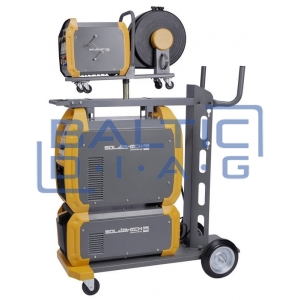

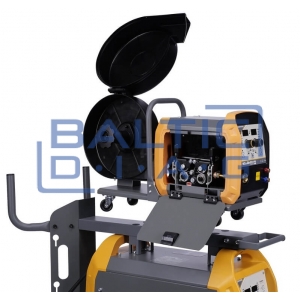

The Soldatech welding machine is one of the most versatile MIG machines on the market, equipped as standard with a robust cart that easily holds a 50L cylinder. This synergetic machine makes it easy to perform a variety of welding processes, including pulse, twin, MIG, and electrode welding. Advanced IGBT inverter technology ensures that the ML500YHGM will provide sustainable performance with higher power and high duty cycle. In addition, the ML500YHGM comes standard with a powerful water cooler that prevents overheating with a built-in fan and ensures high-quality welding performance for a long time. The Soldatech pulse inverter has a very large database that can save 500 different programs with welding settings. The mobile wire feed unit also features a digital control panel that allows for easy adjustment and reading of gas boost settings, welding voltage and current, among other things. The power supply is also equipped with pre-programmed synergistic programs for aluminium, steel, stainless steel, CuMn, CuSiMn and CuZn materials. Ideal for welding aluminum, stainless steel, carbon steel, low alloy steel and other alloys.

Standard equipment:

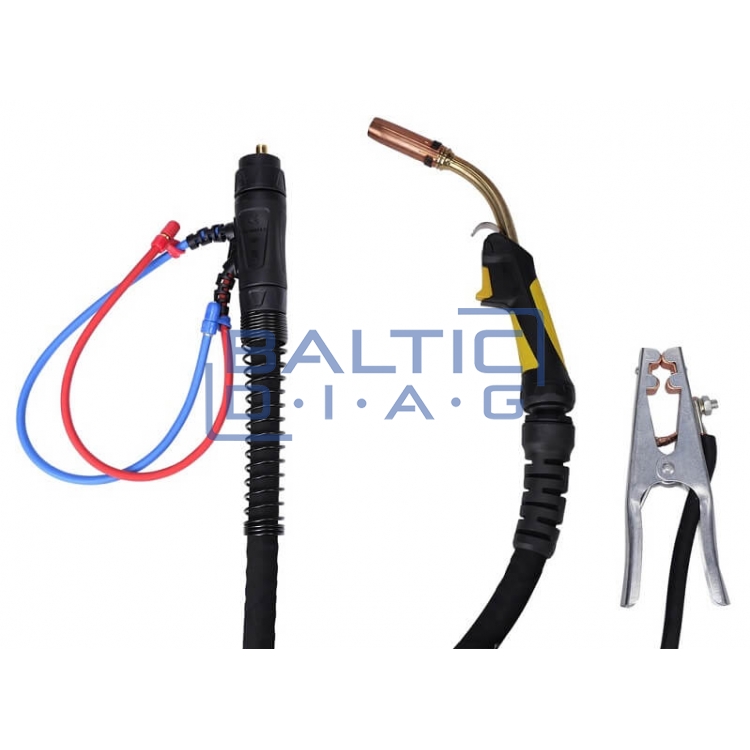

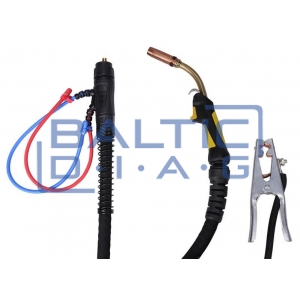

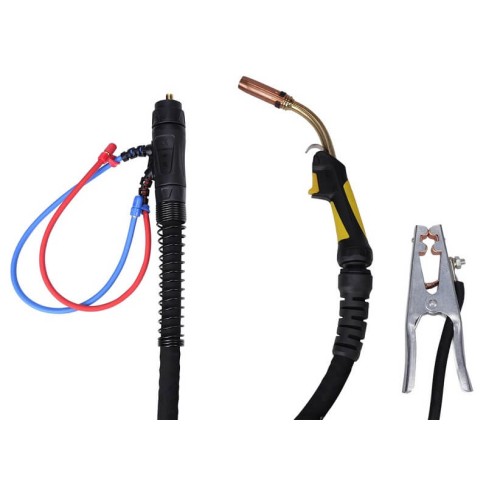

• MLT501M4T MIG/MAG torch Teflon coated insert 4 m
• Welding ground terminal with 3m 50 mm² cable
• European dinse connectors 13 mm
• Gas line with quick connection 12 m

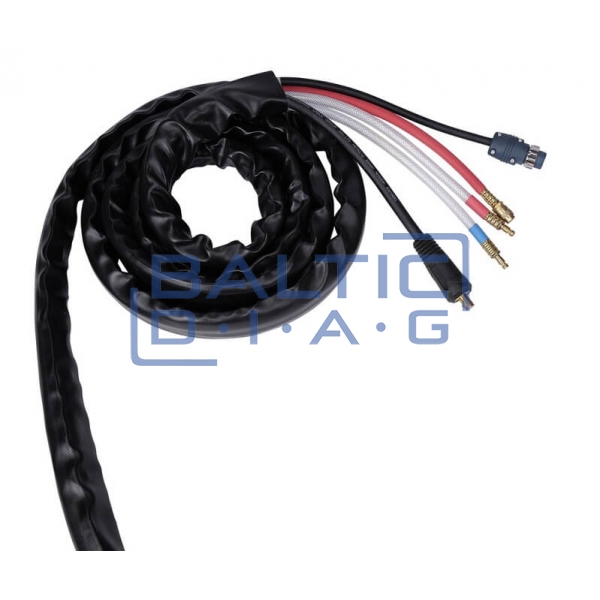

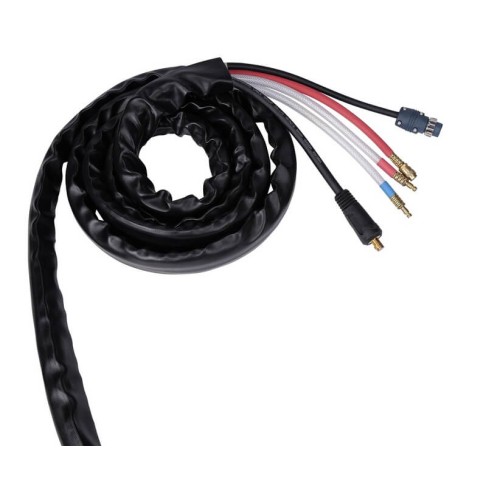

• Cable bundle spacer 10 m
• 5-pin 32A plug with 3m 4x4 mm² cable
• Spare steel inner liner
• 10x wire feed rollers: (0.8 + 1.0 and 1.2 + 1.6) (0.8 + 1.0 U and 0.8 + 1.0 V and 1.2 V + 1.6 V )

Technical specifications:

• Voltage = 400V – 3 phases
• Frequency = 50/60 Hz
• Circuit breaker = 32 A B-char
• Input power = 27.5 kVA
• No load voltage = 80V
• Duty cycle (at 20°C ambient temperature) = 60% - 500 A
• Duty cycle (at 40°C ambient temperature) = 40% - 500 A
• Welding current range MIG/MAG = 30 - 500 A
• Welding current range MMA = 10 - 500 A
• Weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6 mm
• Volume of the cooling unit = 6 L
• Protection class = IP21S
• Dimensions = 1133 x 498 x 1508 mm
• Weight = 120 kg
