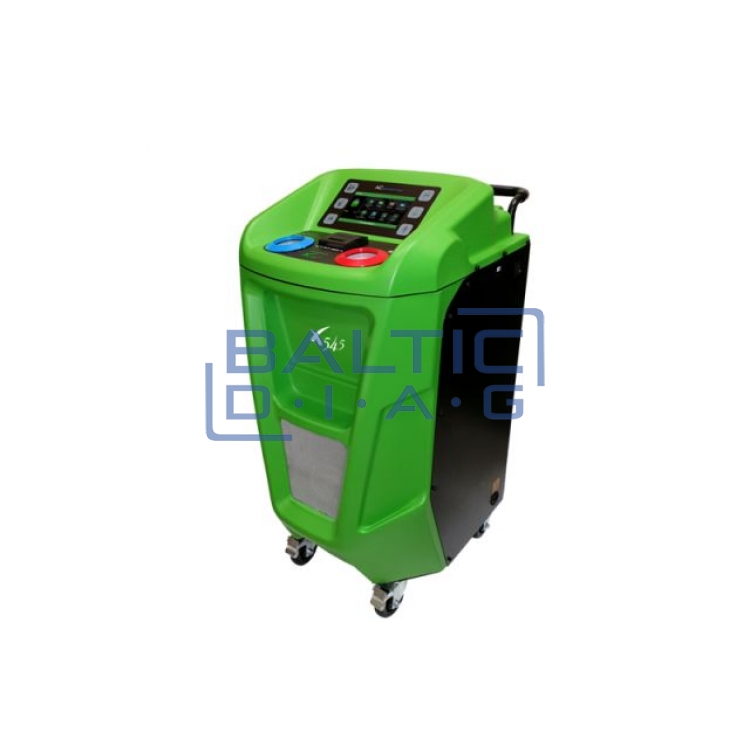

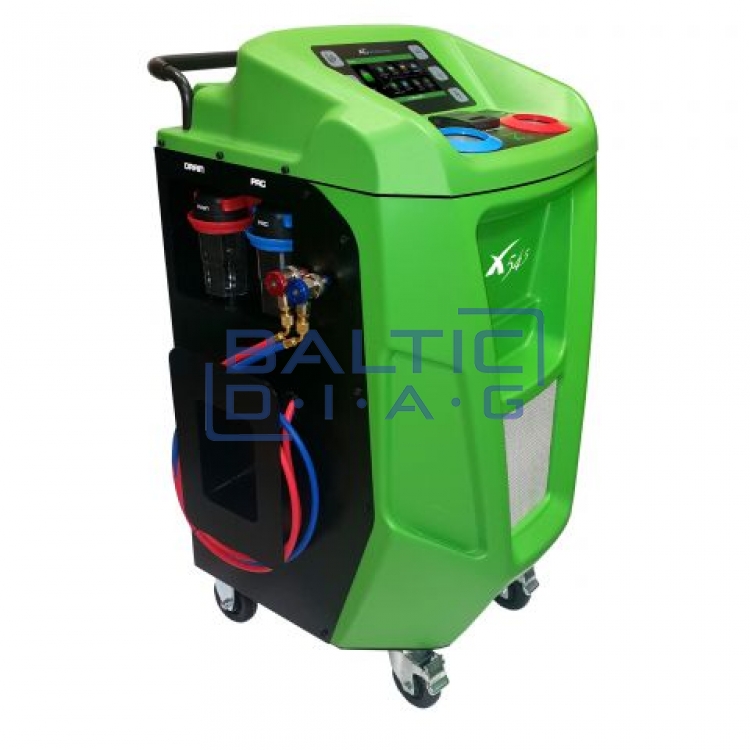

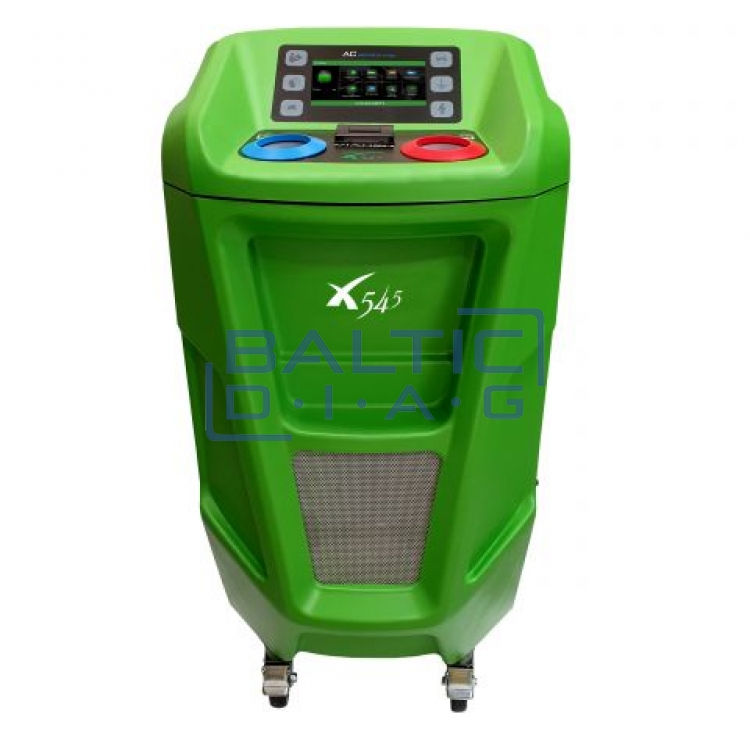

Fully automatic air conditioning filling station BD 545

Fully automatic air conditioning filling station BD 545

Warranty 12 months; Manufacturer: Poland

The station is suitable for servicing R134a refrigerant. The station performs removal, vacuuming, permeability, filling and oil extraction functions. The air conditioning filling equipment has an integrated database to serve the most popular car brands. The completed functions are printed with the printer.

Functions:

Refrigerant collection from the air conditioning system and separation of used oil

Creating a vacuum in the system

Filling the air conditioning system

Basic vacuum tightness testing

Oil dosing

Advantages:

Fully automatic mode function. The full automatic cycle facilitates maintenance and eliminates the risk of errors in servicing air conditioning systems

A / C system database, SD card slot for database update

Large color LCD touch screen

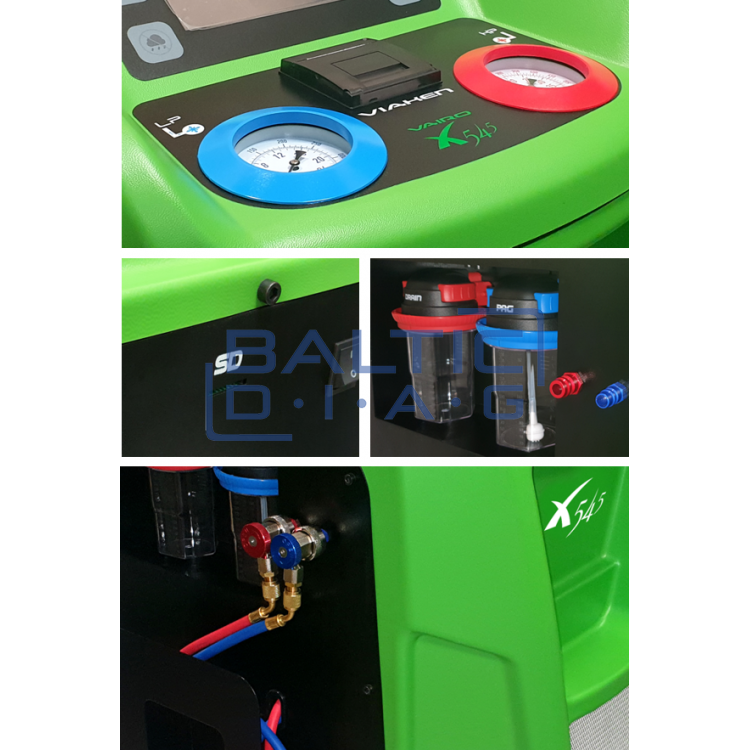

Large and easy to read HP and LP pressure gauges

Airtight oil tanks

The thermal printer allows you to print a report on the activities performed by the customer

Reliable vacuum pump

Professional donor generator

Compact dimensions

Technical parameters:

Refrigerant type: R134a

Power: 750W

Playback speed: 300g / min

Filling speed: 800g / min

Vacuum suction speed: 5.4 m3 / h

Filtration capacity: 200kg

Scale accuracy: 10g

Capacity: 10kg

packaging 750x600x1160

Weight: 90kg

Equipment:

The main unit of the air conditioning station

HP and LP service hoses

HP and LP connectors

Power cord
