Universal diagnostics with immobilizer scanning Autel MaxiIM IM608 Pro II

Universal diagnostics with immobilizer scanning Autel MaxiIM IM608 Pro II

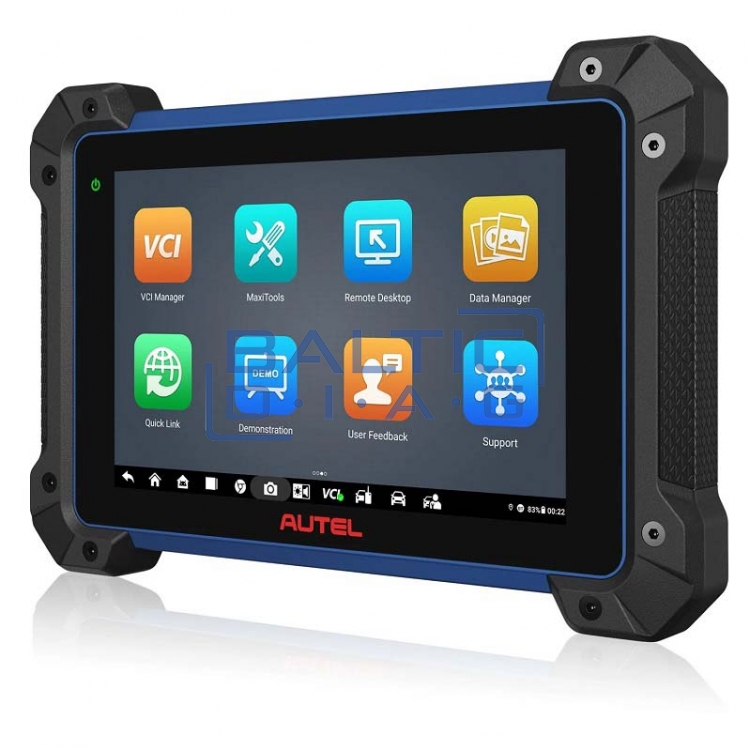

Autel MaxiIM IM608 Pro II is an advanced and intelligent key programmer that combines the most powerful IMMO and key programming functions together with OE level diagnostics and advanced functions. And it's all rolled into one, updated 10.1" Android-based tablet. This new Autel MaxiIM IM608 PRO II is an updated version of the old Autel MaxiIM IM608 pro model. The new device is equipped with an additional key programmer XP400 and MaxiFlash JVCI+ module, Autel IM608 Pro II is an unprecedented key programmer that will meet all your expectations. Additional functions for keys and immobilizers include key generation, key and remote control scanning, immobilizer reset, update, coding and transmitter, EEPROM / MCU reading and rewriting. The installed fast 8-core processor provides the device with all the necessary capabilities to quickly and efficiently perform diagnostics of the car control module of various manufacturers. Therefore, for this reason, this device is an indispensable device if you or your business is engaged in car key repair, production work and can and are able to repair cars.

Features:

• The device is sold with a two-year license for free updates
• Smart mode which has automatic wizard and automatic key scanning
• Expert mode, a wide range of functions for scanning keys
• PIN/CS scan when all keys are lost, key generation, key scan, remote control scan
• IMMO ECU, restoration, adaptation, coding
• Transmitter read and write, EEPROM/MCU read/write
• Advanced, OE-level diagnostic features for over 80 car manufacturers
• Special service/service functions including EPB, DPF, SAS, oil interval reset or BMW functions
• The Remote expert function has been implemented. Which puts you in touch with experienced auto repair professionals
• The complete report of completed work is stored on the web server, which allows you to view the dashboard of completed work anywhere, anytime.

Technical parameters:

• Operating system: Android 10
• Processor: Qualcomm SDM660 Octa-core 2.2 GHz
• RAM: 4 GB RAM
• Internal memory: 128 GB
• Display: 10.1" LED, touch screen with 1920 x 1200 resolution
• Interfaces: Wi-Fi (802.11 a/b/g/n/ac); USB 2.0; BT V2.1 + EDR; SD card (up to 64GB memory is supported); HDMI
• Sensors: light sensor, automatic light adjustment
• Battery: 3.8 V, Lithium-polymer
• Battery capacity: 15000 mAh
• Power supply: 12 V, (9 - 24 V)
• Power consumption: 6.5W
• Operating temperature: 0 °C - 50 °C
• Storage temperature: -20 °C - 60 °C
• Dimensions: 300 x 220 x 50 mm
• Weight: 1.58 kg
• Supported protocols: ISO 9142-2; ISO 14230-2; ISO 15765-4; K/L – line; registration codes; SAE-J1850 VPW; SAE-J1850 PWM; CAN ISO 11898; high speed; medium speed; low-speed and single-wire CAN signals; GM UART; UART Echo Byte protocols; Honda Diag-H protocol; TP 2.0; TP 1.6; SAE J1939; SAE J1708; CAN fault tolerance

Complete set:

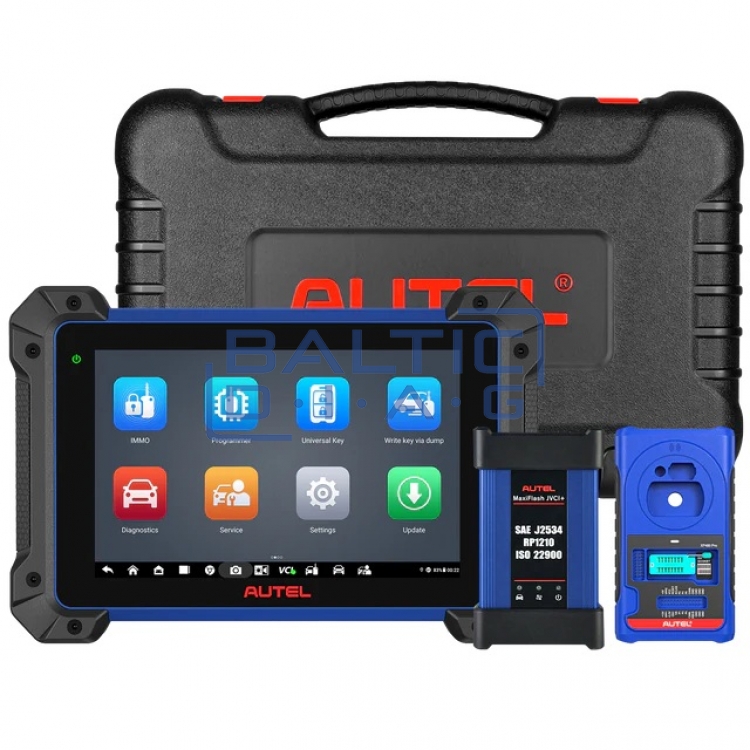

• Autel MaxiIM IM608 Pro II tablet
• XP400 Pro Key Programmer
• MaxiFlash JVCI+
• Main cable
• USB cable
• USB mini cable
• AC/DC adapter
• Spare fuses (6 x 30 mm) x 2 pcs.
• Charger
• AAC001
• Transition from USB to Ethernet
• APC101 USB cable
• APB104 MCU_FQFP64
• APB105 MCU_FQFP80
• APB106 MCU_FQFP112
• APB107 MCU_FQFP144
• APB108 MCU_FQFP176
• APB129 EEPROM adapter
• APB125 Mercedes IR scanner
• APA002 EEPROM connector
• APA101 signal cable
• APA103 EEPROM cable
• APA107 ECU cable
• APA108 MCU cable
• APA109 MC9S12 cable
• Connecting cable
• User manual
• Complete list
• Suitcase

Device comparison:
