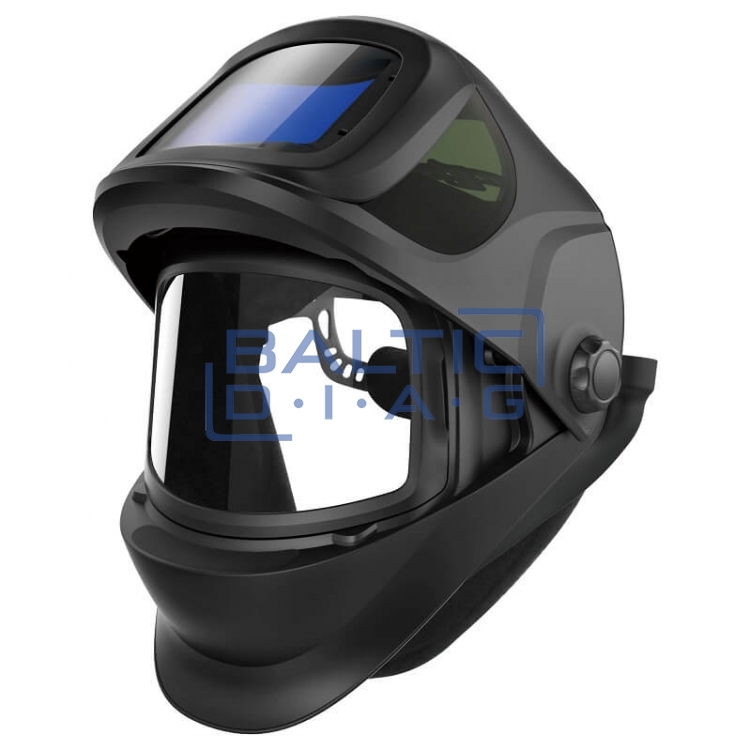

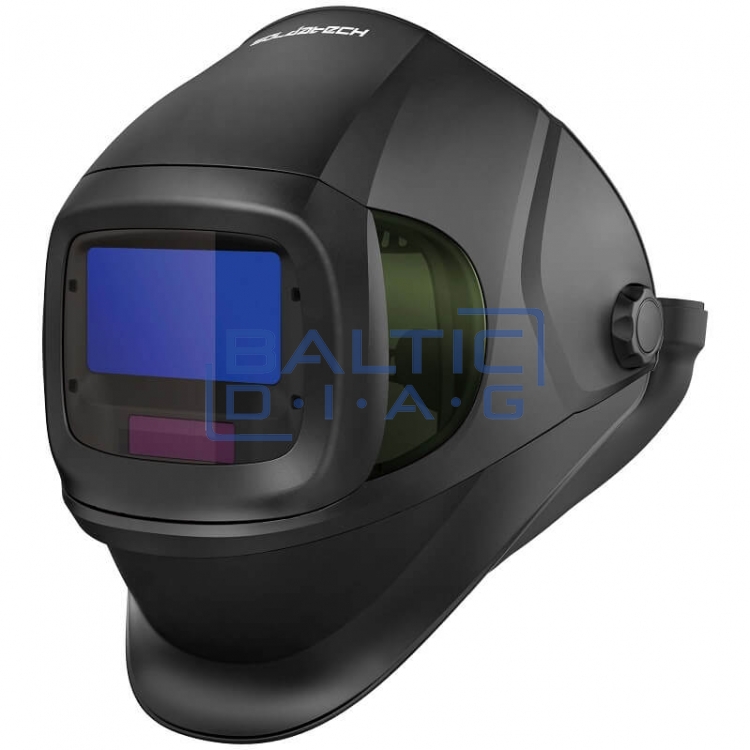

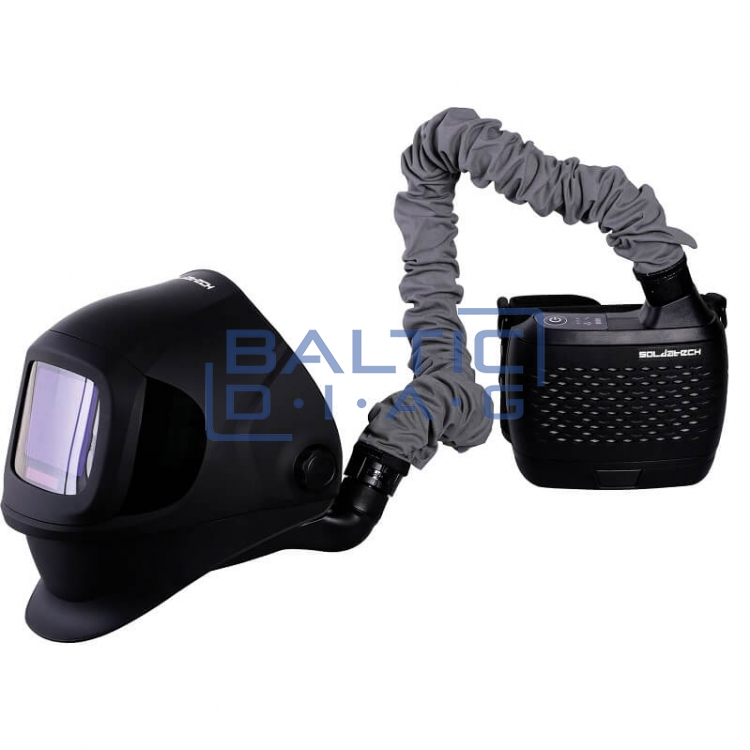

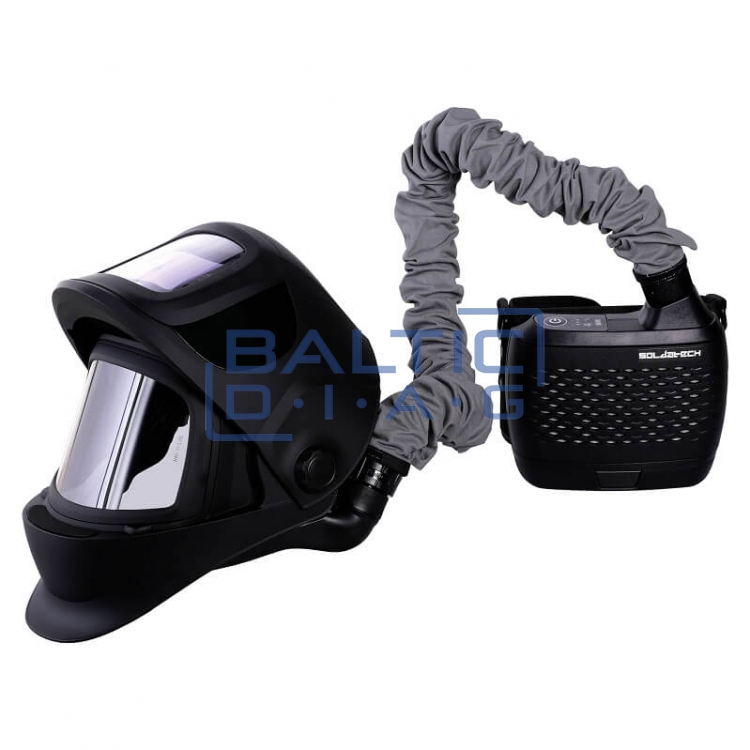

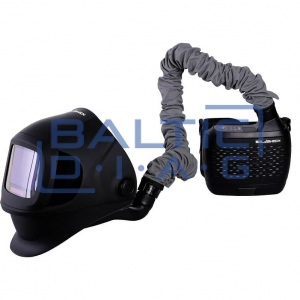

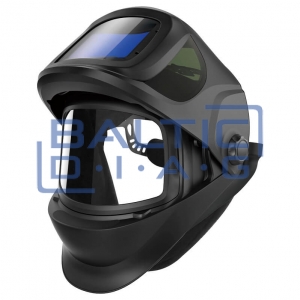

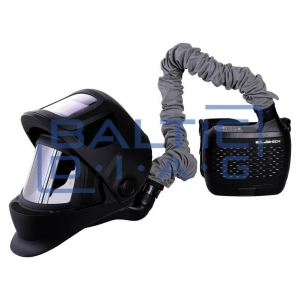

Automatic Welding Helmet with Extraction System SideClearPlus

Country of origin: Netherlands, warranty period - 24 months

The SideClearPlus Soldatech EWH5F automatic welding helmet provides advanced protection and comfort. The integrated fan effectively filters harmful welding fumes and gases, continuously supplying clean air to the breathing zone. The large viewing area (107 × 75 mm) ensures excellent visibility, while the side lenses enhance peripheral vision and can be covered if necessary. The auto-darkening filter (ADF), equipped with four independent arc sensors, guarantees a quick response even at low currents starting from 2A (AC/DC). The digital display allows for precise filter adjustments, while the DIN 4 light mode ensures clear vision before welding.

Functions:
  • Integrated air blower continuously supplies clean, filtered air
  • 4 independent arc sensors ensure fast and reliable welding arc detection
  • TIG detection from 2A (AC/DC) – excellent response for low-current welding
  • Clear lens technology – ultimate vision and clarity
  • Side lenses enhance peripheral vision, with optional cover caps
  • Digital display – easy and precise filter adjustments
  • Fast switching speed (1/25,000 sec) – instant eye protection
  • External push button for quick switching between welding and grinding modes
  • Certified safety standards – complies with CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1
Technical Specifications:
Helmet Specifications:
  • Optical class: 1/1/1/1
  • Viewing area: 107 × 75 mm
  • Cassette format: 156 × 123 × 33 mm
  • Number of sensors: 4
  • Light state: DIN 4
  • Grinding mode: DIN 5~8
  • Dark state: Variable shade 5~8/9~13
  • Shade control: Internal, digital display control
  • Power on/off: Manual on, automatic off
  • Sensitivity: Digital display control
  • Power supply: Solar cell, 2× CR2450 replaceable lithium batteries
  • Battery low indicator: Yes, digital display
  • Switching time (light to dark): 1/25,000 sec
  • Delay time (dark to light): 0.1 - 1.0s
  • Minimum TIG amperage: ≥ 2 A (DC); ≥ 2 A (AC)
  • Grinding function: Yes
  • Operating temperature: -5°C ~ 55°C
  • Storage temperature: -10°C ~ +55°C
  • Material: High-impact resistant nylon

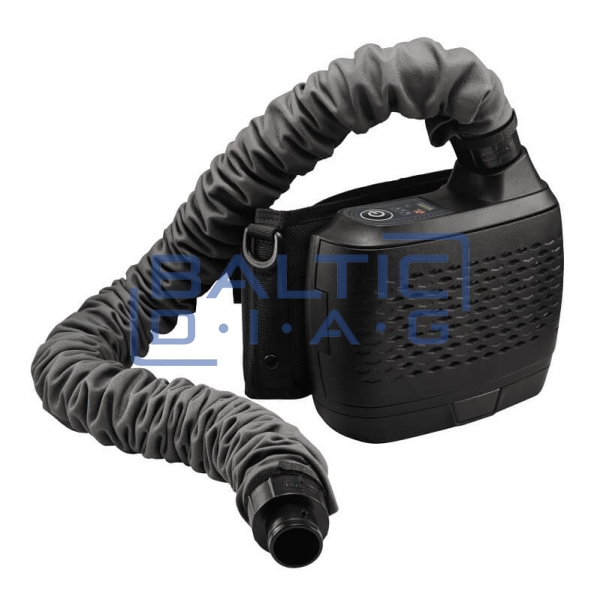

Respirator Specifications:
  • Filtration efficiency: 99.997%
  • Storage temperature: -10°C ~ +55°C
  • Airflow speed: Minimum 165+ lpm (5.8+ cfm); Low 170+ lpm (6+ cfm); High 210+ lpm (7.4+ cfm)
  • Charging time: 1 hour
  • Battery life: 9 hours (170+ lpm); 5-6 hours (210+ lpm)
  • Battery type: Rechargeable lithium-ion
  • Charge cycles: ≥500
  • UV/IR protection: Always DIN16
