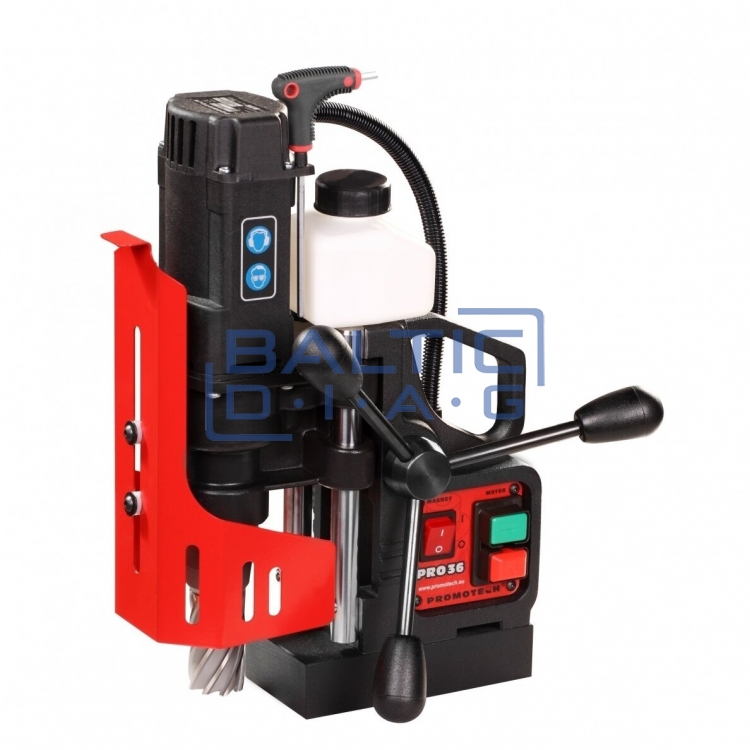

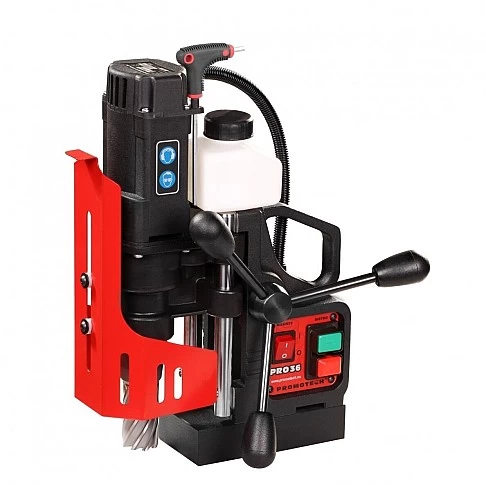

Magnetic drilling machine PRO 36 920W / 230V

Magnetic drilling machine PRO 36 920W / 230V

Advantages:

The maintenance-free rail guidance system is equipped with the latest generation electromagnetic base with a magnetic field shape control system (MFSC) and a magnetic force adhesion control module (MPAC) that detects the adhesion force of the electromagnetic base and protects the machine and the operator

ESSS (Electronic Stability Program)

Specially designed engine with reinforced gearbox

The engine overload protection system protects the machine from accidental damage during heavy work

Equipment:

Magnetic drilling machine

4 mm hex key

Fastening strap

Plastic box

Technical parameters:

Rotation speed: 350 rpm (with load)

Gripper: 19 mm (3/4 ") Weldon

Max milling: Ø 36 mm (1-7 / 16 ")

Max drilling: Ø 16 mm (10/16 ")

Max countersinking: Ø 40 mm (1-9 / 16 ")

Max cutting depth: 51 mm (2 ")

Min. workpiece thickness: 6 mm (1/4 ")

Stroke: 70 mm (2-3/4 ")

Noise level: ~ 85 dB

Degree of protection: IP 20

Electrical insulation class I

Operating temperature: 0-40 ° C (32 - 104 F)

Weight: 10 kg (22 LBS)

Voltage 220-240 V, 50/60 Hz

Power 920 W

CE conformity

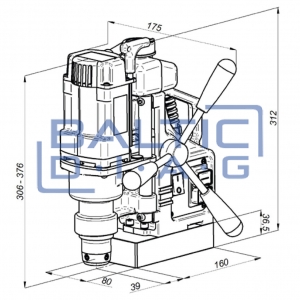

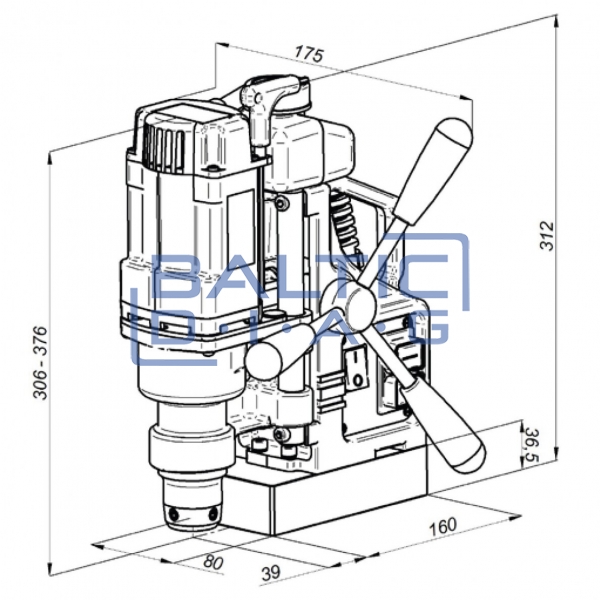

Overall dimensions: 314 x 179 x 330 mm

Magnetic clamping force: 969 KG (9500 N) / 25mm, Ra = 1.25 /

Dimensions of the magnetic base: 80 x 161 x 36.5 mm (3-1 / 8 x 6-5 / 16 x 1-7 / 16 ("))

LD-PRO36T
