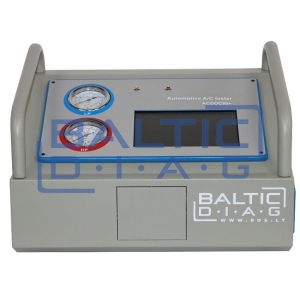

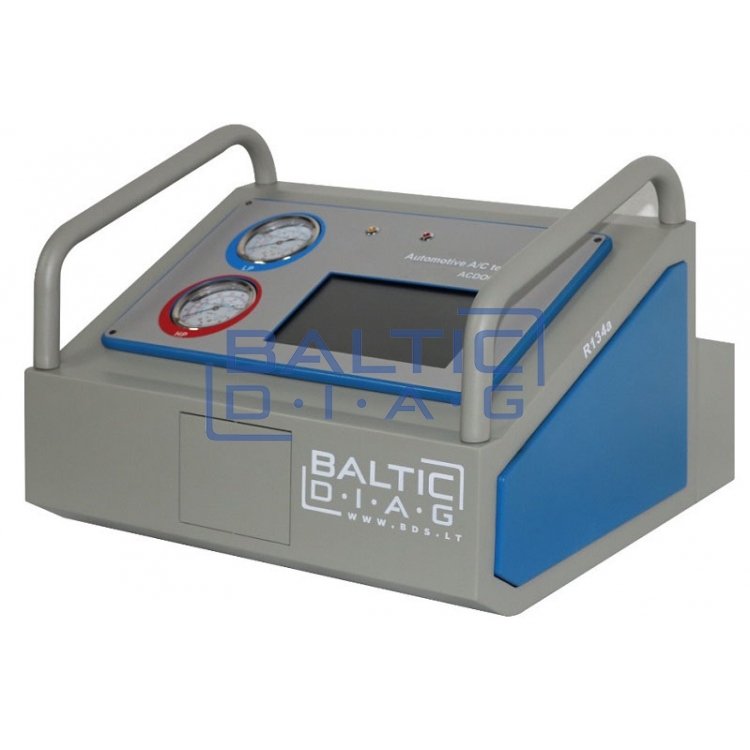

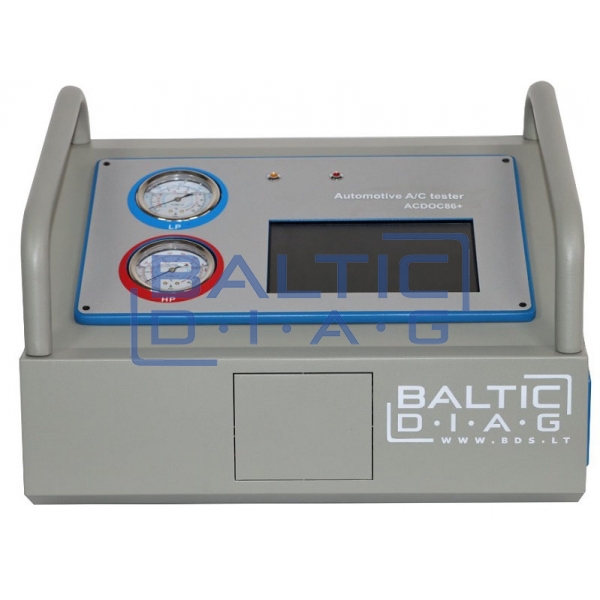

Refrigerant Composition Analyzer R-134a BD86

Refrigerant Composition Analyzer R-134a BD86

BD86 is a device that combines a wide range of diagnostic functions for air conditioning systems. Based on high and low pressure data, refrigerant identification, ambient temperature and humidity, exhaust air temperature and NDIR leak detection, the device provides one of the most accurate reports on the condition of your air conditioning system. Therefore, we can say that BD86 offers a professional solution for cars with R-134a air conditioning systems and helps car service owners create a modernized, process-oriented smart business.

Features:

• The ability to identify refrigerant in vehicles or refrigerant tanks
• The outlet air temperature measurement sensor is powered by a rechargeable battery and sends its information via a wireless Wi-Fi connection
• A/C system check is the world's most comprehensive diagnostic and analysis device for automotive air conditioners. After all tests are completed, the car owner is provided with a digital diagnostic report, which will help car repair shops to explain the current situation transparently.
• NDIR leak detection – one of the most common failures is a leak in the air conditioning system. Therefore, the BD86 is one of the most effective, time-saving and extremely accurate devices that can detect leaks in about 10 minutes and with an accuracy of 5g/year.

Technical parameters:

• Main source: 230 V / 50 Hz / 1 fz or 12 V / DC
• Refrigerant identification accuracy: 0.1 %
• Refrigerant identification time: 120 sec
• Ambient temperature range for the most accurate refrigerant determination: 20 – 50 °C
• Working pressure: from -1 to 30 bar
• Pressure measurement accuracy: ± 0.1 bar
• Discharge air temperature range: 0 – 100 °C
• Discharge air temperature accuracy: ± 0.1 bar
• Leak detection range: 5 g/year
• Refrigerant identification and air conditioning system testing time: 6 min
• Estimated leak detection time for each vehicle: 10 – 15 min
• Refrigerant type: R-134a
• Weight: 9.9 kg
• Dimensions: 410 x 383 x 280 mm
• Package dimensions: 475 x 440 x 345 mm
