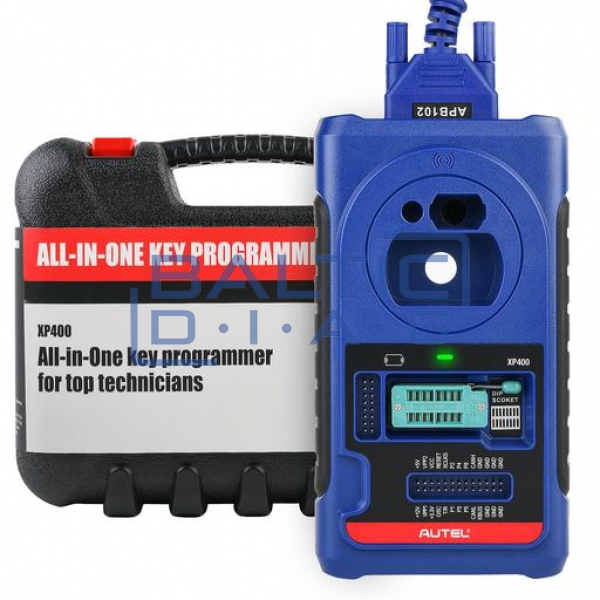

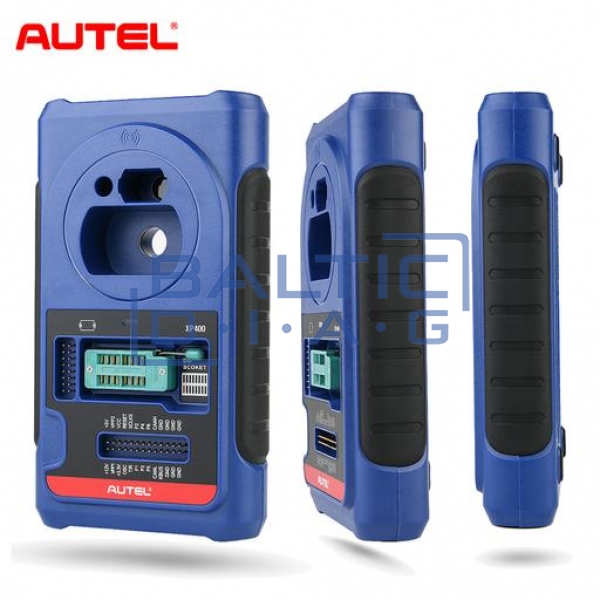

IMMO key programming tool Autel XP400 Pro

IMMO Key Reprogramming Tool Autel XP400

Features:

• PC interface support;
• MCU / EEPROM chip reading and writing;
• ECU reading and writing;
• MC9S12 encrypted chip reading and writing;
• Key reading and writing;
• Mercedes infrared key reading and writing;
• Detection of control frequency;
• IC card reading and writing.

Advantages of Autel XP400 Pro Over XP400:

• Expanded EEPROM functions for greater component access;
• 170+ odometer component types supported;
• 180+ immobilizer ECU component types supported;
• 40+ engine ECU component types supported;
• 2000+ MCU component types supported;
• 440+ EEPROM component types supported;
• Supports key unlocking: 11 key types (Audi/BMW);
• Improved stability in key reading/writing, chip reading/writing, and IR key reading/writing.

How XP400 Pro Works:

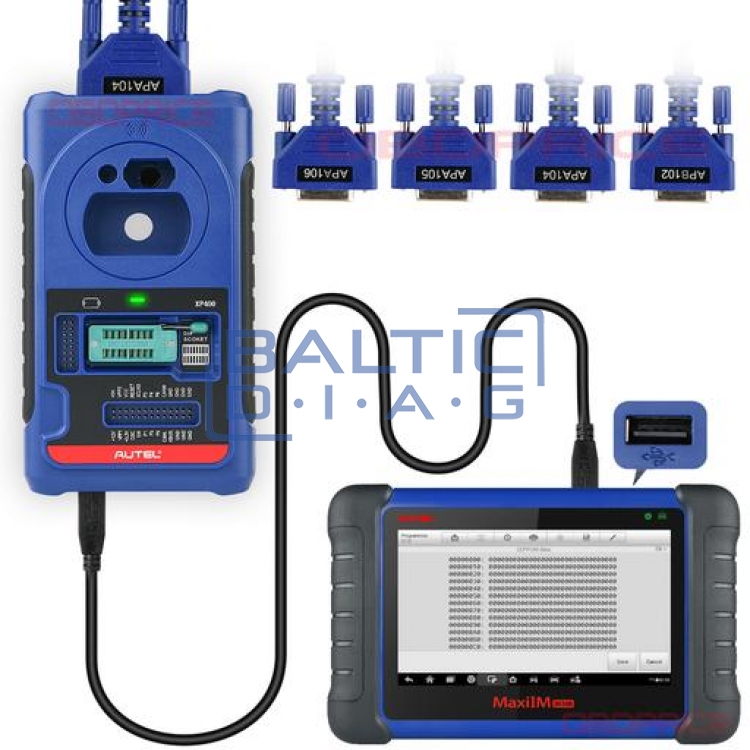

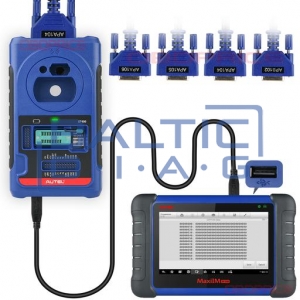

• Connect the IM608 tablet to the XP400 programmer (without connecting to the vehicle) to access key chip data, enabling reading, extracting, and writing data to keys along with other related functions.

Who Needs This Device?

• If your original XP400, supplied with the IM608 or IM600, is defective, you can purchase this device as a replacement.
• If you own MaxiIM or Otosys IM100 and want to perform advanced IMMO reprogramming similar to IM608 / IM600, you can purchase this device.
• With this upgrade, these devices will perform the same IMMO functions as IM608 or IM600.

XP400 Pro Adds Support for the Following Chips:

• EEPROM → AMD → AM29FXXX series chips;
• EEPROM → FUJITSU → MB29FXXX series chips;
• EEPROM → ST → M29FXXX series chips;
• Engine control module → ST → M29FXXX series chips;
• IMMO → BENZ → ESL_W209_W906 (Motorola) read/write/erase function;
• IMMO → BMW → EWS3 module read/write function;
• REMOTE_RENEW (renew key) → NEC → V51 and V5 chip read/write/erase.

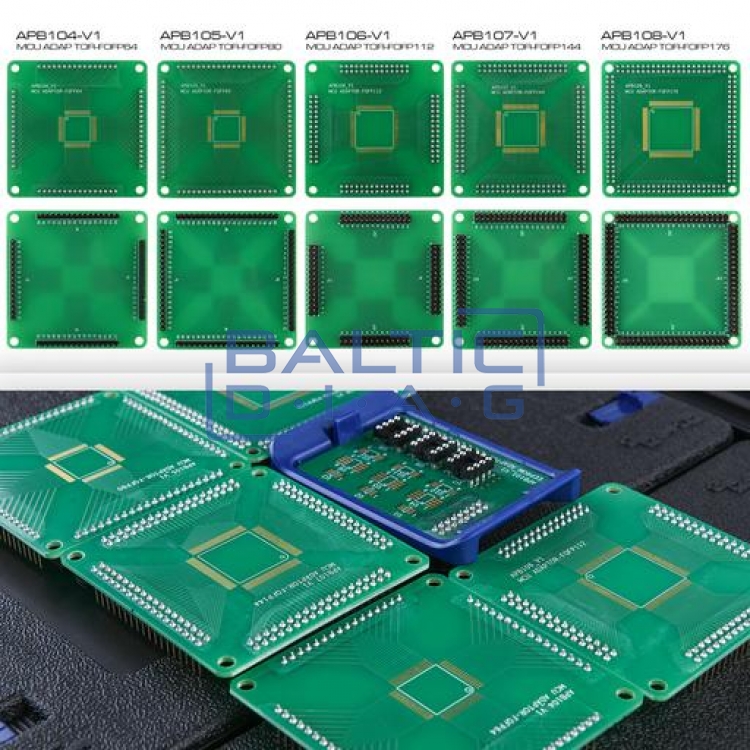

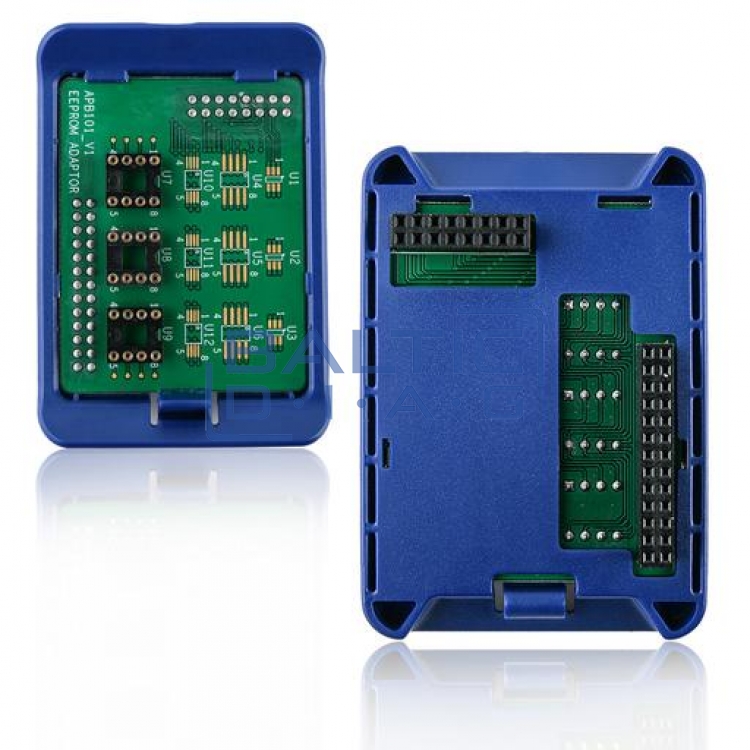

XP400 Pro Adds Support for the Following Adapter Boards (IMKPA Accessories Required - Sold Separately):

• APB113 PCF79XX adapter board;
• APB114 EWS3 adapter board;
• APB115 NEC adapter board;
• APB118 NEC ELV adapter board;
• APB119 TB28FXXX adapter board;
• APB120 TMS370 adapter board;
• APB121 AM29FXXX adapter board;
• APB122 AM29FXXX adapter board 1;
• APB123 AM29FXXX adapter board 2;
• APB126 M35080/D80 adapter board;
• APB127 MC68HC0 (7)05BXX adapter board;
• APB128 MC68HC05X32 adapter board.
