Airbag Crash Scrubber OBDStar P50

Airbag Crash erasing device OBDStar P50

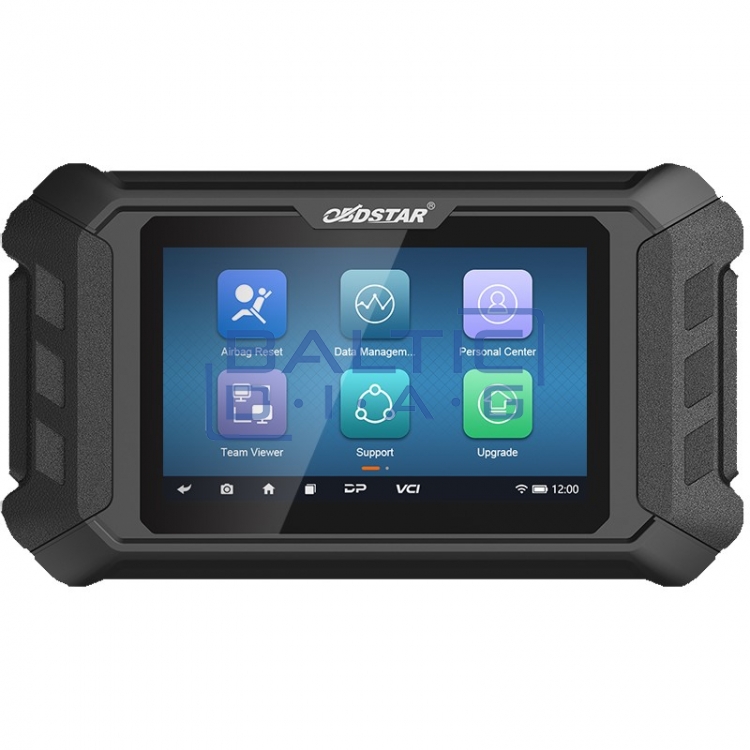

P50 is a new generation smart OBDSTAR Technology Co., Ltd. airbag recovery equipment. It is a powerful device with wide coverage. Covering 38 brands and over 3000 ECU parts, some MCU. It is based on the RK3128 Quad-Core processor, extremely fast and smooth, equipped with a 5-inch touch screen.

The P004 adapter is for ECU programming, reading or writing data in bench mode.

Advantages:

• The programmers maintain normal communication whether the 12V power button is on or off;
• In the CANBUS ECU, turn the 120Ω resistor on or off at any time;
• Support 6&14 and 3&11 CANBUS connection at the same time;
• Support GM Single CAN (GM SCAN);
• K communication support;
• The P004 jumper can connect to multiple wires at the same time, making the wiring clearer and easier;
• The DB15 connector can communicate with any OBDII-16 I/O interface.

Functions:

• Supports one-click airbag reset for 38 brands and over 3000 ECU part no.
• Supports fuzzy search for ECU part no.
• There is a clear wiring diagram for BENCH mode
• Powerful and comprehensive fault code description files are available
• More features are in development!

Advanced features:

• ECU information.
• Read DTCs
• Erase DTCs
• Read EEPROM
• Write to EEPROM
• Read FLASH
• Write FLASH
• Delete accident
• Enter the VIN

Technical parameters:

• Operating system: Android 5.1.1
• Processor: RK3128, quad-core, ARM cortex A7
• Battery capacity: 2600 mAh
• Battery: lithium polymer
• Additional memory card: 32 GB micro SD (TF)
• Screen: 5" LCD, touch screen
• Screen resolution: 800 x 480
• Wi-Fi interface: available
• Operating temperature: -20 °C ~ 55 °C
• Storage temperature: -20 °C ~ 70 °C
• Weight: 0.700 kg
• Dimensions: 198 x 115 x 31 mm

1. Supported cars:

• Acura
• Audi
• Benz
• Buick
• Cadillac
• Chevrolet
• Chrysler
• Citroën
• Dacia
• Dodge
• Ford
• GMC
• The Great Wall
• Honda
• Hyundai
• Infinity
• Jaguar
• Jeep
• KIA
• Land Rover
• Lincoln
• Maserati
• Mazda
• Mitsubishi
• Nissan
• Opel
• Peugeot
• Porsche
• Renault
• Seats
• It's a shame
• Smart
• Subaru
• Suzuki
• Tesla
• Toyota
• VW
• Volvo

2. More than 3000 ECU parts no.

3. Types of MCU:

• H8SX
• RH850
• SPC
• XC2XXX
• TC2XXX
• TMS570
