Key and immobilizer programming device Autel MaxiIM IM508S

Key and Immobilizer Programming Device Autel MaxiIM IM508S

A universal solution for immobilizer and key programming

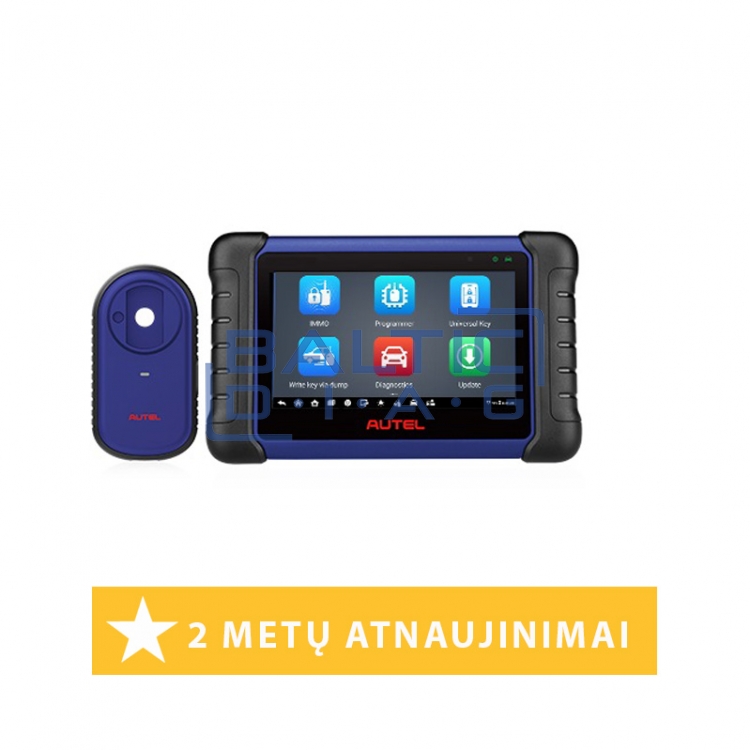

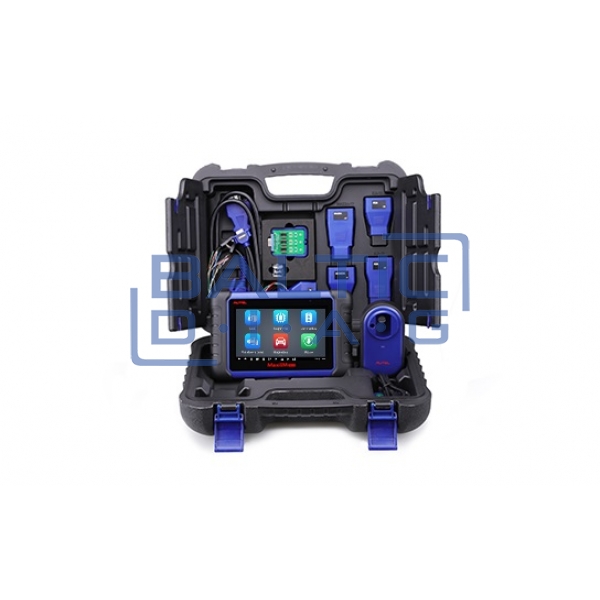

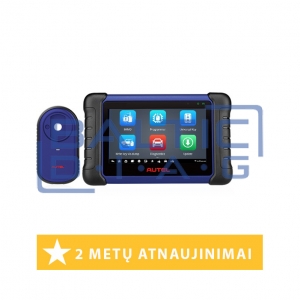

Autel MaxiIM IM508S is an intelligent and affordable solution for service technicians looking for reliable equipment for key programming and immobilizer system maintenance. This device combines an intuitive Android-based tablet, an advanced XP200 key programmer, and professional diagnostics into a single system. With the IM508S, you can perform both basic and advanced IMMO functions and service over 80 vehicle brands from the U.S., Europe, and Asia — all with one device.

Why Choose Autel MaxiIM IM508S?

• Comprehensive IMMO system in one device
• Perform key learning, transponder writing, ECU adaptations, PIN code reading, and much more.

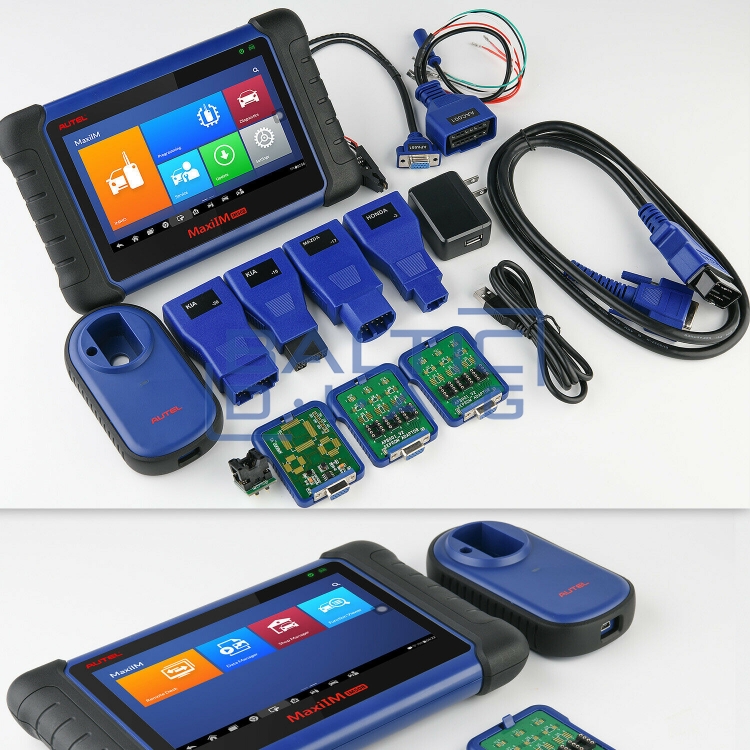

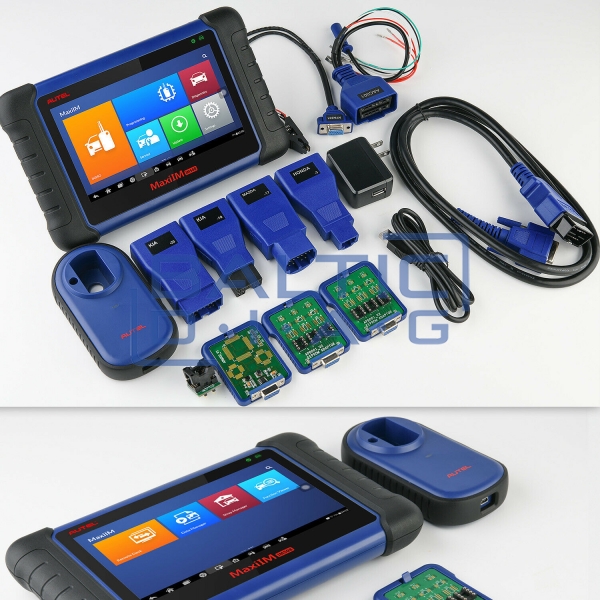

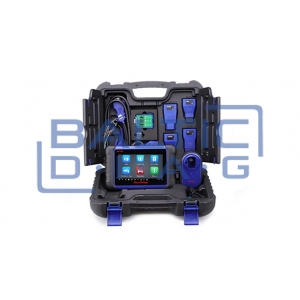

• Advanced XP200 Programmer Included
• Reliable key programming solution is already in the set — no additional investment required.
• Fast Full-System Diagnostics
• Professional OE-level scanning and servicing for modules from more than 80 car manufacturers.
• User-Friendly Interface
• Android system, 7-inch touchscreen, and intuitive navigation make getting started easy and efficient.
• Mobile and Reliable
• Powerful quad-core processor, 64 GB memory, and a lightweight design — perfect for daily use in the workshop or on the go.

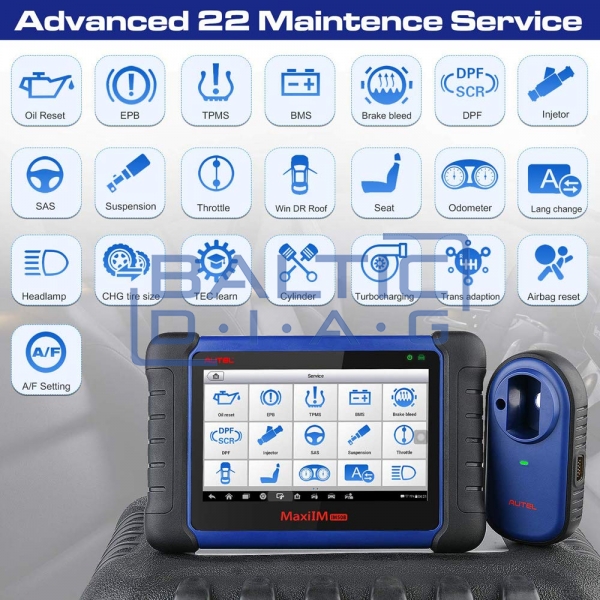

• Additional Service Functions
• EPB, DPF, SAS, oil reset, battery BMS functions — all in one device.

Features:

• Powerful tablet-grade processor
• 7" 1024 x 600 LCD capacitive touchscreen
• 64 GB internal storage
• Android OS for quick startup and multitasking
• Impressive combination of key programming, full-system diagnostics, and advanced maintenance features
• Smart Mode for step-by-step and automated key learning
• Advanced Mode for expert-level key programming
• Reads PIN/CS (All keys lost), key count, key programming, remote learning
• IMMO ECU reset/adaptation, restore/coding
• Transponder reading/writing, EEPROM/MCU read/write
• Strong OE-level diagnostics for 80+ brands across U.S., Asian, and European markets

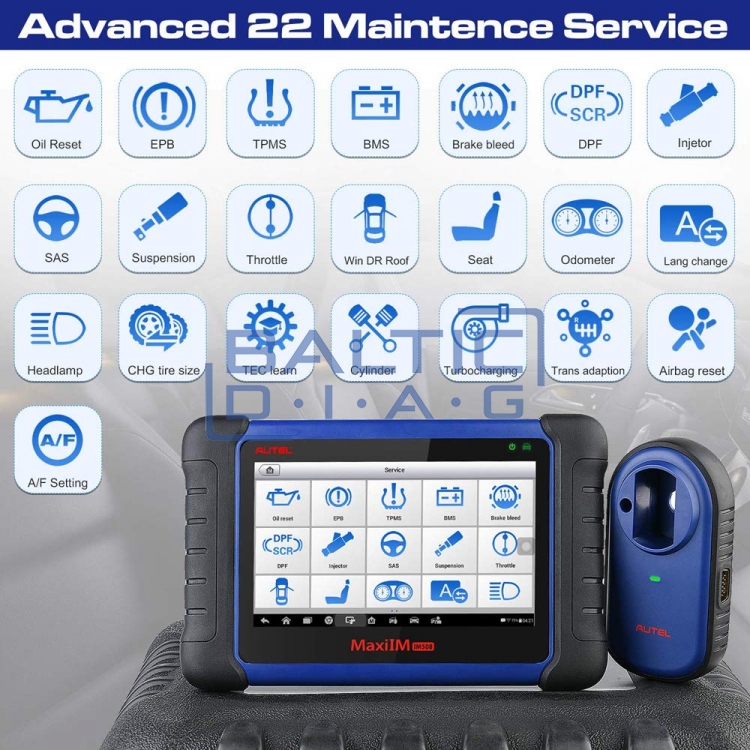

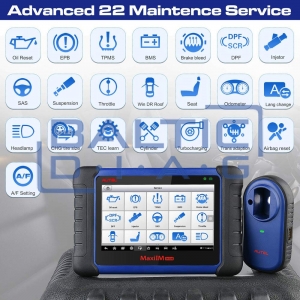

• Advanced maintenance functions including EPB, DPF, SAS, oil reset, and BMS services

Technical Specifications:

• Operating System: Android 11.0
• Processor: Quad-core, 1.8 GHz (A55)
• Storage: 64 GB
• Display: 7" LCD capacitive touchscreen, 1024 x 600 resolution
• RAM: 4 GB
• Interfaces: Mini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (up to 64 GB)
• Sensors: Light sensor for automatic screen brightness adjustment
• Audio Output: Buzzer
• Power: 3.7V / 5000 mAh lithium polymer battery
• Charging: Via 5VDC power supply
• Operating Time: Approx. 4.5 hours continuous use
• Charging Voltage: 12 V
• Power Consumption: 500 mA (with standard brightness and Wi-Fi on)
• Operating Temperature: 0 - 50°C
• Storage Temperature: -20 - 60°C
• Humidity: 5 - 95%, non-condensing
• Weight: 0.788 kg
• Supported Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed, Singlewire CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Who Is This Device For?

• Autel MaxiIM IM508S is an excellent choice for automotive workshops, independent technicians, and key programming specialists looking for a powerful yet affordable solution for both IMMO functions and professional diagnostics. It’s the perfect tool for everyday repair jobs as well as more advanced procedures.

Why Buy from Us?

• We are the only official AUTEL distributor in Lithuania.
• Original equipment with the widest data coverage in Europe.
• Russian and English languages built into the device.
• Fast delivery — 95% of products are in stock.
• Option to test the device before purchasing.
• Full warranty and post-warranty service support.
• Free replacement device provided during repairs.

Work more efficiently — with tools designed for the modern IMMO specialist!

• Try the Autel MaxiIM IM508S in your workshop — a practical solution that saves time and improves productivity. Contact us today — we’ll help you choose the optimal option for your business!
