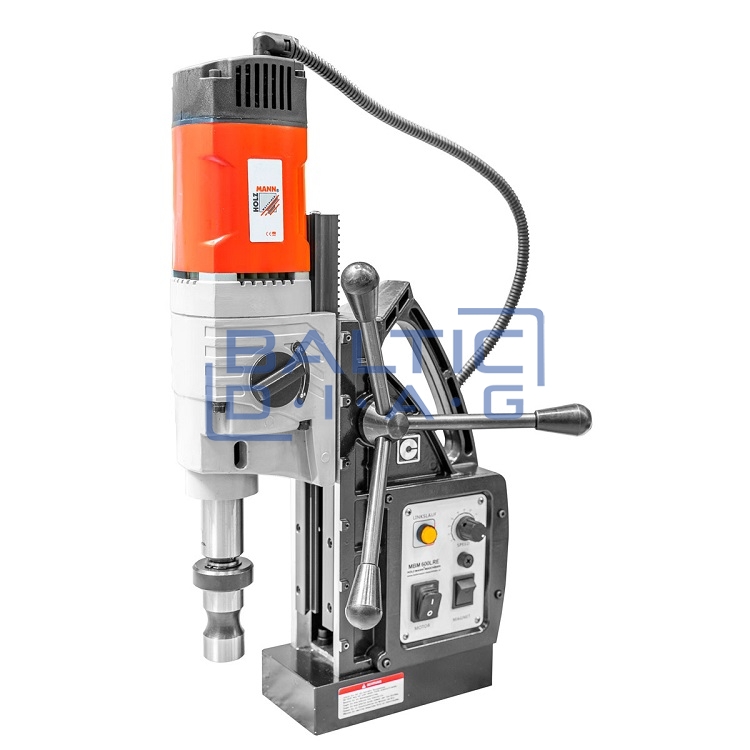

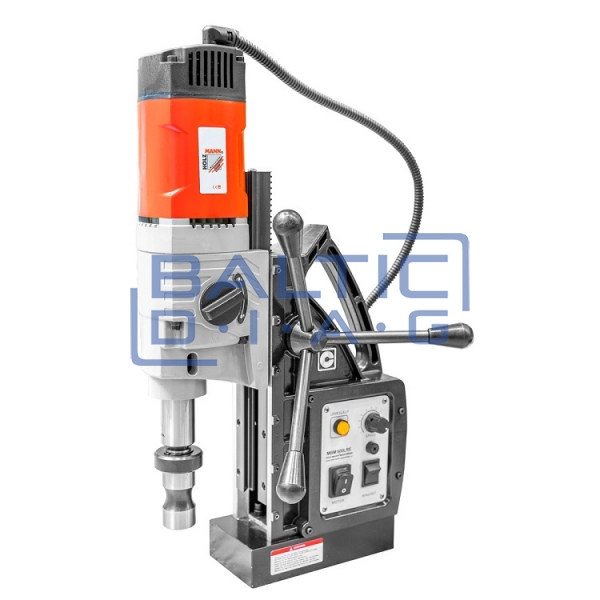

Magnetic drilling machine Holzmann MBM600LRE
- SKU: BD96653
968.00 €
Your shopping cart is empty!
Magnetic drilling machine Holzmann MBM600LRE
Manufacturer: Holzmann (Austria)
Features:
Ideal for large steel workpieces - where a drill press and electric hand drills are not enough
Provides great mobility when working with large workpieces
A convenient solution for vertical and horizontal drilling
Once activated, the electromagnet can be mounted on any metal surface
Also suitable for overhead work - the magnet provides the necessary safety
widely used in the construction and industrial sector
Lots of features including left and right scrolling, adjustable speed and tap function
Technical data:
Motor power s1: 2080 W
Voltage: 230V
Speed min-1: 90-225 / 160-405
Max. recessed head Ø: 32 mm
Max. thread size: M18
Magnetic base: 205 x 107 x 68 mm
Magnetic force: 15,000 N
Spindle: MK3 / MT3
Max. spiral drill Ø: 23 mm
Max. drilling depth: 50 mm
Max. drill Ø: 60 mm
Distance from the shaft to the base: 330 mm
Net weight: 28 kg
Gross weight: 31 kg
Noise-absorbing construction
Load capacity: 6500 kg
Lifting height: 2165 mm
Motor power: 3 kW
Noise-absorbing construction
Load capacity: 6500 kg
Lifting height: 2165 mm
Motor power: 3 kW
Noise-absorbing construction
Load capacity: 6500 kg
Lifting height: 2165 mm
Motor power: 3 kW
