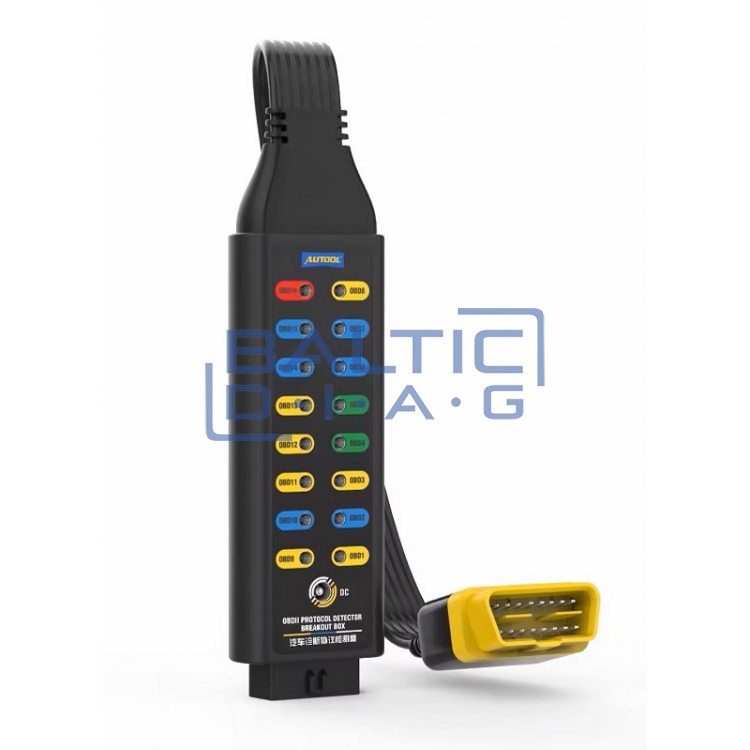

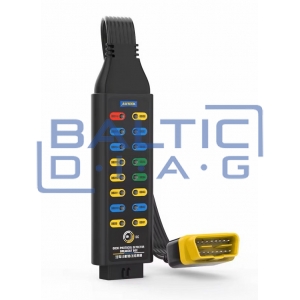

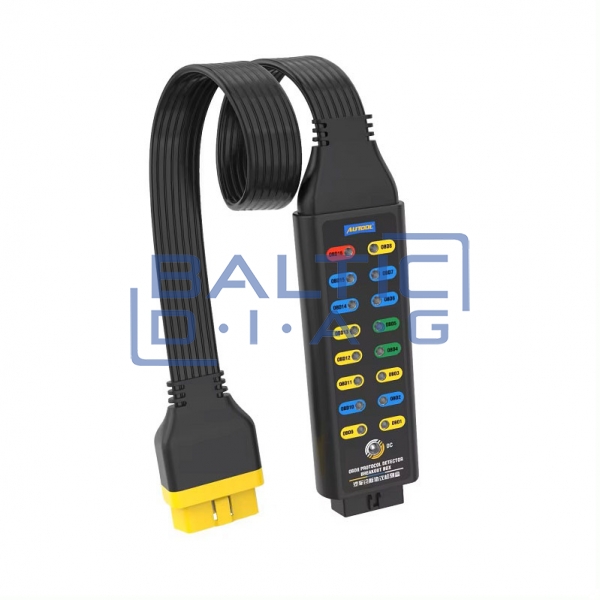

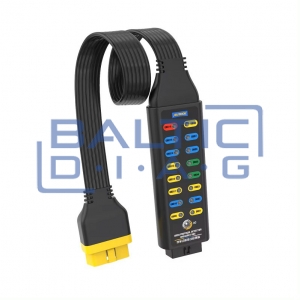

MMT580 is a direct OBD2 connector tester. Directly connected to the connector, it performs a check of the available signals. The device is equipped with diagnostic system communication protocols, a power source and a grounding circuit. These things lead to safe handling of sensitive vehicle systems.

Features:

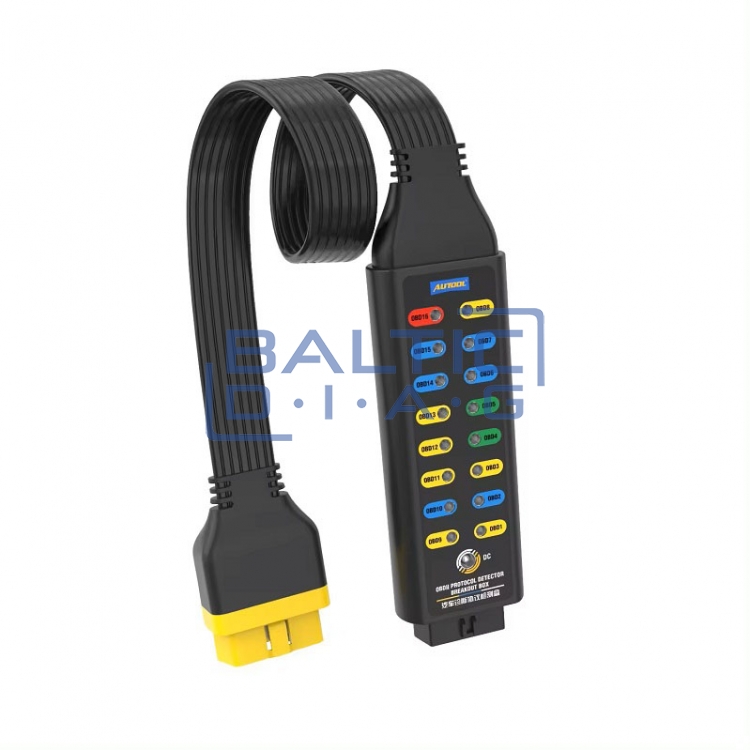

• The OBD2 connector extension cable is designed for a large amount of data traffic, which makes working with this device much faster and smoother. The cable is made of flexible thermoplastic TPU material, which has high elasticity and durability.
• Once the MMT580 tester is properly connected to the vehicle's OBD2 connector, you can perform a more detailed check of each PIN signal.

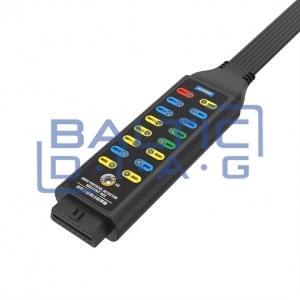

• The Autool MMT580 tester connector has exactly the same 16-pin layout as the OBD2 connector. Therefore, it is possible to quickly and easily perform a connection check and clearly identify the problem point.

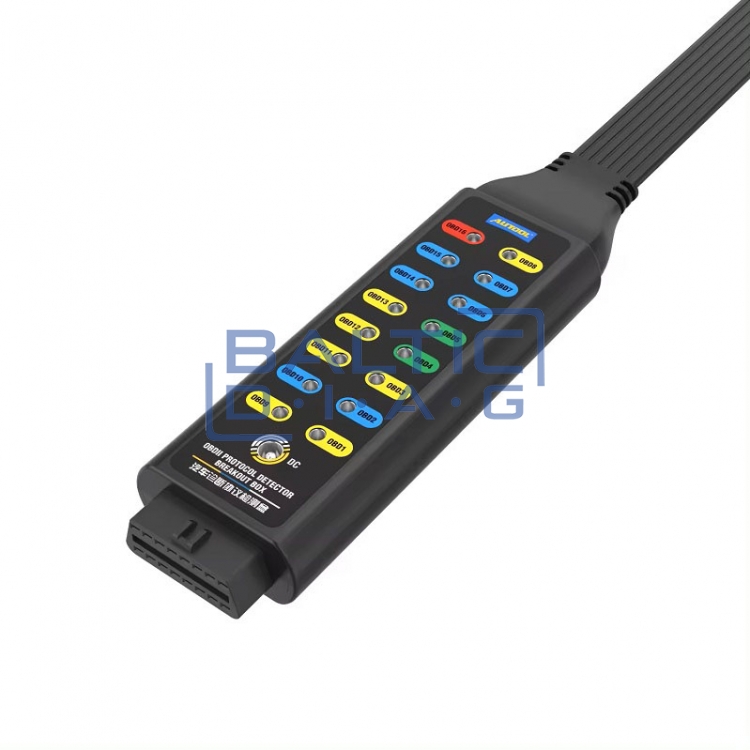

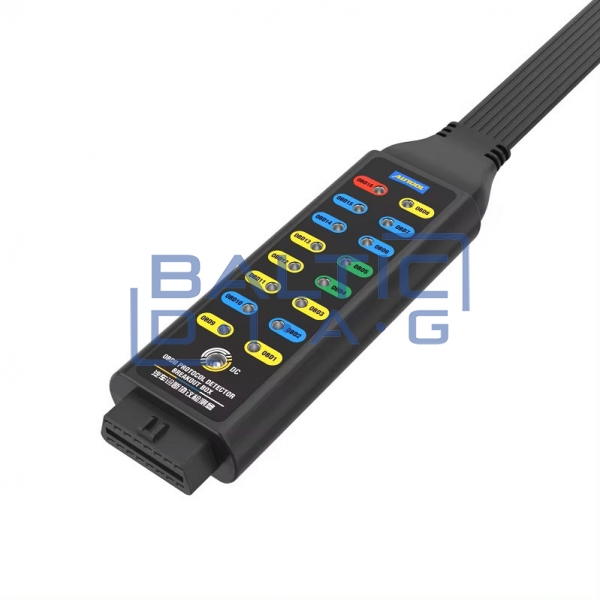

• You will find built-in 4 mm output jacks on the device. You can conveniently connect a multimeter or an oscilloscope to these sockets for more detailed measurements.

PIN connector signals:

1. Determined by the vehicle manufacturer
2. SAE-J1850 PWM CAN(+)
3. Determined by the vehicle manufacturer
4. Grounding of the vehicle body
5. Ground signal
6. CAN High (ISO 15765-4 and SAE-J2284)
7. K-Line for ISO 9141-2 and ISO 14230-4
8. Determined by the vehicle manufacturer
9. Determined by the vehicle manufacturer
10. SAE-J1850 PWM CAN(-)
11. Determined by the vehicle manufacturer
12. Determined by the vehicle manufacturer
13. Determined by the vehicle manufacturer
14. CAN Low (ISO 15765-4 and SAE-J2284)
15. L-line for ISO 9141-2 and ISO 14230-4
16. Accumulator battery power signal

Technical parameters:

• Connector: OBD2
• Operating voltage: 8 - 30 V / DC
• Load: 2 A
• Operating temperature: - 20 – +70 °C

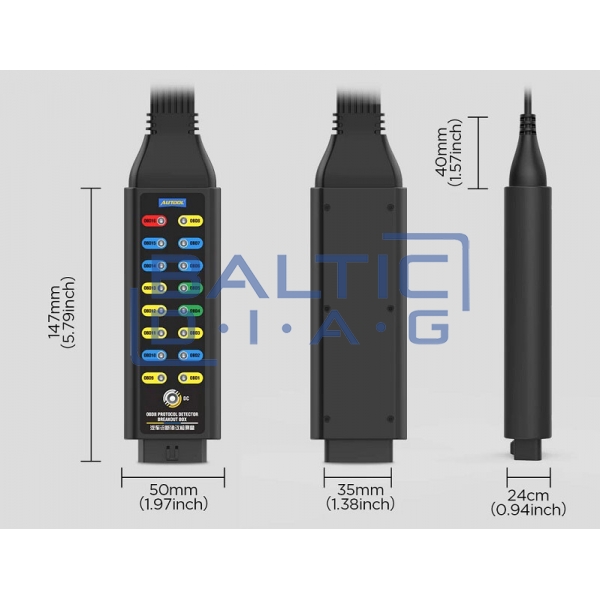

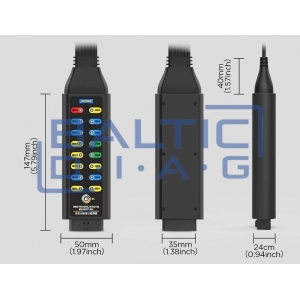

• Extension cable: 450 mm

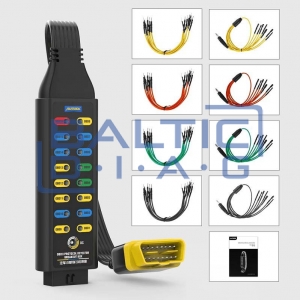

Complete set:

• OBD2 Tester MMT580
• Spec. wires for output jacks (red, black, yellow, green)
• User manual
