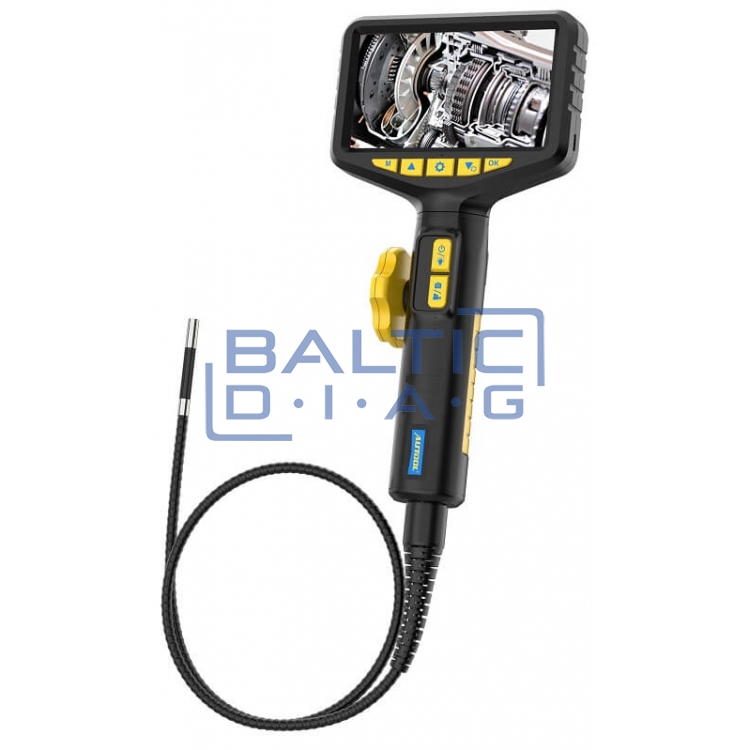

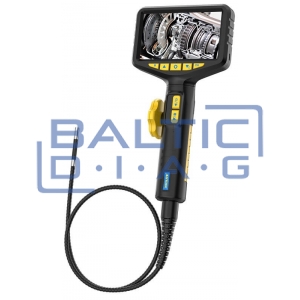

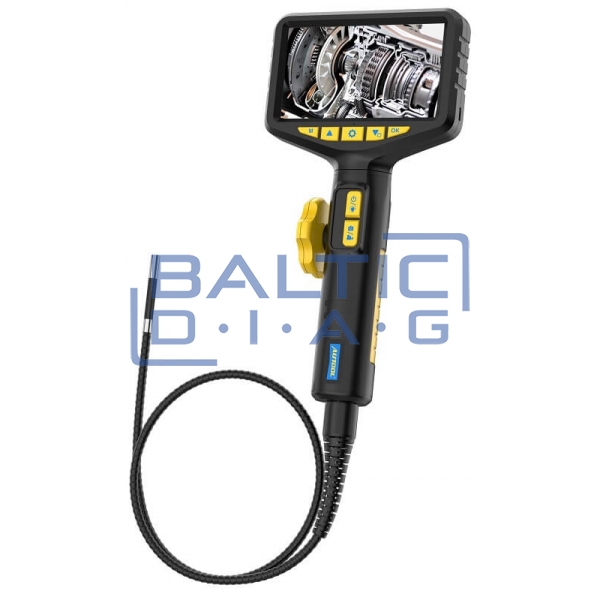

Endoscope with flexible probe Autool SVB305

Articulating endoscope Autool SVB305

Country of origin: China, warranty period – 24 months

The articulating endoscope Autool SVB305 is designed for precise and reliable inspection of hard-to-reach areas in automotive diagnostics, repair, and maintenance work. The device is an effective solution when visibility is limited in engine compartments, cylinders, pipelines, or other narrow and curved assemblies where conventional diagnostic methods are ineffective. The 210° articulating probe allows precise control of the camera direction, while the high-resolution display ensures a clear real-time image. A high-capacity battery and built-in memory enable autonomous operation as well as professional photo and video recording for documentation purposes.

Technical specifications:

• Camera diameter: 5.5 mm (±0.2 mm)
• Camera resolution: 1 MP
• Field of view: 70°
• Brightness adjustment: 3 levels
• Depth of field: 25–100 mm
• Display: 4.3-inch TFT / IPS color screen
• Display resolution: 320 x 240

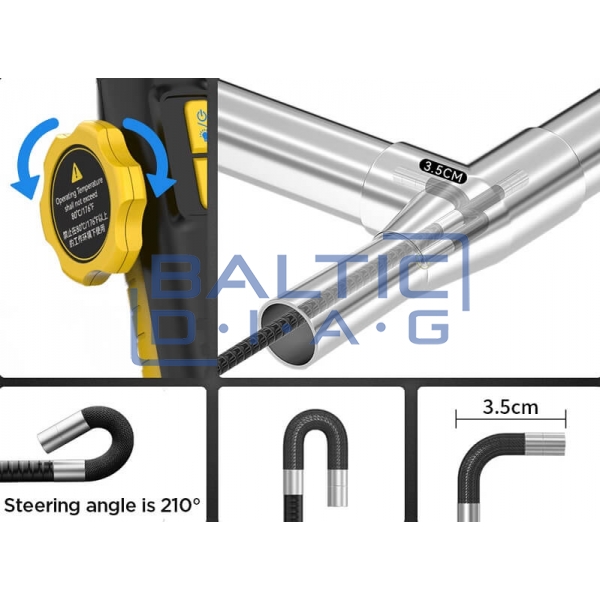

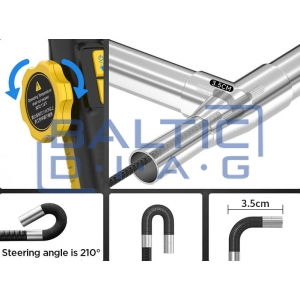

• Articulation angle: up to 210°
• Cable type: flexible metal cable
• Cable length: 1 m
• Protection rating: IP67
• LED illumination: 6 LEDs
• Battery capacity: 2000 mAh
• Operating time: up to 2–3 hours
• Charging: DC 5 V
• Operating temperature: -10 °C to +80 °C
• Internal memory: 32 GB
• File formats: JPG, AVI

The articulating endoscope Autool SVB305 is a reliable professional tool that enables fast and accurate visual diagnostics where precision and control are essential. It is a solution that saves time, increases work efficiency, and ensures a high level of result reliability in daily professional use.
