Painting chamber with gas heating BD-6400-G

Painting chamber with gas heating BD-6400-G

Manufacturer: BalticDiag, China

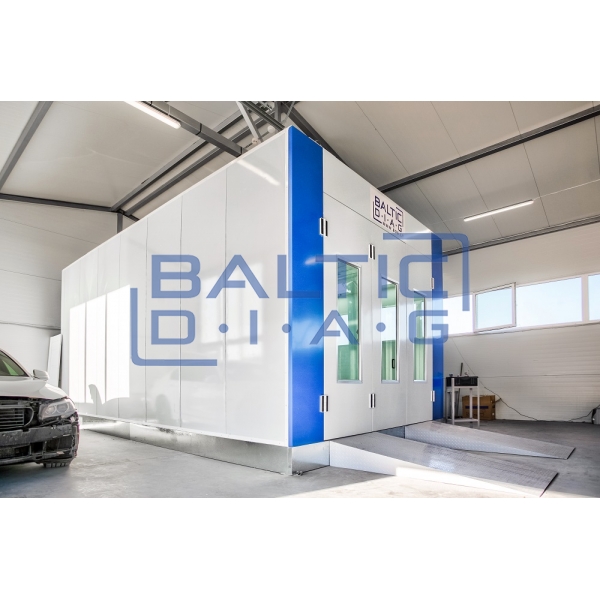

The BD-6400-G painting booth with gas heating is high-quality equipment designed for painting light vehicles and their parts. This booth features a sturdy construction with 50 mm thick EPS foam insulation between steel plates, ensuring efficient heat retention. The gas heating system with the Riello FS20 burner quickly reaches an operating temperature of 60-80°C within 5-10 minutes, and the advanced filtration system ensures clean airflow during painting. The booth has a convenient metal base with filter holders and ramps, and an efficient LED lighting system. It is an excellent choice for professional painting jobs.

Technical parameters:

Model: BD-6400-G

Basic data:

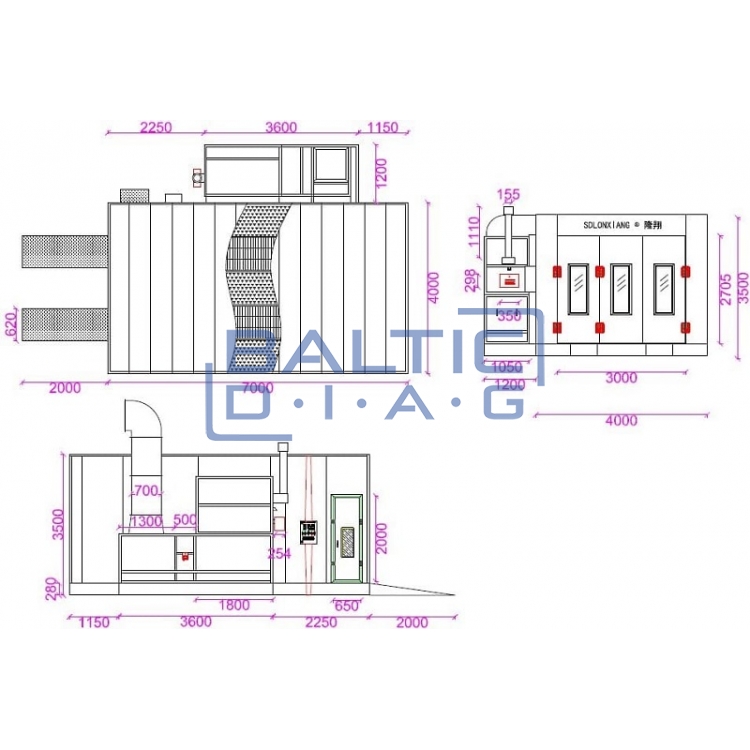

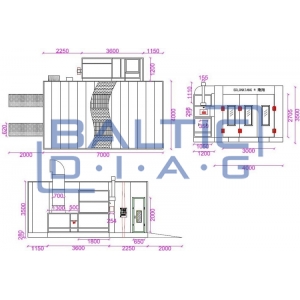

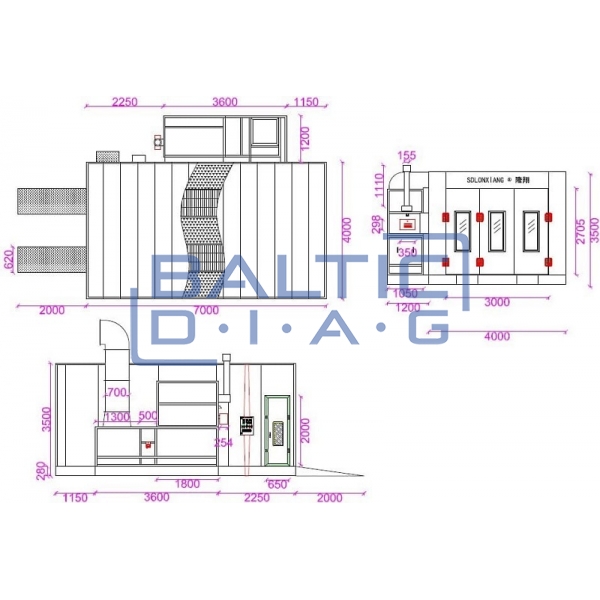

• External dimensions: 7000 x 5350 x 3500 mm
• Internal dimensions: 6900 x 3900 x 2800 mm
• Main door: 3000 x 2700 mm (with handle)
• Staff door: 650 x 2000 mm (with handle)
• Total power: 15.5 kW; 380V / 50Hz

Walls and ceilings:

• 50 mm thick EPS foam insulation between steel plates
• Available in 70 mm EPS foam insulation or stone wool insulation on request

Floors:

• Metal base (galvanized), with five rows of filter trays and ramps
• Five rows of galvanized gratings or fully slatted floors (Price does not change)

Heating system:

• Gas heating system, burner: Riello FS20
• Burner power: 200000 kcal/h
• Gas consumption: 8.2 - 23.5 m3 / h
• Heat exchanger (stainless steel), 1 pc.
• Reaching operating temperature of 50 ~ 80 ° C in 5-10 minutes. Ventilation

Filtration system:

• Main filter, 1 pc. > 83%
• Air inlet filter, 1 pc. > 97%
• Air exhaust filter, 1 pc. > 70%
• The filtration system can be through the bottom of the chamber, recessed into a pit or on a floor with ramps for access to the chamber (standard version), can be filtered through 3 chamber walls, placed on the floor (costs a little more) and can be filtered through 1 chamber side ( costs cheaper).
• The fastest filtration is through the floor of the chamber, slightly slower through the sides of the chamber, and slowest through one side.

Air system:

• Air intake fans, 2 pcs., Centrifugal with 4 kW motors, capacity: 24000 m3 / h
• Exhaust fan, 1 unit, centrifugal with 5.5 kW motor, capacity 18000 m3 / h

Lighting:

• Ceiling lamps, 32 pcs. After 16 W, LED
• Side lamps, 32 pcs., 16 W, LED

Control panel:

• 1 pc., Spray switch, heating switch, light switch, emergency stop, etc.
• Electronics CHINA DELIXI production (CHINA DELIXI - a French capital company working with Schneider electric.)

Included:

• All equipment, fasteners, sealing means, CE certificate
