  • SKU: BD20634
6,292.00 €

7,260.00 €
Prices shown include tax

Send Message

Description

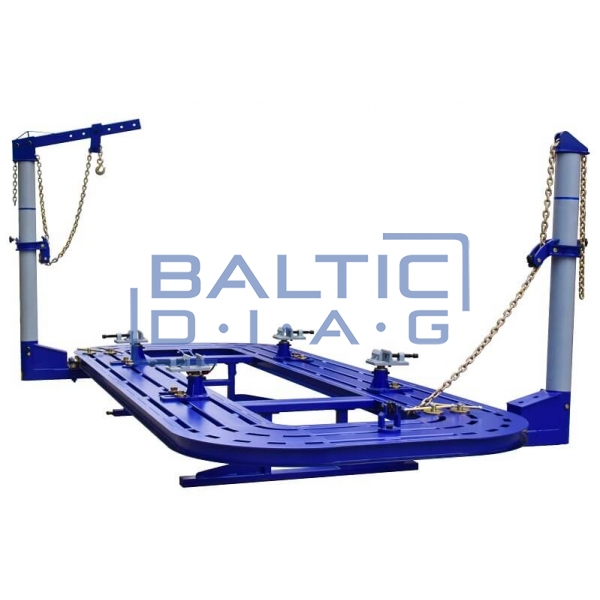

Car frame machine MX-8G
Advantages:

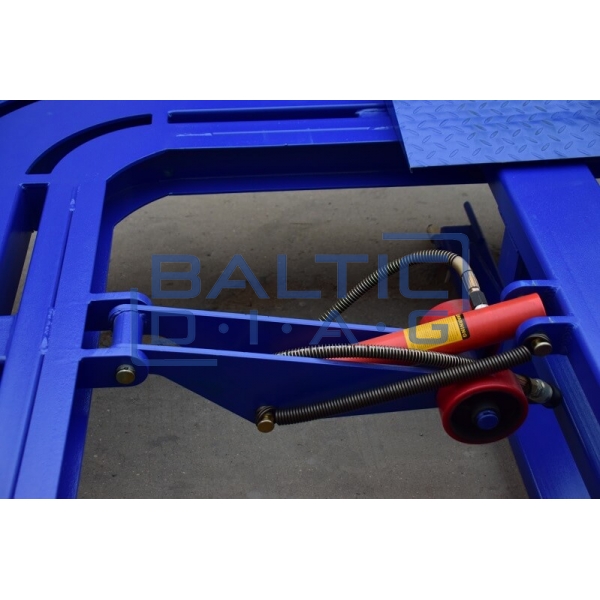

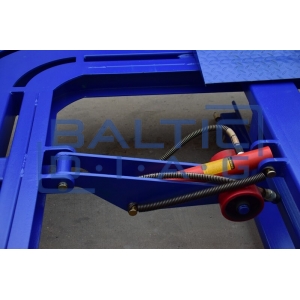

  • The hydraulic system used in the stand is powerful, reliable and durable
  • The body of the frame machine, made of high-quality metal plates, was machined using a CNC plasma cutting machine, welding with C2. Finally, they are prepared and machined using a shot blasting method to avoid various manufacturing imperfections, and after painting the stand with a powder method, only the best features of the machine are highlighted. It provides an opportunity for intensive work, is protected from rusting and has an eye for what it wants
  • Two hydraulic pulling poles, can flexibly work at various angles, from 0° to 360° angle. Because they are anchored on a special platform that allows you to rotate the towers at a comfortable angle, and they can be pushed by special rails

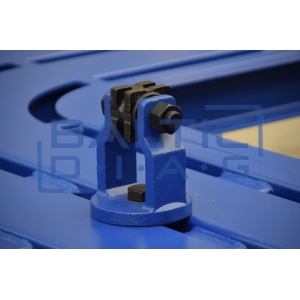

  • The unique movement design of the main mounting clamps provides convenience to a variety of car bodies and designs

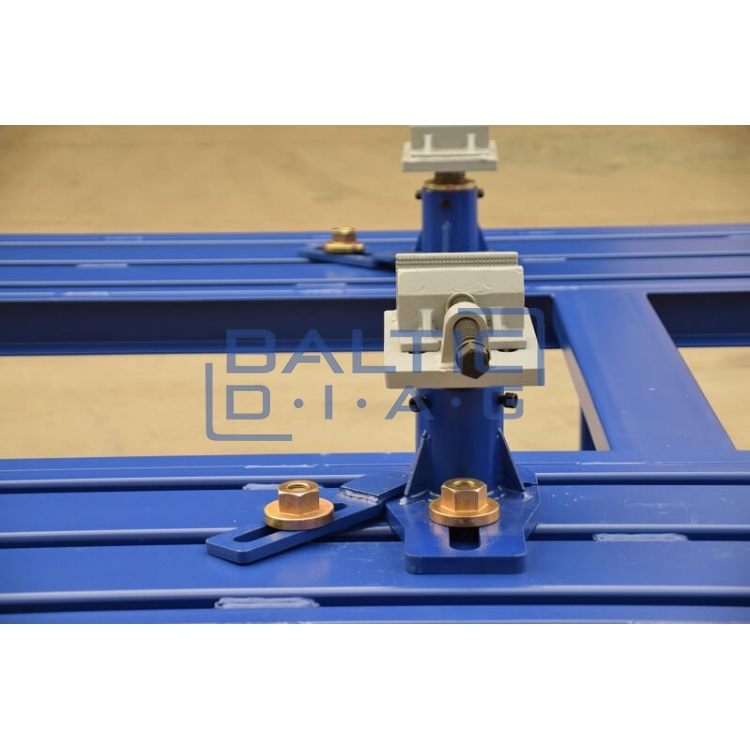

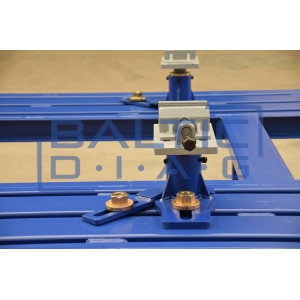

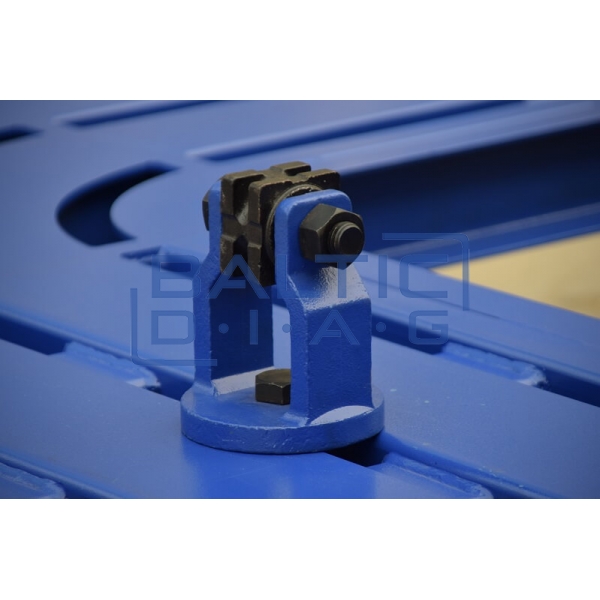

  • The clamps of the main fasteners have a unique design, they are fastened with only two screws. It provides a convenient and quick fastening of cars, which greatly improves work efficiency
  • Three-dimensional measuring bridge PTP. A convenient, easy-to-understand and advanced measuring device that can be ordered additionally
Technical data:
  • Available platform lengths: 5200 / 5600 / 5800 mm
  • Available platform widths: 2100 / 2200 mm
  • Platform height: 560 mm
  • Recommended compressed air pressure: 0.8 MPa / 8 bar
  • Hydraulic power: 70 MPa
  • Developed tensile capacity: 100 kN / 10 tons
  • Number of mounting towers: 2 towers
  • Rotatable mounting podiums: 360
  • Maximum bench load: 3500 kg
  • The color of the machine can be selected
  • Operation type: hydraulic foot pump or electro-hydraulic pump additionally
  • Machine weight: 2200 kg

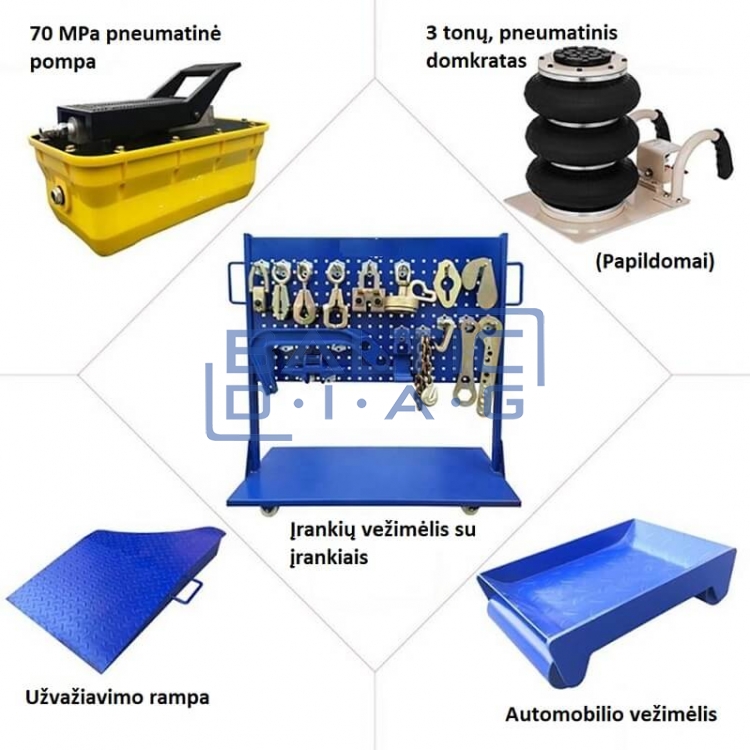

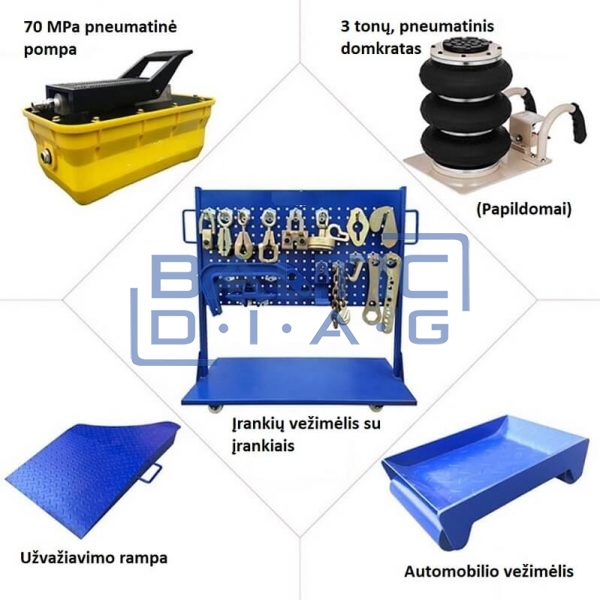

The set includes:
  • Frame structure: 1 pc.
  • Mounting towers: 2 pcs.
  • Pneumo-hydraulic pumps: 2 pcs.
  • Long chain with cable: 2 pcs.
  • Trolley with necessary tools: 1 pc. (please check the tools offered)
  • Main fastening clamps: 4 pcs.
Additional accessories offered:
  • Additional mounting tower
  • Pneumatic/additional lift
  • 2D or 3D measuring system
  • Pneumatic lift
  • Contact welding device
  • Main mounting points for BMW cars, 4 pcs. set
  • Main attachment points for Mercedes-Benz cars, 4 pcs. set
