160 ton manually movable portal press with worktable PPTL-160 RHTC

160 Ton Manually Movable Portal Press with Worktable PPTL-160 RHTC

Country of origin: Netherlands, warranty period – 24 months

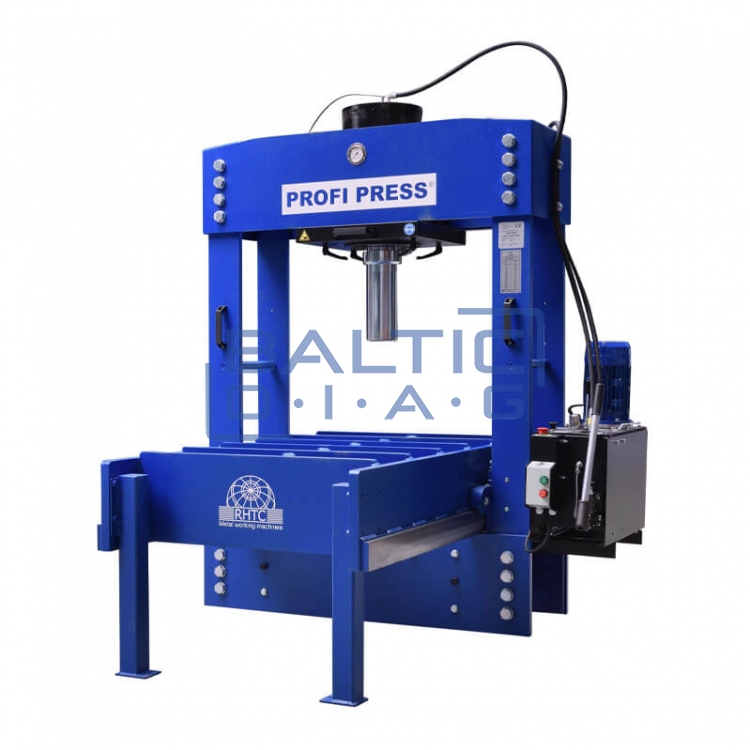

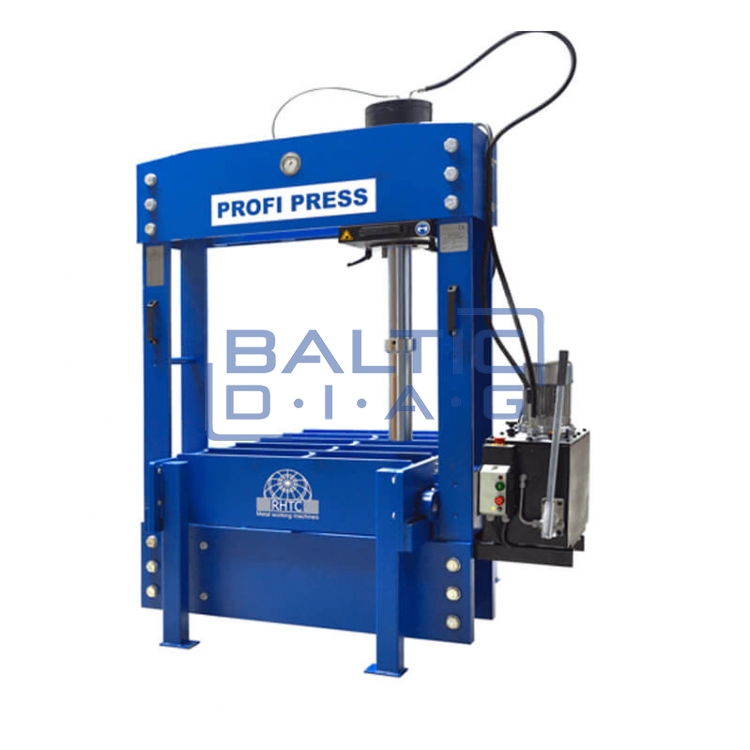

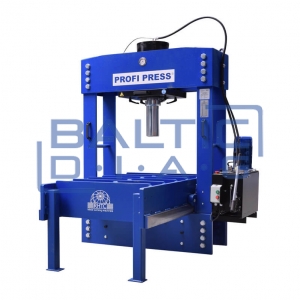

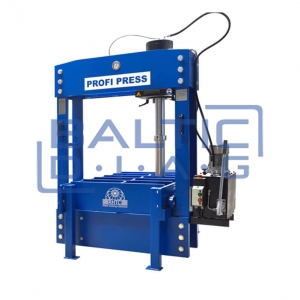

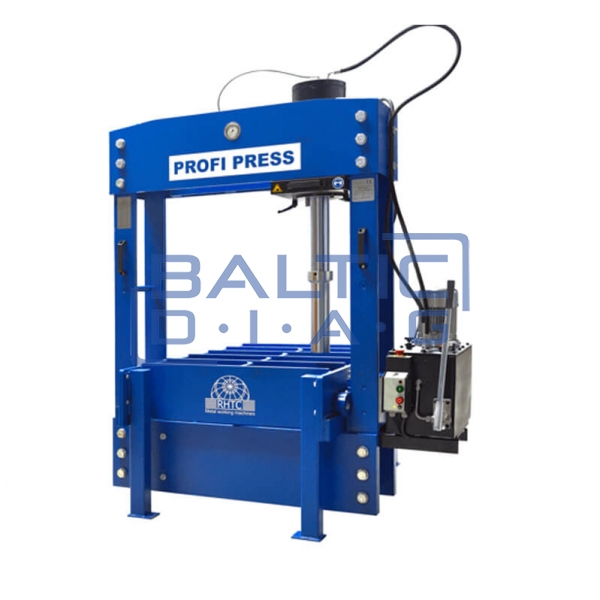

The 160-ton portal press PPTL-160 is a portal-type press with a worktable and a mechanically movable press frame mounted on it. The press design allows manual movement of both the portal (press frame) and the cylinder, making it easy to access any point on the surface to be pressed. This solution is especially suitable for working with heavy workpieces – the material can be placed on the table with a crane, and the portal can then be moved over it before pressing. The hydraulic system is equipped with a pressure regulator, two-speed operation, a directional valve for piston control, and a hand pump for precision pressing. The press is manufactured in Europe using high-quality components, ensuring reliable performance. It can also be easily customized to individual requirements (e.g., larger table, longer piston stroke, or greater clearance between the table and the piston).

Features:

• Movable portal (mechanically movable press mounted on the worktable)
• Movable cylinder
• Cylinder extension to reach the table
• Integrated pressure gauge
• Pressure regulation
• Hydraulic system with two speeds

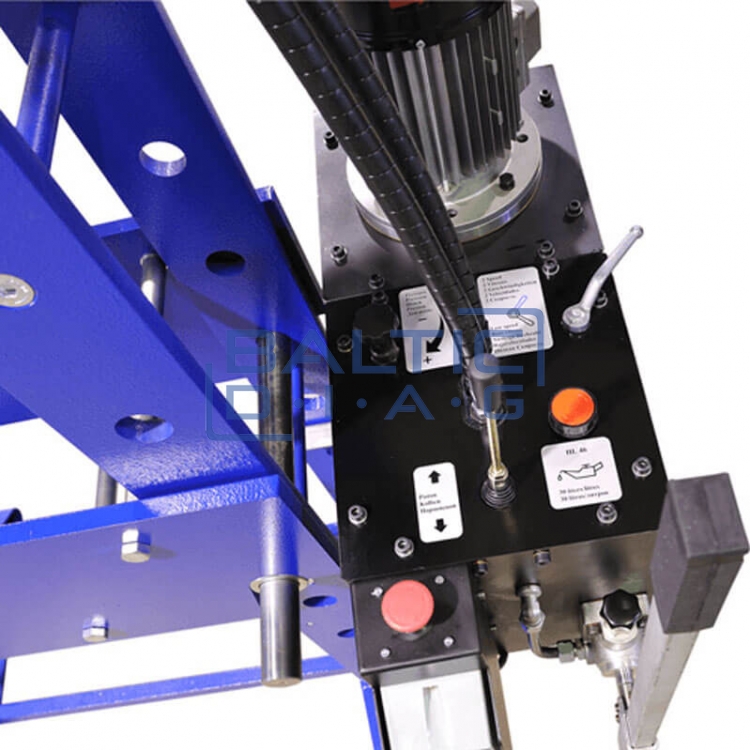

• Control via joystick / directional control valve for piston movement
• Hand pump for precision pressing

Technical Specifications:

• Pressing force: 1570 kN
• Motor power: 3 kW
• Working speed: 2.40 mm/s
• Approaching speed: 7.48 mm/s
• Return speed: 9.35 mm/s
• Maximum pressure: 255 bar
• Piston stroke: 400 mm
• Table dimensions (length × width): 1740 × 996 mm
• Working width: 1100 mm
• Vertical clearance: 700 mm
• Working height: 760 mm
• Manually operated cylinder and frame
• Total height: 2104 mm
• Total length: 1740 mm
• Total width: 1725 mm
• Weight: 2265 kg
