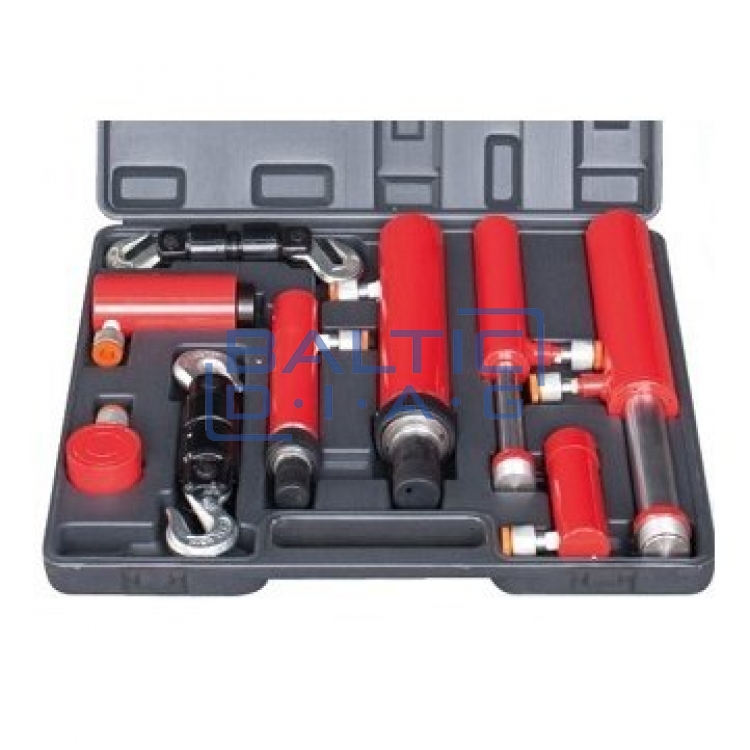

Hydraulic cylinder set 7 pcs.

Hydraulic Cylinder Set 7 pcs

Functions:

• A wide selection of cylinders allows for both pulling and pushing operations
• Strong metal housings ensure durability and resistance to deformation
• Different stroke lengths and capacities provide flexibility for various applications
• Compact dimensions make the set easy to transport and store
• Perfect for use with hydraulic systems, jacks, or presses

Technical specifications:

• 1 pc. Pulling cylinder with hook – 2 t; stroke 120 mm; maximum length 575 mm
• 1 pc. Pulling cylinder with hook – 5 t; stroke 130 mm; maximum length 665 mm
• 1 pc. Pushing cylinder – 10 t; stroke 135 mm; minimum height 358 mm
• 1 pc. Pushing cylinder – 10 t; stroke 58 mm; minimum height 118 mm
• 1 pc. Pushing cylinder – 4 t; stroke 125 mm; minimum height 270 mm
• 1 pc. Pushing cylinder – 4 t; stroke 18 mm; minimum height 40 mm
• 1 pc. Pushing cylinder – 2 t; stroke 73 mm; minimum height 126 mm
