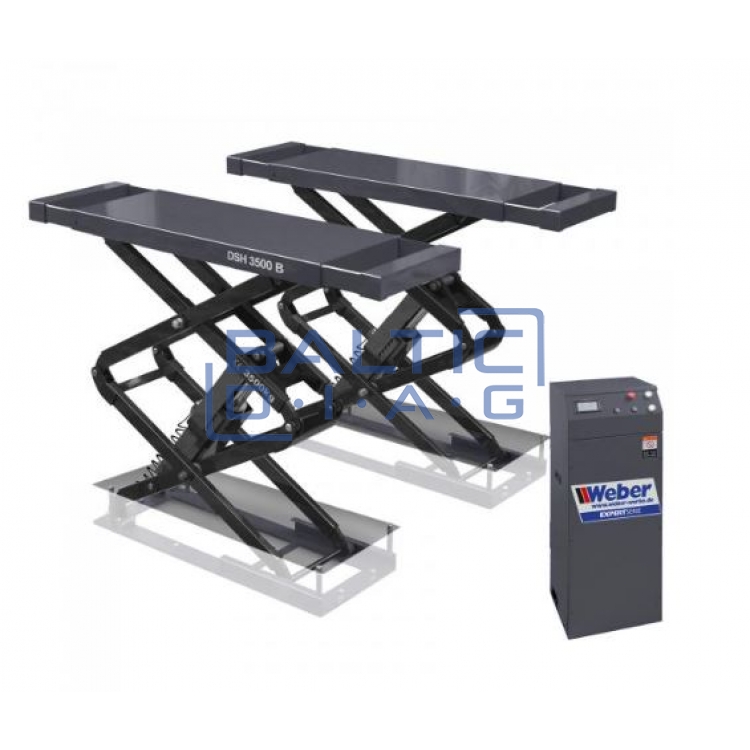

Weber DSH 3500 B double scissor lift

Weber DSH 3500 B double scissor lift

Manufacturer: Weber (Germany)

Description:

• Extensions are pulled out on both sides of the tracks
• Floor-mounted installation, clean passage
• Extremely high lifting height
• Unobstructed access to the car door
• Space-saving design
• Smooth scissor construction connections
• High capacity hydraulic unit
• Safety and hydraulic pressure valves are installed in the hydraulics
• Electronic lifting synchronization
• Mobile control unit with LED information lights
• Mechanical unlocking of guards
• Low wear of the connections when the truck is lowered

Technical parameters:

• Lifting capacity: 3500 kg
• Max. lifting height 2230 mm (1900 mm)
• Min. height: to the floor
• Depth of the pit: 330 mm
• Length of tracks: 1640 - 2040 mm
• Overall width: 1860 mm
• Track width: 550 mm
• Lifting time: 60 s
• Power supply: 400V / 3Ph / 50Hz
• Engine: 2.6 kW
• Weight: 910 kg
