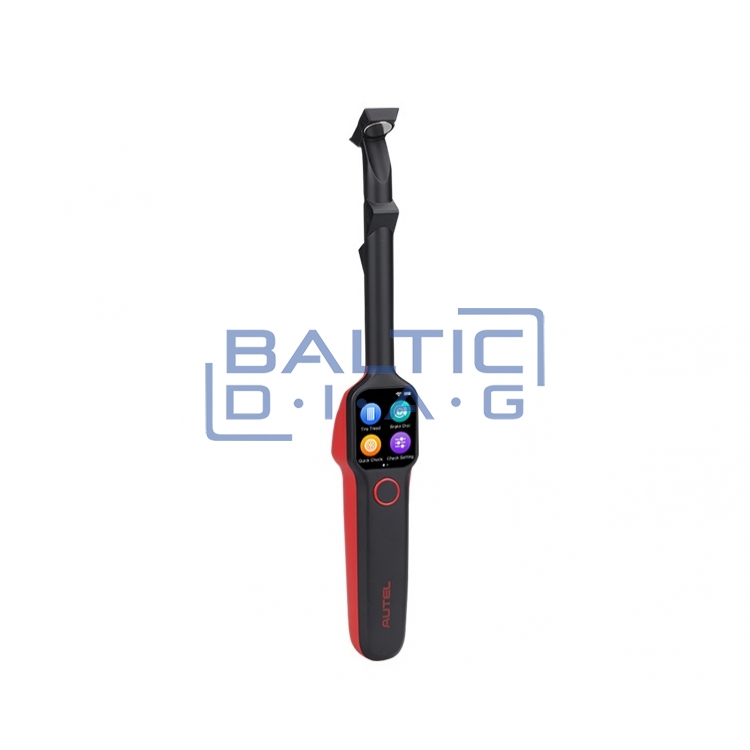

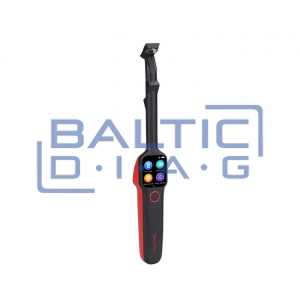

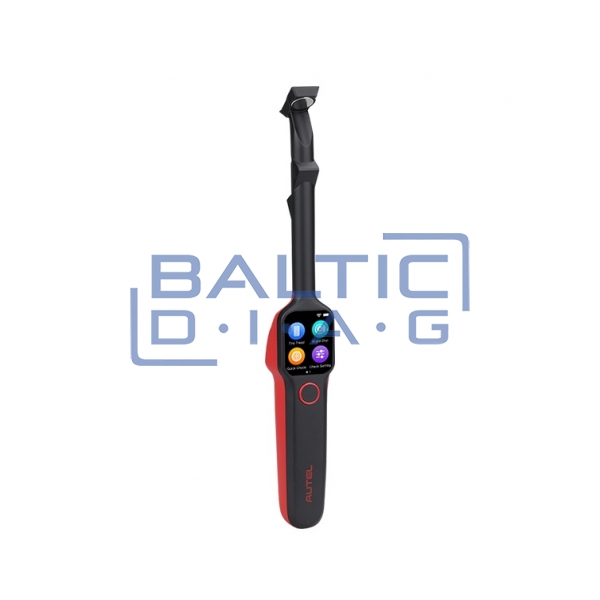

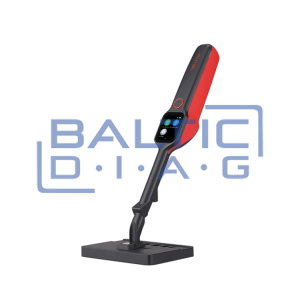

Tire tread depth measuring device Autel MaxiTPMS TBE200

Tire Tread Depth Measuring Device Autel MaxiTPMS TBE200

Features:

• Laser measurement for precise evaluation of tire tread depth
• High accuracy: laser measurements with 0.1 mm precision

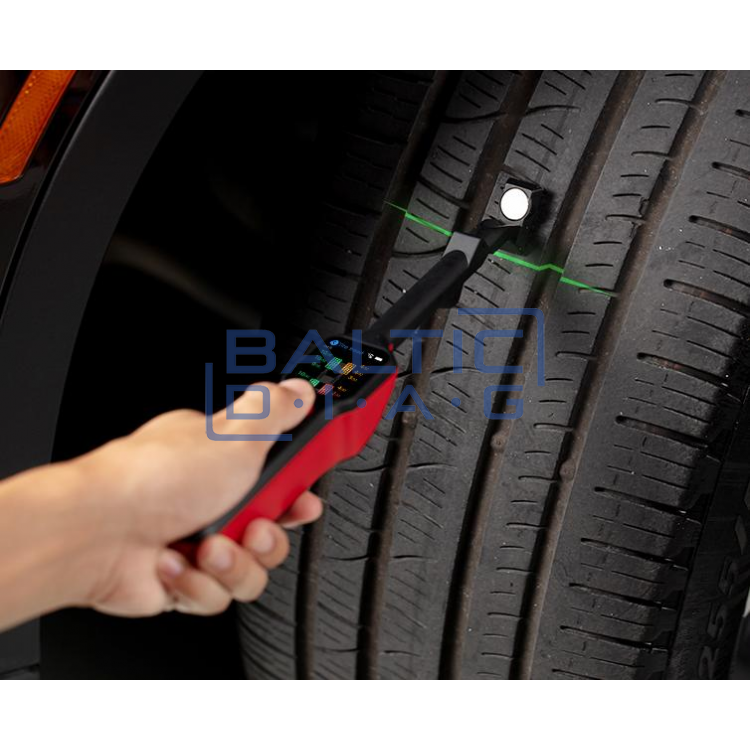

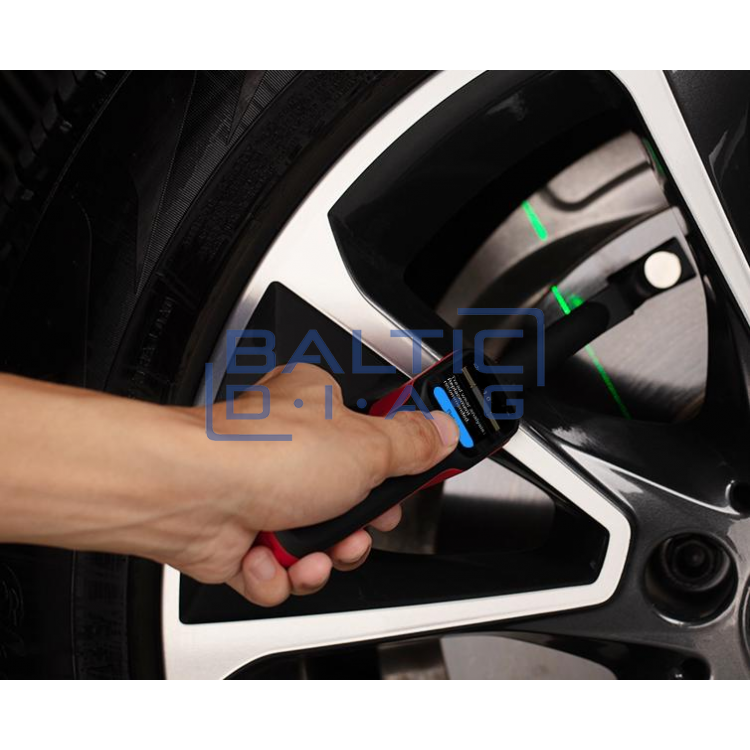

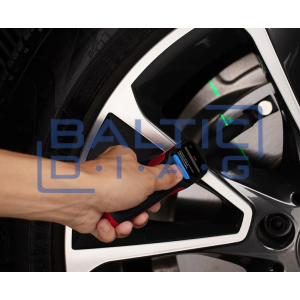

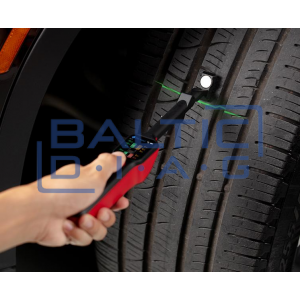

• Measurement without removing the wheels
• Real-time analysis: measurement curves and uneven wear assessment
• Recommendations: tire replacement, rotation, and alignment suggestions
• Dual camera system: captures images of tire damage, scans TIN codes, reads DOT information
• Operates independently or integrates with the ITS600 tool for report generation

Technical Specifications:

• Processor: Quad-core ARM Cortex-A35, 1.5 GHz
• Memory: 1 GB LPDDR3 RAM, 4 GB ROM
• Display: 1.65-inch AMOLED touchscreen, 348 × 442 resolution
• Camera: 1 MP front, 8 MP rear, CMOS WXGA, 30 fps
• Connectivity: Wi-Fi, USB 2.0 Type-C
• Battery: 3.7 V, 3000 mAh lithium-ion, 18650 type
• Battery life: up to 8 hours
• Operating temperature: -10 °C to +45 °C
• Storage temperature: -20 °C to +60 °C
• Power consumption: 300 mA (AMOLED on, default brightness) @3.7 V
• Dimensions: 283 × 39 × 33.5 mm
• Weight: 188 g

Package Contents:

• Main measuring device

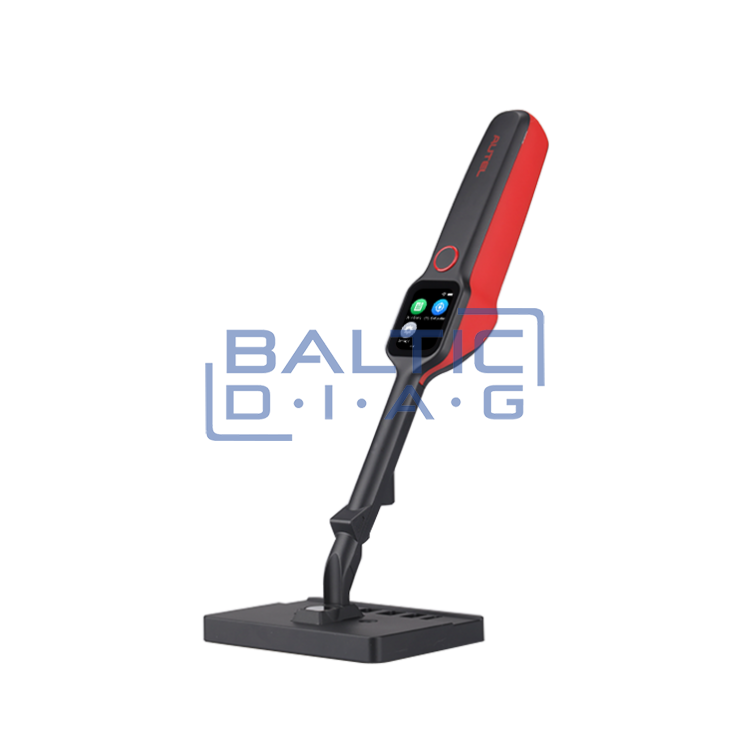

• Calibration board
• Power adapter
• USB Type-C cable
• User manual
• Carrying case
