Tire sensor programming and diagnostic equipment Autel MaxiTPMS ITS600

Tire sensor programming and diagnostic equipment Autel MaxiTPMS ITS600

Manufacturer Autel, warranty period - 24 months

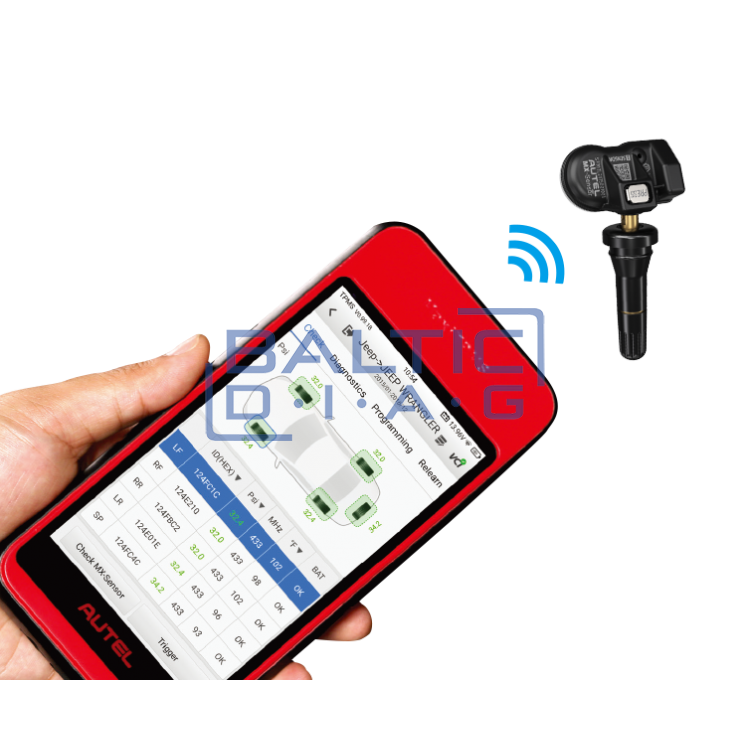

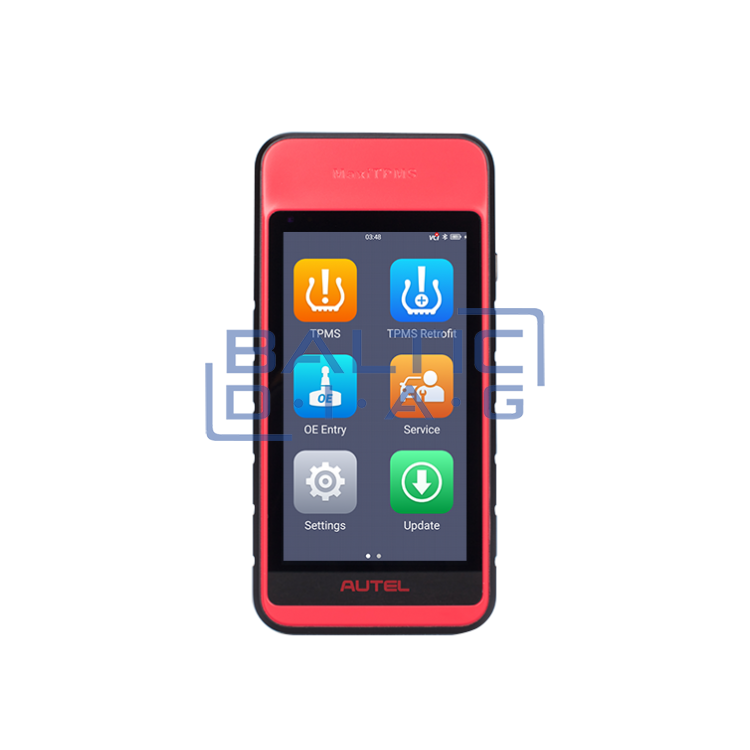

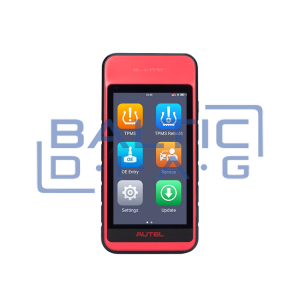

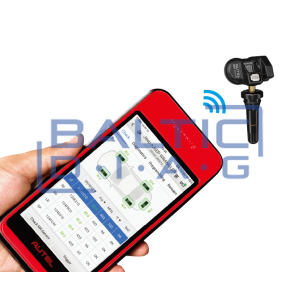

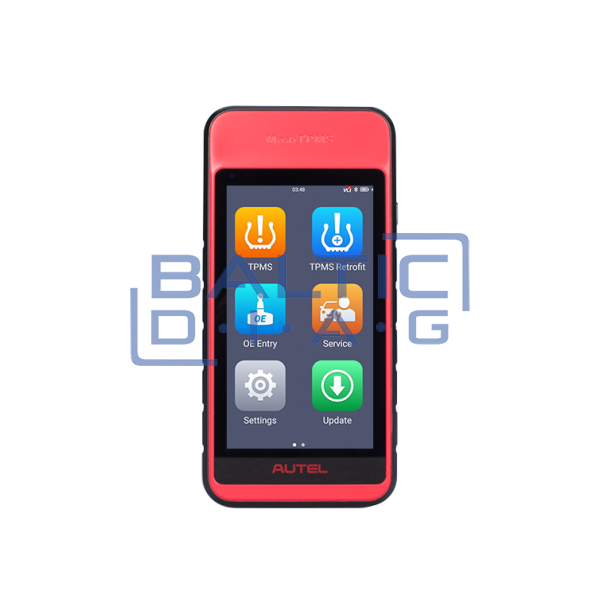

The MaxiTPMS ITS600 is a wireless touchscreen Android tablet that offers all TPMS diagnostic and maintenance features. The tablet has a 5.5-inch color screen and a Bluetooth interface (VCI). Compatible with US, Asian and European vehicles equipped with TPMS, the ITS600 has an enhanced TPMS status display, VINscan quick vehicle identification, four MX-Sensor programming options, OBDII retraining functions and on-screen instructions for all vehicles. The ITS600 can activate, read, and reprogram all known sensors, perform TPMS system diagnostics, and perform four routine maintenance services. It also includes a DOT number scan, a tire expiration message, and access to a recall search. The ITS600 is compatible with the TBE200 / TBE100 tire tread and brake disc wear analysis tool, sold separately.

TPMS features:

• Activates, reads and reprograms all known sensors
• Improved tablet
• Fast OBDII learning for most vehicles
• Programmer for MX sensors to replace 99% of OE sensors
• Copies according to OBD sensor programming
• Four MX sensor program modes; batch program for up to 20 MX sensors
• With Bluetooth wireless vehicle communication interface (VCI)
• Reset tire pressure table value
• Read / clear TPMS system codes and view direct data
• Free Wi-Fi software updates for the life of the tool
• Fast VIN acquisition using optical VINScan
• QR code scanning / barcode scanning, plate scanning, automatic VIN detection and manual entry
• Use VIN decoding to set the MMY and sensor OE part number

Advantages of diagnostic functions:

• DIAGNOSTICS AND SERVICES
• Oil bulb reset
• Electronic brake reset
• Attaching the battery
• Resetting the steering angle
• Full system diagnostics and maintenance software available with Pro Upgrade

Technical data:

• Operating system: Android 9.0
• Processor: Quad-core processor (1.5 GHz)
• Memory: 1 GB DDR4 RAM and 64 GB ROM
• Display: 5.5-inch LCD touch screen with 1280x720 resolution
• Wi-Fi / USB 2.0, Type C / BT
• Sensors: The light sensor automatically adjusts the brightness
• Power and battery: 3.8 V / 5000 mAh lithium polymer battery
• Charges via 5 V AC / DC power supply
• Battery charging input: 5 V / 2 A
• Power consumption: 600 mA (LCD on, default brightness, Wi-Fi on) @ 3.8 V
• Operating temperature: -10 to 45 ° C
• Storage temperature: -20 to 60 ° C
• Dimensions: 183.0mm x 89.0mm x 22.0mm
• Weight: 368 g

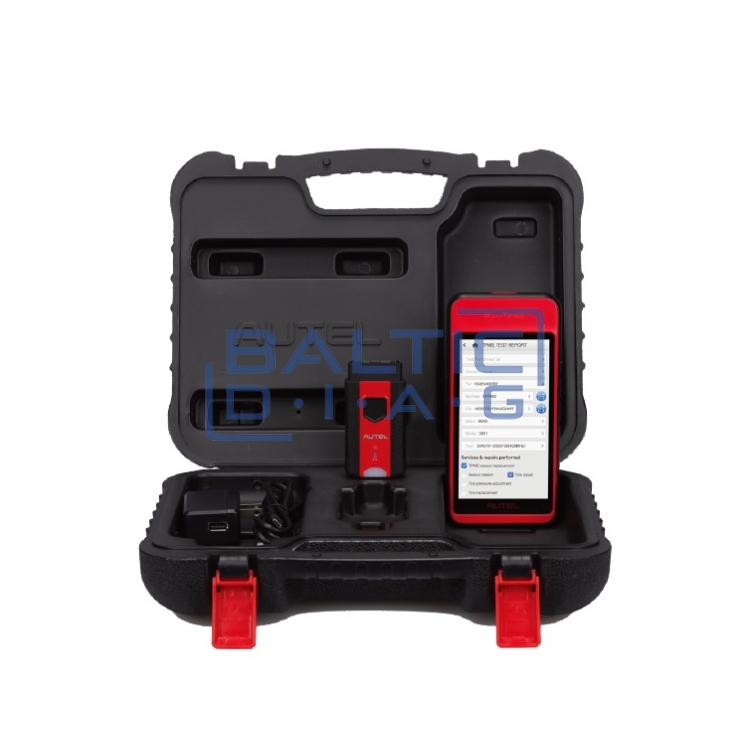

Equipment:

• The main device
• MaxiVCI V200
• Power adapter
• Type C USB cable
• Hexagon key
• User Guide
• Suitcase
• For an additional fee, the device can be upgraded to the ITS600 PRO version.

Main differences between ITS600 and ITS600 PRO devices.
