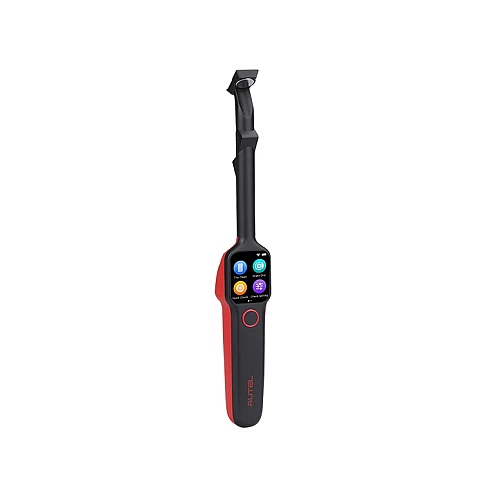

Tire Tread Depth Measuring Device Autel MaxiTPMS TBE200 (EU)

Manufacturer: AUTEL, warranty period – 24 months

The Autel MaxiTPMS TBE200 is an advanced laser measuring tool designed for fast and highly accurate tire tread depth evaluation. This device allows measurements to be performed without removing the wheels, and the results are displayed in real time on a 1.65-inch AMOLED touchscreen. Thanks to the built-in dual cameras, users can document tire damage and scan the Tire Identification Number (TIN). The TBE200 is ideal for workshops seeking to perform accurate tire assessments and provide customers with detailed maintenance recommendations.

Technical Specifications:

  • Processor: Quad-core ARM Cortex-A35, 1.5 GHz
  • Memory: 1 GB LPDDR3 RAM, 4 GB ROM
  • Display: 1.65-inch AMOLED touchscreen, 348 × 442 resolution
  • Camera: 1 MP front, 8 MP rear, CMOS WXGA, 30 fps
  • Connectivity: Wi-Fi, USB 2.0 Type-C
  • Battery: 3.7 V, 3000 mAh lithium-ion, 18650 type
  • Battery life: up to 8 hours
  • Operating temperature: -10 °C to +45 °C
  • Storage temperature: -20 °C to +60 °C
  • Power consumption: 300 mA (AMOLED on, default brightness) @3.7 V
  • Dimensions: 283 × 39 × 33.5 mm
  • Weight: 188 g

Laser measurement: accurate assessment of tyre tread depth
High precision: laser measurement with an accuracy of 0.1 mm

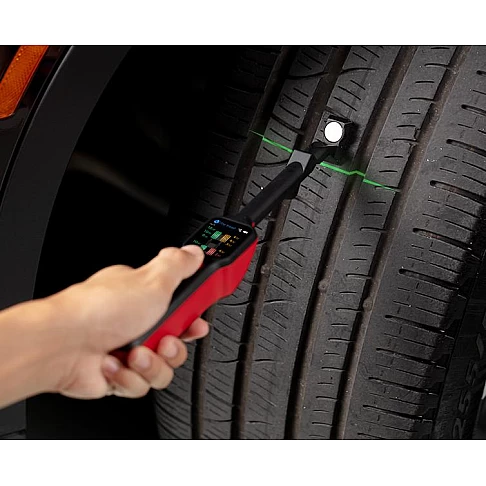

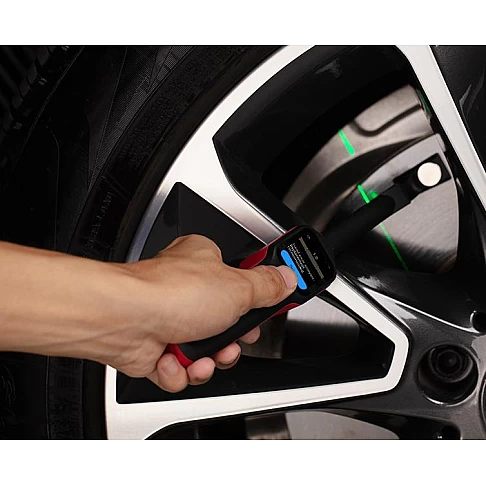

Measurement without removing the wheels
Real-time analysis: measurement curve, uneven wear assessment
Recommendations: suggestions for tyre replacement, rotation and alignment
Dual camera: photographs tyre damage, scans TIN codes, identifies DOT
Works stand-alone or integrates with ITS600 tool to generate reports

Main measuring unit x 1

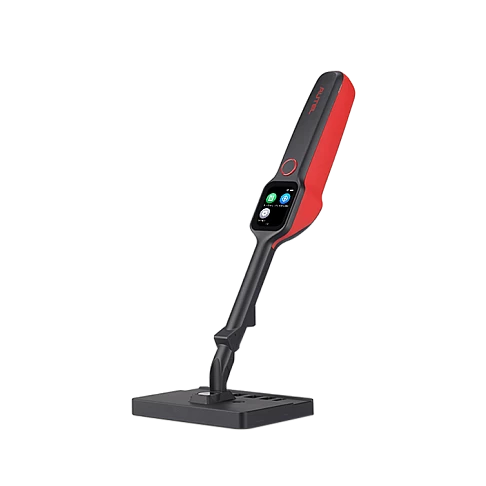

Calibration table x 1
Power adapter x 1
USB Type-C cable x 1
User manual x 1
Transport case x 1
