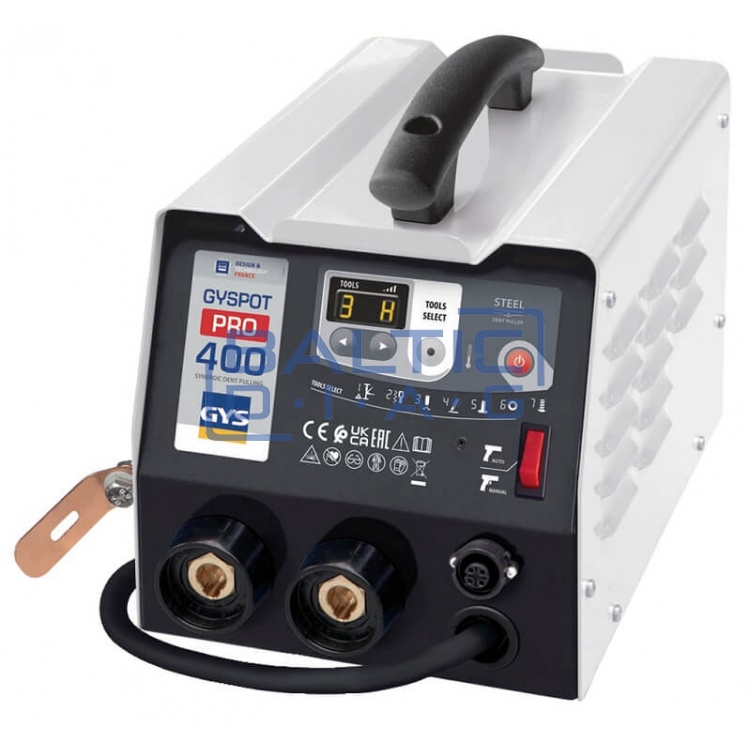

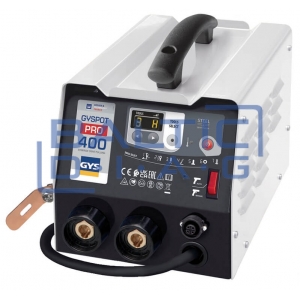

Steel dent pulling equipment, GYSPOT Pro 400

Steel dent pulling equipment, GYSPOT Pro 400

Manufacturer: GYS, France. Warranty: 24 months

The GYSPOT Pro 400 is a 400 V working voltage deburring device for steel surfaces that has an output current of 3800 A. It is ideal for steel components, auto parts and body repair work. This device is quite efficient thanks to 2 multifunctional straightening guns, one with automatic operation, the other with a start switch. GYSPOT Pro 400 has an easy-to-understand control panel. It is enough to select two parameters:

• the output power level (from 11 levels); the tool which is used (out of 7 tools), there is no need to select the welding current and welding time.
• Manual triggering: the welding occurs when pressing the trigger when the tool is in contact with the part to straighten.
• Automatic triggering: the welding is triggered automatically by a simple contact between the tool and the part to straighten.

Technical parameters:

• Supply voltage: 400 V / 50 - 60 Hz / 3 phases
• Output electric current: 3800 A
• Operation of multi-function guns: manual / automatic
• Fuse: 16 A
• Output voltage: 7.4V
• Average electric current: 2800 A
• Dimensions: 225 x 360 x 235 mm
• Weight: 25.5 kg
• Power cable length: 8 m
• Grounding cable length: 2 m
• Cable length of multi-function guns: 2 m + 3 m

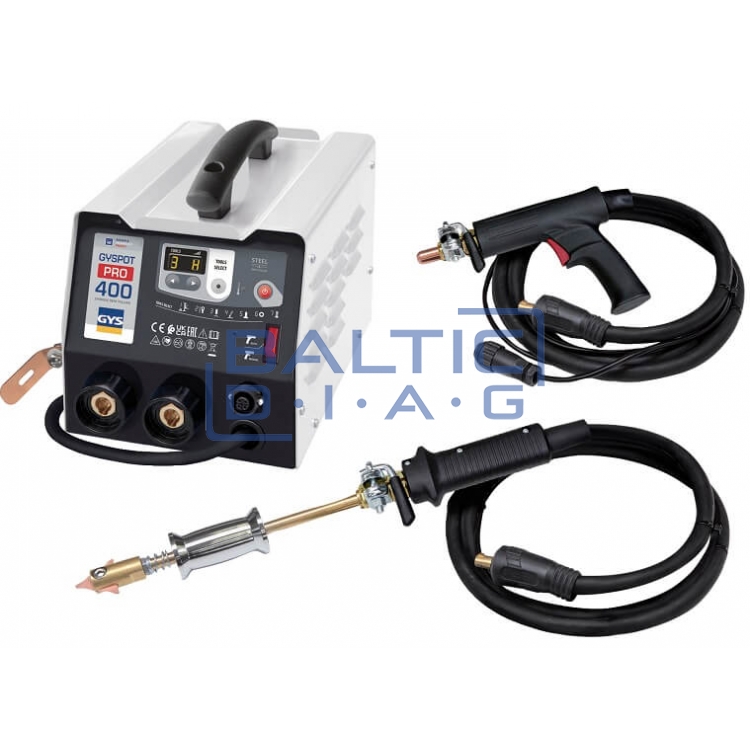

Standard equipment:

• Earthing cable, 70 mm2
• 2 x multi-function guns (inertia hammer, star leveling; welding of studs, rivets and rings; contact shrinking; graphite pencil.)
• Power cable
• Accessory box

A wide selection of accessories is available upon request. Available accessories can be found on the manufacturer's page:

http://gys.fr/prods-K966/STEEL_DENT_PULLING_CONSUMABLES_K966/en
