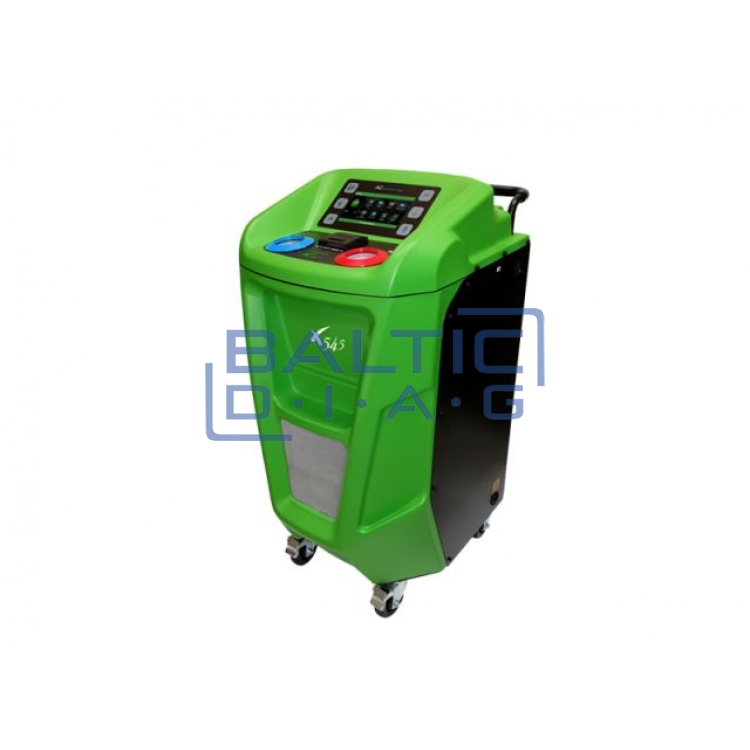

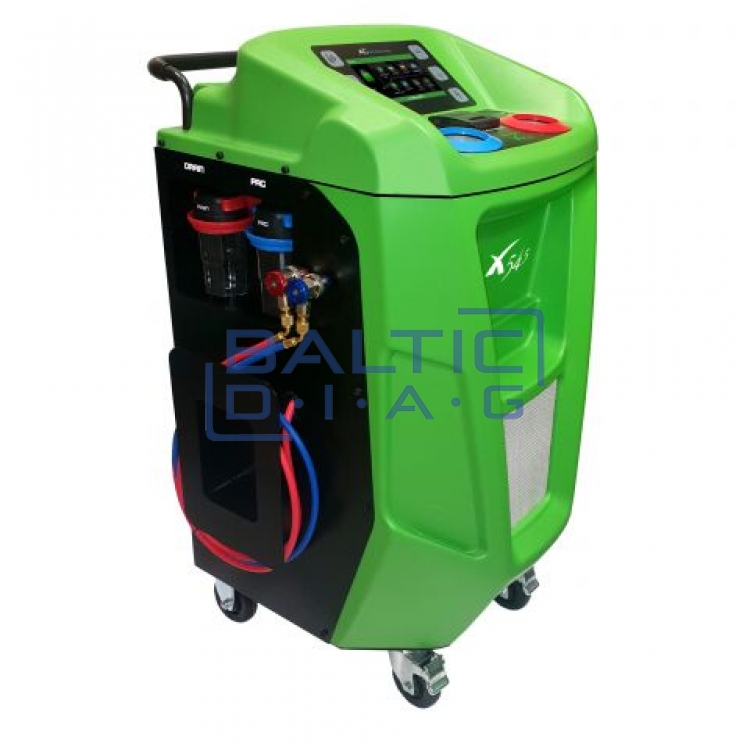

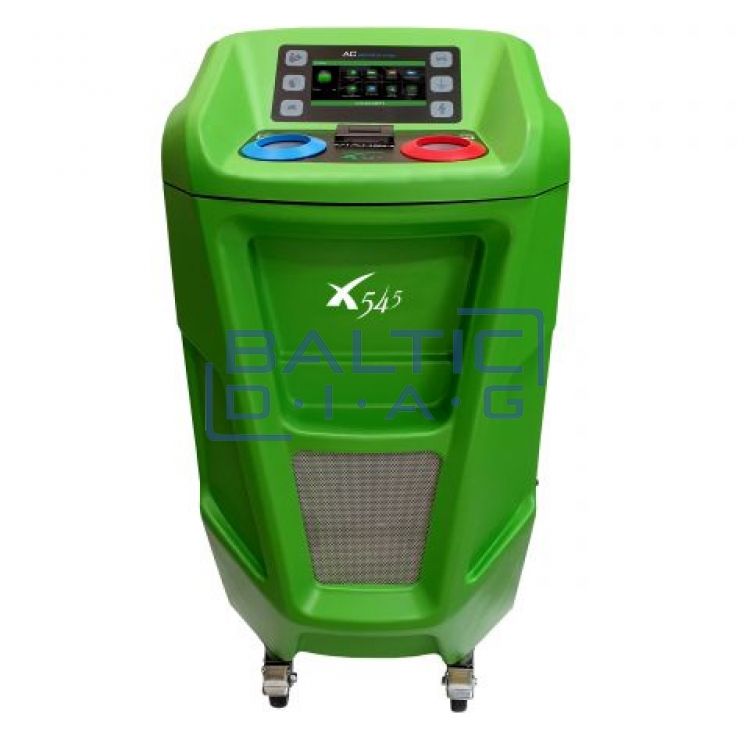

Fully automatic air conditioning filling station BD 545

Fully automatic air conditioning filling station BD 545

Warranty 12 months; Manufacturer: Poland

The station is suitable for servicing R134a refrigerant. The station performs removal, vacuuming, permeability, filling and oil extraction functions. The air conditioning filling equipment has an integrated database to serve the most popular car brands. The completed functions are printed with the printer.

Functions:

• Refrigerant collection from the air conditioning system and separation of used oil
• Creating a vacuum in the system
• Filling the air conditioning system
• Basic vacuum tightness testing
• Oil dosing

Advantages:

• Fully automatic mode function. The full automatic cycle facilitates maintenance and eliminates the risk of errors in servicing air conditioning systems
• A / C system database, SD card slot for database update
• Large color LCD touch screen

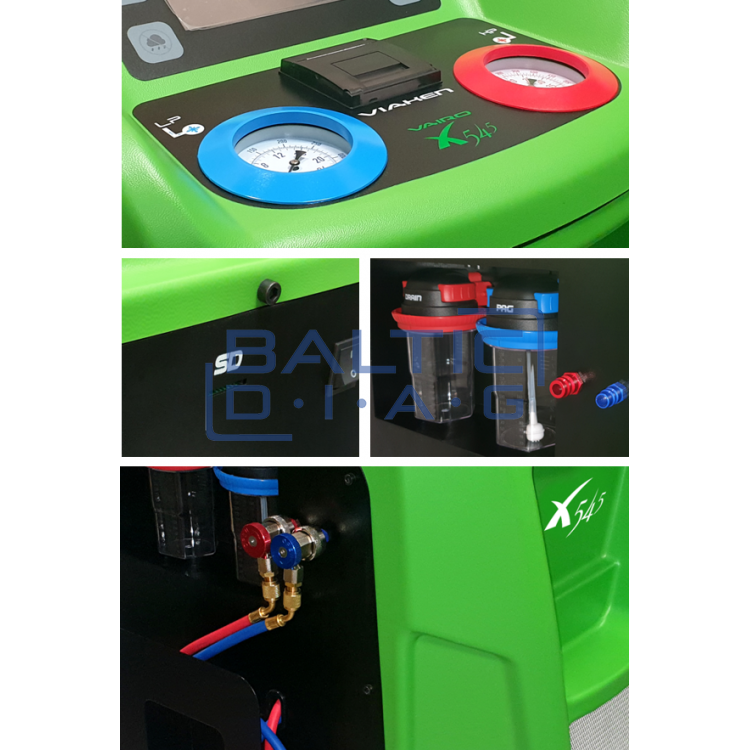

• Large and easy to read HP and LP pressure gauges
• Airtight oil tanks
• The thermal printer allows you to print a report on the activities performed by the customer
• Reliable vacuum pump
• Professional donor generator
• Compact dimensions

Technical parameters:

• Refrigerant type: R134a
• Power: 750W
• Playback speed: 300g / min
• Filling speed: 800g / min
• Vacuum suction speed: 5.4 m3 / h
• Filtration capacity: 200kg
• Scale accuracy: 10g
• Capacity: 10kg
• packaging 750x600x1160
• Weight: 90kg

Equipment:

• The main unit of the air conditioning station
• HP and LP service hoses
• HP and LP connectors
• Power cord
