Digital cylinder compression measuring device Autool PT610

Digital cylinder compression measuring device Autool PT610

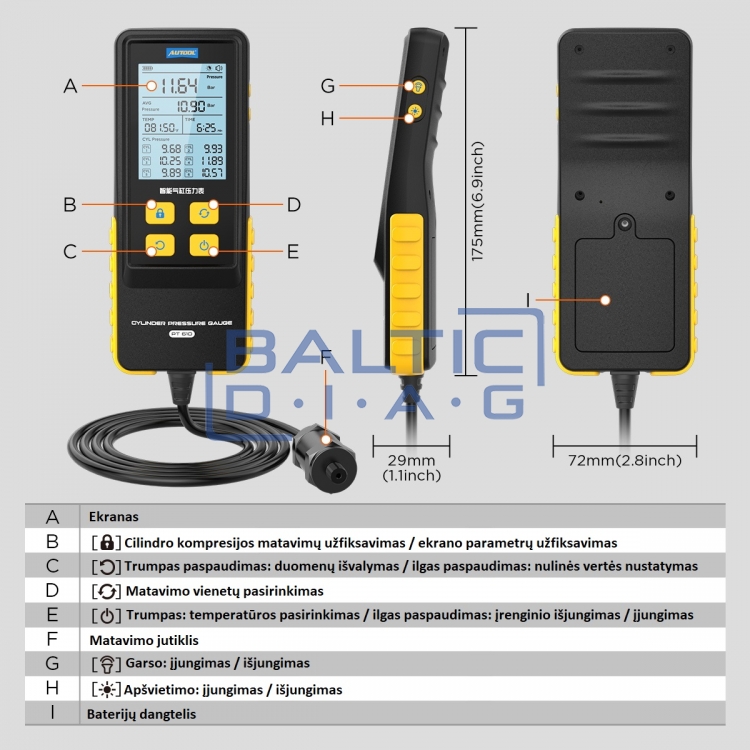

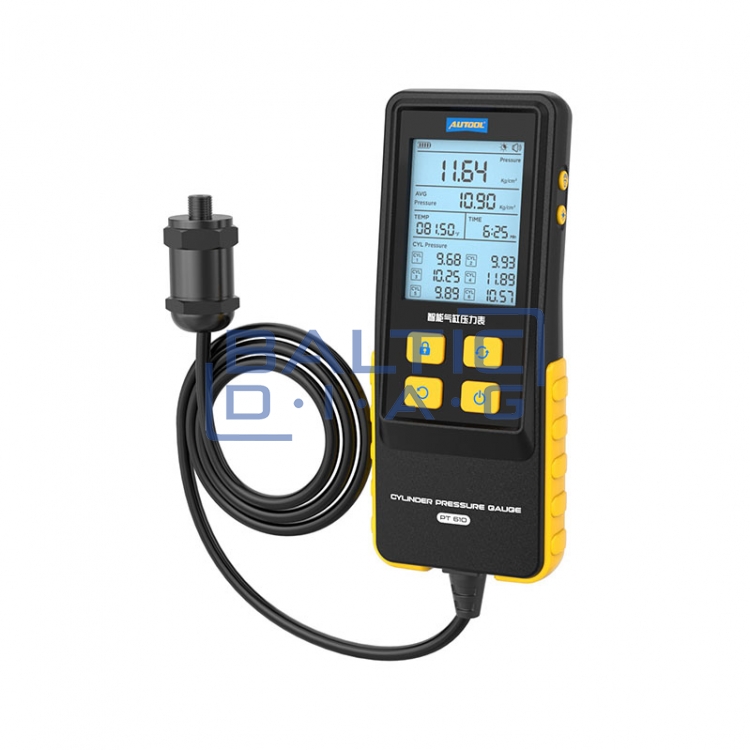

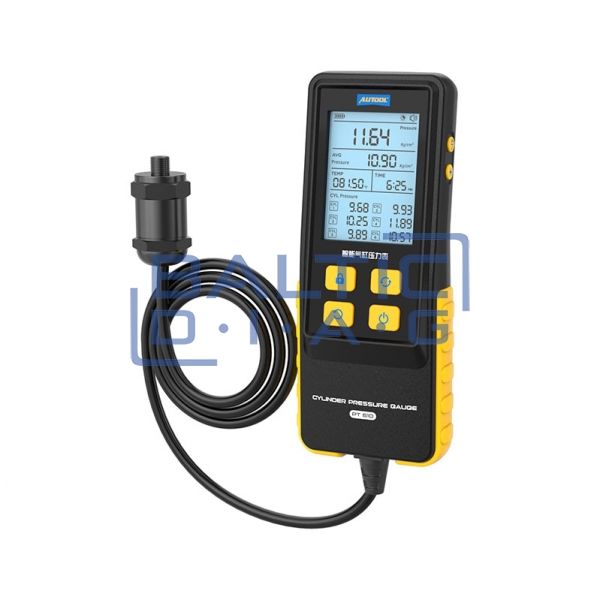

Autool PT610 is a smart cylinder compression measuring device with an integrated 2.8" high-resolution screen. This screen greatly simplifies the processing of measured cylinder compression information. For example, compression pressure values are displayed in real time, and there is also the possibility to calculate the average cylinder compression value and cylinder operating temperature. PT610 capable of storing 6 cylinder compression readings which can then be analyzed and compared.

Features:

• High accuracy of results
• Informative digital display
• Data storage
• Expression of parameters, with different values
• Copper material was chosen for the production of the measuring sensor
• Easy data scanning
• Long warranty period

How to use the Autool PT610 device:

1. Unscrew the spark plug
2. Connect the nozzle suitable for the vehicle being tested
3. Zero the device before making new tests
4. Connect the measuring sensor with a special nozzle
5. Try to start the car by turning the crankshaft
6. Autool PT610 will display the measured values

Technical parameters:

• Operating principle: digital signal
• Operating voltage: 6V
• Measured compression range: 0 - 30 bar
• Temperature range: -55 °C ~ +125 °C
•   Accuracy of results: 0.01

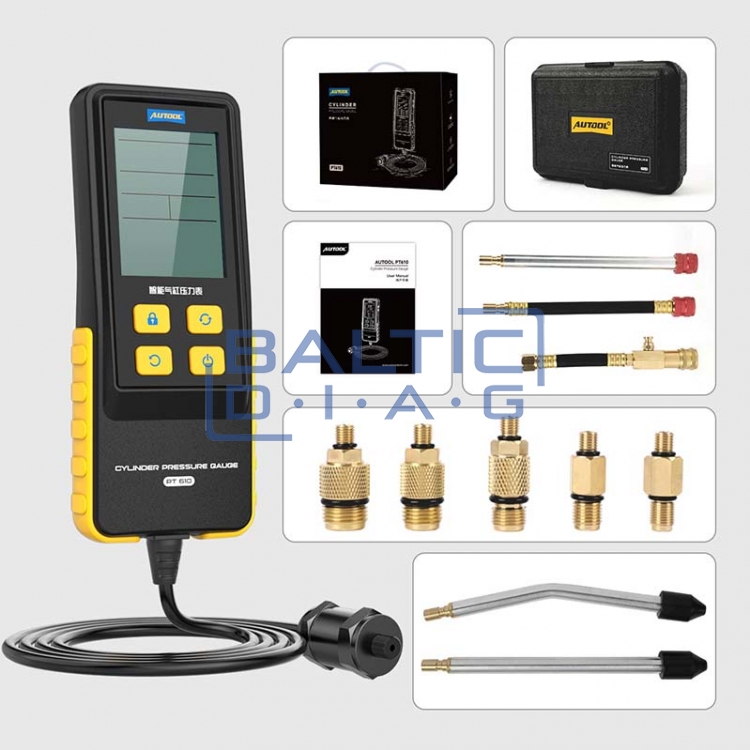

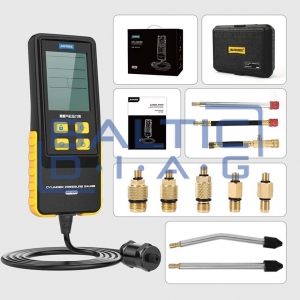

Complete set:

• Autool PT610
• High pressure measuring tube with quick connector
• Rubber compression measuring hose with quick connector
• Nozzle M18 x 1.5
• Nozzle M16 x 1.5
• Tip M14 x 1.25
• Tip M12 x 1.25
• Nozzle M10 x 1.0
• Curved measuring tube with rubber seal
• Straight measuring tube with rubber seal

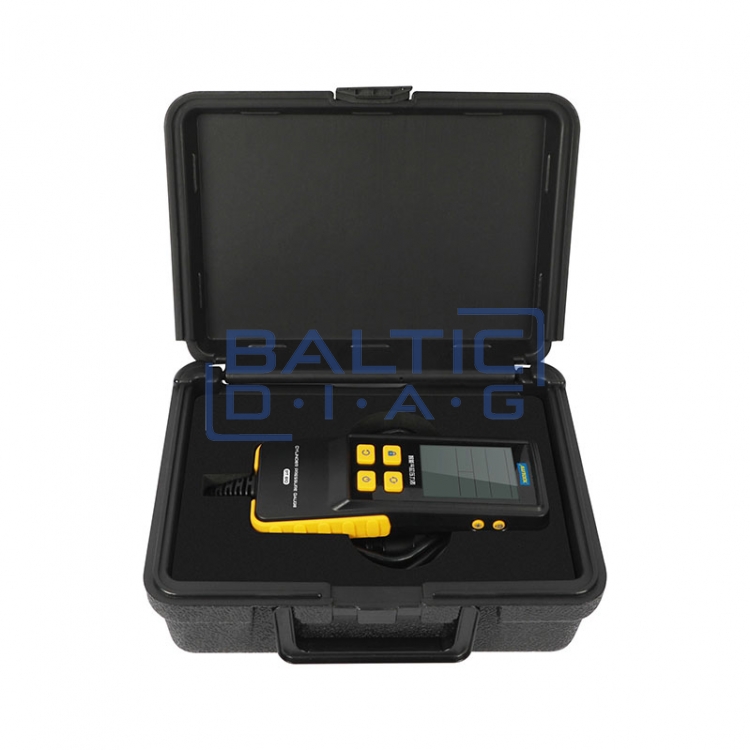

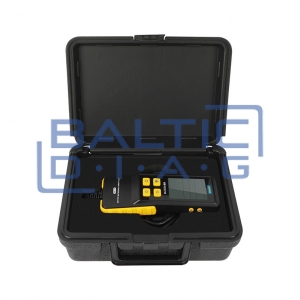

• A box
• User manual
