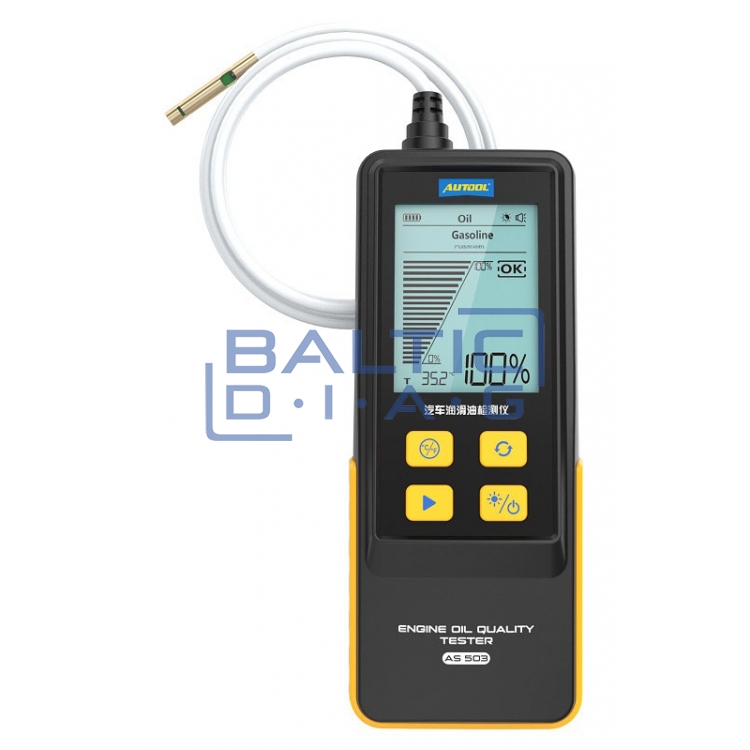

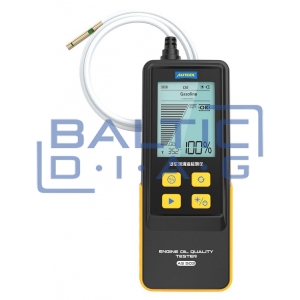

Internal combustion engine oil testing device Autool AS503

Internal combustion engine oil testing device Autool AS503

Autool AS503 is a specialized internal combustion engine oil testing device that is adapted to the automotive maintenance and repair sector. Its main function is to measure the transparency of engine oil in gasoline and diesel internal combustion engines. This testing method reflects the presence of various impurities and contaminants in the oil. The device is able to assess the quality and condition of the engine oil, and information about these properties can effectively prevent possible engine problems and breakdowns. In this way, it is ensured that the engine will work reliably and efficiently for a long time.

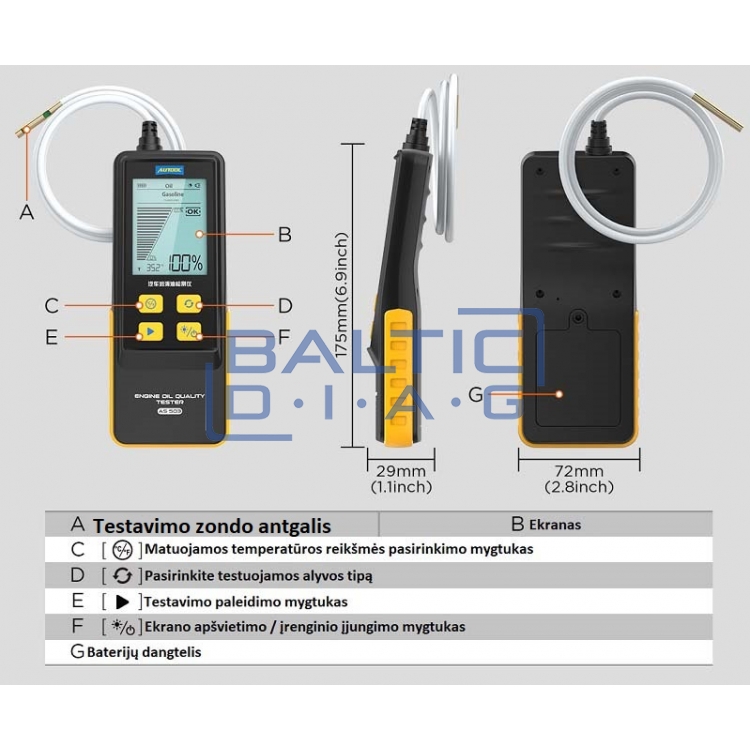

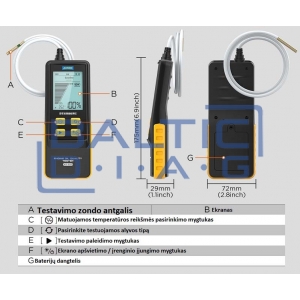

The oil tester AS503 has a convenient design, practical configurations and a detailed operation interface. It is equipped with precise sensors capable of measuring key parameters such as oil temperature and provide detailed information about the obtained test results. AS503 offers practical design and well thought out functionality.

Features:

• High Precision Test Probe - Features a built-in, high precision photoelectric transmitter/receiver probe to ensure all test results are as accurate as possible.
• Probe Design - The 800mm probe hose design gives you a more convenient and flexible testing method. This hose is made of Teflon, which has high resistance to oil and is particularly resistant to corrosion. It is resistant to many external influences, so it will ensure a long service life.
• Measured oil temperature - the integrated temperature sensor measures and displays the actual oil temperature, reflects the engine's working condition and load. Ensures that the measurement results are within the normal operating temperature range. Ability to perform measurements in degrees Celsius and Fahrenheit.
• Multi-Oil Compatible - AS503 is compatible with most gasoline and diesel internal combustion engine oils on the market. The possibility of testing gasoline and diesel engine oil samples separately, which provides a more accurate assessment of the results.
• Large and high-quality LCD screen - a built-in 2.8-inch screen that ensures clear display of digits, regardless of ambient lighting.
• Audible signal - when oil permeability is between 100% and 50%, it does not need to be changed yet. When the permeability is between 50% and 30% - an exclamation mark will be displayed on the screen, which will indicate the recommendation to change the engine oil as soon as possible. And if the oil permeability is less than 30%, the tester will give you an audible signal, a beep, which will induce the need to change the engine oil immediately. T – induces instantaneous oil temperature.
• User-friendly design - The body is coated with a silicone base that provides excellent grip and is extremely light, making it easy to operate with one hand.
• Long, three-year warranty

Technical parameters:

• Digital testing method
• Ability to measure temperature: °C / °F
• Modes: Oil condition testing of gasoline/diesel internal combustion engines
• Measured temperature ranges: 0 - 85 °C
• Screen: 2.8" LCD
• Supply voltage: 6V / 4 x 1.5 V batteries
• Probe tube length: 800 mm

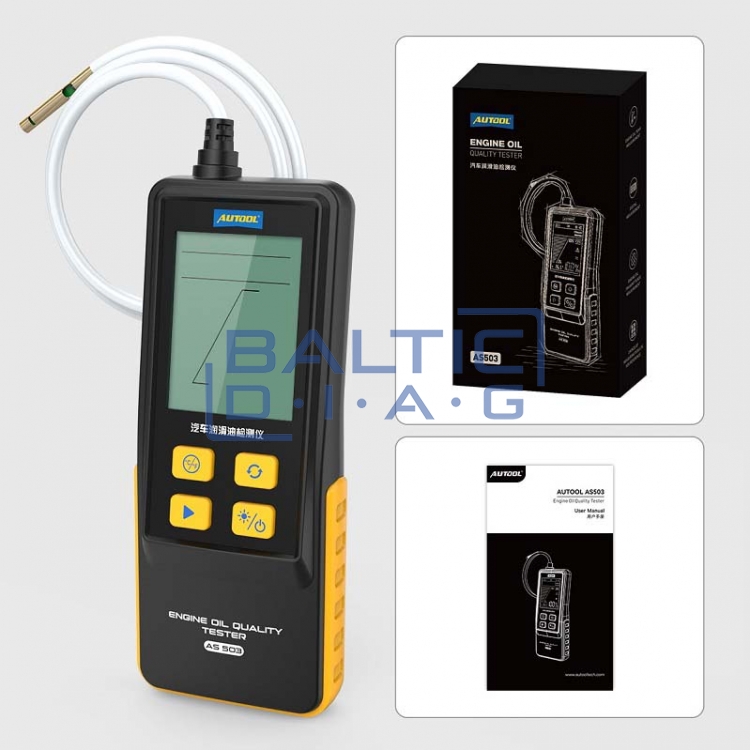

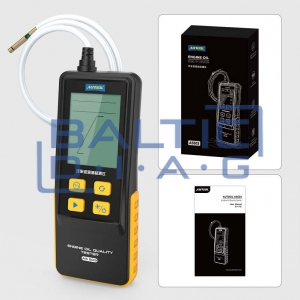

Complete set:

• Autool AS503 Oil Tester
• User manual
