Metal Lathe with Variable Speed

Metal Lathe with Variable Speed ED420FXL

Country of Origin: Austria, warranty period - 24 months

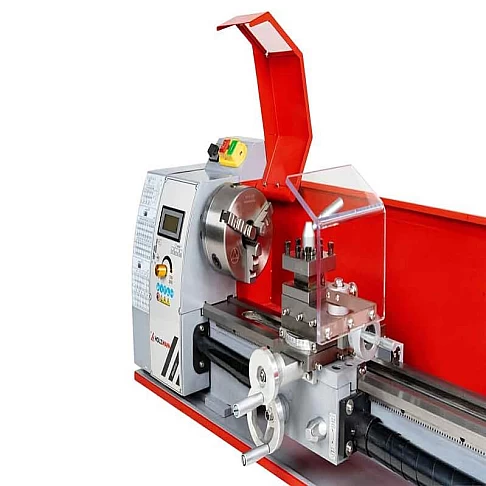

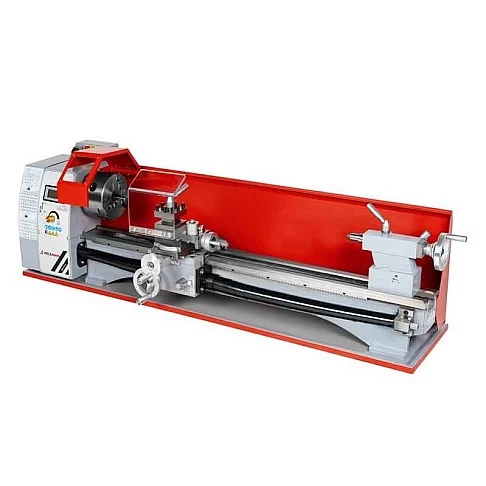

The HOLZMANN ED420FXL metal lathe is a compact and reliable machine designed for machining steel, cast iron, non-ferrous metals, aluminum, brass, and plastic. With a center distance of 735 mm, it is capable of handling longer workpieces. The lathe features induction-hardened and precision-ground prismatic bed guides, ensuring high accuracy and stability. This machine is an excellent choice for professional metalworking.

Features:

• Suitable for machining various metals and plastics.

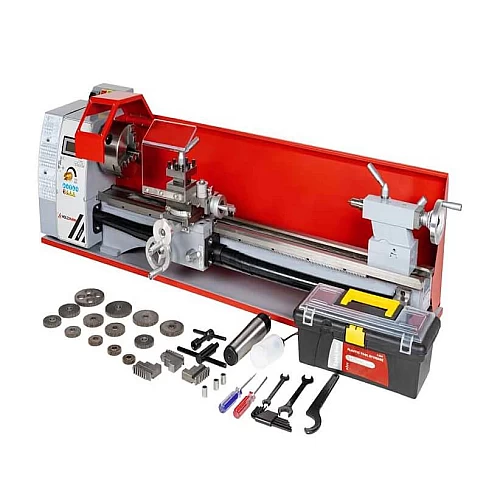

• Wide threading range with interchangeable gears.
• Induction-hardened and precision-ground prismatic bed guides for accuracy.
• High spindle concentricity for maximum machining precision.
• Digital speed display and stepless speed adjustment.
• Adjustable tailstock for taper turning.
• CW/CCW operation modes (direct and reverse rotation).

Technical Specifications:

Motor Data:

• Motor Power S1: 750 W
• Voltage: 230 V / 50 Hz

Dimensions:

• Total Dimensions (mm): 1200 x 340 x 360

Machining Parameters:

• Distance Between Centers (mm): 735
• Maximum Diameter Over Bed (mm): 210
• Maximum Diameter Over Cross Slide (mm): 140
• Spindle Speed (rpm): 50–2500
• Spindle Bore (mm): 38
• Spindle Taper: MK5 / MT5
• Tailstock Taper: MK2 / MT2

Slide Parameters:

• Carriage Travel (mm): 736
• Cross Slide Travel (mm): 75
• Compound Slide Travel (mm): 55
• Tailstock Sleeve Travel: 55

Threading:

• Metric Threads (mm/rev): 0.3–3
• Inch Threads: 10–44 TPI
• Maximum Tool Holder Cross-Section (mm): 12 x 12

Noise Level:

• Sound Pressure Level: 70 dB(A)

Weight:

• Net Weight: 79 kg
• Gross Weight: 90 kg

Packaging:

• Packaging Width (mm): 450
• Packaging Length (mm): 1220
• Packaging Height (mm): 450
