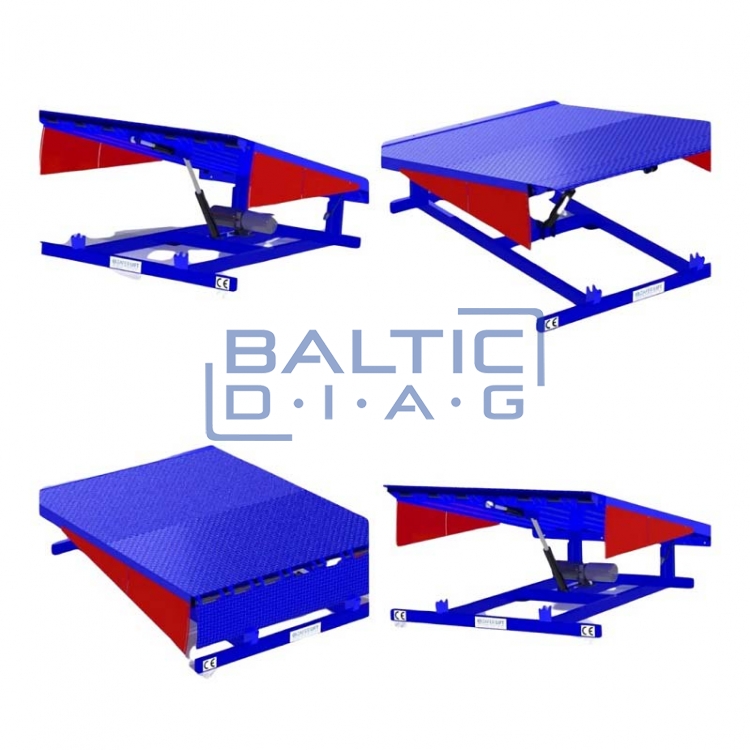

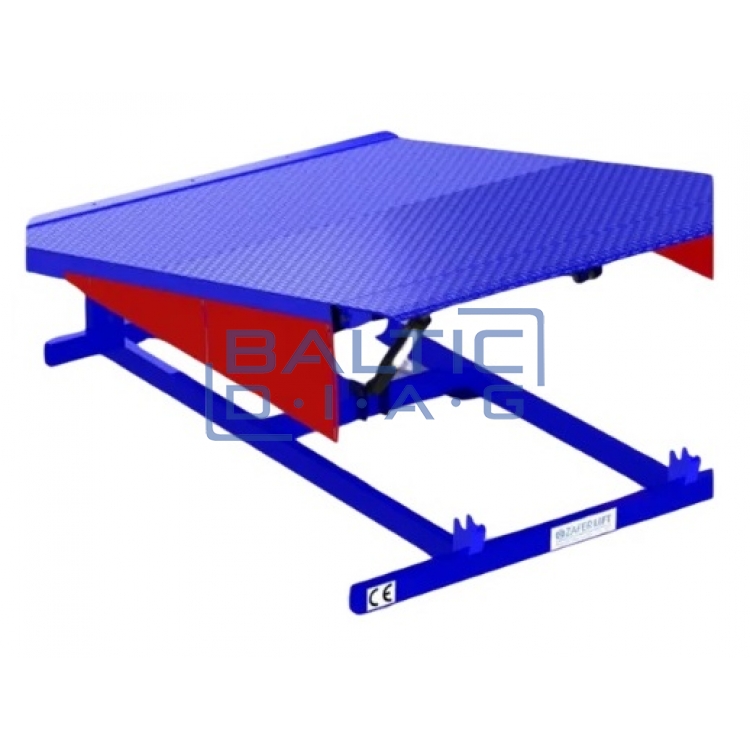

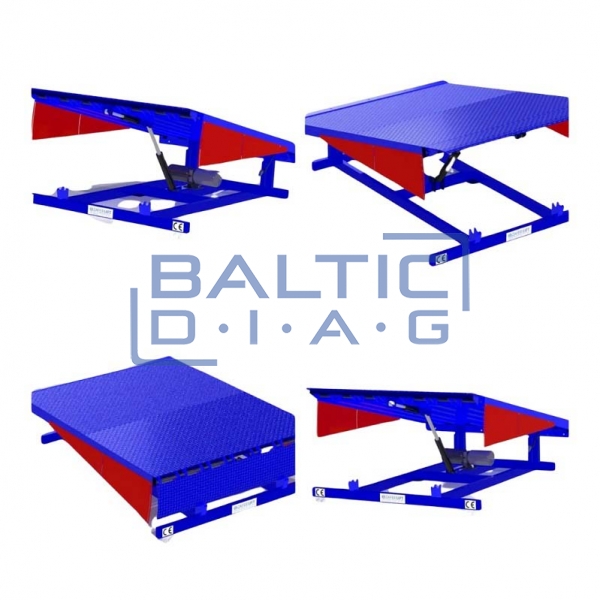

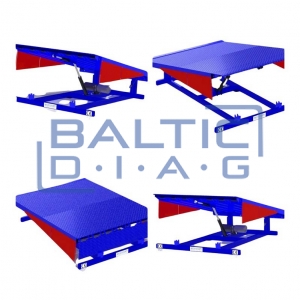

Platform loading ramp Zafer

Platform loading ramp Zafer

This platform loading ramp is a reliable and efficient solution to ensure the smooth and safe transshipment of goods between trucks and logistics warehouses or other loading points. The ramp can automatically adjust to different truck heights, ensuring fast and convenient cargo movement. A hydraulic ramp is an indispensable solution in any company that requires reliable and efficient transshipment of goods between surfaces of different levels. This device helps optimize work processes and increases work productivity.

Features:

• Shortens loading time and increases work efficiency
• Wide lifting range, so it can easily adapt to different vehicles for loading and unloading
• Easy operation due to hydraulic and electrical compatibility
• Protects the loader from slipping due to the drop pattern on the lifting platform
• Due to its design, it can automatically adjust its height according to the height of the vehicle
• Ensures safe use, even when stopped in any position.
• Wide possibilities to adjust the dimensions of the loading ramp according to your needs

Technical parameters:

• Dimensions: 2000 x 2500 mm
• Pit dimensions: 2040 x 2520 mm
• Maximum lifting height: 650 mm
• Maximum lowering height: -300 mm
• Motor power: 1.1 kW
• Maximum load capacity: 6000 kg
• Operating temperature: - 10 °C / + 40 °C
• Control panel protection class: IP55
• Color code: RAL5017
• Platform material: 6/7 drop pattern metal sheet
• Tongue Material: 12/13 drop pattern sheet metal
• Supply voltage: 400 V / 50 Hz / 3 fz

Standard equipment:

• 90 x 100 x 300 mm rubber ramp wedges
• Hydraulic system
• Hydraulic compound control system
• Side protection panels that protect your legs
• Drop pattern panels that provide much better grip
• Hydraulic oil is driven by the wheel, even when the lift is raised to the maximum position
• Additional tongue support that prevents it from bending in the locked position
• Possibility to stop the lift in any position
